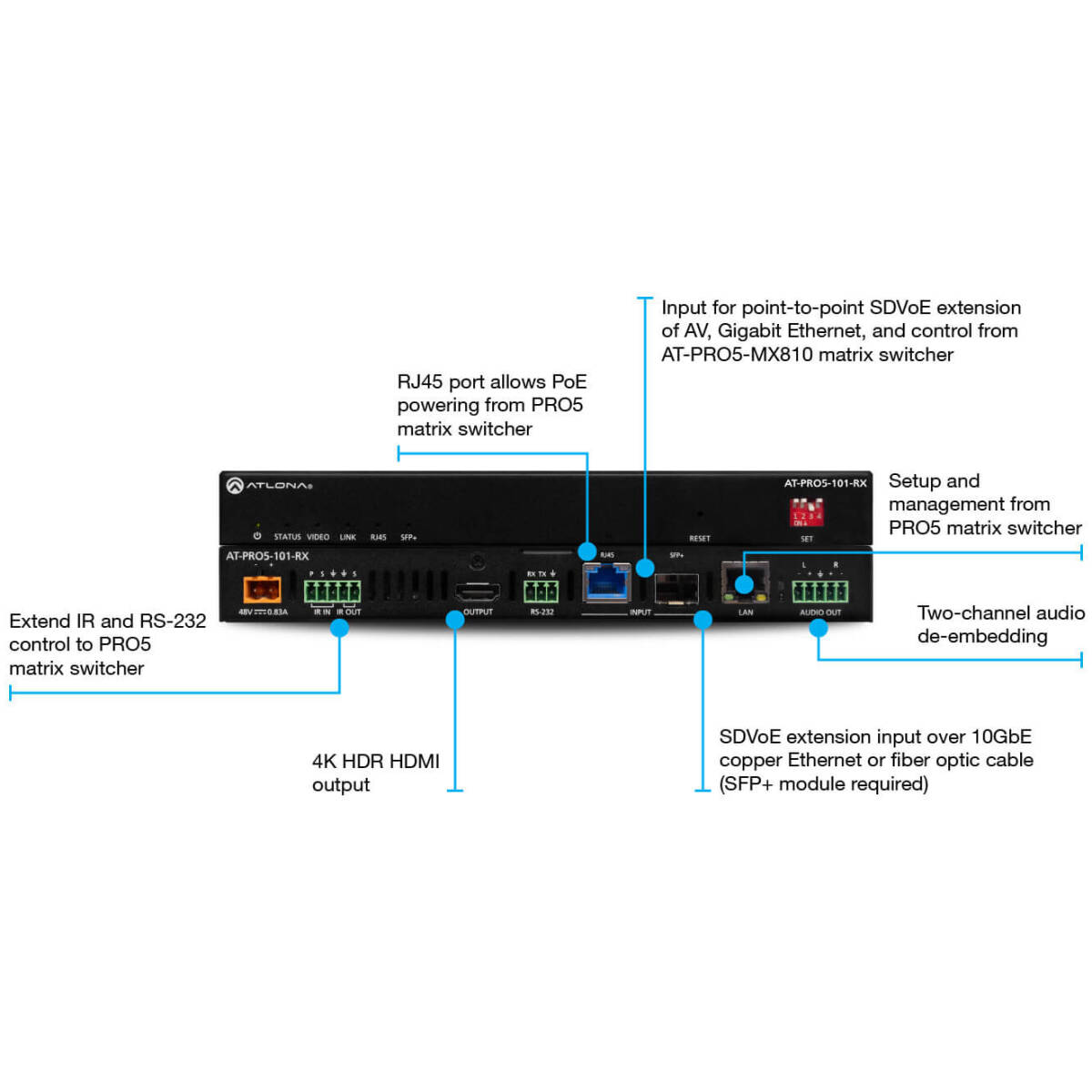

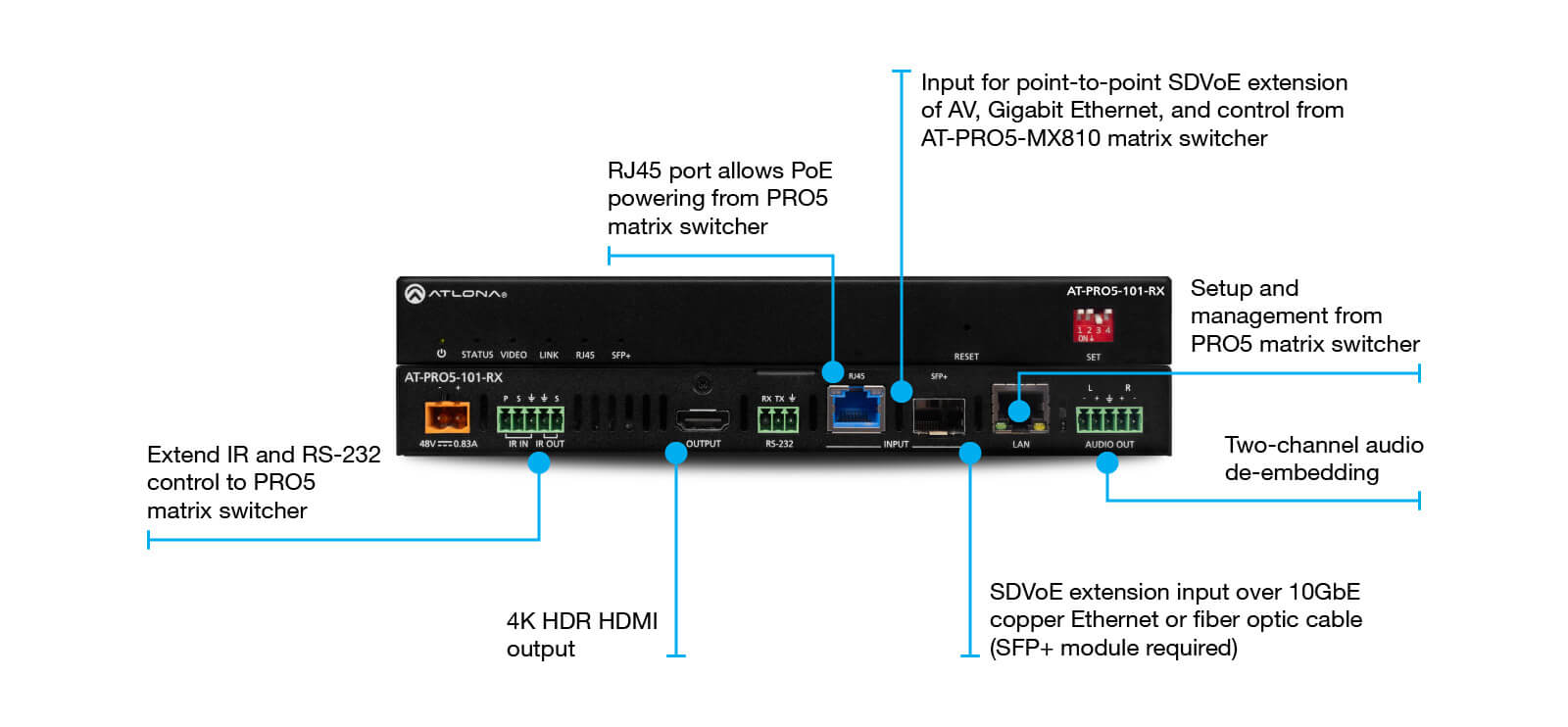

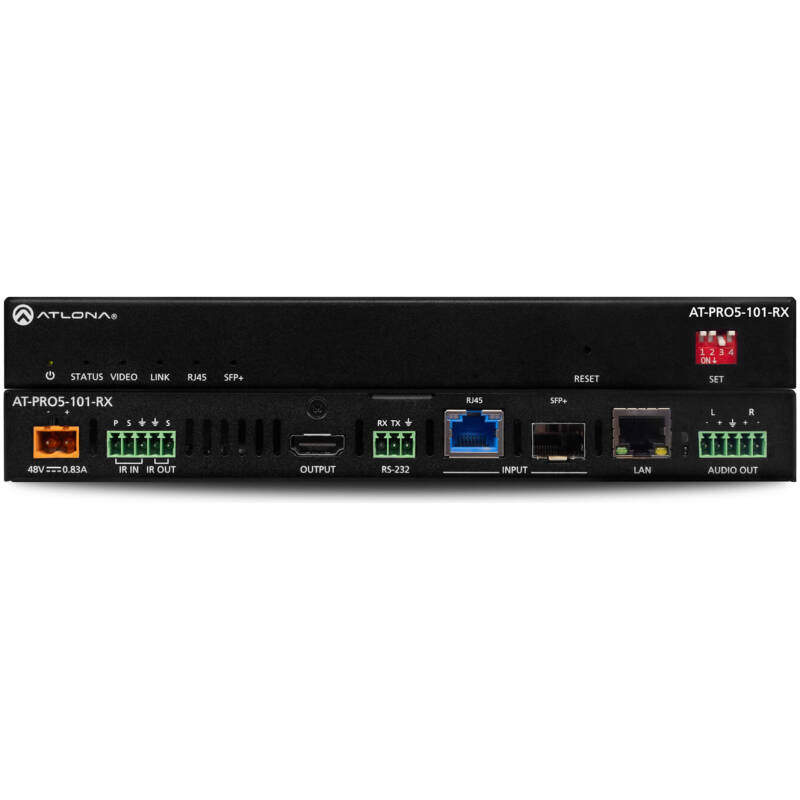

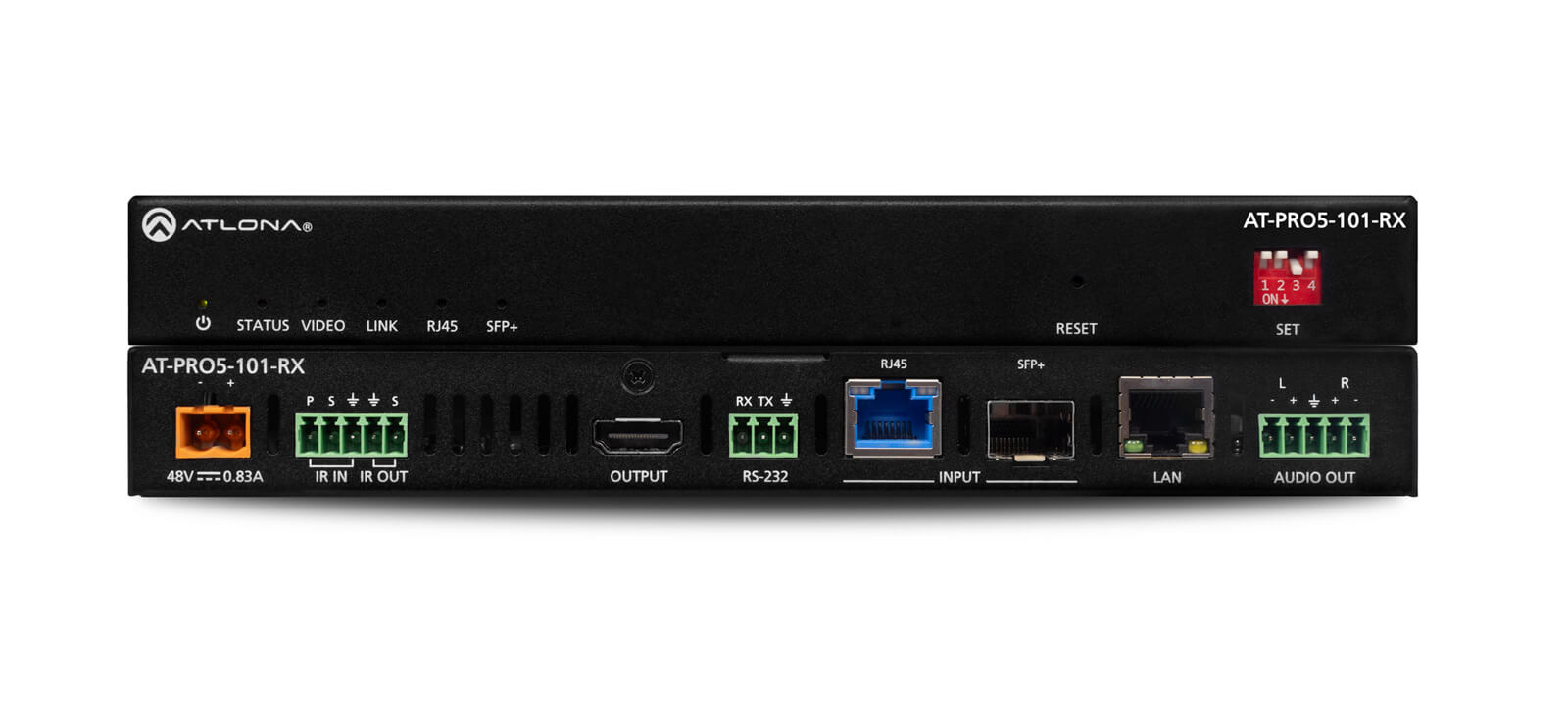

Atlona AT-PRO5-101-RX 4K HDR SDVoE Receiver For PRO5 Matrix Switcher

The Atlona AT-PRO5-101-RX is a HDBaseT receiver designed for the Atlona PRO5 Series AV distribution systems. It receives video, audio, and control signals over a single category cable from a compatible HDBaseT transmitter and outputs the signal via HDMI to a display.

The receiver supports 4K/UHD video and HDCP 2.2, making it suitable for conference rooms, classrooms, control rooms, and professional AV installations where displays are located away from source equipment.

Key Features

• HDBaseT receiver for Atlona PRO5 Series systems

• Supports 4K/UHD up to 4K/60 4:2:0

• Transmission distance up to 70 m over Cat6a/7 cable

• HDCP 2.2 compliant

• Bidirectional RS-232 pass-through

• IR pass-through support

• Ethernet extension over HDBaseT

• Compact design for behind-display installation

Technical Specifications

Video

• HDBaseT Input: 1 × RJ45

• HDMI Output: 1 × HDMI Type-A

• Maximum Resolution: 4K/UHD @ 60 Hz (4:2:0)

• HDCP: HDCP 2.2 compliant

Transmission

• Technology: HDBaseT

• Maximum Distance:

  • 70 m for 1080p

  • 40 m for 4K

• Cable Type: Cat6a / Cat7

Control

• RS-232 pass-through

• IR pass-through

• Ethernet extension

Power

• Powered via PoE from compatible Atlona transmitter
