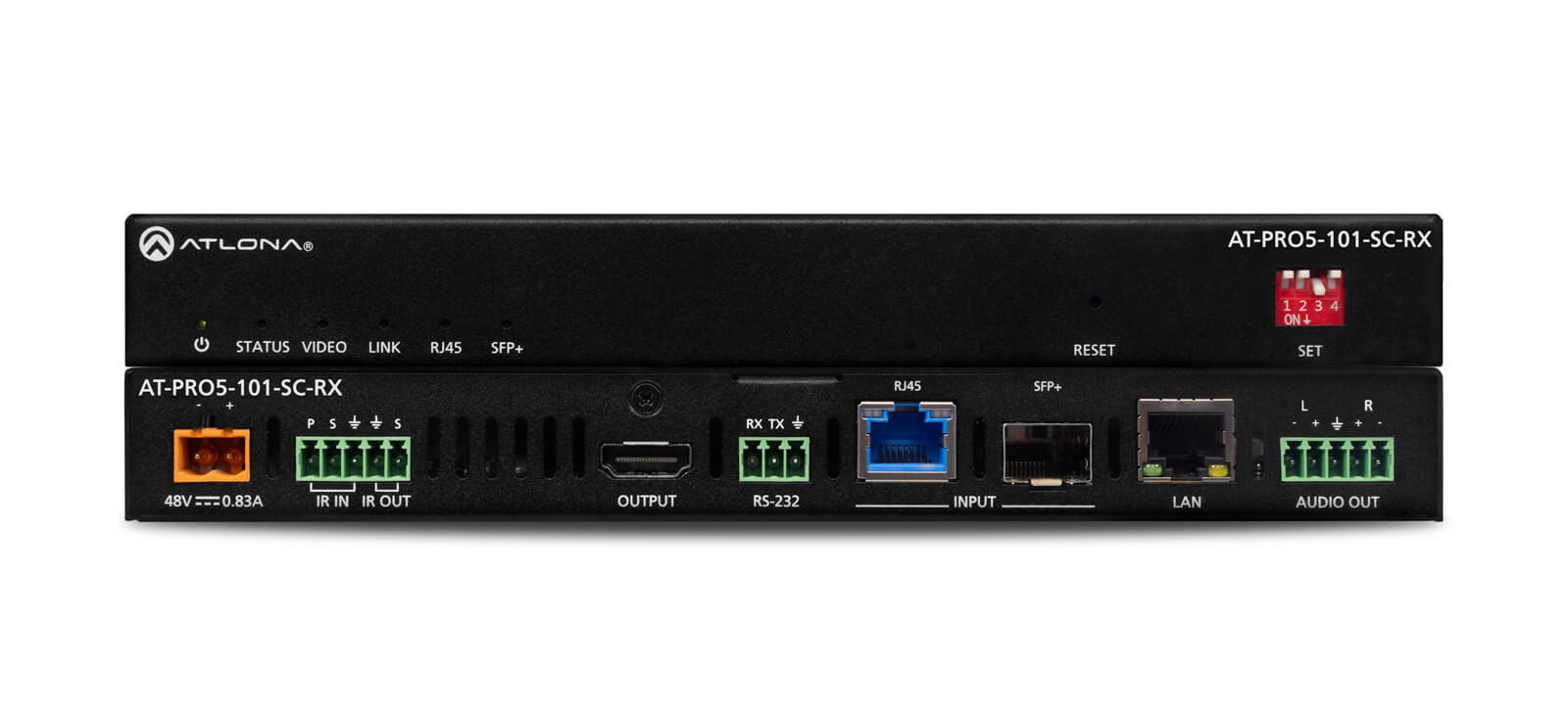

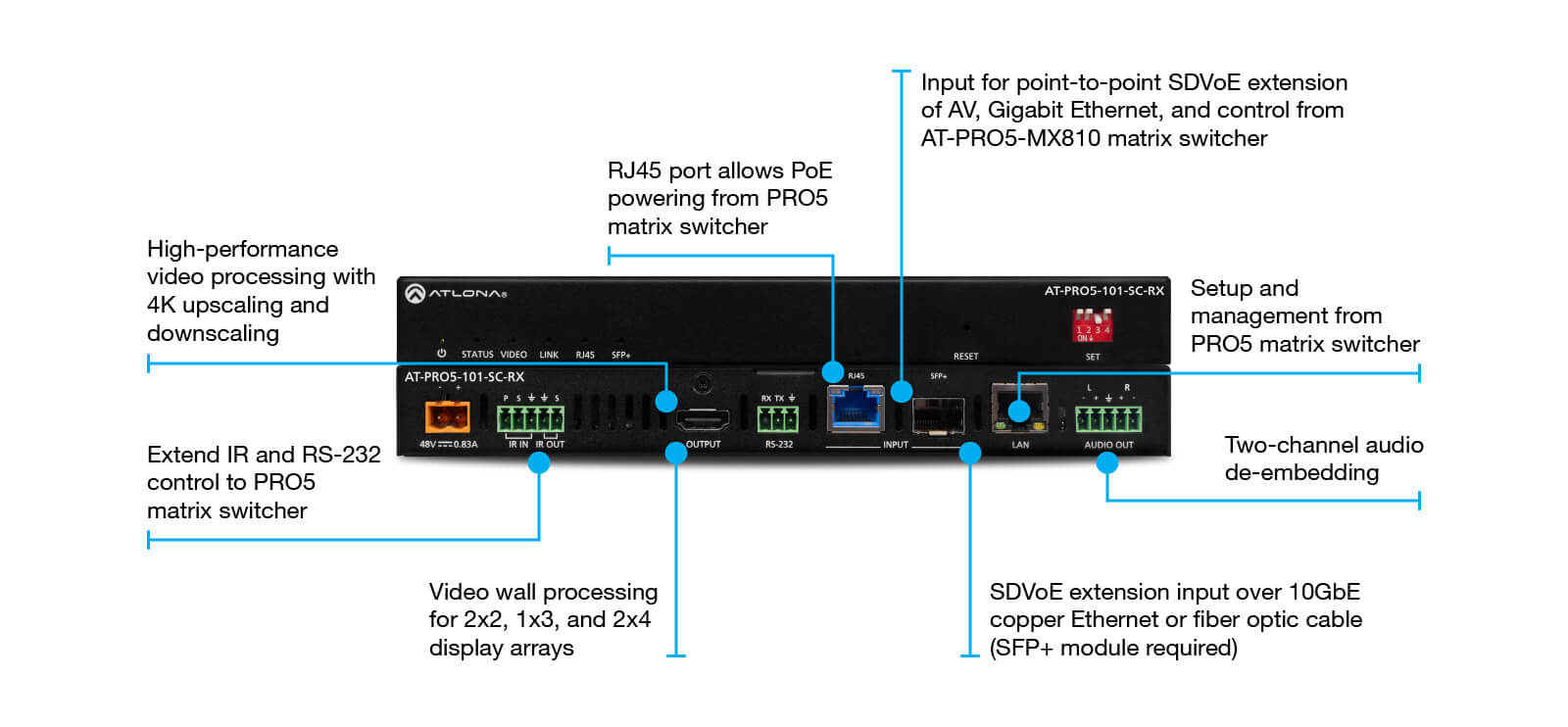

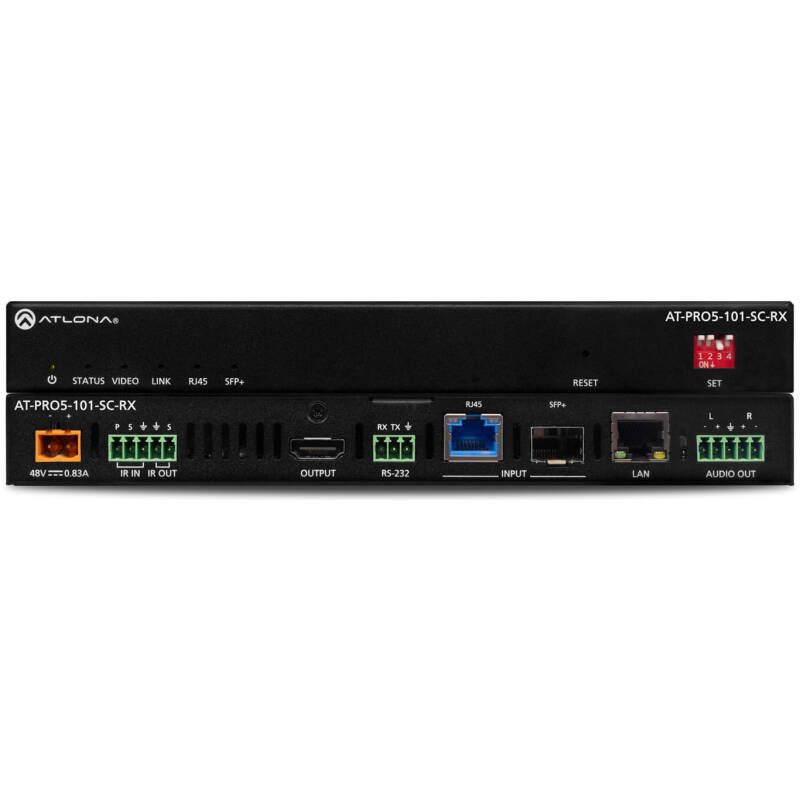

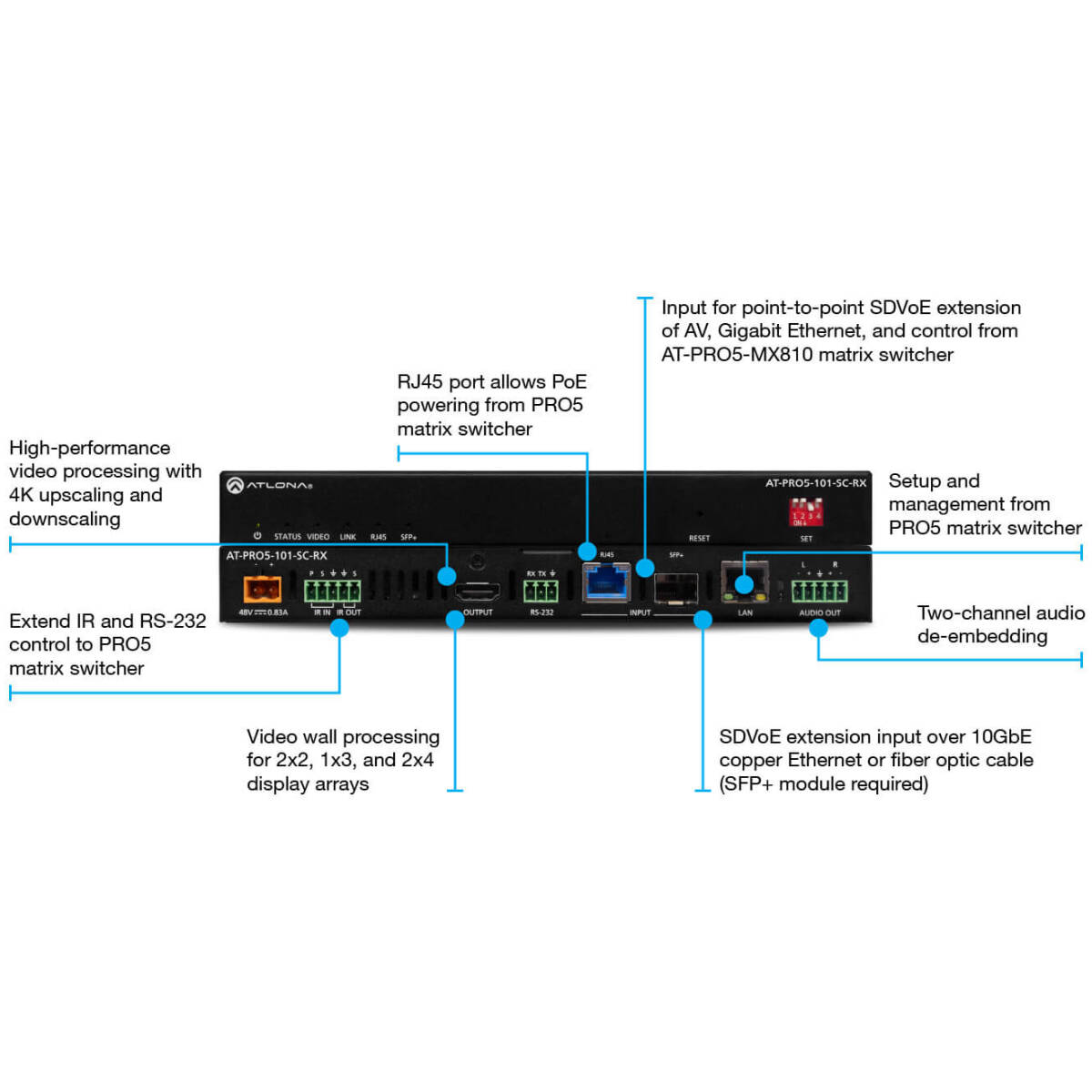

AT-PRO5-101-SC-RX 4K HDR SDVoE Receiver With Scaler For PRO5 Matrix Switcher

The Atlona AT-PRO5-101-SC-RX is a HDBaseT receiver with integrated video scaler designed for Atlona PRO5 Series AV distribution systems. It receives video, audio, and control signals over a single category cable from a compatible transmitter and outputs the signal via HDMI to a display.

The built-in scaler allows the receiver to adjust incoming video signals to match the native resolution of the connected display, ensuring optimal compatibility and image quality. This makes it ideal for conference rooms, classrooms, and professional AV installations where multiple display types may be used.

Key Features

• HDBaseT receiver with integrated video scaler

• Supports 4K/UHD up to 4K/60 4:2:0

• Transmission distance up to 70 m over Cat6a/7 cable

• HDCP 2.2 compliant

• Video scaling for display compatibility

• RS-232 and IR pass-through

• Ethernet extension over HDBaseT

• Compact design for behind-display installation

Technical Specifications

Video

• HDBaseT Input: 1 × RJ45

• HDMI Output: 1 × HDMI Type-A

• Maximum Resolution: 4K/UHD @ 60 Hz (4:2:0)

• Scaler: Integrated video scaling

• HDCP: HDCP 2.2 compliant

Transmission

• Technology: HDBaseT

• Maximum Distance:

  • 70 m for 1080p

  • 40 m for 4K

• Cable Type: Cat6a / Cat7

Control

• RS-232 pass-through

• IR pass-through

• Ethernet extension

Power

• Powered via PoE from compatible Atlona transmitter
