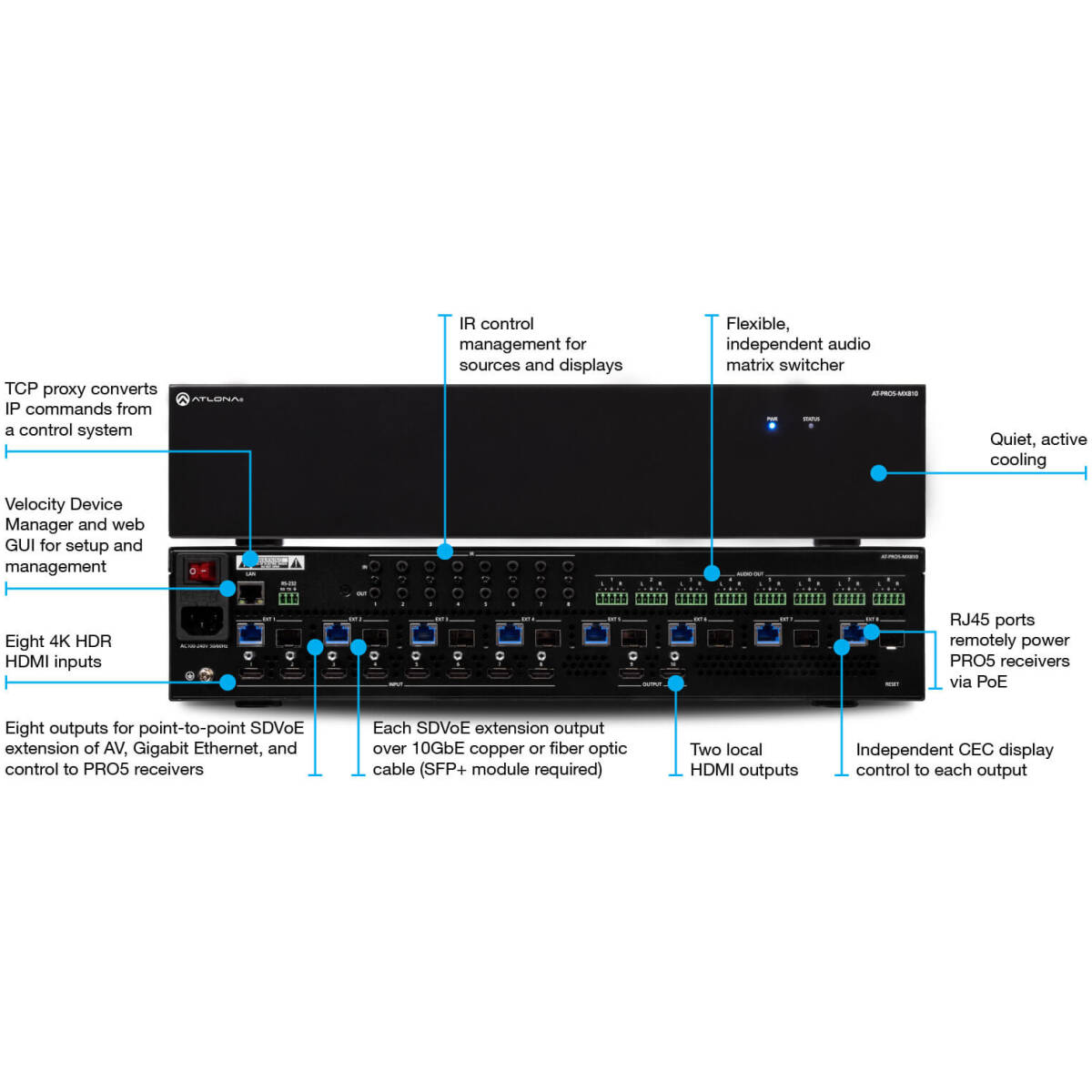

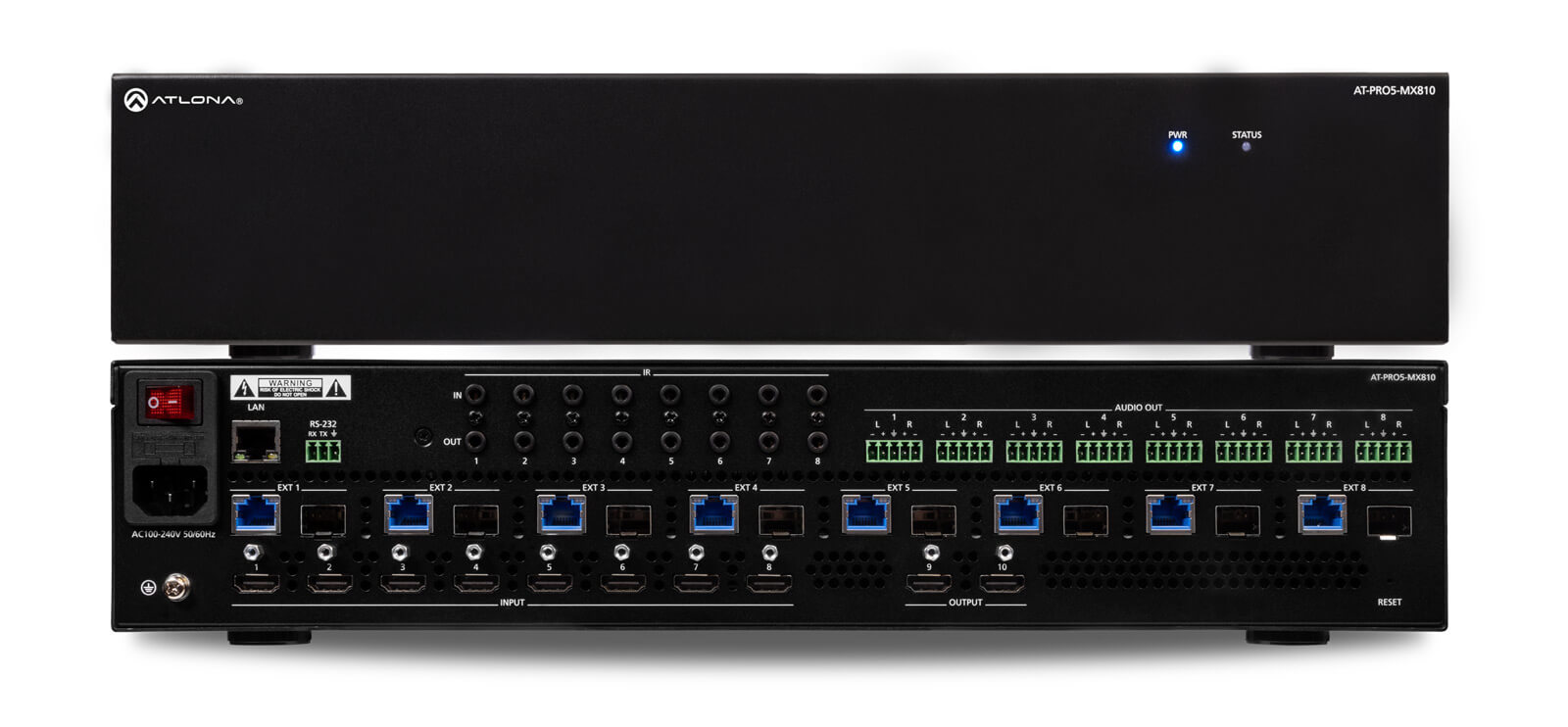

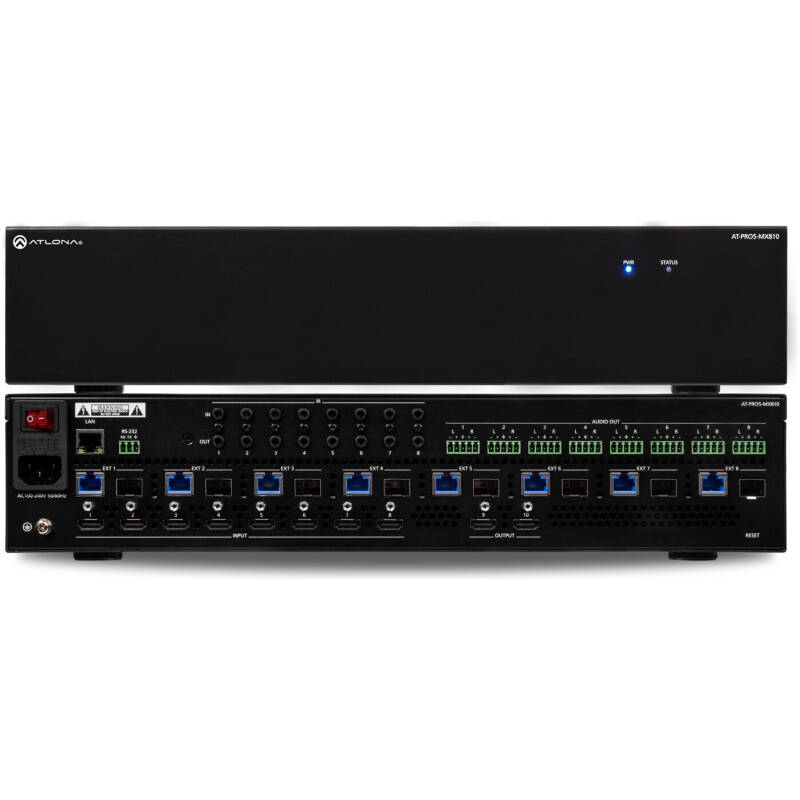

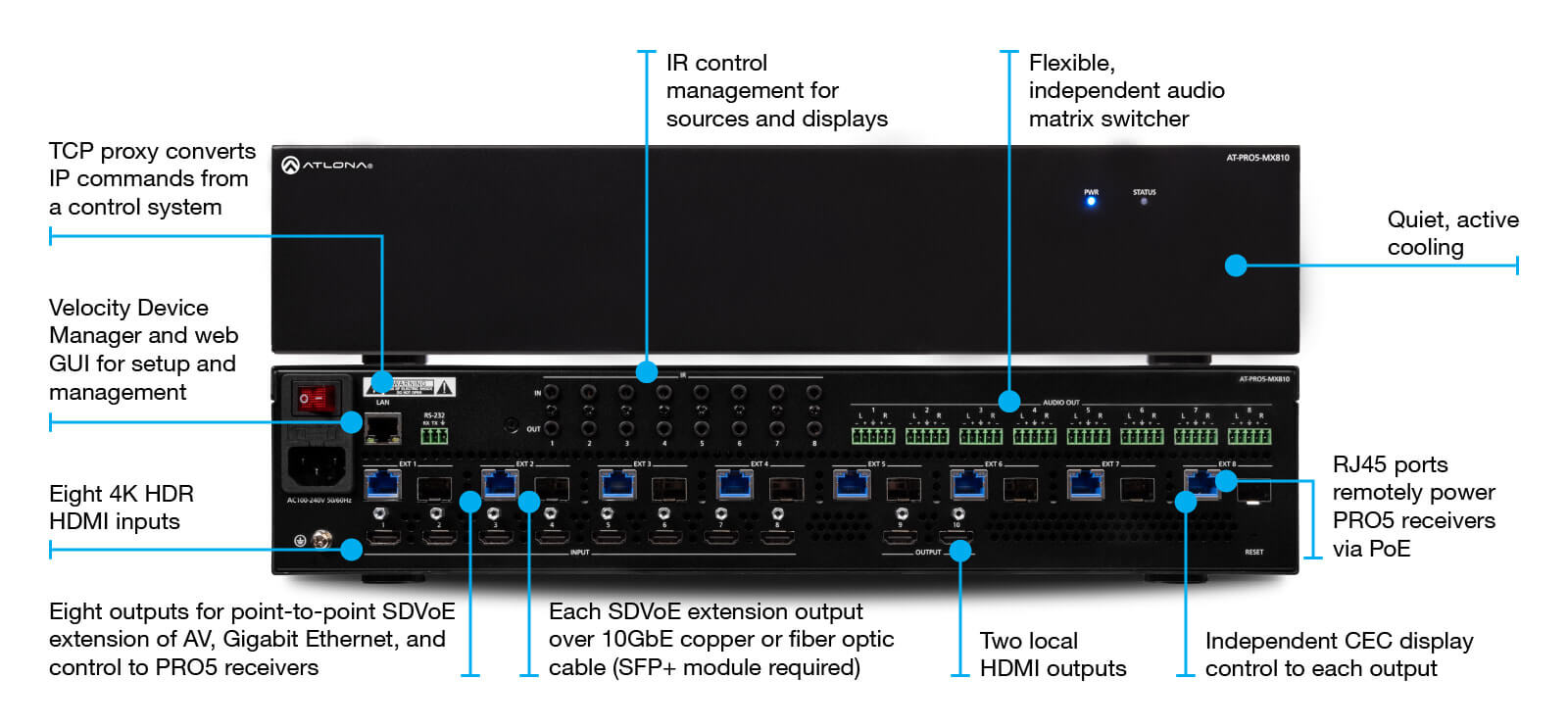

Atlona AT-PRO5-MX810 4K HDR HDMI Matrix Switcher With SDVoE Extension Outputs

The Atlona AT-PRO5-MX810 is a professional 8×10 HDMI matrix switcher designed for advanced AV distribution systems in environments such as corporate facilities, control rooms, education campuses, and large digital signage networks.

The matrix allows up to eight HDMI sources to be routed independently to ten outputs, providing flexible distribution of AV signals. It supports 4K/UHD video, HDCP 2.2, and HDBaseT transmission, enabling long-distance connectivity to remote displays.

Key Features

• 8×10 HDMI matrix switcher

• Routes 8 sources to 10 outputs

• Supports 4K/UHD up to 4K/60

• HDCP 2.2 compliant

• HDBaseT outputs for long-distance AV transmission

• Audio de-embedding

• EDID management

• RS-232, Ethernet, and IR control

• Rack-mountable design

Technical Specifications

Video Inputs

• 8 × HDMI Type-A inputs

Video Outputs

• 8 × HDBaseT outputs (RJ45)

• 2 × HDMI outputs

Maximum Resolution

• 4K/UHD @ 60 Hz

Transmission

• Technology: HDBaseT

• Maximum Distance:

  • 70 m for 1080p

  • 40 m for 4K

• Cable Type: Cat6a / Cat7

Audio

• Audio de-embedding supported

• Digital and analog audio outputs

Control

• Front panel control

• RS-232 control

• TCP/IP Ethernet control

• IR remote support

• Web-based configuration interface

Power

• Internal power supply
