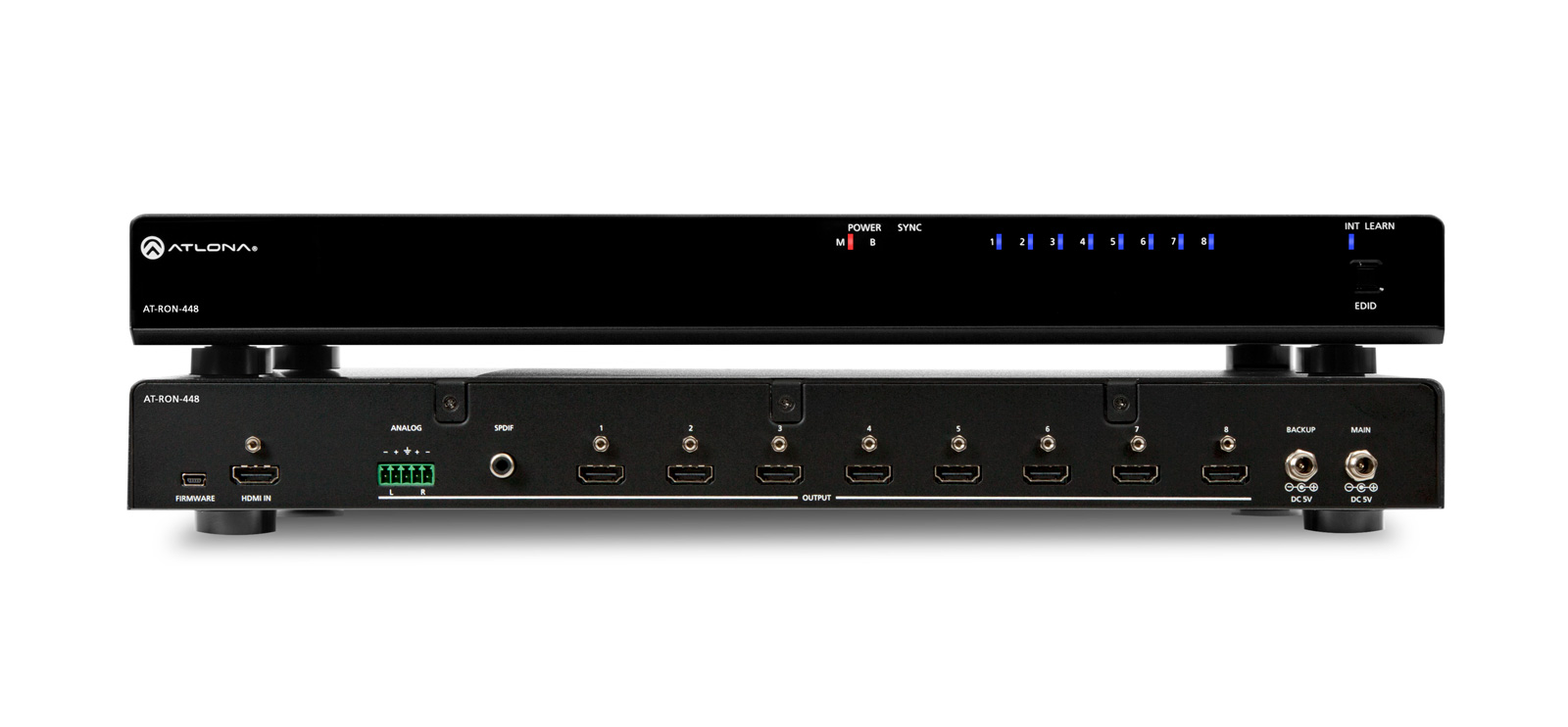

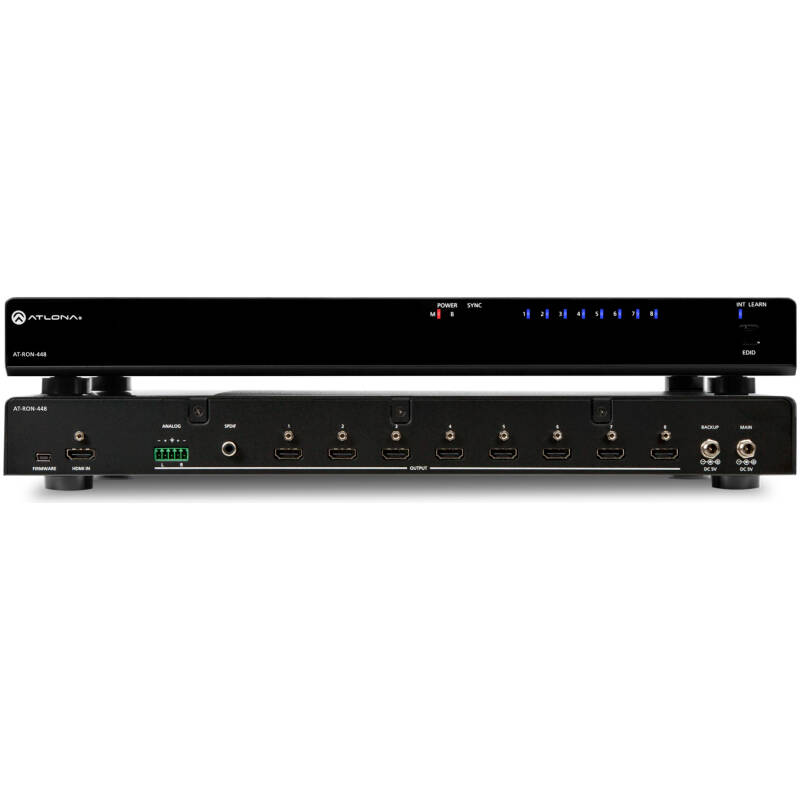

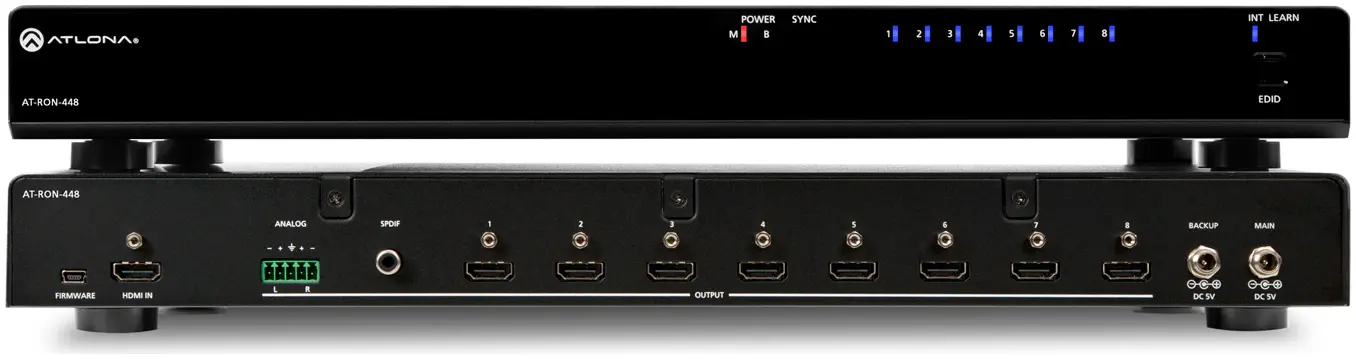

Atlona AT-RON-448 Ultra High Data Rate 1×8 HDMI Distribution Amplifier

The Atlona AT-RON-448 is a 1×8 HDMI distribution amplifier designed to distribute a single HDMI source to eight HDMI displays simultaneously. It supports ultra-high data rates and advanced HDMI formats, ensuring reliable performance in professional AV installations.

With support for 4K/UHD video, HDR formats, and HDCP 2.2, the AT-RON-448 is suitable for digital signage systems, control rooms, broadcast environments, conference facilities, and commercial AV systems where one source needs to feed multiple displays.

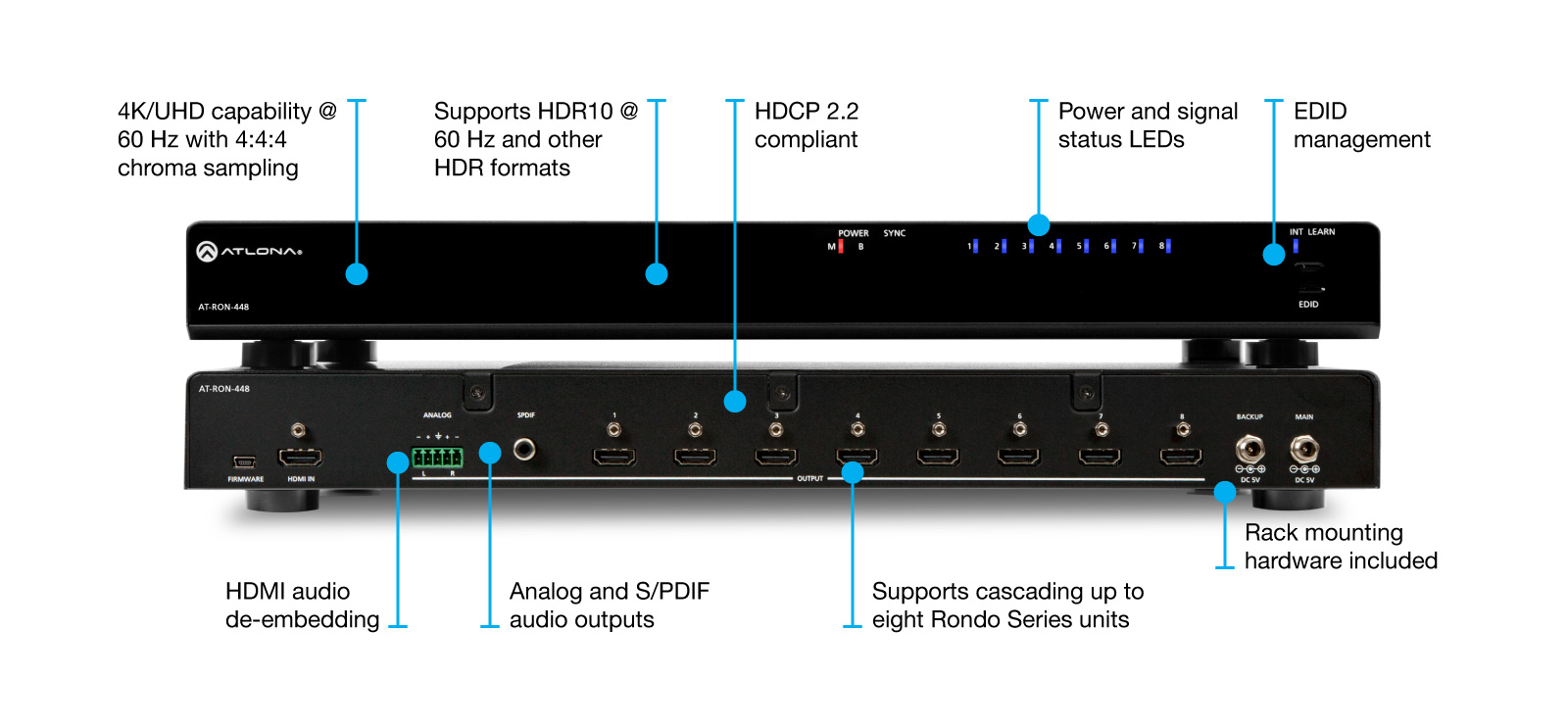

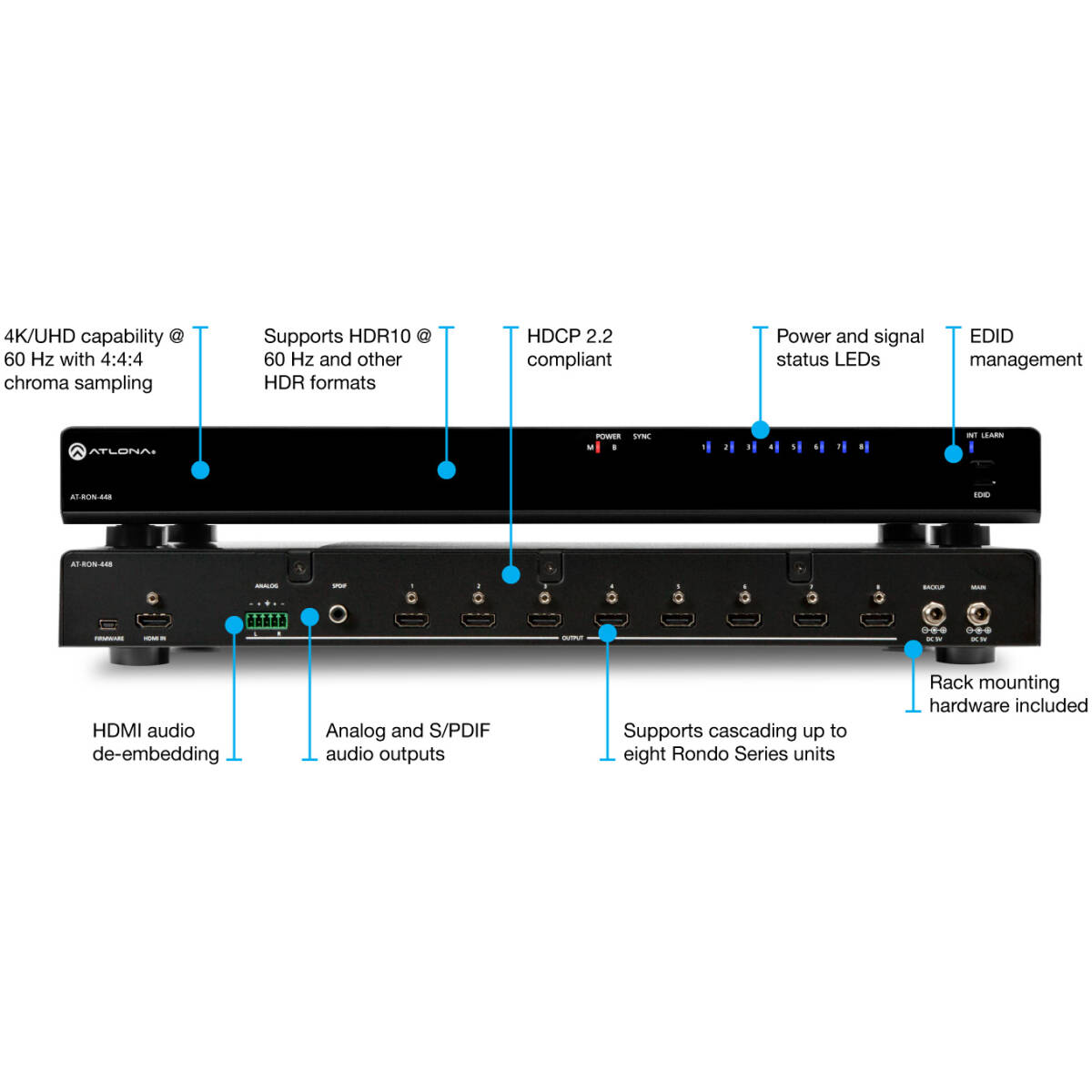

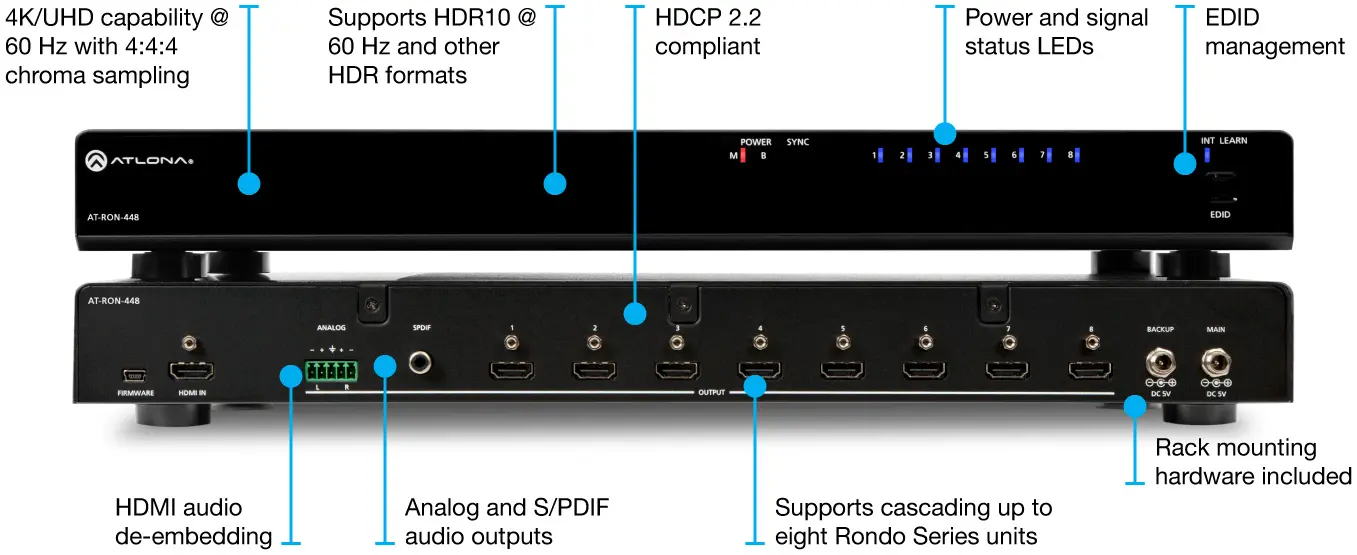

Key Features

• 1×8 HDMI distribution amplifier
• Distributes one HDMI source to eight displays
• Supports 4K/UHD up to 4K/60 4:4:4
• HDR compatible
• HDCP 2.2 compliant
• Ultra high data rate HDMI signal support
• EDID management
• Rack-mountable design for AV racks

Technical Specifications

Video

• HDMI Input: 1 × HDMI Type-A
• HDMI Outputs: 8 × HDMI Type-A
• Maximum Resolution: 4K/UHD @ 60 Hz (4:4:4)
• HDR Support: Yes
• HDCP: HDCP 2.2 compliant

Audio

• Supports HDMI embedded audio pass-through

Control

• EDID management for display compatibility

Power

• External power supply
