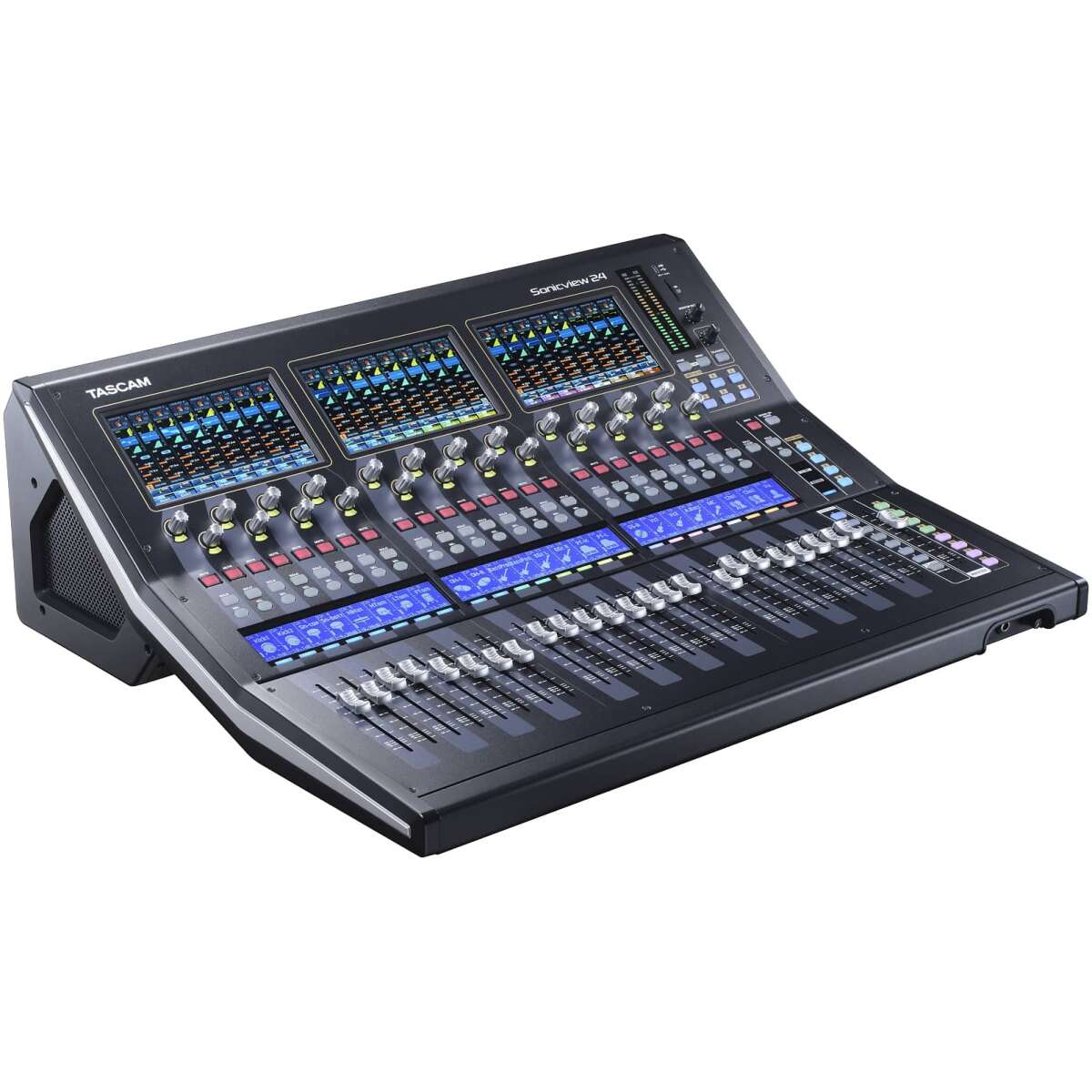

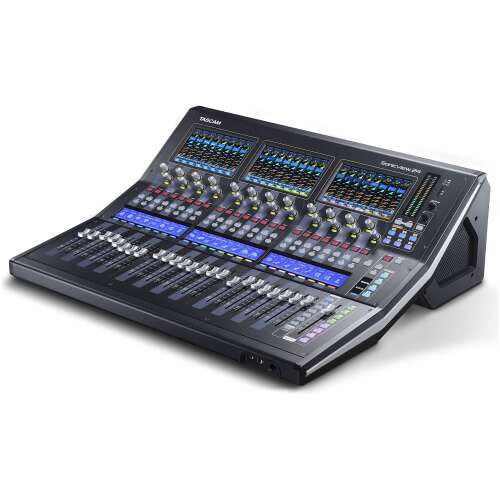

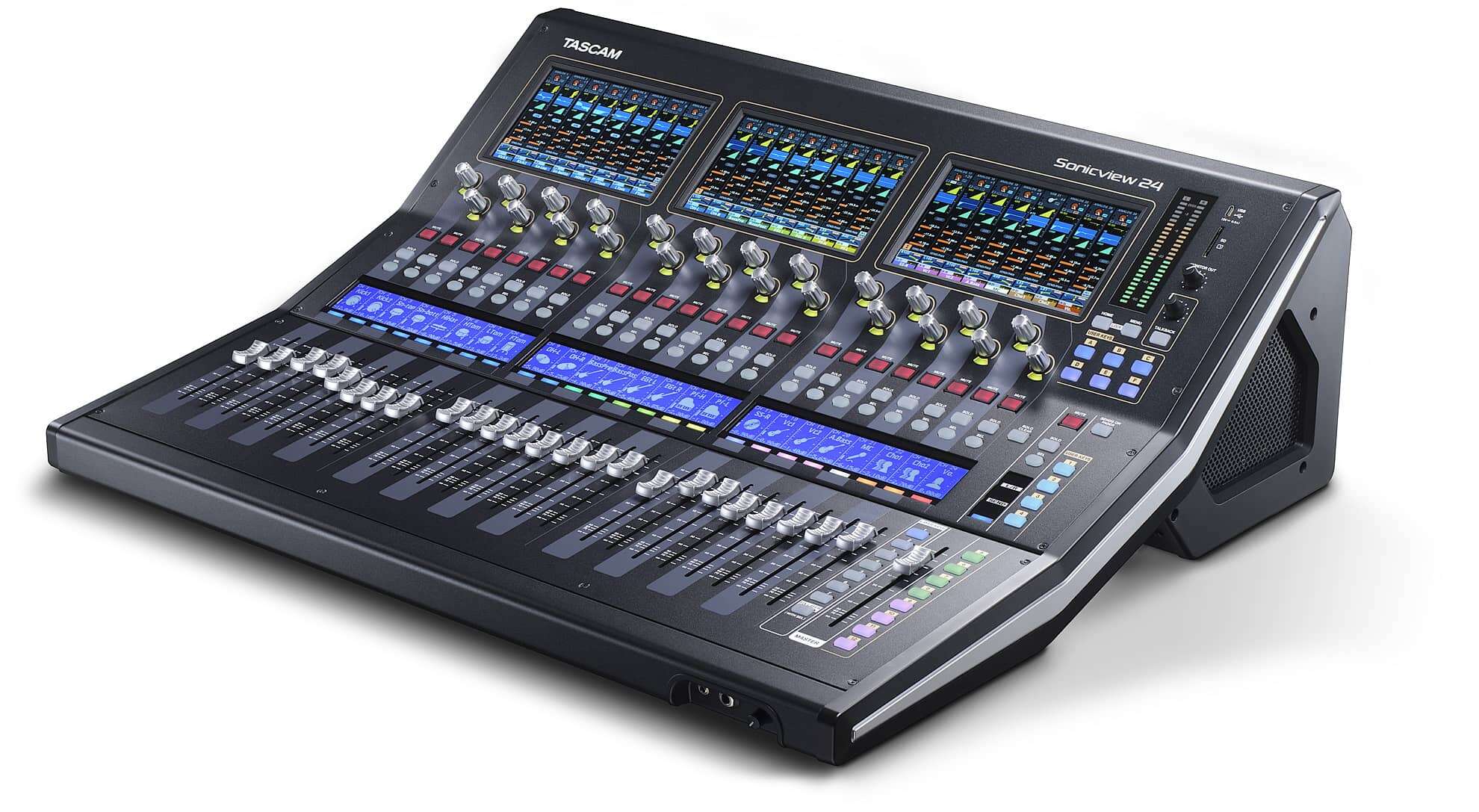

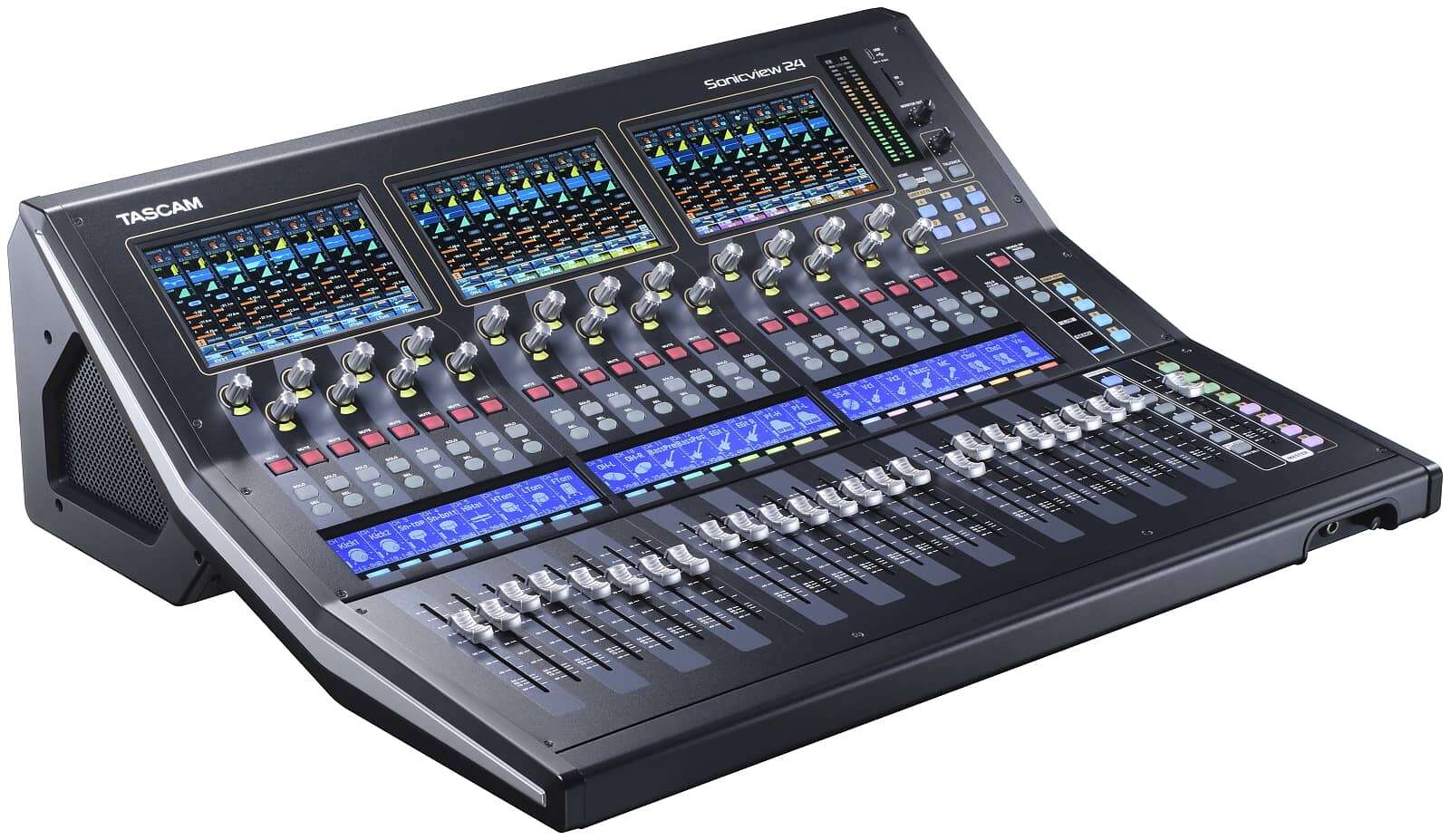

Tascam Sonicview 24 Interactive Digital Mixing Station

The TASCAM Sonicview 24 is a professional interactive digital mixing console designed for live sound, broadcast, recording, houses of worship, theatres and commercial audio installations.

It combines 24 Class 1 HDIA microphone preamps, three 7-inch colour touchscreens, 24 channel faders, a motorised master fader and a 96 kHz, 54-bit floating-point FPGA mixing engine. The console also includes Dante networking, a 32-input/32-output USB audio interface and a built-in stereo recorder.

Key Features

• 44 input channels
• 40 mono input channels
• Two stereo input channels
• Four stereo effects returns
• 24 Class 1 HDIA microphone preamps
• 24 balanced XLR mic/line inputs
• 24+1 motorised 100 mm faders
• Three 7-inch colour touchscreens
• 22 configurable Flex buses
• Main L/R stereo bus
• Four stereo effects processors
• 96 kHz, 54-bit floating-point FPGA mixer engine
• 32-bit/96 kHz analogue-to-digital conversion
• 24-bit/96 kHz digital-to-analogue conversion
• Built-in 64-input/64-output Dante interface at 48 kHz
• Built-in 32-input/32-output Dante interface at 96 kHz
• 32-input/32-output USB audio interface

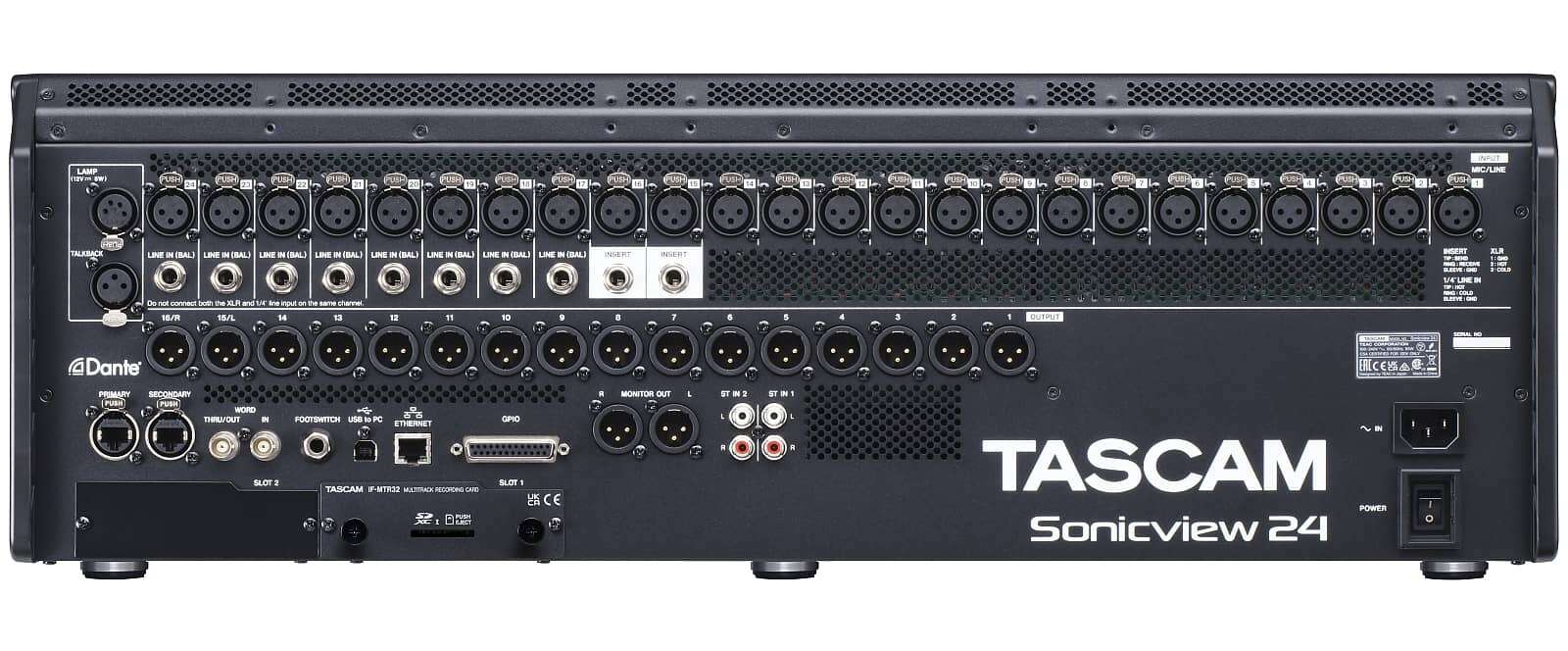

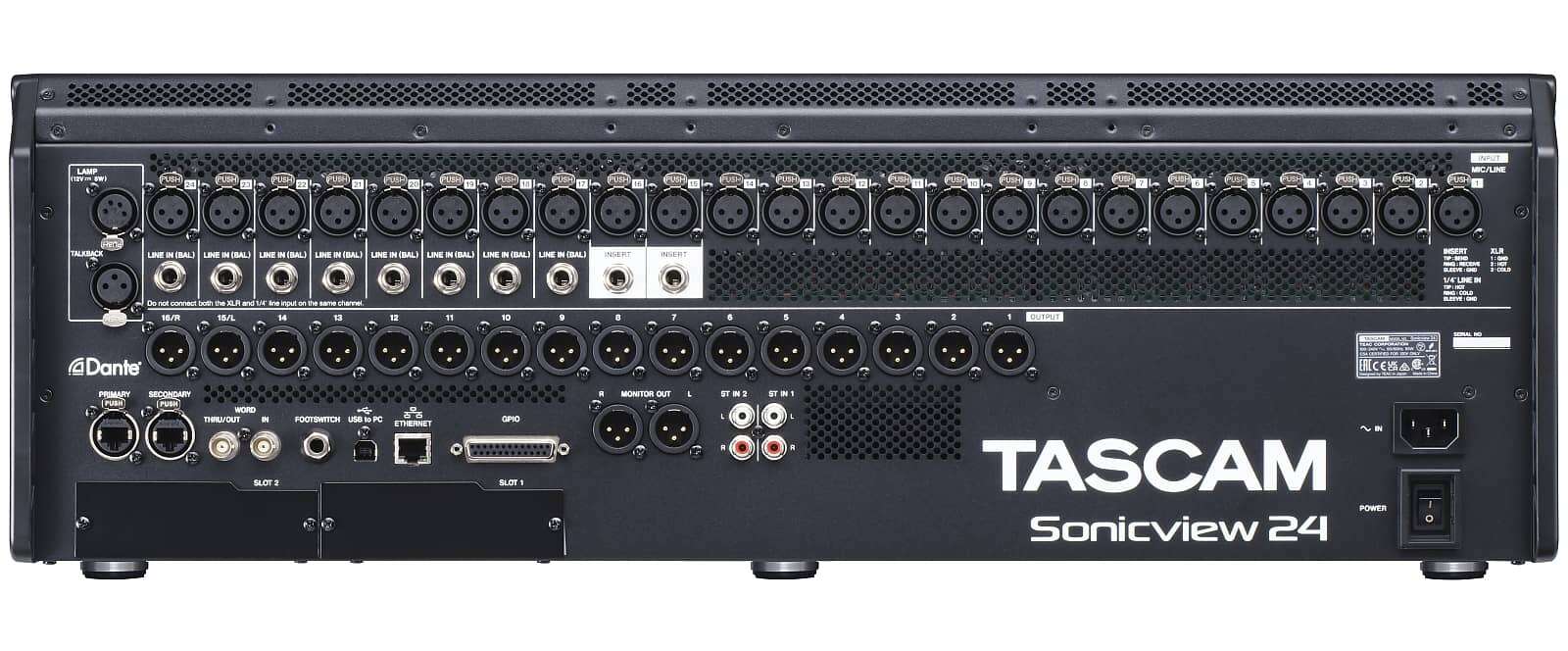

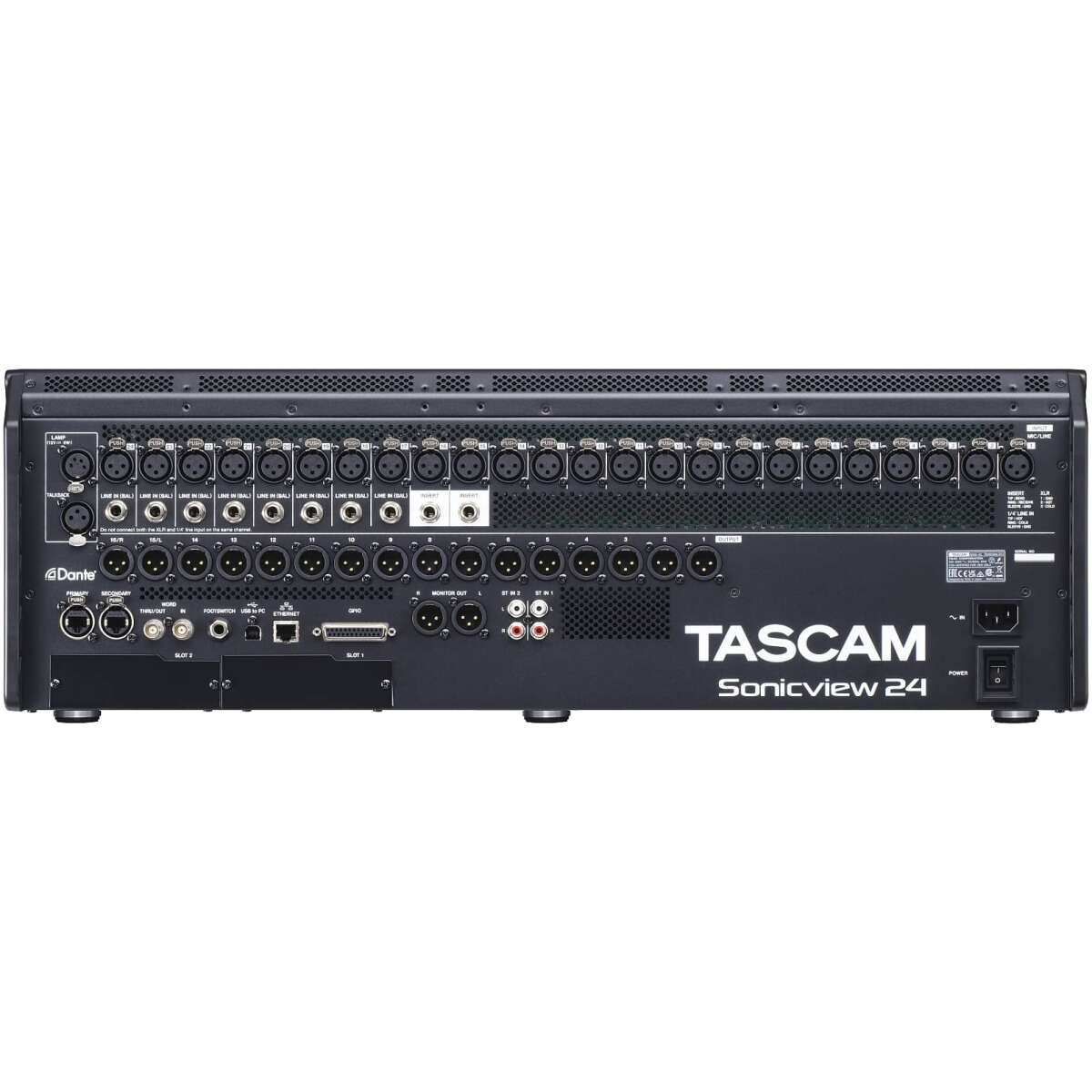

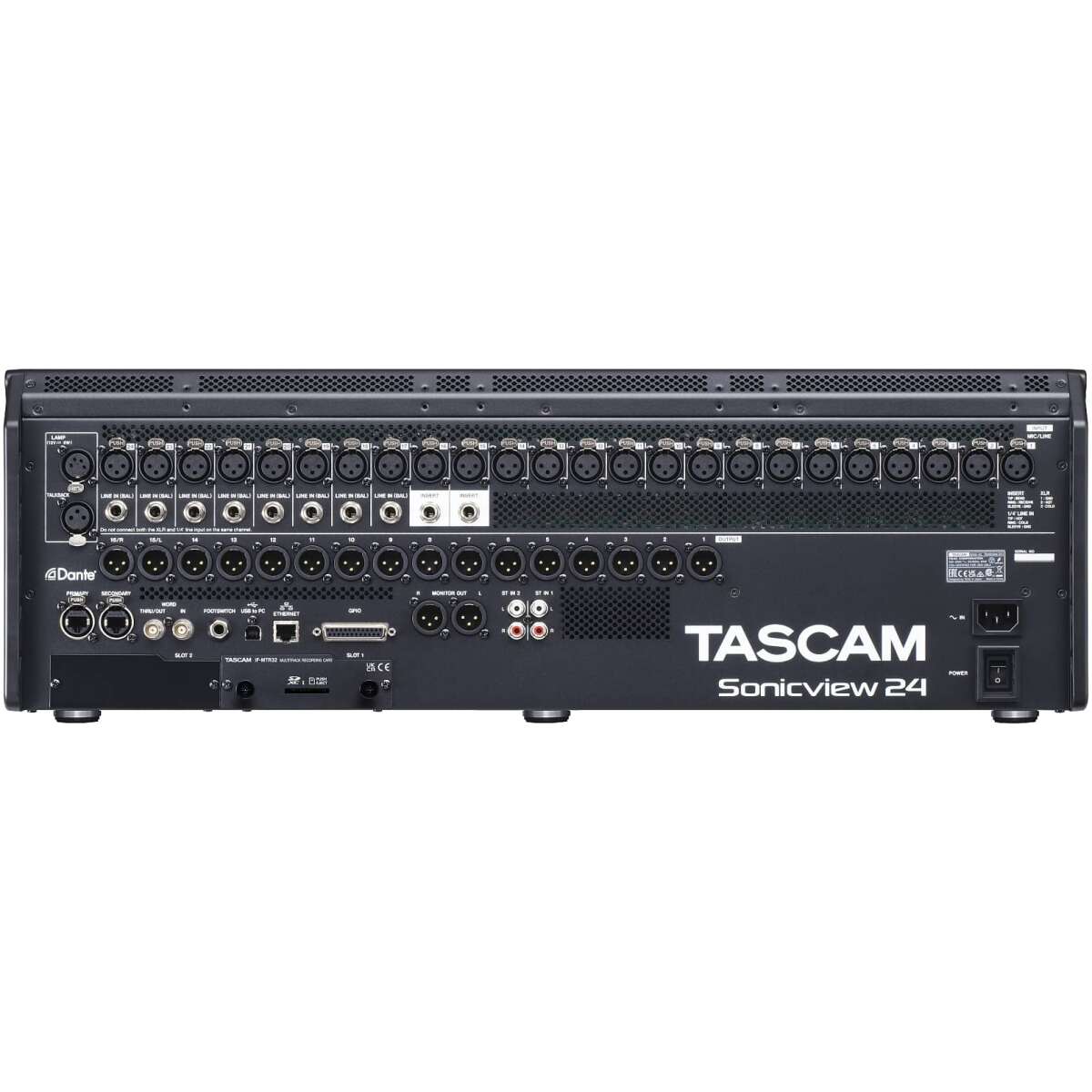

• 16 balanced XLR analogue outputs
• Two expansion-card slots
• Built-in SD and USB stereo recorder/player
• Remote control and offline editing
• 18 assignable User Keys
• Seven custom fader layers
• Eight DCA groups

Mixing Capacity

Input channels:

• 40 mono input channels
• Two stereo input channels
• Four stereo effects-return modules

Output buses:

• 22 Flex buses
• Main L/R stereo bus
• Four stereo effects-send buses

Each Flex bus can be configured as an auxiliary bus, subgroup or matrix, allowing the console to handle monitor mixes, in-ear systems, recording feeds and multi-zone audio distribution.

TASCAM VIEW Interface

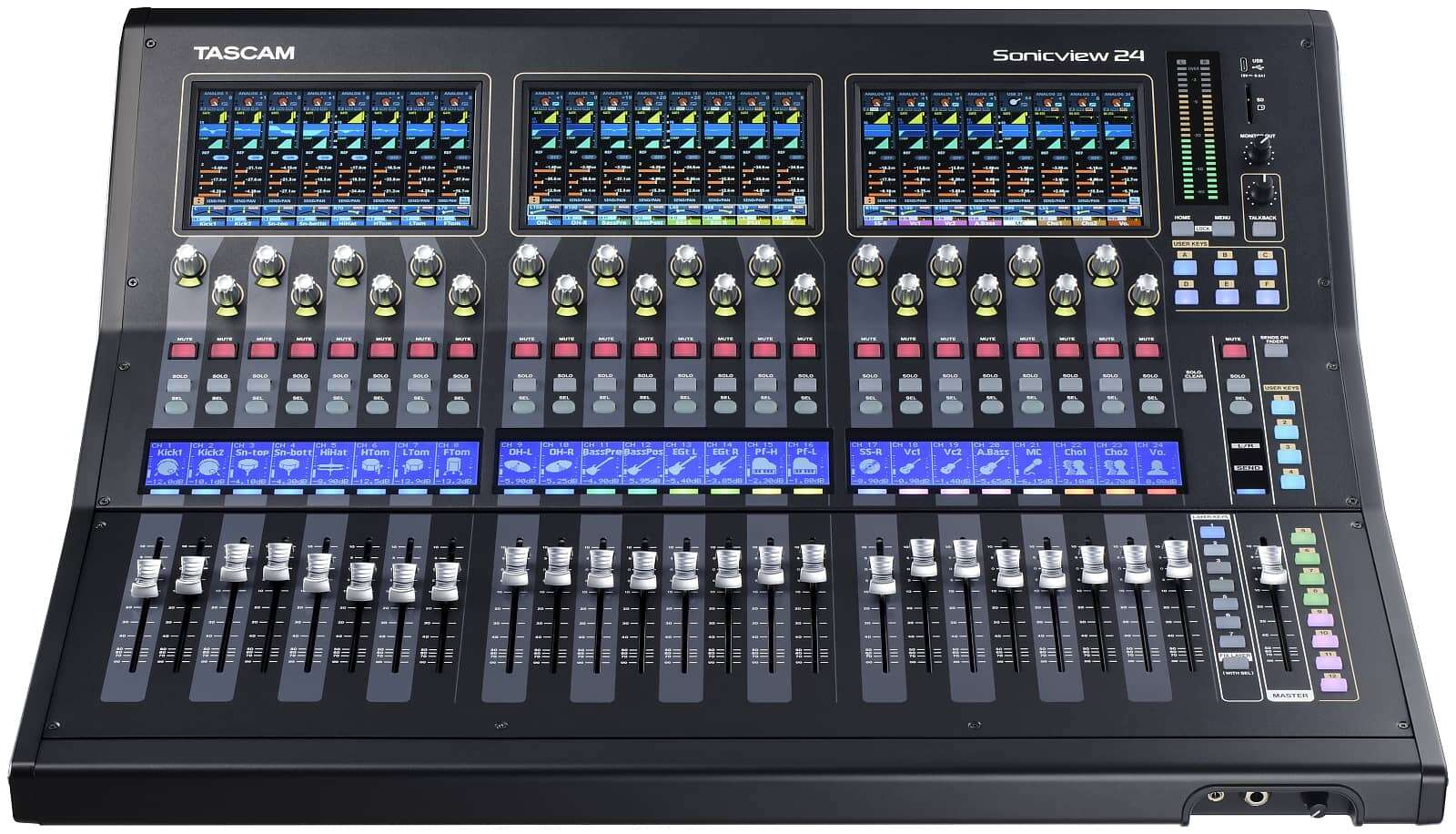

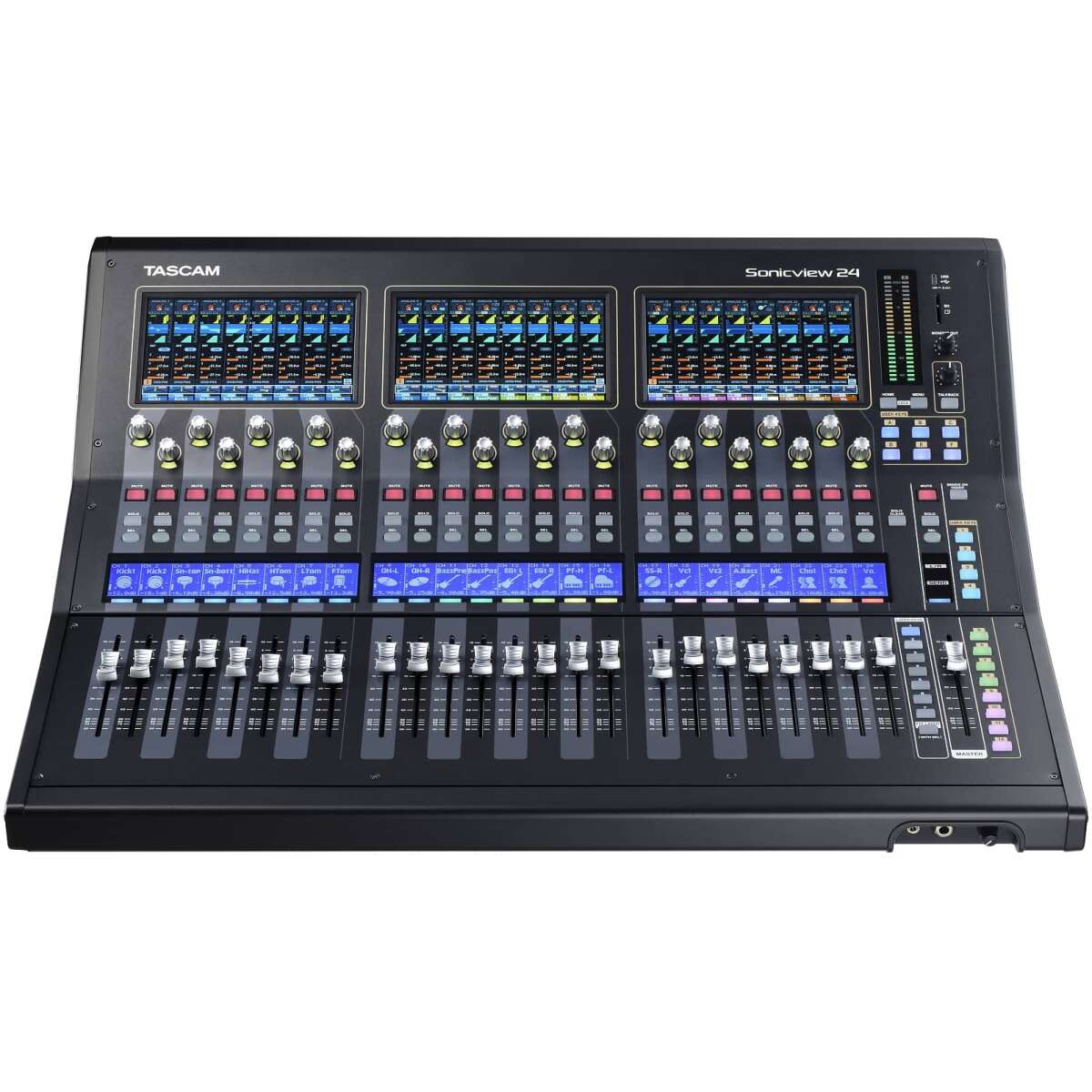

The TASCAM VIEW interface combines touch control with physical encoders, motorised faders and channel-name displays.

The Sonicview 24 has three independently configurable 7-inch touchscreens. This allows different mixer sections, processing pages and meters to be displayed simultaneously.

Available display modes include:

• Channel Strip View
• Module View
• Individual View

Motorised Faders

The control surface provides:

• 24 motorised channel faders
• One motorised stereo master fader
• 100 mm fader travel
• Sends-on-fader operation
• Seven programmable custom fader layers

The faders automatically move to the correct positions when changing layers, buses or mixer snapshots.

Mixer Engine and Latency

Internal processing:

• 96 kHz
• 54-bit floating-point FPGA mixer engine

Mixer-engine latency:

• Two samples
• Approximately 20.8 microseconds

Analogue-input-to-analogue-output latency:

• Approximately 0.51 ms
