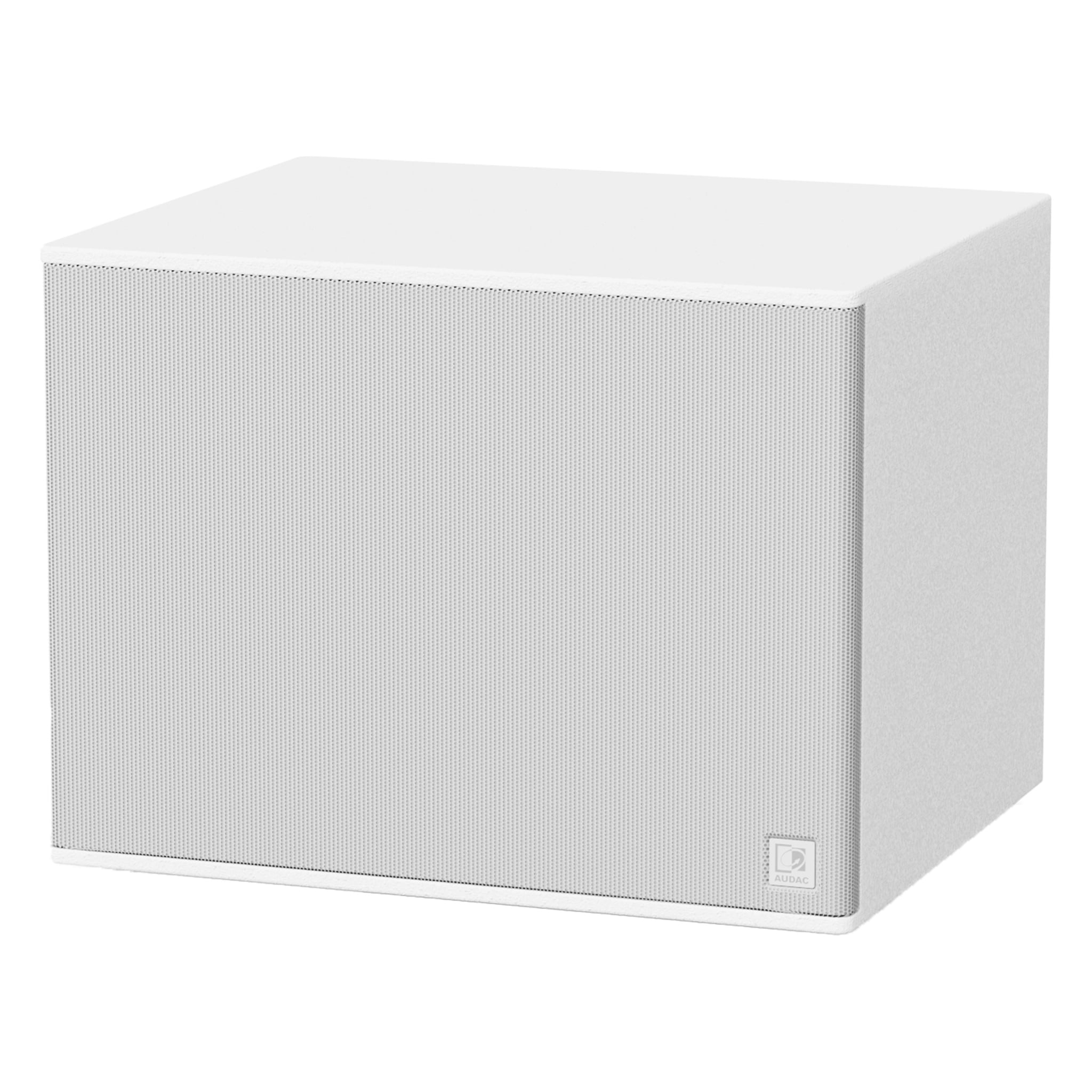

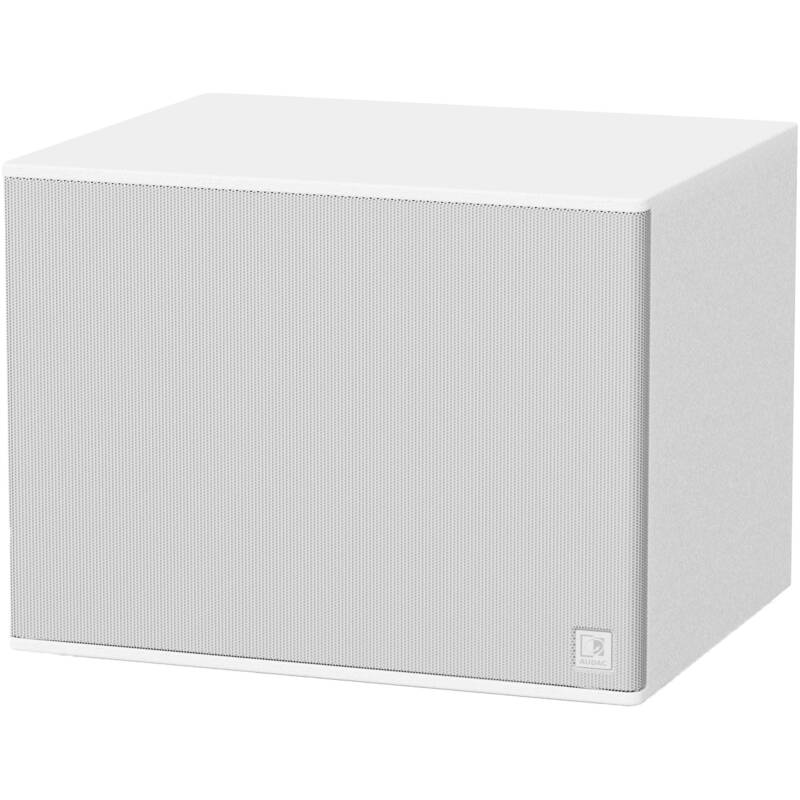

Audac ARCHI10/W 10″ Architectural Bass Reflex Subwoofer – White

The Audac ARCHI10/W is a 10-inch architectural bass reflex subwoofer designed to deliver powerful low-frequency reinforcement in professional installed audio systems. Its slim and elegant enclosure allows the subwoofer to blend seamlessly into architectural environments while maintaining strong bass performance.

Equipped with a 10-inch ferrite driver with a 1.5-inch four-layer wound voice coil, the subwoofer delivers high output with excellent efficiency. The weather-treated paper cone provides durability and stable acoustic performance, making it suitable for long-term commercial installations.

The ARCHI10/W is ideal for restaurants, retail spaces, offices, hospitality venues, lounges, and commercial installations, where it works together with full-range installation speakers to extend the low-frequency range of the sound system.

Key Features

• 10-inch bass reflex architectural subwoofer
• High-efficiency ferrite driver with 4-layer voice coil
• Weather-treated paper cone for durability
• Slim enclosure for architectural integration
• Terminal block connector with link-through for easy installation
• Designed for professional installed audio systems

System Specifications

Speaker type: 10-inch bass reflex cabinet
Impedance: 8 Ω
Sensitivity (1 W / 1 m): 98 dB
Maximum continuous SPL: 124 dB

Power Handling

Peak power handling: 900 W
Program power handling: 450 W
Continuous power (AES): 225 W

Frequency Performance

Frequency response (-3 dB): 69 Hz – 120 Hz
Frequency range (-10 dB): 54 Hz – 200 Hz
Bass port tuning frequency: 51 Hz

Driver Specifications

Driver: 10-inch ferrite woofer
Voice coil: 1.5-inch four-layer wound voice coil
Cone material: Weather-treated paper

Connectivity

Connection via terminal block with link-through, allowing multiple speakers to be connected easily in installation systems.
