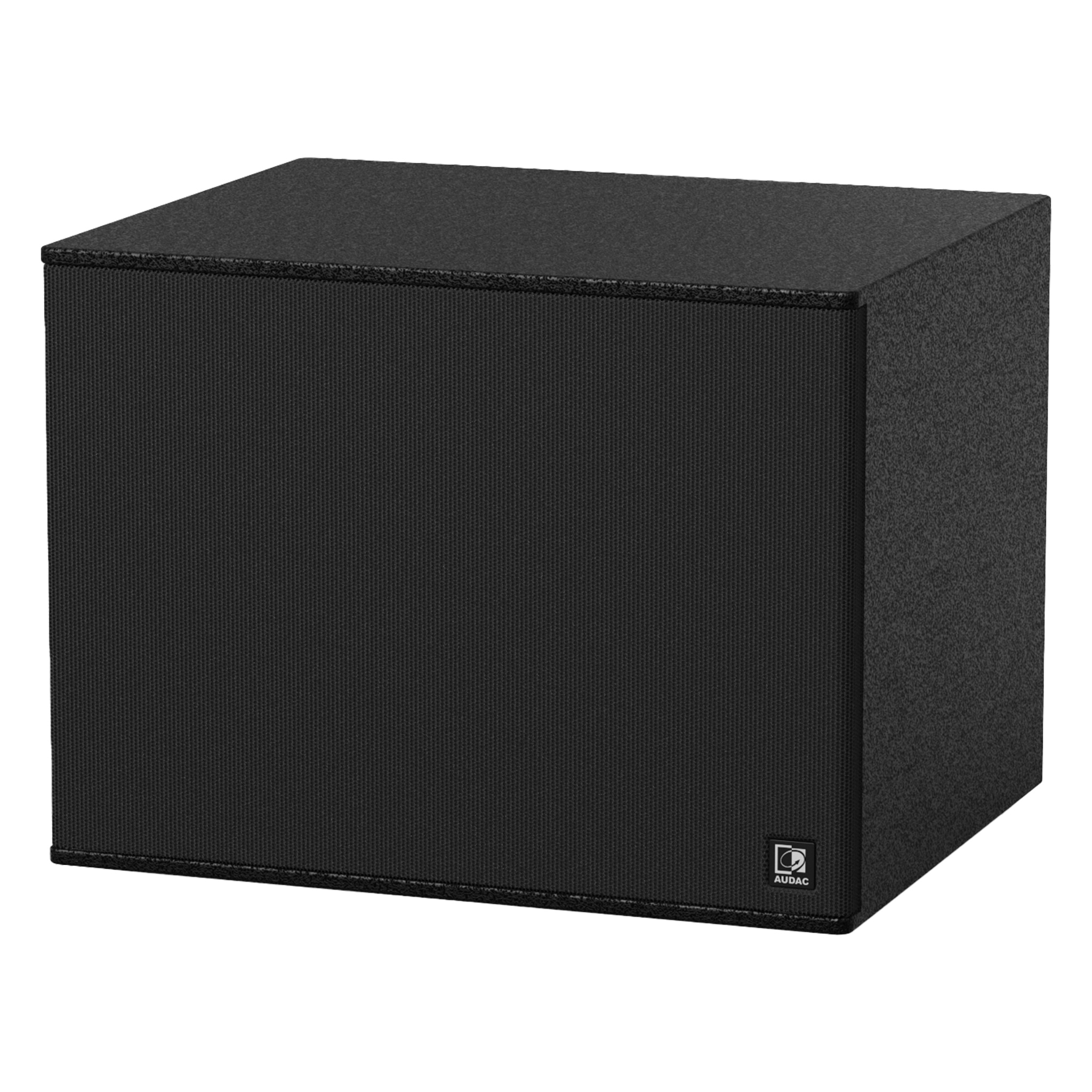

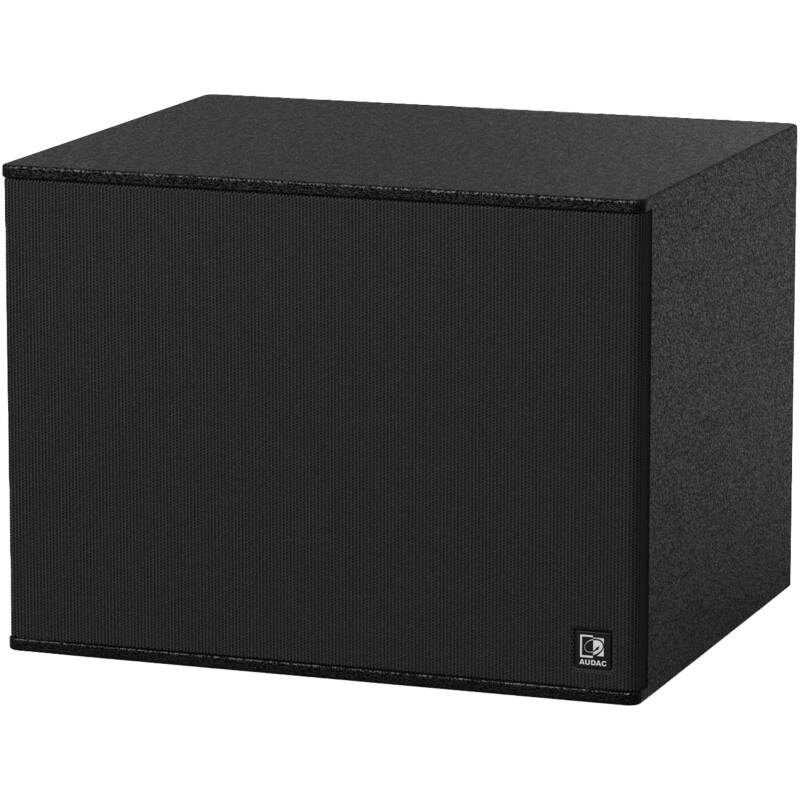

Audac AUA-ARCHI10/B Compact 10inch Architectural Subwoofer – Black (Indoor)

The Audac ARCHI10/B is a 10-inch architectural bass reflex subwoofer designed to deliver powerful low-frequency performance in professional installed audio systems. Its slim cabinet design allows it to be integrated discreetly into architectural environments while providing strong bass reinforcement for background music and commercial audio installations.

The subwoofer features a high-efficiency 10-inch ferrite driver with a 1.5-inch four-layer wound voice coil and a weather-treated paper cone, delivering deep bass performance with excellent durability. The bass reflex enclosure is tuned to optimise low-frequency response, making it suitable for applications where clear and controlled bass reproduction is required.

The ARCHI10/B is typically installed in restaurants, retail stores, hospitality venues, lounges, offices, and commercial spaces, where it complements full-range installation speakers to extend low-frequency output.

Key Features

• 10-inch bass reflex architectural subwoofer
• High-performance ferrite driver with 4-layer voice coil
• Weather-treated paper cone for durability
• High sensitivity design for efficient operation
• Terminal block connection with link-through capability
• Designed for commercial and architectural audio installations

System Specifications

Speaker type: 10-inch bass reflex cabinet
Impedance: 8 Ω
Sensitivity (1 W / 1 m): 98 dB
Maximum continuous SPL: 124 dB

Power Handling

Peak power handling: 900 W
Program power handling: 450 W
Continuous power (AES): 225 W

Frequency Performance

Frequency response (-3 dB): 69 Hz – 120 Hz
Frequency range (-10 dB): 54 Hz – 200 Hz
Bass port tuning frequency: 51 Hz

Driver Specifications

Driver: 10-inch ferrite woofer
Voice coil: 1.5-inch four-layer wound voice coil
Cone material: Weather-treated paper

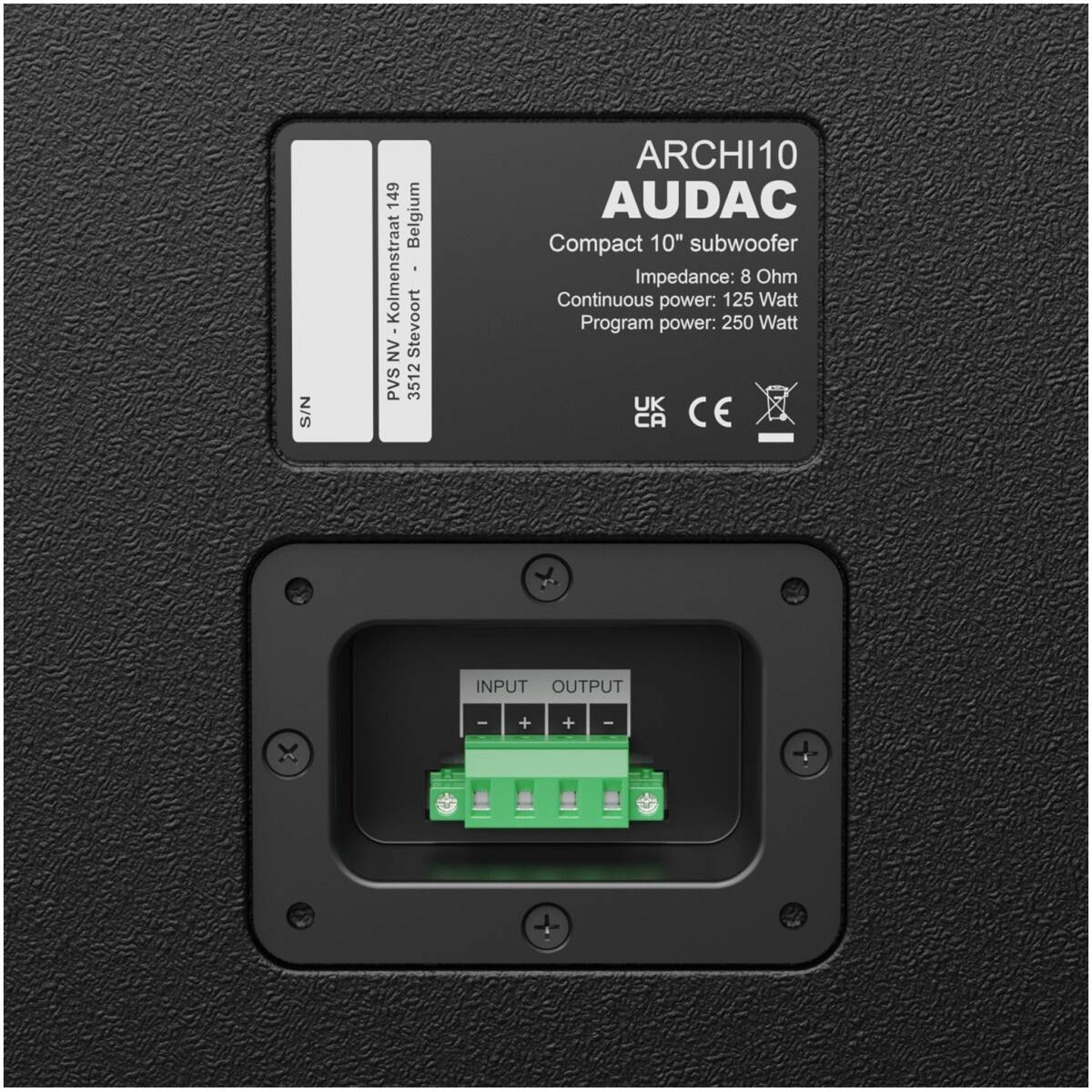

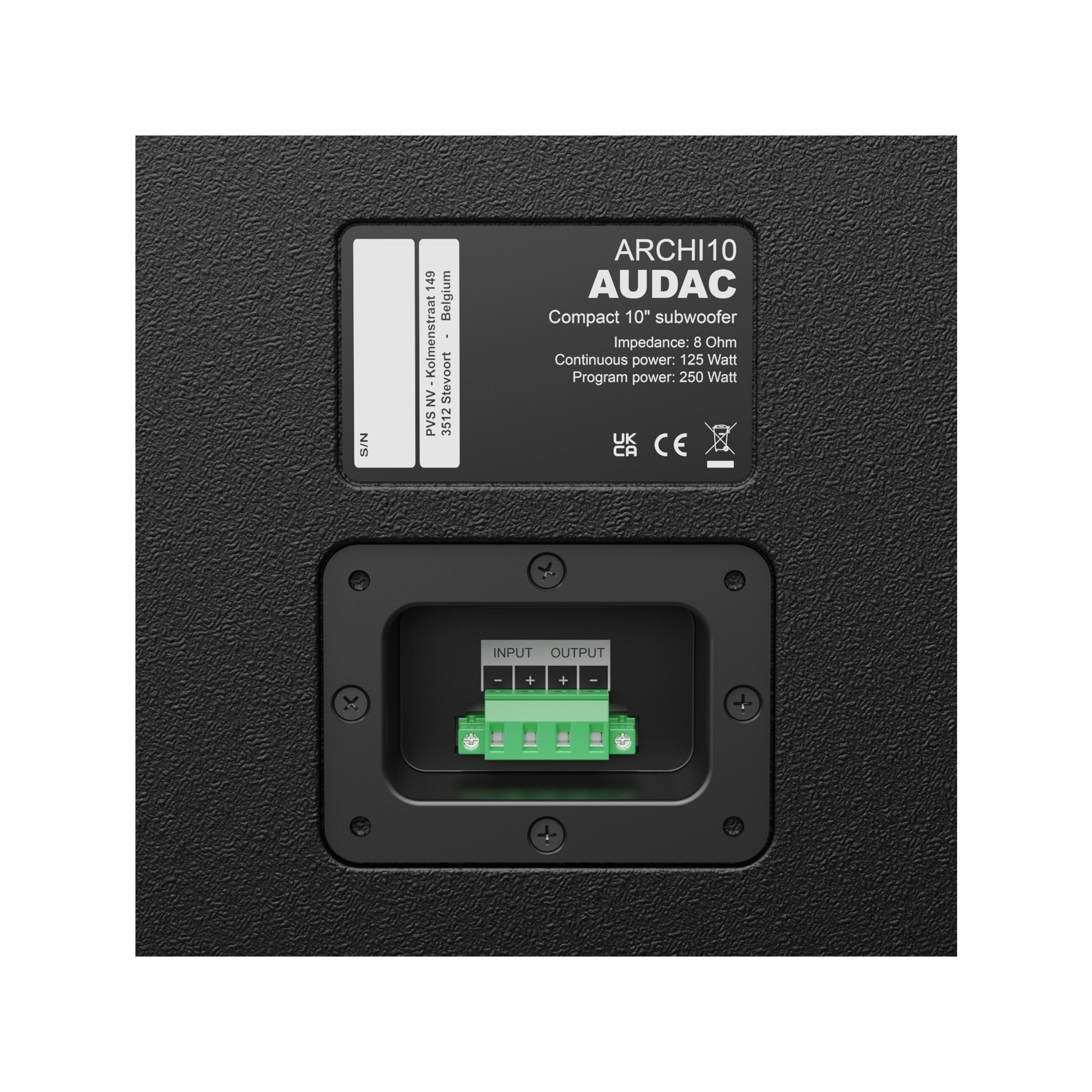

Connectivity

Connection via terminal block with link-through connection, allowing multiple speakers to be connected easily within an installation.
