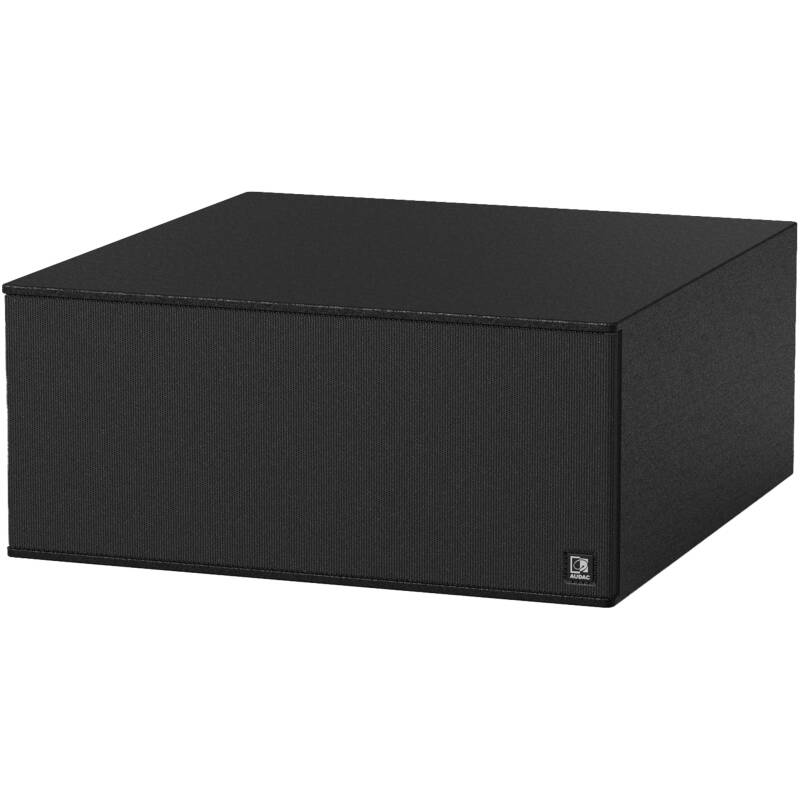

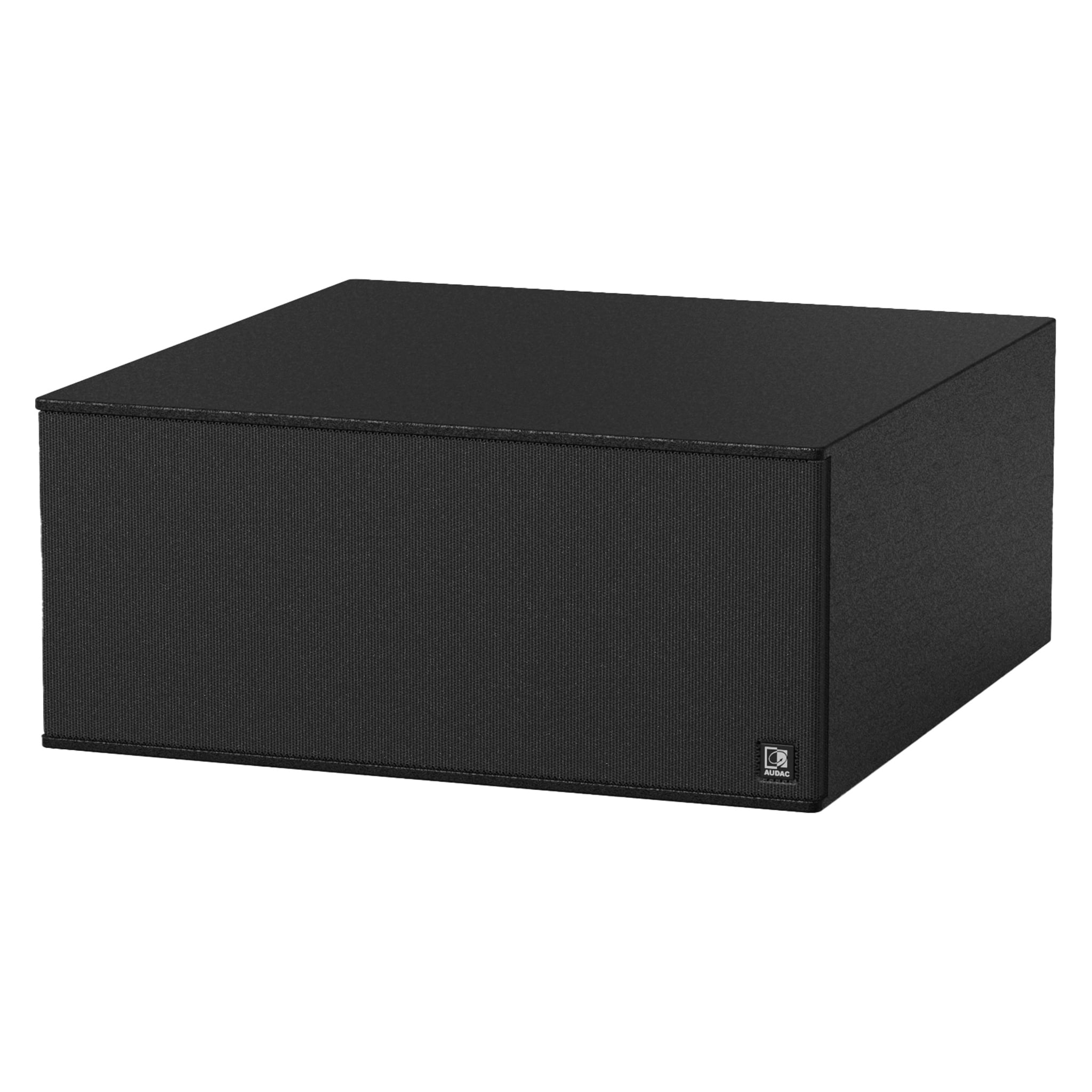

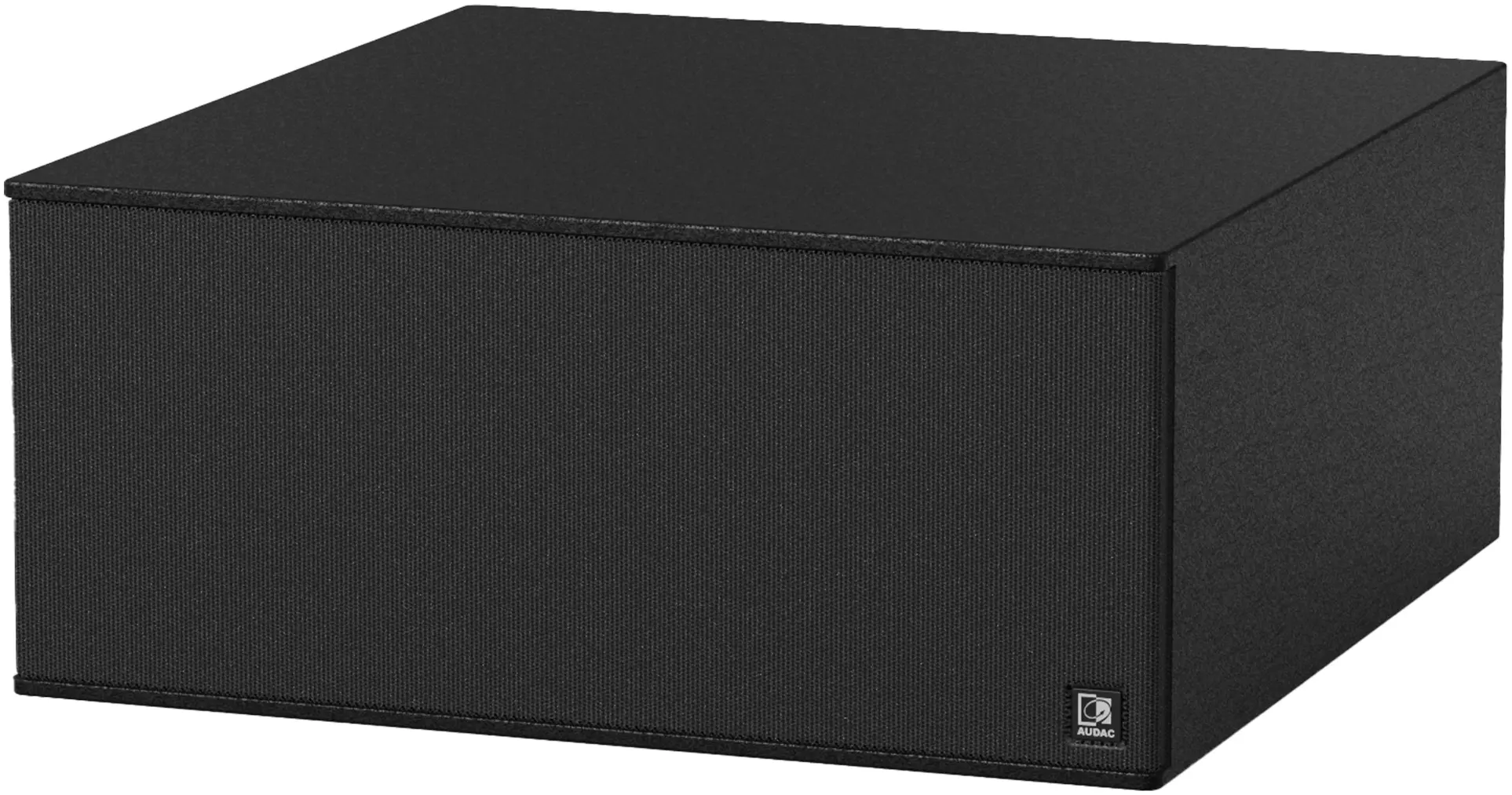

Audac ARCHI10X/OB 10″ Outdoor Architectural Subwoofer – Black

The Audac ARCHI10X/OB is a 10-inch outdoor architectural subwoofer designed for high-performance low-frequency reinforcement in outdoor and demanding installation environments. The weather-resistant enclosure allows it to operate reliably in outdoor venues, terraces, gardens, hospitality spaces, theme parks, and commercial outdoor audio systems.

The subwoofer uses a high-efficiency 10-inch ferrite driver with a robust voice coil and weather-treated cone, providing powerful and controlled bass reproduction while maintaining durability in outdoor conditions. Its architectural design allows it to blend into installation environments while delivering strong low-frequency performance.

The ARCHI10X/OB is commonly paired with outdoor installation speakers to extend the bass response of distributed audio systems.

Key Features

• 10-inch outdoor architectural subwoofer
• Weather-resistant design for outdoor installations
• High-efficiency ferrite driver with durable cone material
• Designed for commercial outdoor audio systems
• Provides powerful low-frequency reinforcement

System Specifications

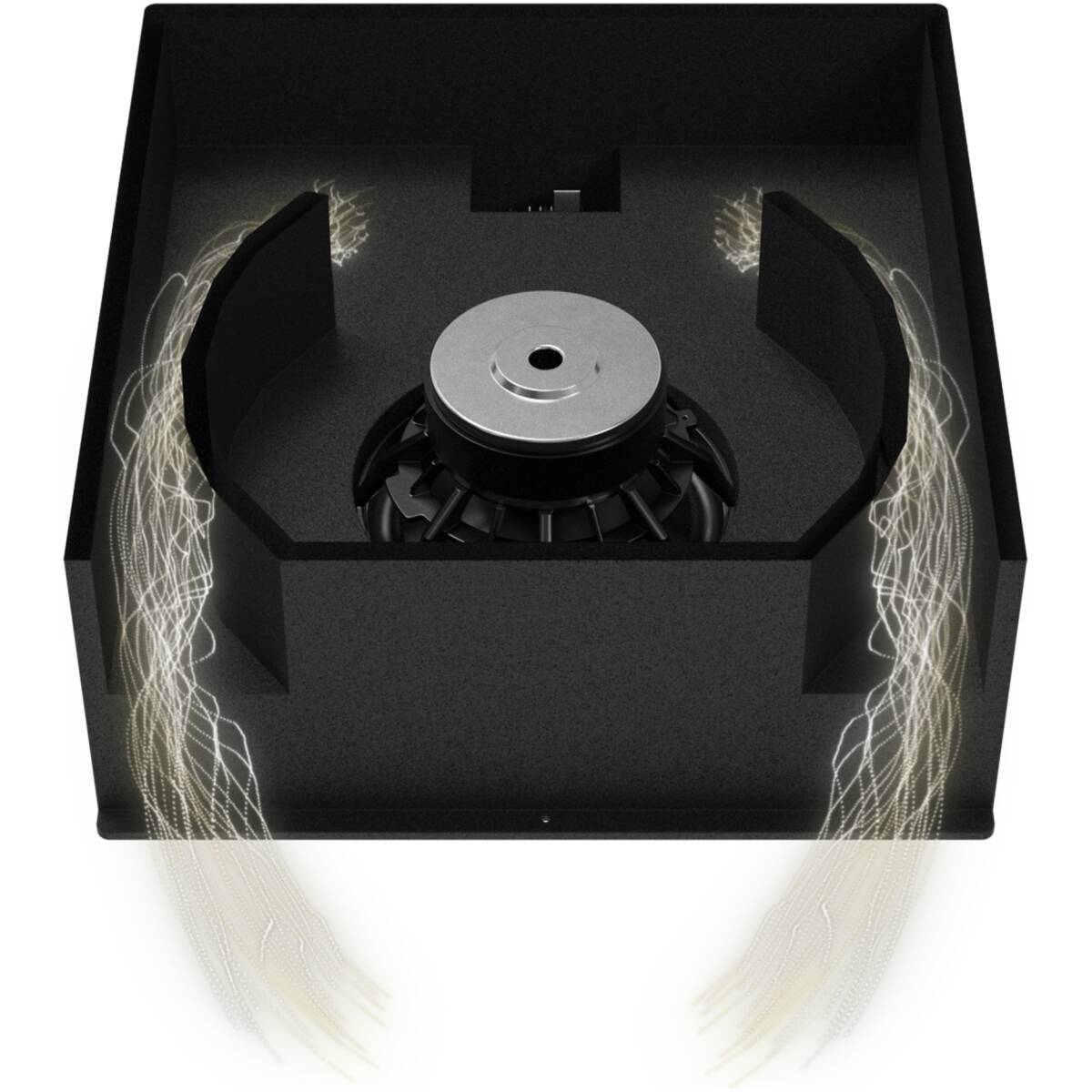

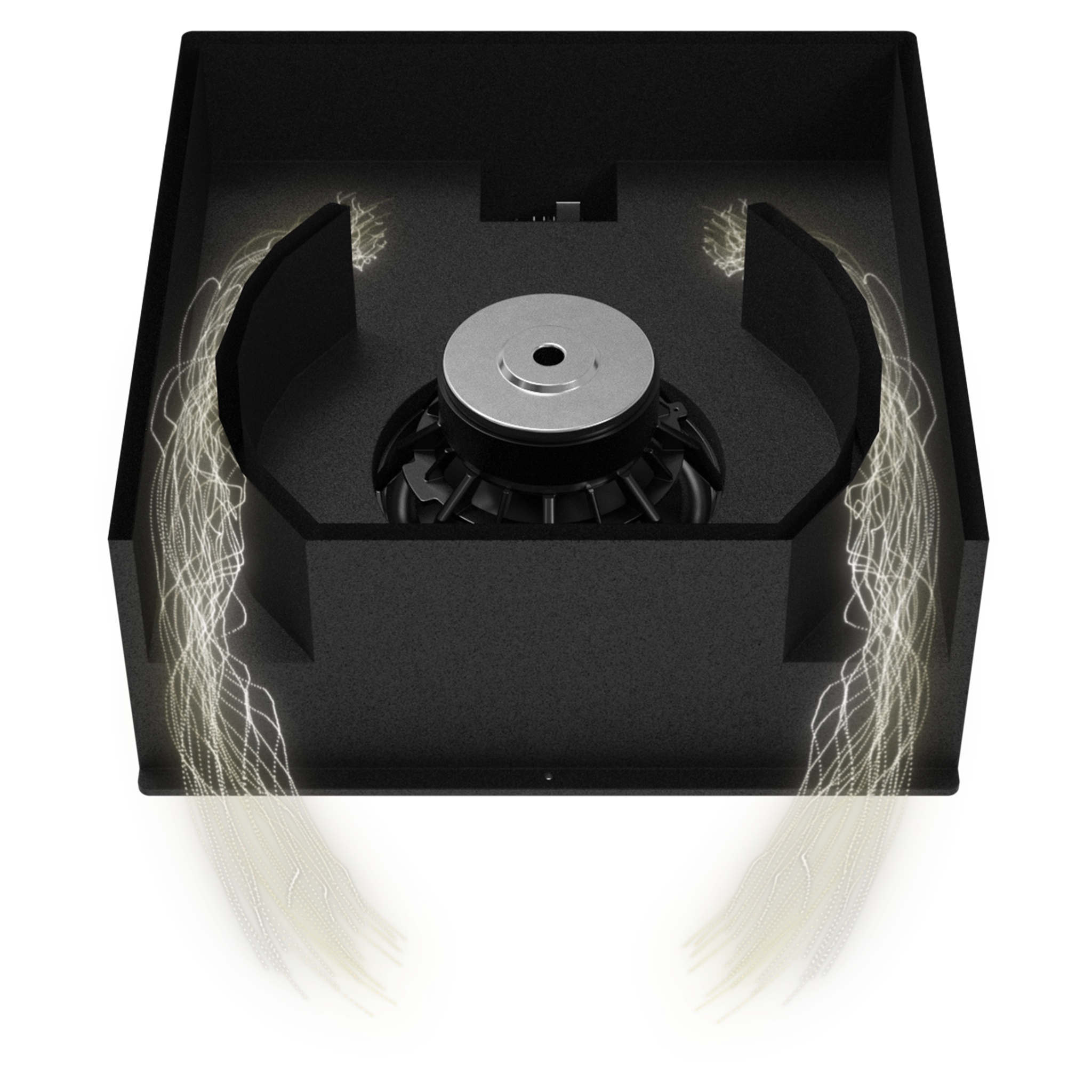

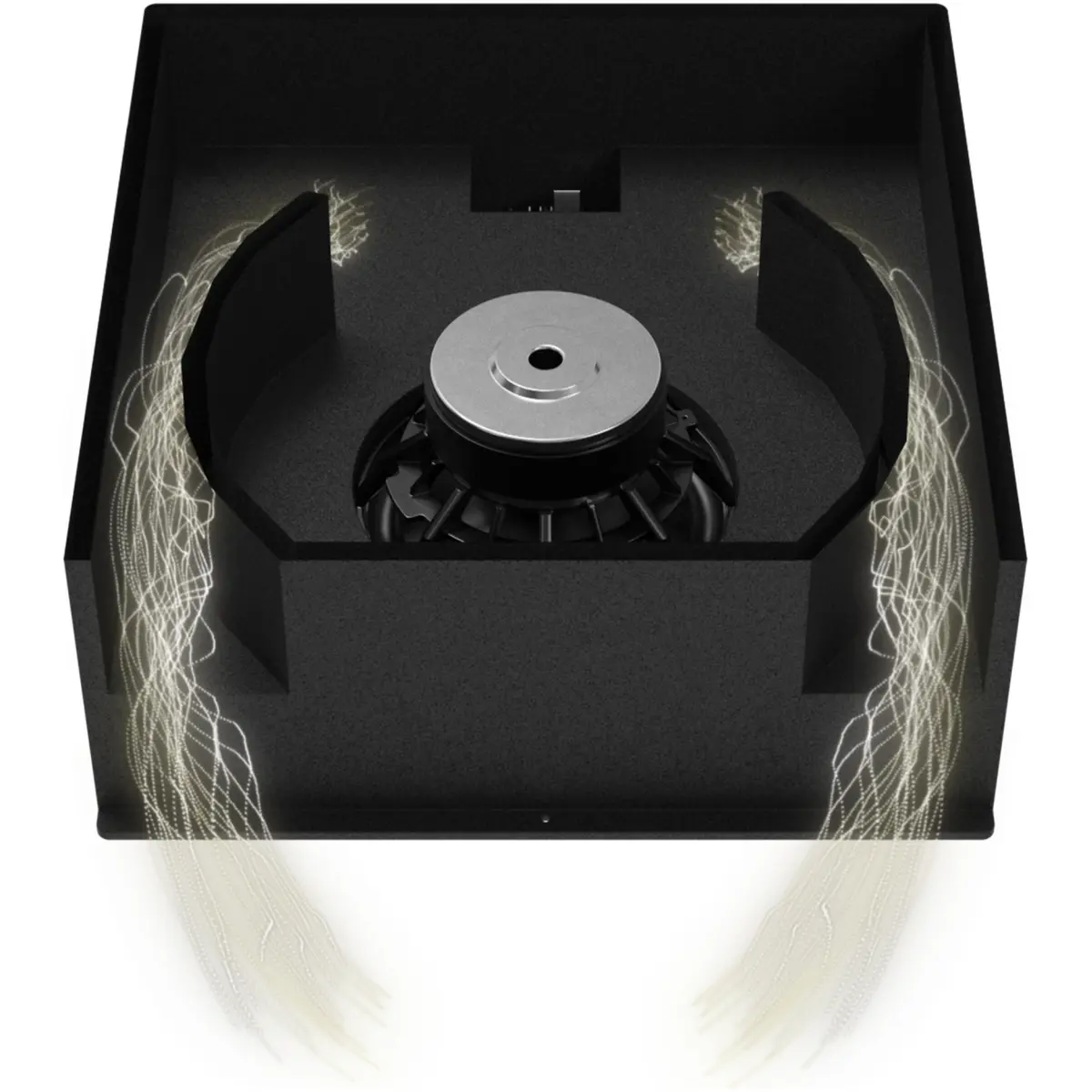

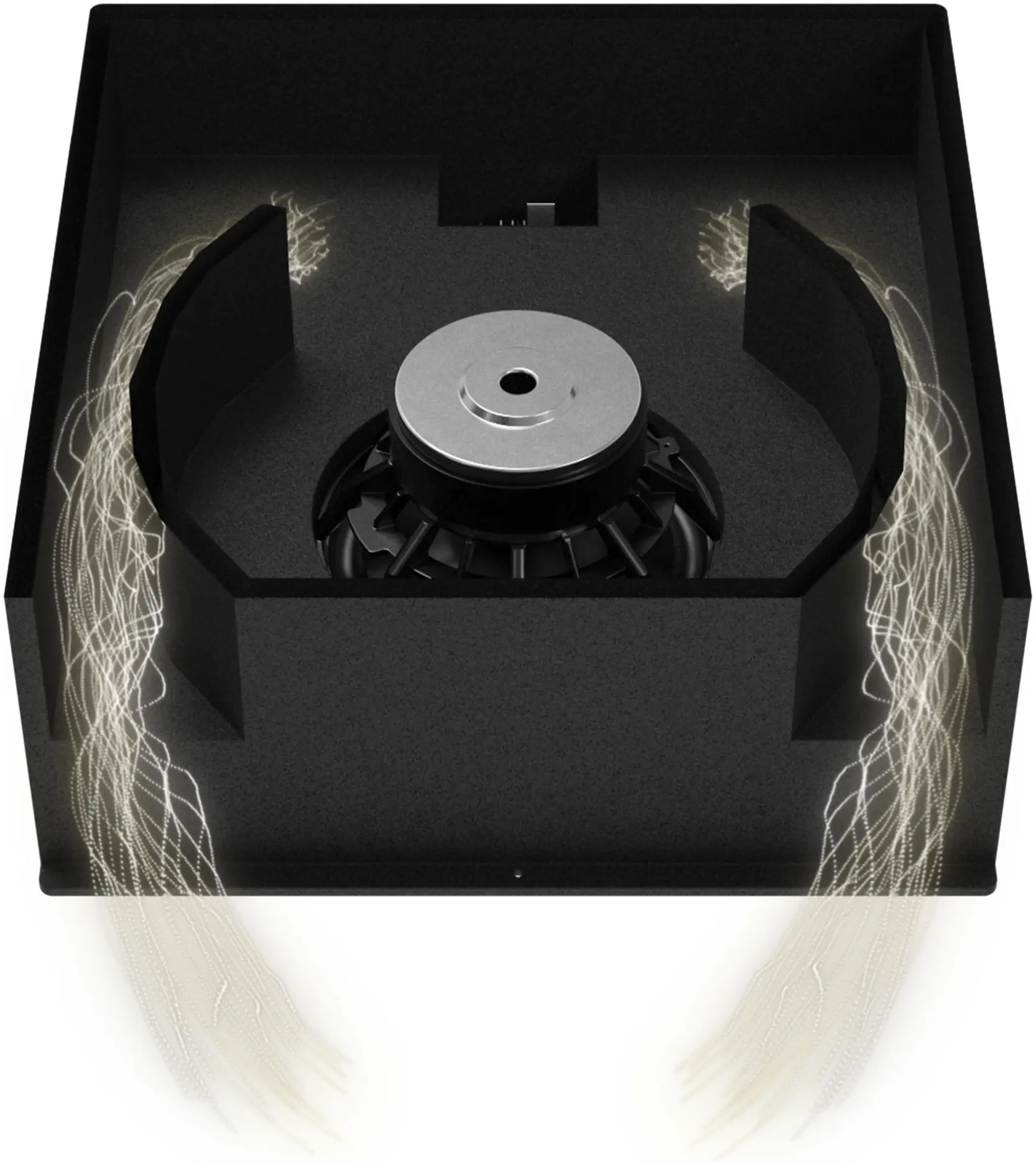

Speaker type: 10-inch bass reflex outdoor cabinet
Impedance: 8 Ω
Sensitivity (1 W / 1 m): approximately 98 dB
Maximum SPL: high-output installation subwoofer

Power Handling

Peak power handling: 900 W
Program power handling: 450 W
Continuous power (AES): 225 W

Frequency Performance

Frequency response (-3 dB): approximately 69 Hz – 120 Hz
Frequency range (-10 dB): approximately 54 Hz – 200 Hz

Driver Specifications

Driver: 10-inch ferrite woofer
Voice coil: 1.5-inch multi-layer voice coil
Cone material: Weather-treated paper

Connectivity

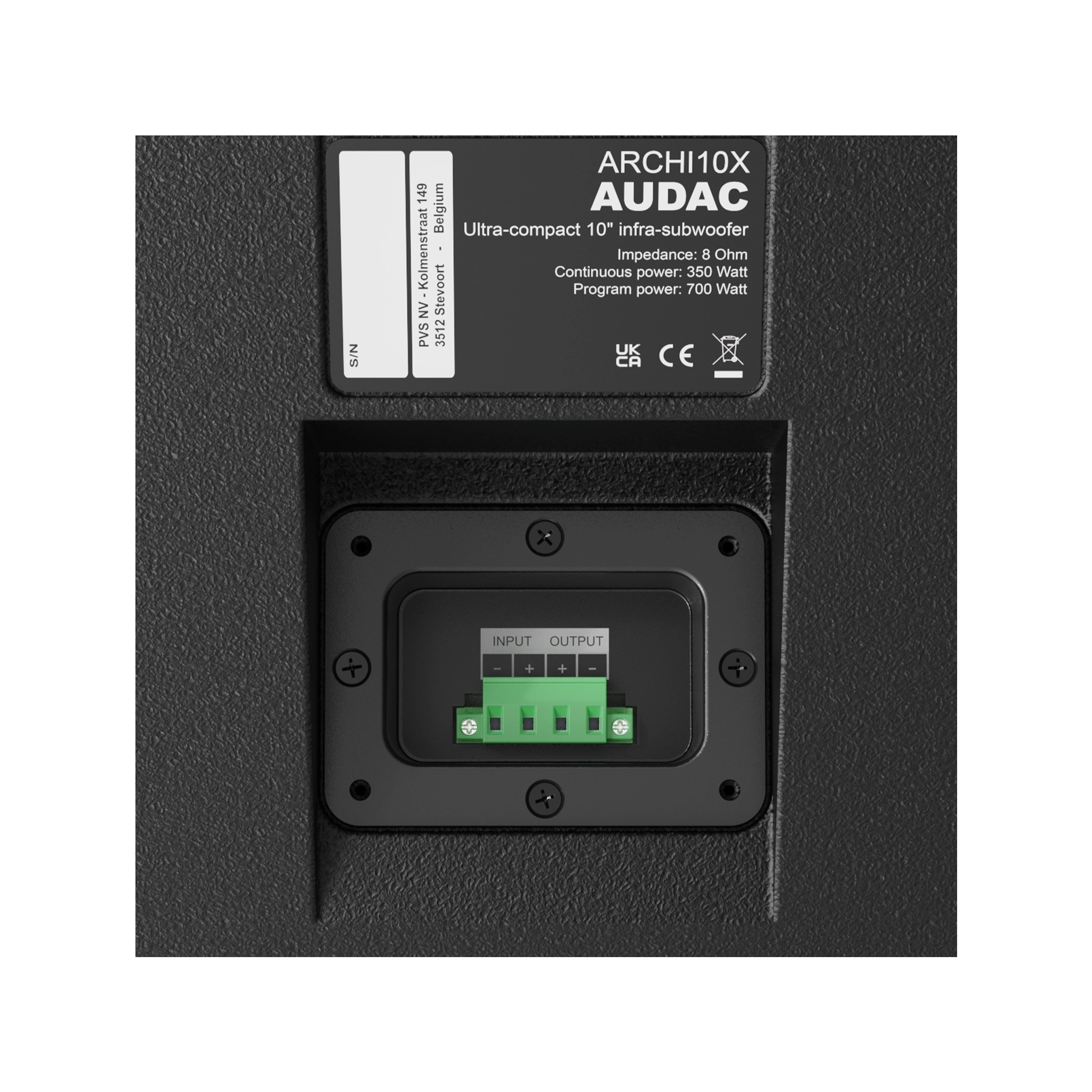

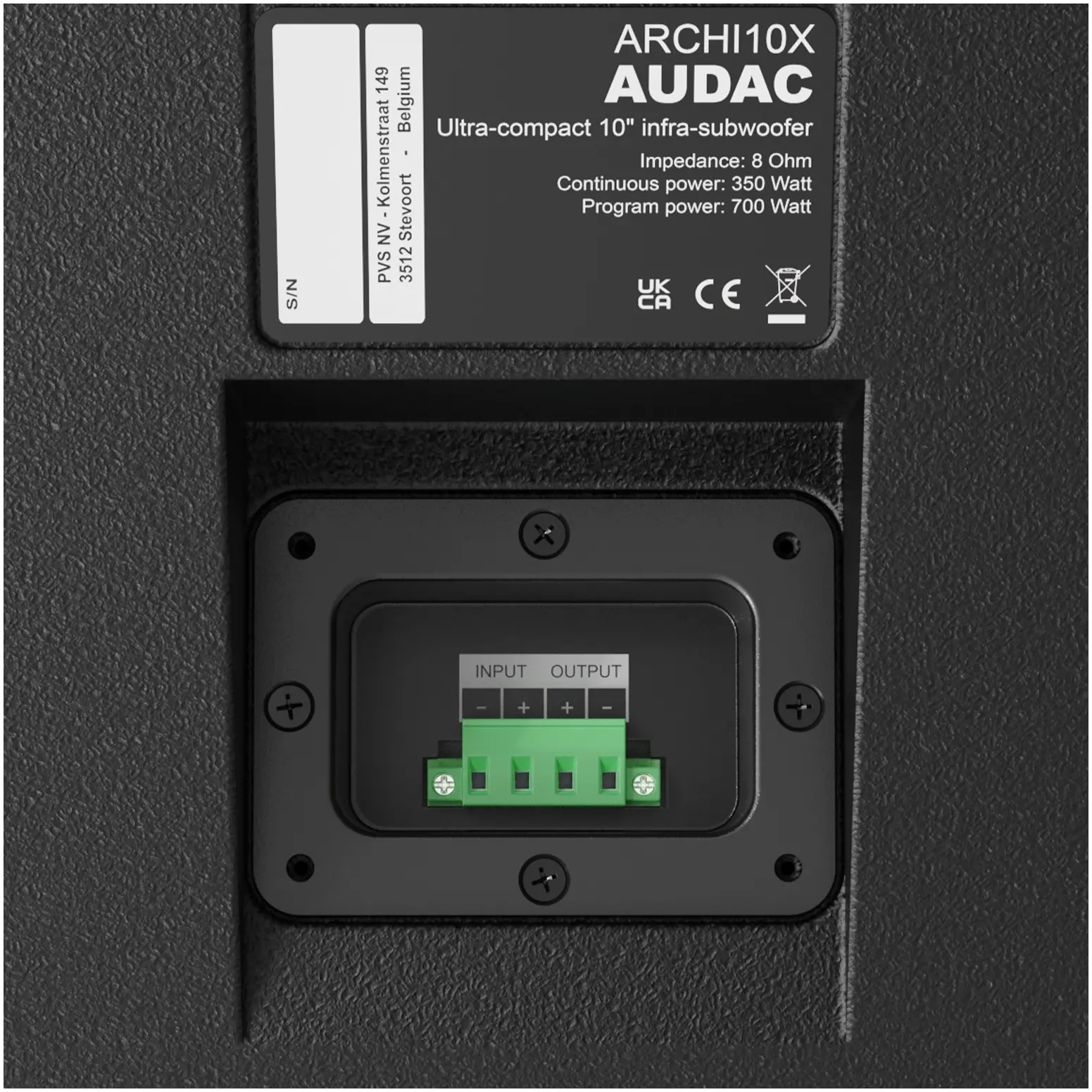

Connection via terminal block with link-through, allowing easy integration into installation audio systems.

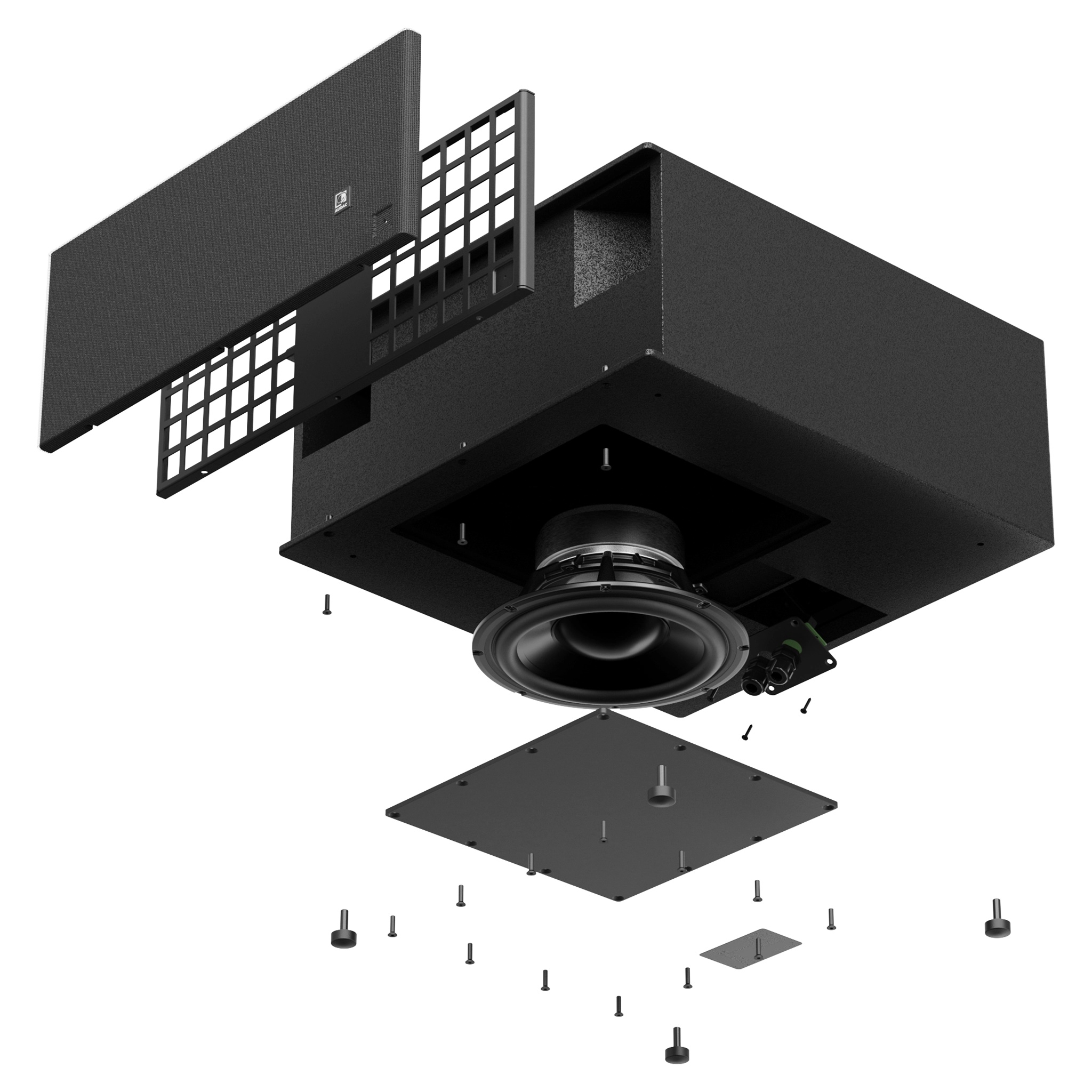

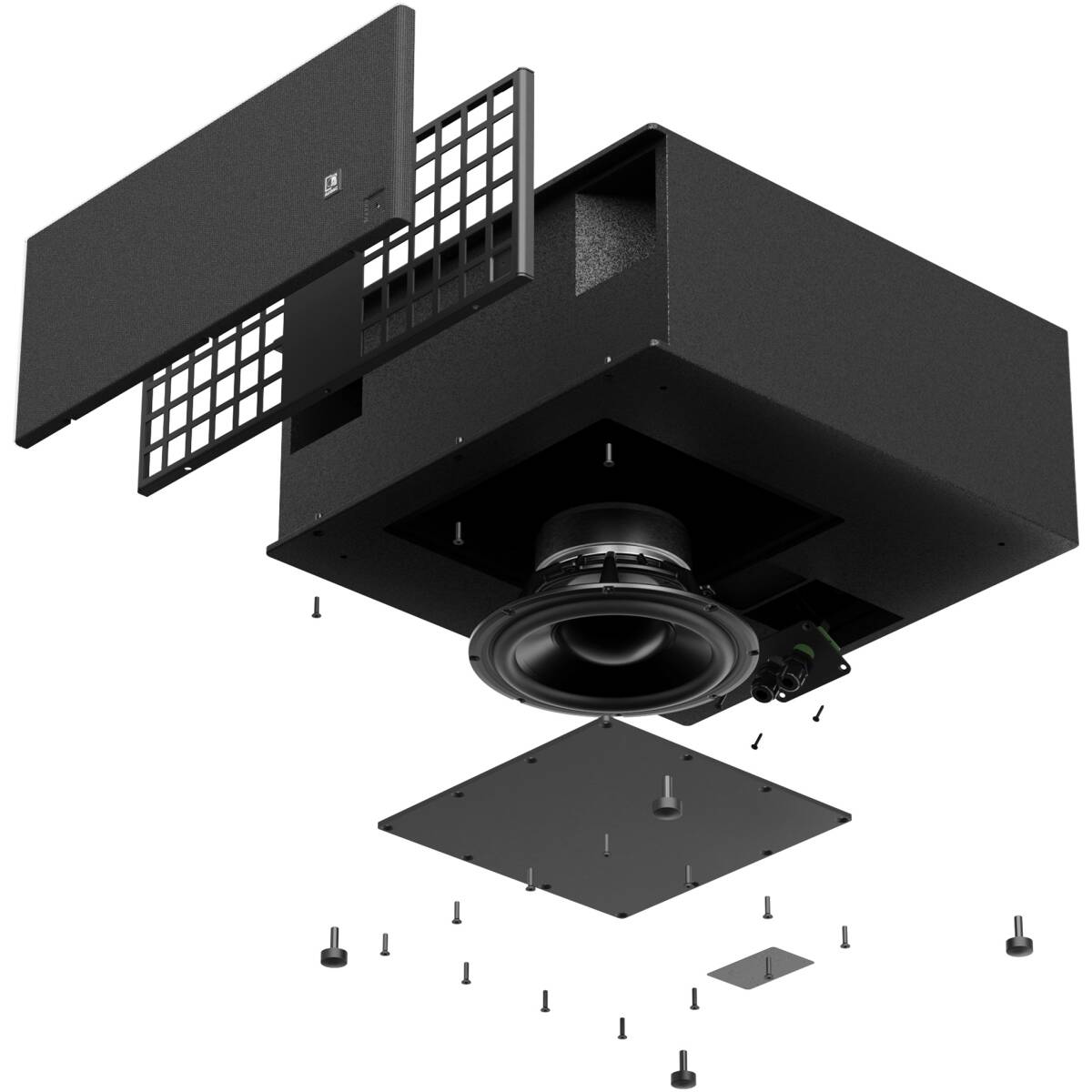

Construction

The enclosure is designed for weather-resistant outdoor installation, finished in black to blend into architectural environments.
