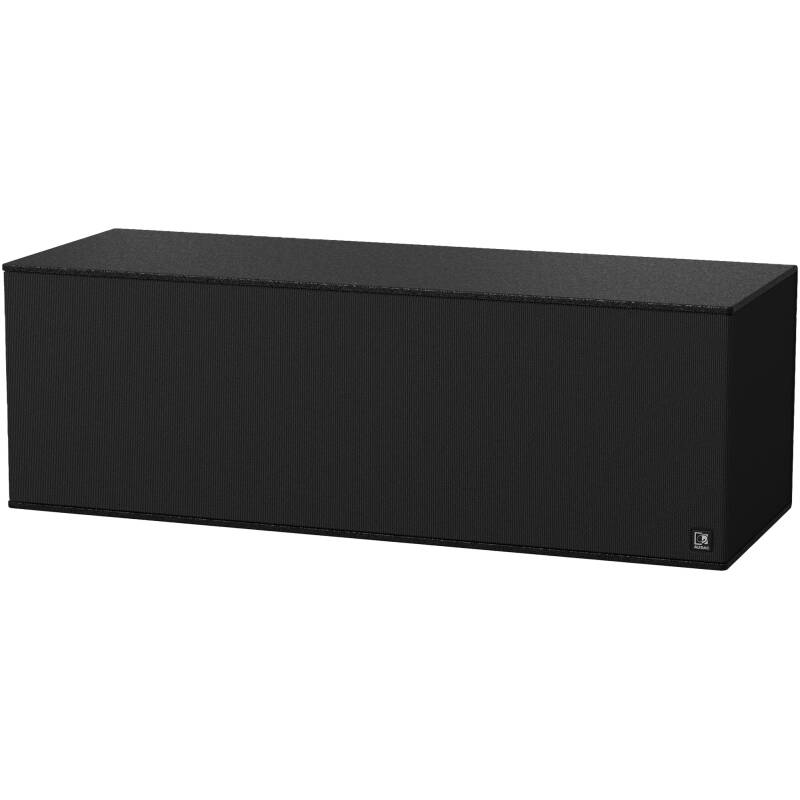

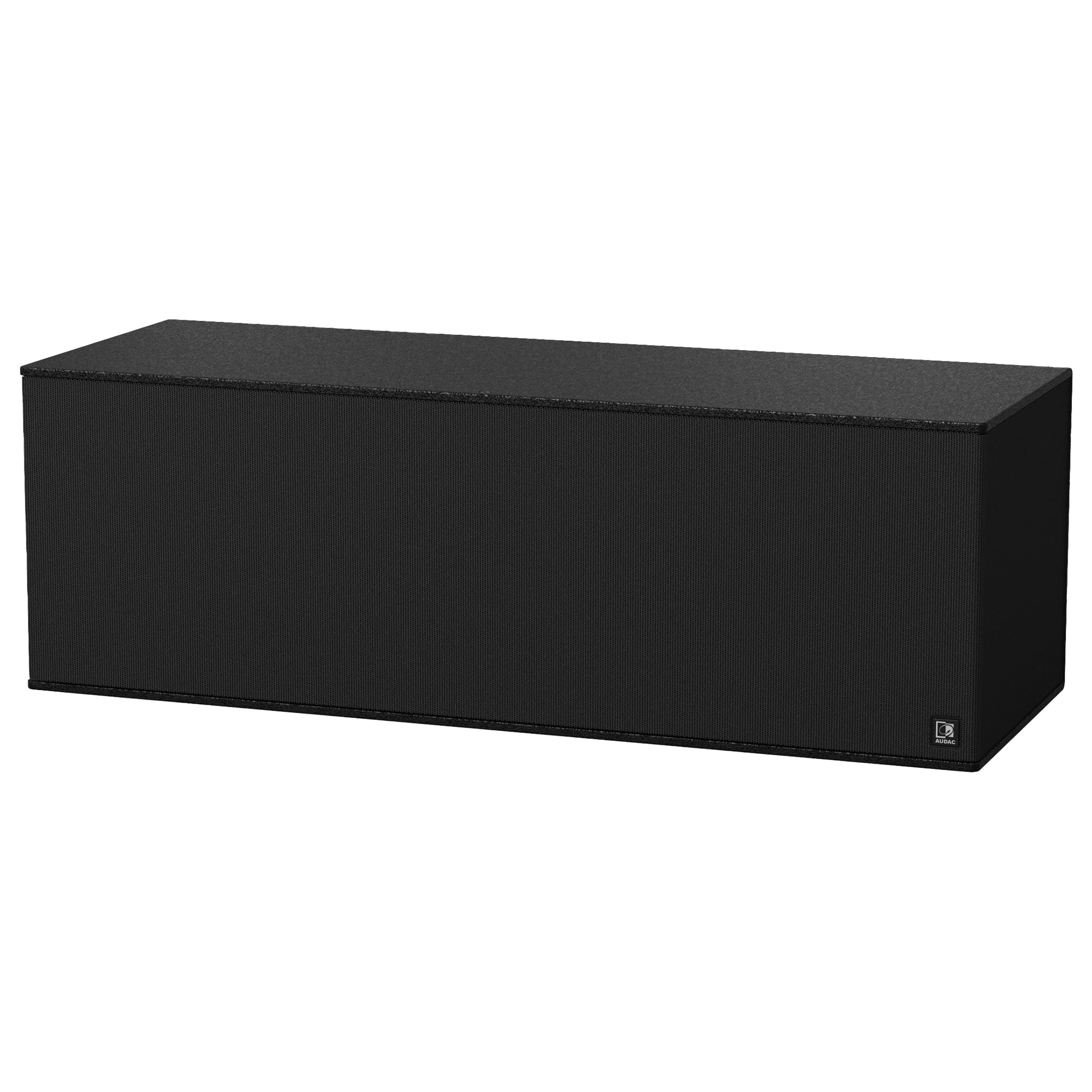

Audac Compact Double 10inch Architectural Subwoofer – Black (Indoor)

The Audac ARCHI210/B is a high-performance architectural bass reflex subwoofer designed to deliver powerful low-frequency reinforcement in professional installed audio systems. The slim cabinet design allows it to blend seamlessly into architectural environments while providing strong bass output for background music and commercial sound installations.

Equipped with two high-efficiency 10-inch ferrite drivers, the subwoofer provides high sound pressure levels while maintaining clear and controlled bass response. The drivers feature 1.5-inch four-layer wound voice coils and weather-treated paper cones, ensuring durability and consistent performance in demanding installations.

The ARCHI210/B is suitable for restaurants, retail spaces, hospitality venues, offices, lounges, and commercial environments, where it is typically paired with full-range installation speakers to extend the system’s low-frequency performance.

Key Features

• Dual 10-inch architectural subwoofer

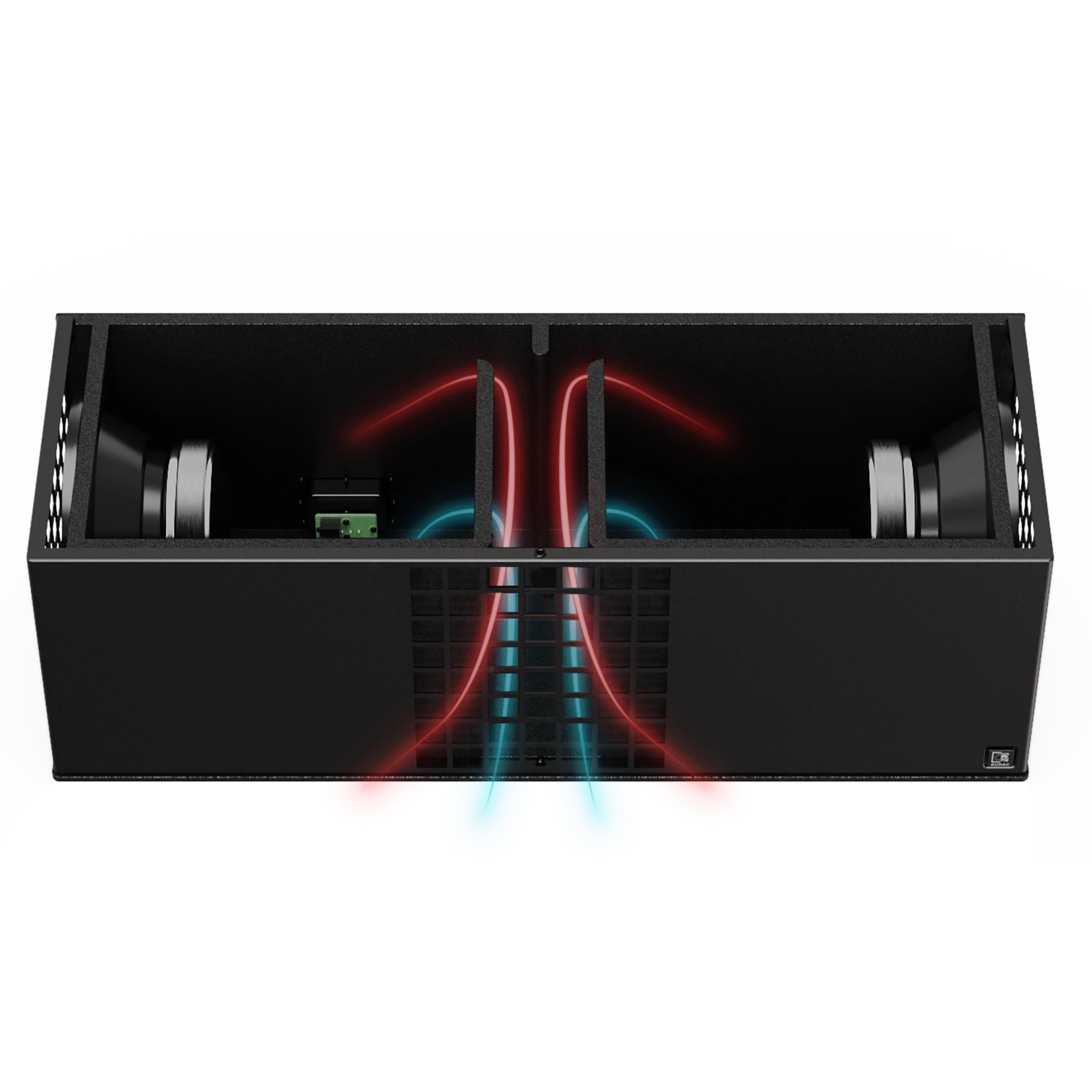

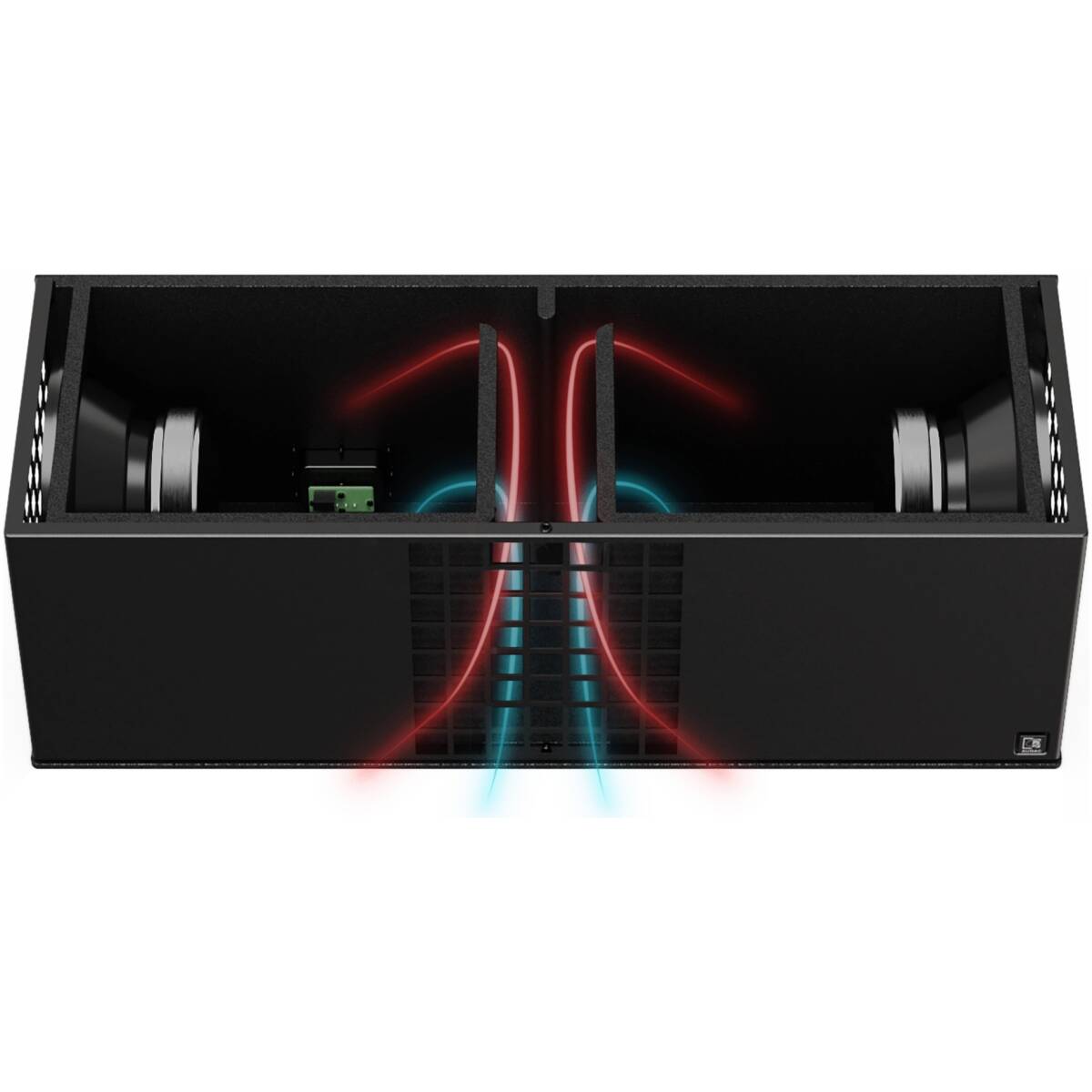

• Bass reflex cabinet design for enhanced low-frequency performance
• High-efficiency ferrite drivers with 4-layer voice coils
• Weather-treated paper cone material for durability
• Terminal block connection with link-through capability
• Designed for professional commercial audio installations

System Specifications

Speaker type: Dual 10-inch bass reflex cabinet
Driver configuration: 2 × 10-inch ferrite woofers
Impedance: 4 Ω
Sensitivity (1 W / 1 m): 101 dB
Maximum SPL (continuous): 130 dB

Power Handling

Continuous power (AES / RMS): 450 W
Program power: 900 W
Peak power: 1800 W

Frequency Performance

Frequency response (-3 dB): 59 Hz – 110 Hz
Frequency range (-10 dB): 46 Hz – 200 Hz
Bass port tuning frequency: 48 Hz
