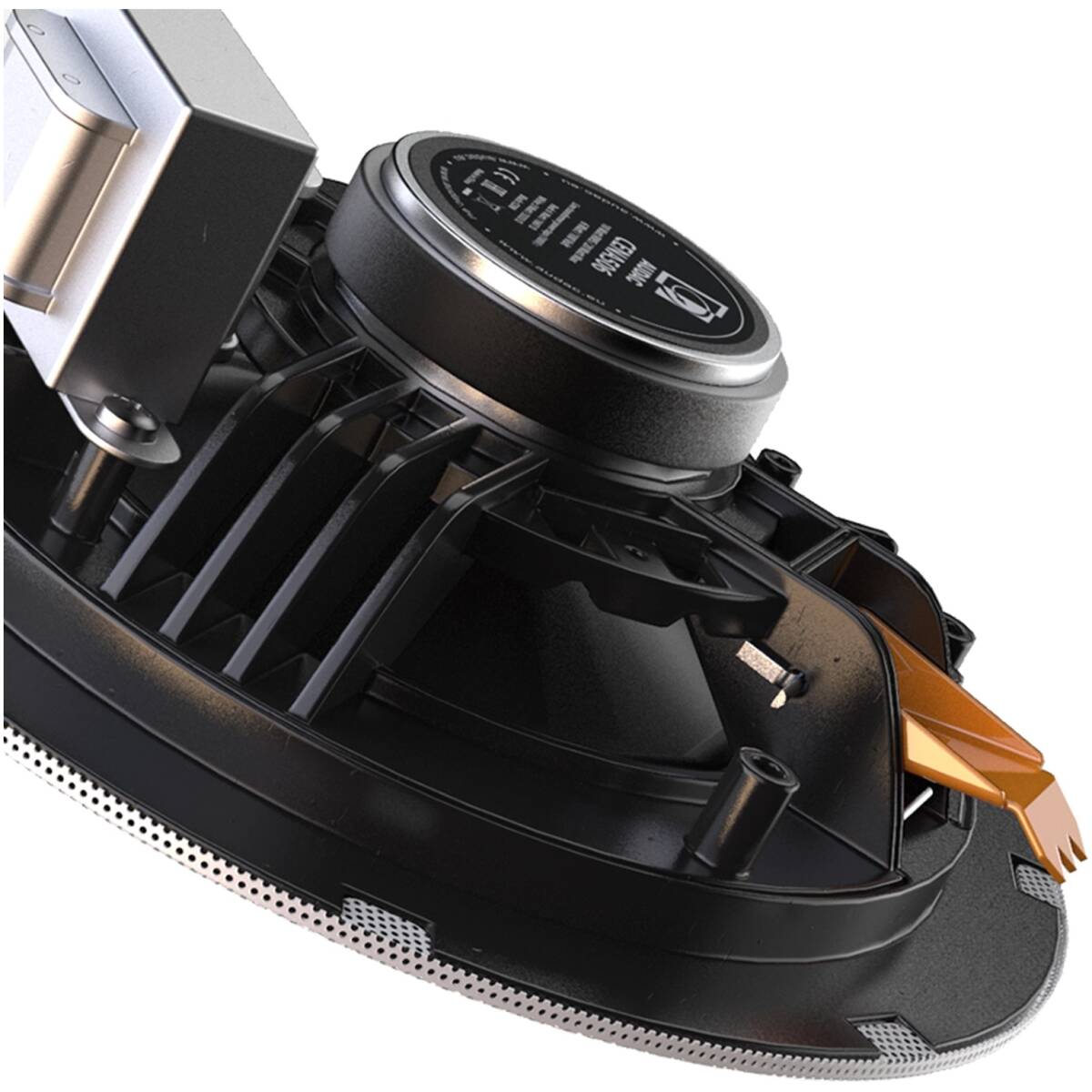

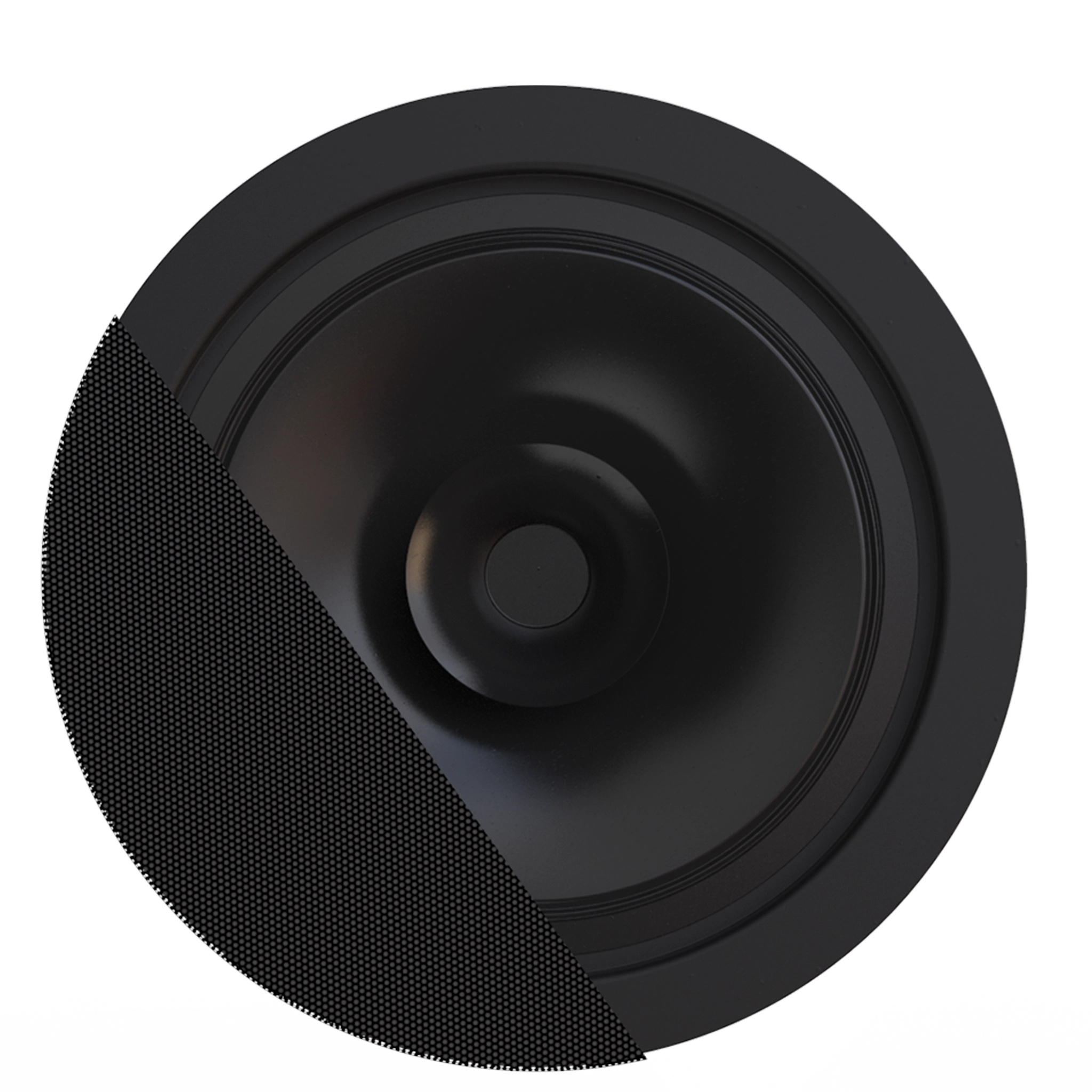

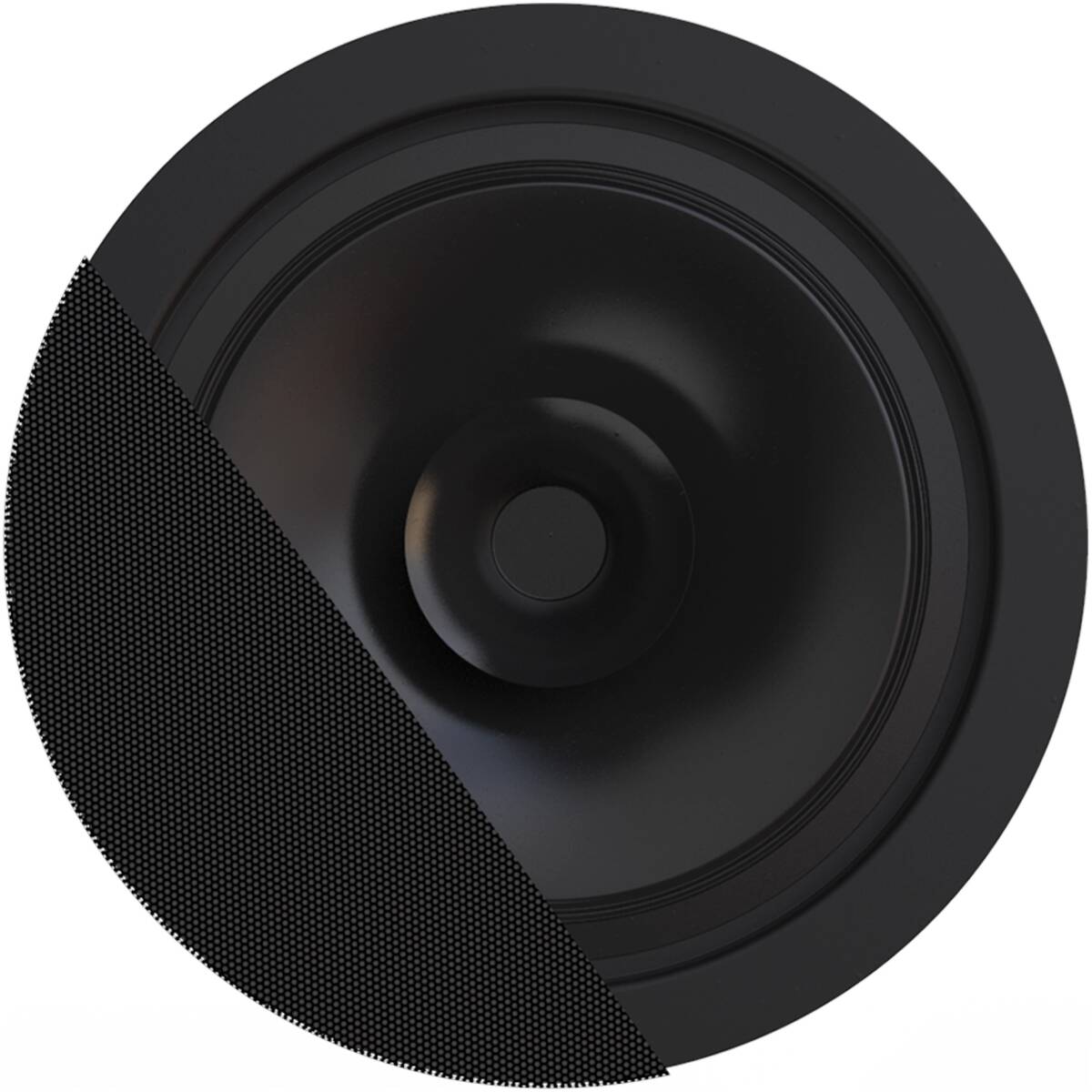

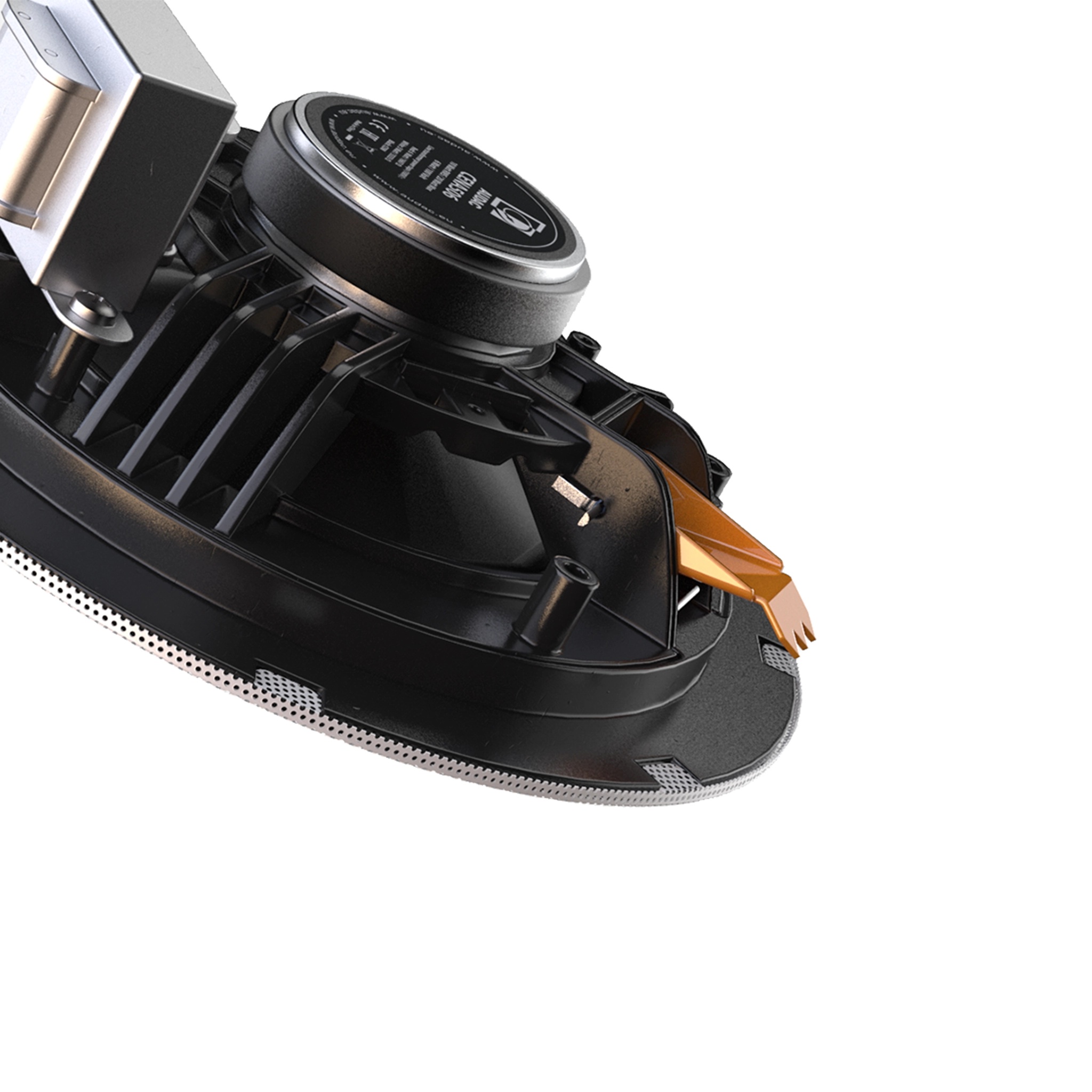

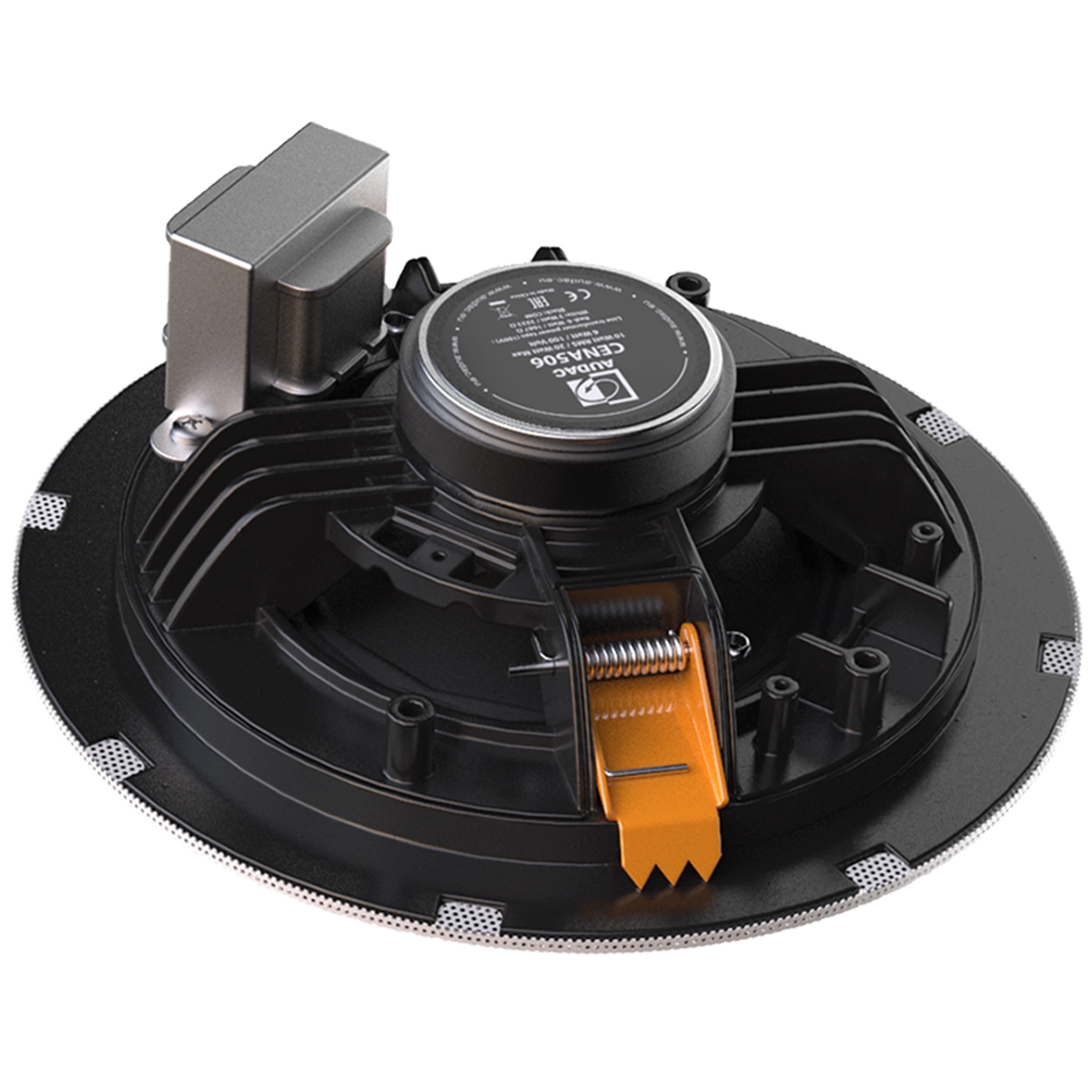

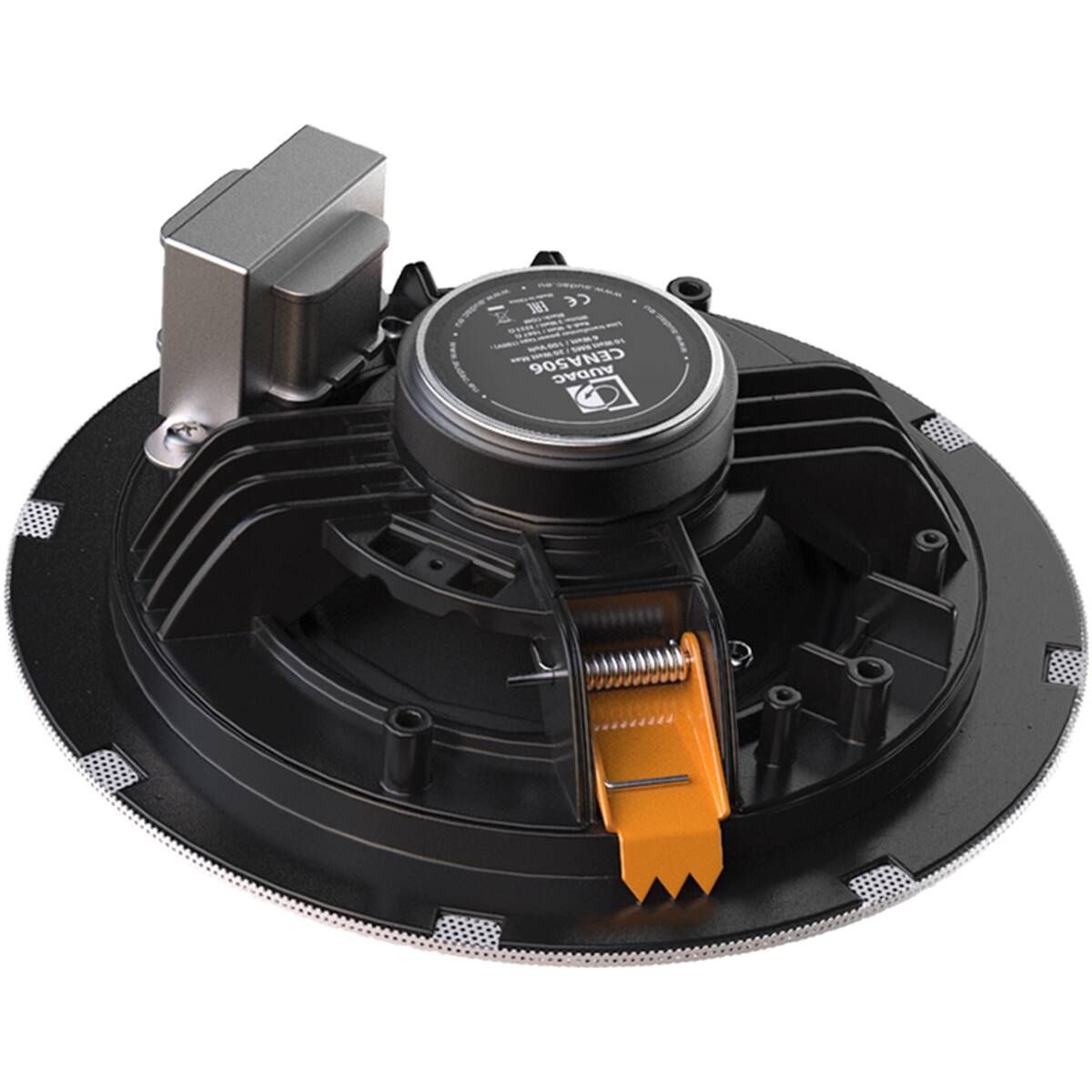

Audac AUA-CENA506/B SpringFit 5 Ceiling Speaker Black Version – 100V

The Audac CENA506/B is a 6.5-inch two-way ceiling loudspeaker designed for background music and speech reproduction in professional installation environments. Its durable construction and discreet design allow it to integrate neatly into ceilings while delivering clear and balanced sound performance.

The speaker features a 6.5-inch mid/low-frequency driver combined with a coaxially mounted tweeter, providing improved high-frequency clarity and overall audio performance compared to single-driver ceiling speakers. The wide dispersion pattern ensures even sound coverage throughout the listening area.

The CENA506/B is designed for 100 V distributed audio systems with selectable transformer taps, making it ideal for installations such as retail stores, offices, restaurants, hospitality venues, schools, and commercial buildings.

Key Features

• 6.5-inch two-way ceiling loudspeaker
• Coaxial tweeter for improved high-frequency reproduction
• Designed for 100 V distributed audio systems
• Wide dispersion for even sound coverage
• Durable construction for commercial installations

System Specifications

Speaker type: Two-way ceiling loudspeaker
Driver configuration: 1 × 6.5-inch mid/low driver with coaxial tweeter
System impedance: 100 V line with transformer taps

Power Handling

Continuous power (AES / RMS): 20 W
Program power: 40 W
Peak power: 80 W

Frequency Performance

Frequency response (±3 dB): 80 Hz – 20 kHz
Frequency range (-10 dB): 70 Hz – 20 kHz

Line Transformer Tappings

Selectable 100 V transformer taps for distributed audio systems.

Construction

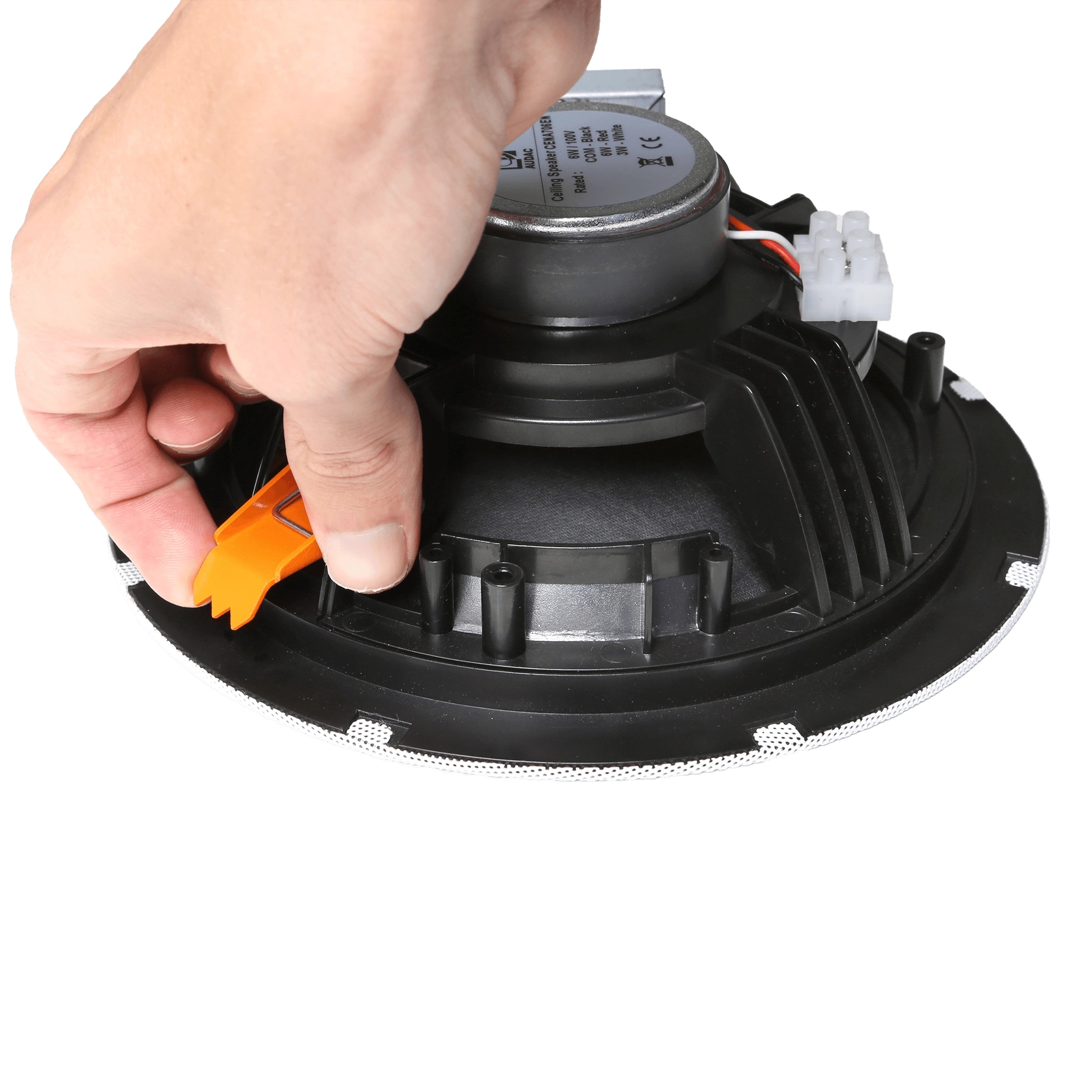

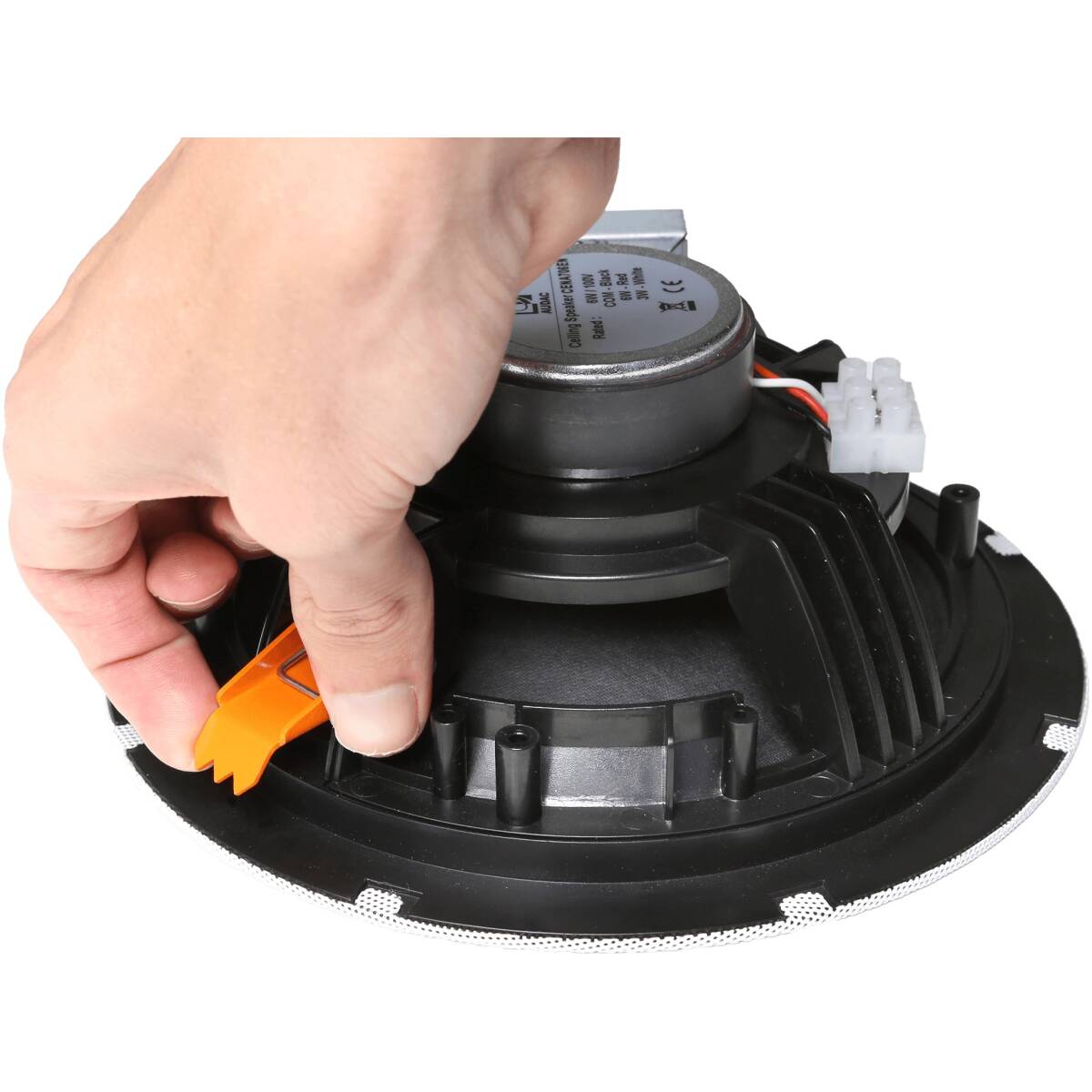

Mounting type: Flush ceiling mount

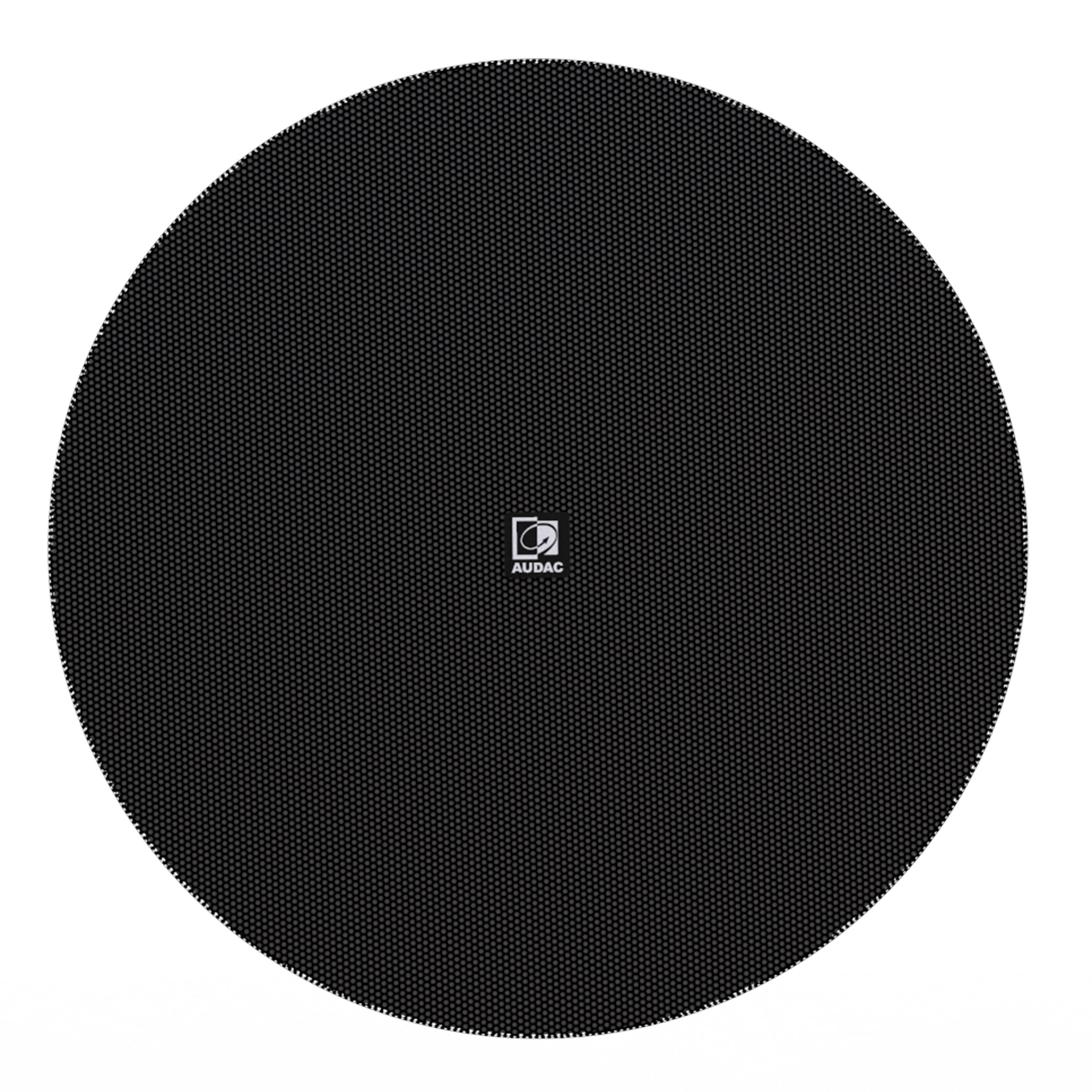

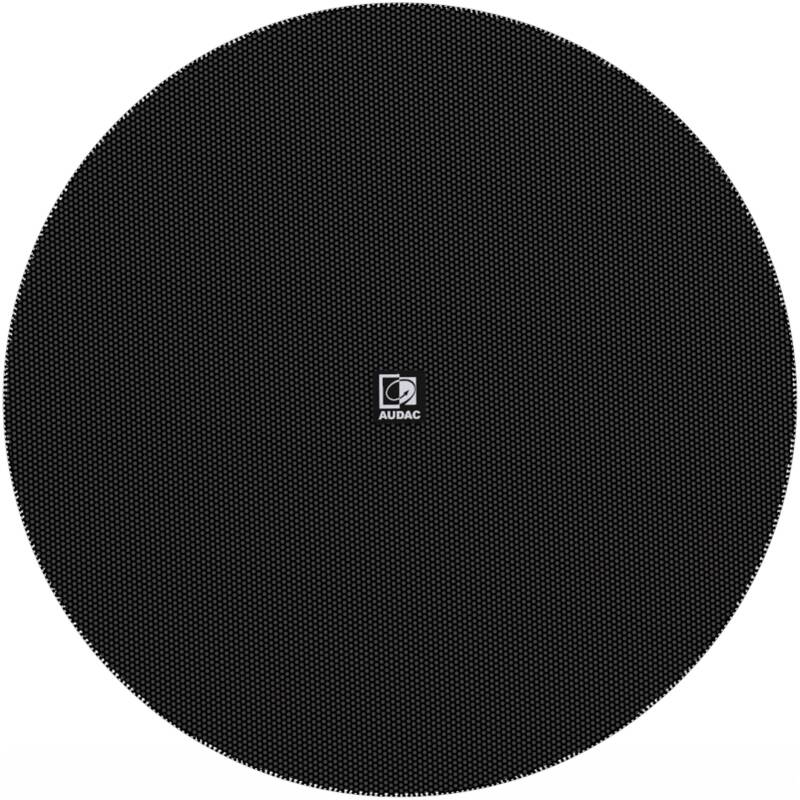

Front finish: Metal grille
Colour: Black
