Audac AUA-CENA506/W SpringFit 5 Ceiling Speaker White Version – 100V

The Audac CENA506/W is a 6.5-inch two-way ceiling loudspeaker designed for professional installation sound systems where clear music reproduction and speech intelligibility are required. Its clean architectural design allows it to integrate neatly into ceilings while delivering balanced audio performance.

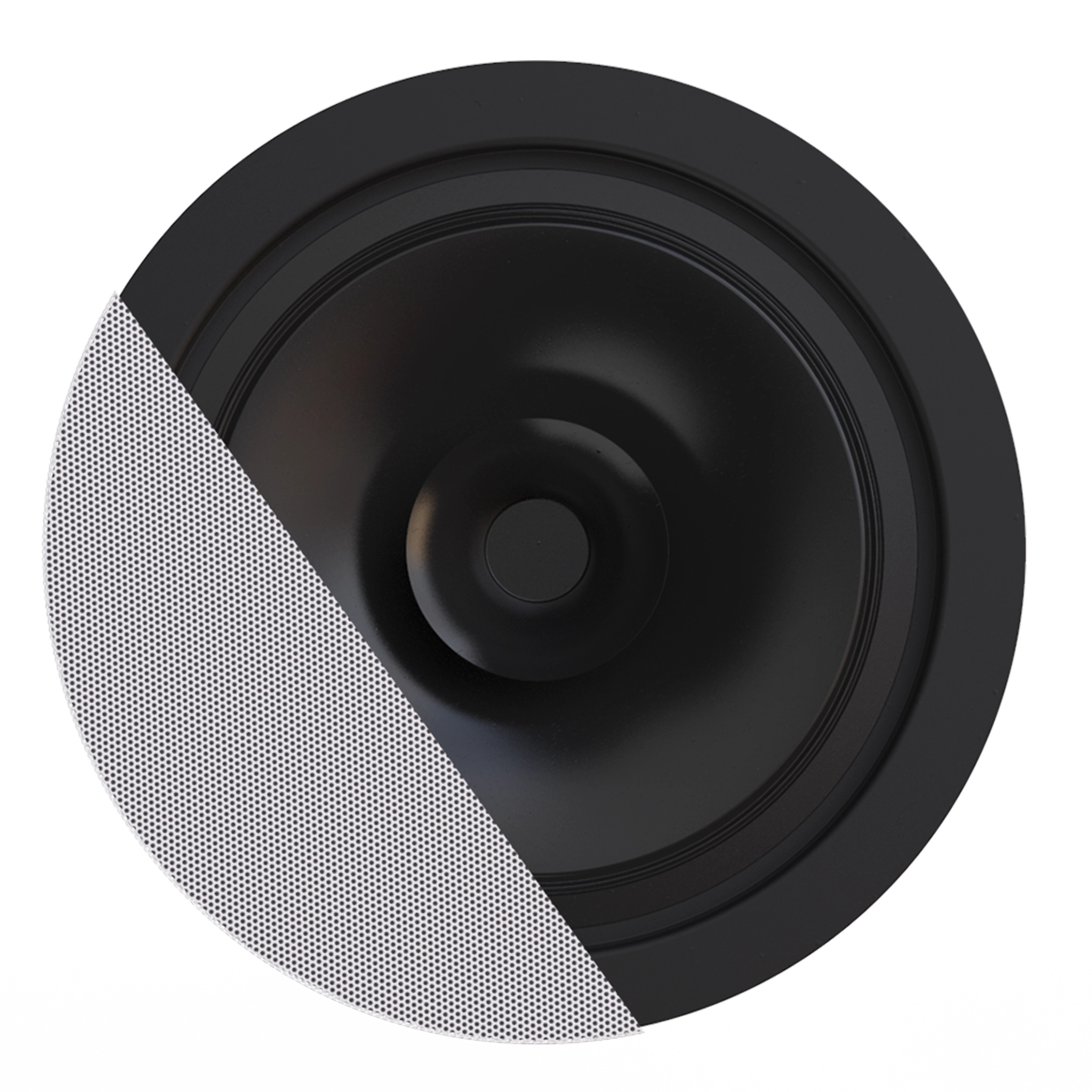

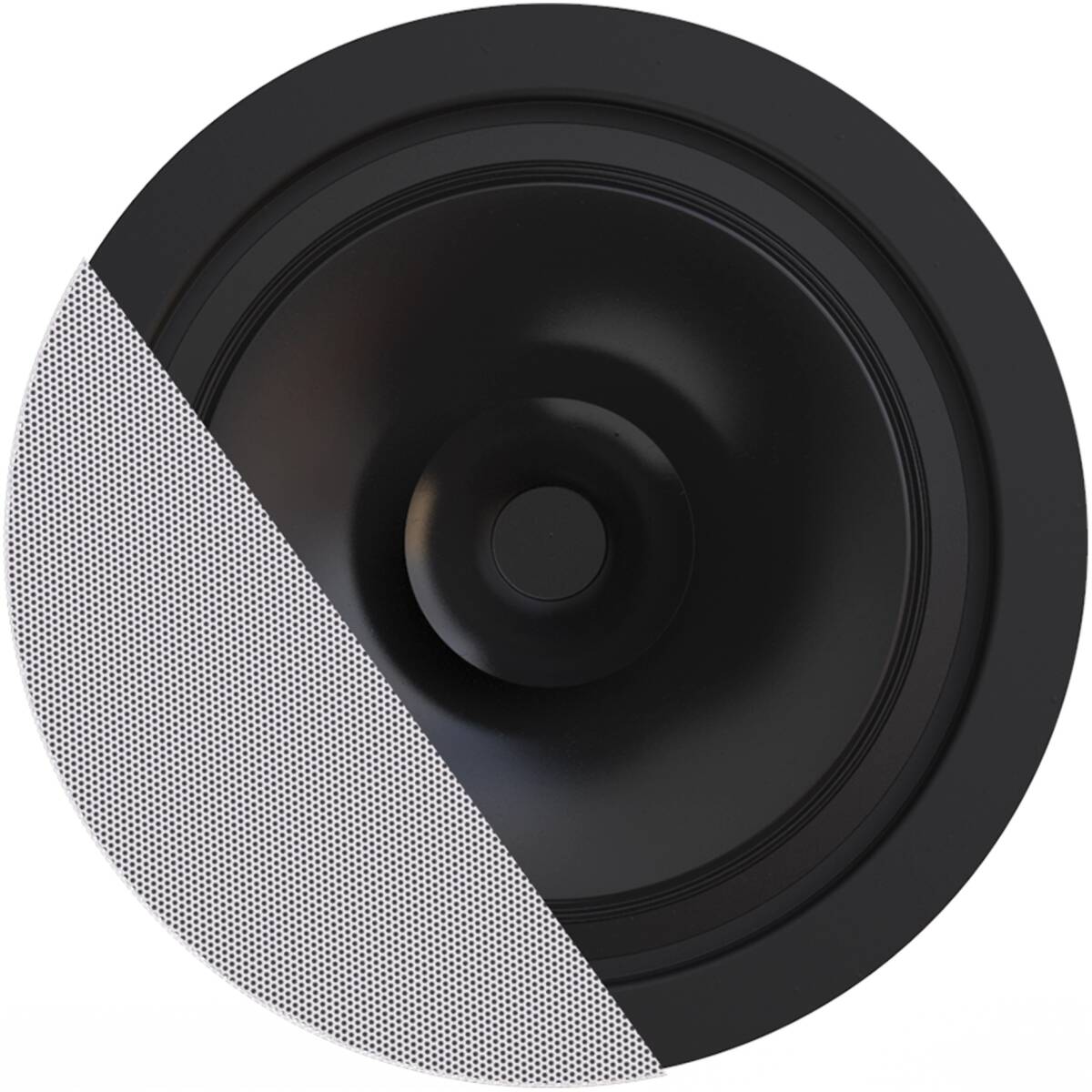

The speaker features a 6.5-inch mid/low-frequency driver combined with a coaxially mounted tweeter, providing improved high-frequency detail and wider sound dispersion compared to standard single-driver ceiling speakers. This ensures consistent sound coverage throughout the listening area.

The CENA506/W is designed for 100 V distributed audio systems with selectable transformer taps, making it suitable for installations such as retail stores, restaurants, offices, hospitality venues, schools, and public buildings.

Key Features

6.5-inch two-way ceiling loudspeaker

Coaxial tweeter for enhanced high-frequency clarity

Designed for 100 V distributed audio systems

Wide dispersion for even sound coverage

Clean architectural design for discreet installation

System Specifications

Speaker type: Two-way ceiling loudspeaker
Driver configuration: 1 × 6.5-inch mid/low driver with coaxial tweeter
System impedance: 100 V line with transformer taps

Power Handling

Continuous power (AES / RMS): 20 W
Program power: 40 W
Peak power: 80 W

Frequency Performance

Frequency response (±3 dB): 80 Hz – 20 kHz
Frequency range (-10 dB): 70 Hz – 20 kHz

Line Transformer Tappings

Selectable 100 V transformer taps for distributed audio installations.

Construction

Mounting type: Flush ceiling mount
Front finish: Metal grille
Colour: White
