Audac AUA-CIRA530D/W QuickFit 2-way 5 1/4 Ceiling Speaker With TwistFix Grill White Version

The Audac CIRA524I/W is a 6.5-inch two-way ceiling loudspeaker designed for professional distributed audio installations where clear music reproduction and speech intelligibility are required. Its discreet architectural design allows it to integrate seamlessly into ceilings while providing consistent audio coverage.

The speaker features a 6.5-inch polypropylene mid/low-frequency driver with a coaxially mounted tweeter, ensuring balanced sound with good low-frequency response and detailed high frequencies. The integrated transformer allows the speaker to operate in 70 V and 100 V distributed audio systems.

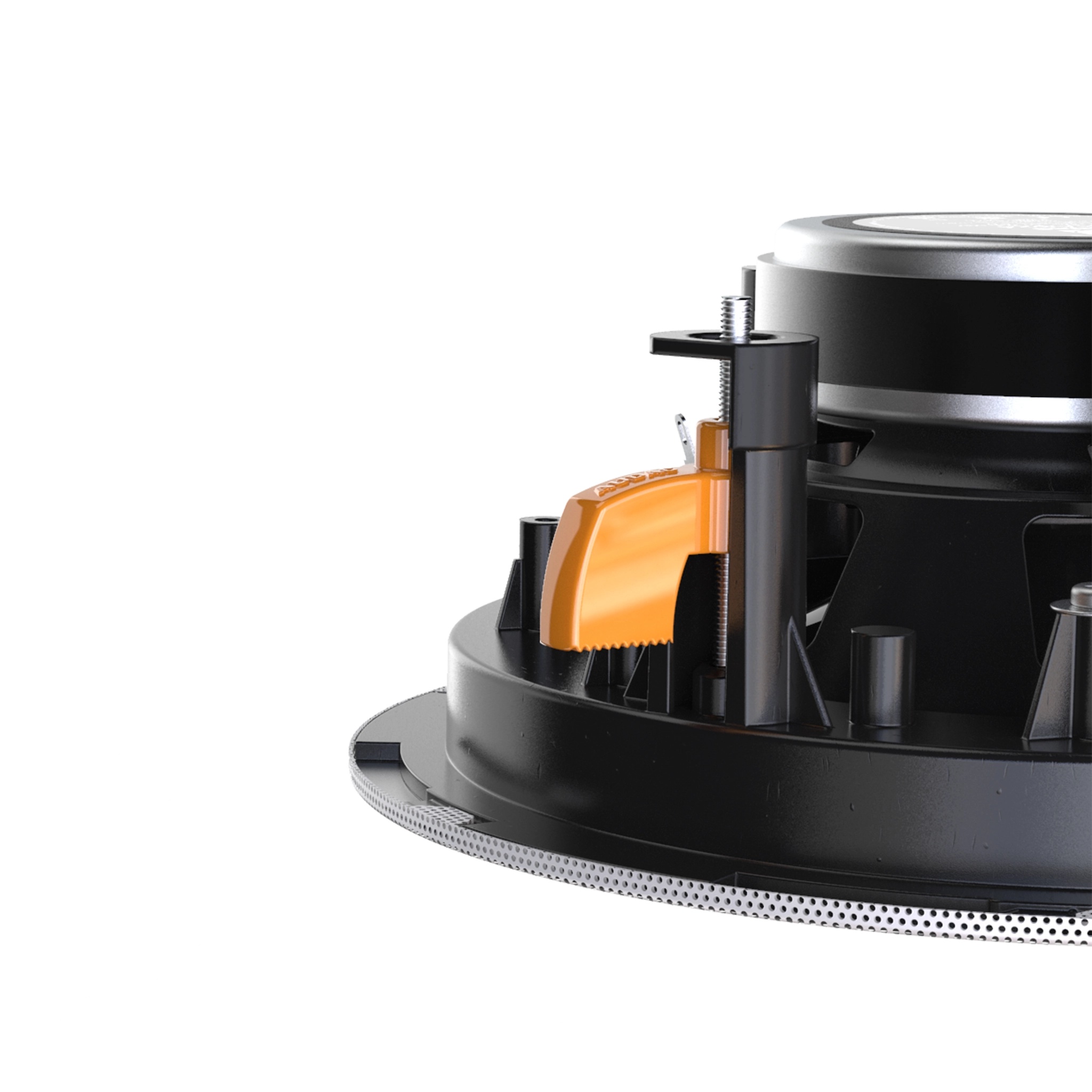

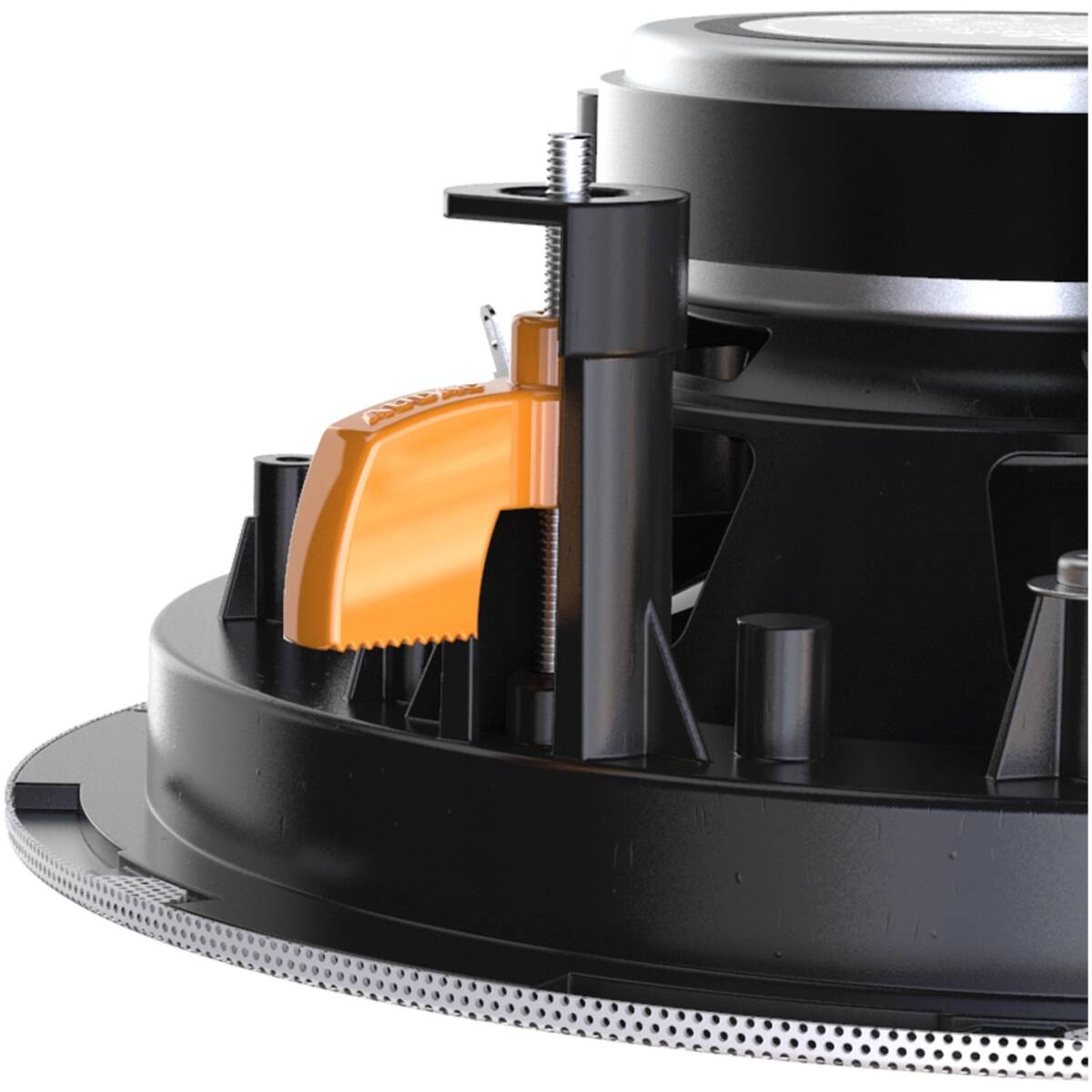

The QuickFit mounting system ensures fast and secure installation into ceiling panels, reducing installation time while maintaining a stable mounting structure.

The CIRA524I/W is ideal for retail stores, offices, restaurants, hospitality venues, schools, and commercial buildings, where reliable background music and paging audio are required.

Key Features

• 6.5-inch two-way ceiling loudspeaker
• QuickFit mounting system for fast installation
• 70 V / 100 V line transformer for distributed audio systems
• Coaxial tweeter for improved high-frequency clarity
• Wide dispersion for even sound coverage
• Clean architectural design for discreet ceiling integration

System Specifications

Speaker type: Two-way ceiling loudspeaker
Driver configuration: 1 × 6.5-inch mid/low driver with coaxial tweeter

Power Handling

Continuous power (AES / RMS): 24 W
Program power: 48 W
Peak power: 96 W

Frequency Performance

Frequency response (±3 dB): 70 Hz – 20 kHz
Frequency range (-10 dB): 60 Hz – 20 kHz

Line Transformer Tappings

100 V taps: 24 W / 12 W / 6 W / 3 W
70 V taps: 12 W / 6 W / 3 W / 1.5 W

Construction

Mounting type: QuickFit ceiling mount
Front finish: Steel grille
Colour: White
