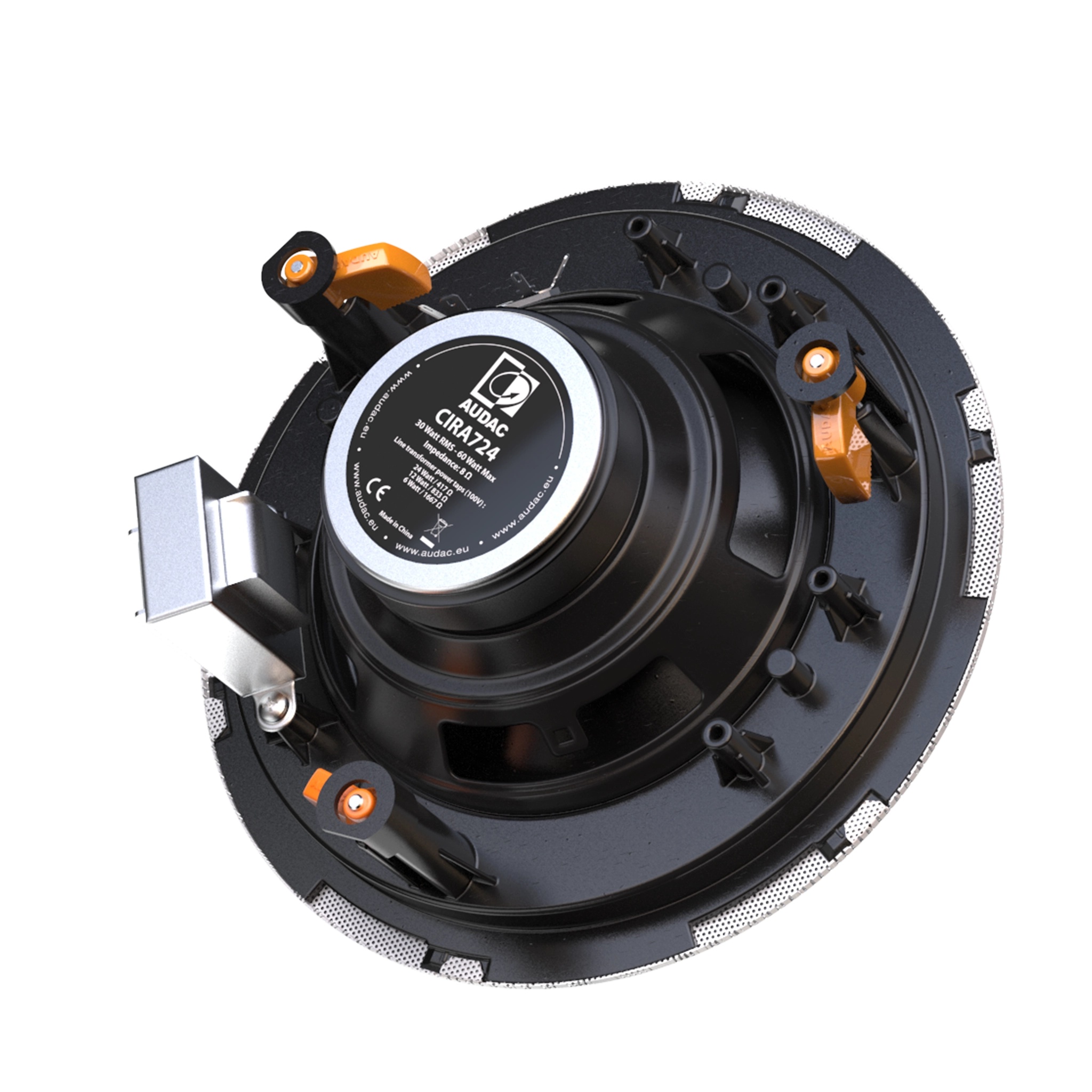

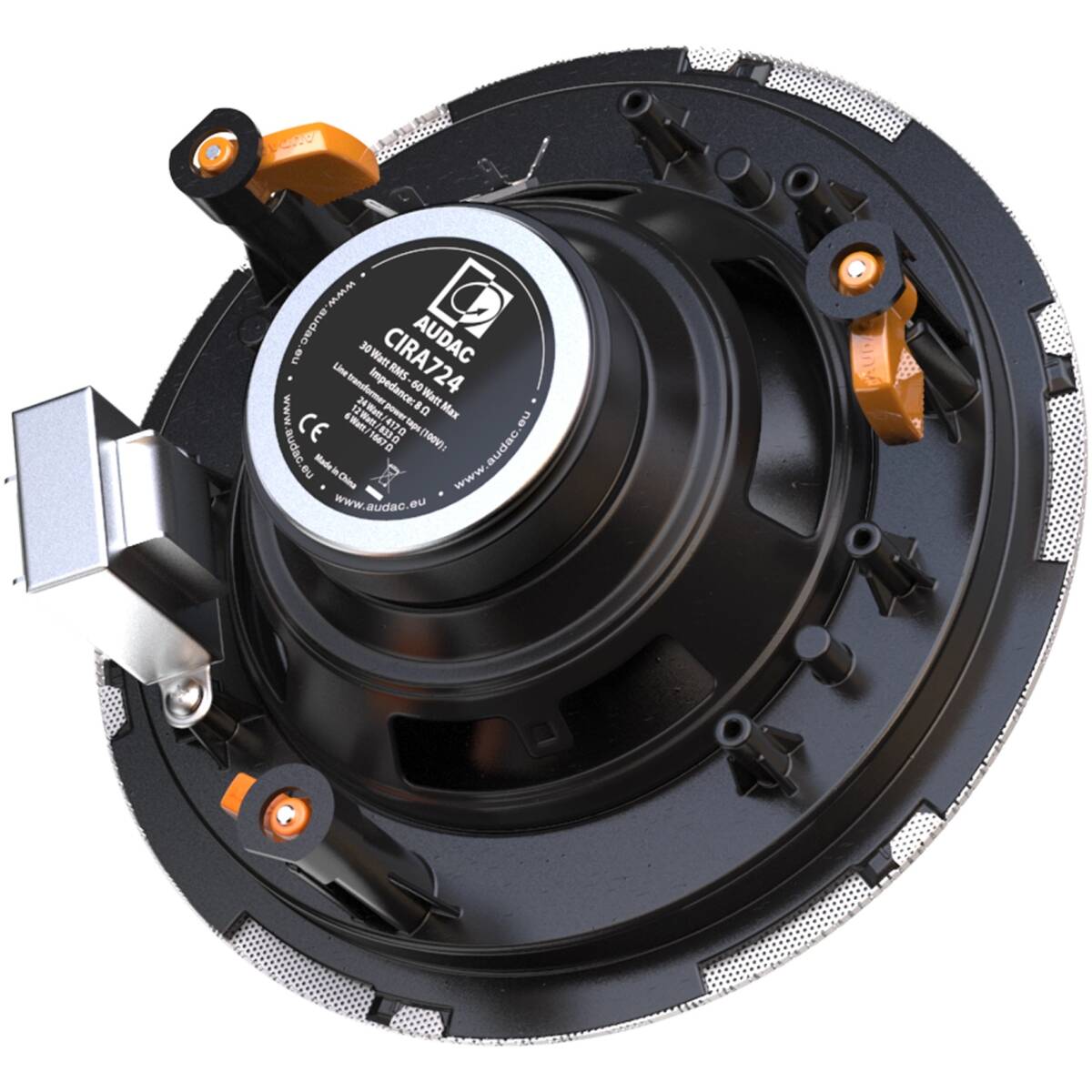

Audac AUA-CIRA724I/W QuickFit 2-way 6.5 Ceiling Speaker With TwistFix Grill White Version

The Audac CIRA530DI/W is a 6.5-inch dual voice coil ceiling loudspeaker designed for distributed audio installations where stereo audio reproduction is required from a single speaker location. Its architectural design ensures discreet ceiling integration while delivering balanced and clear sound.

The speaker features a 6.5-inch polypropylene mid/low-frequency driver with a coaxially mounted tweeter, combined with a dual voice coil configuration that allows both left and right audio channels to be reproduced from one speaker. This makes it ideal for areas where installing two separate speakers is not practical.

The integrated transformer allows operation in 70 V and 100 V distributed audio systems, while the QuickFit mounting system ensures fast and secure installation in ceiling panels.

The CIRA530DI/W is suitable for retail environments, restaurants, offices, hospitality venues, meeting rooms, and residential multi-room audio systems.

Key Features

• 6.5-inch dual voice coil ceiling loudspeaker
• Provides stereo audio from a single speaker
• QuickFit mounting system for fast installation
• Compatible with 70 V / 100 V distributed audio systems
• Coaxial tweeter for improved high-frequency clarity
• Wide dispersion for consistent sound coverage

System Specifications

Speaker type: Two-way ceiling loudspeaker
Driver configuration: 1 × 6.5-inch mid/low driver with coaxial tweeter
Voice coil configuration: Dual voice coil

Power Handling

Continuous power (AES / RMS): 2 × 30 W
Program power: 2 × 60 W
Peak power: 2 × 120 W

Frequency Performance

Frequency response (±3 dB): 70 Hz – 20 kHz
Frequency range (-10 dB): 60 Hz – 20 kHz

Line Transformer Tappings

100 V taps: 30 W / 15 W / 7.5 W / 3.75 W
70 V taps: 15 W / 7.5 W / 3.75 W / 1.875 W

Construction

Mounting type: QuickFit ceiling mount
Front finish: Steel grille
Colour: White
