Audac AUA-CIRA730D/W QuickFit 2-way 6.5 Ceiling Speaker With TwistFix Grill White Version

The Audac CIRA730D/W is a 6.5-inch two-way ceiling loudspeaker designed for high-quality music reproduction and speech intelligibility in professional distributed audio installations. Its discreet architectural design allows it to integrate seamlessly into ceilings while delivering balanced sound performance.

The speaker is equipped with a 6.5-inch polypropylene mid/low-frequency driver and a coaxially mounted tweeter, providing detailed high frequencies and clear midrange reproduction. The integrated transformer allows the speaker to operate in 70 V and 100 V distributed audio systems, making it suitable for large commercial installations.

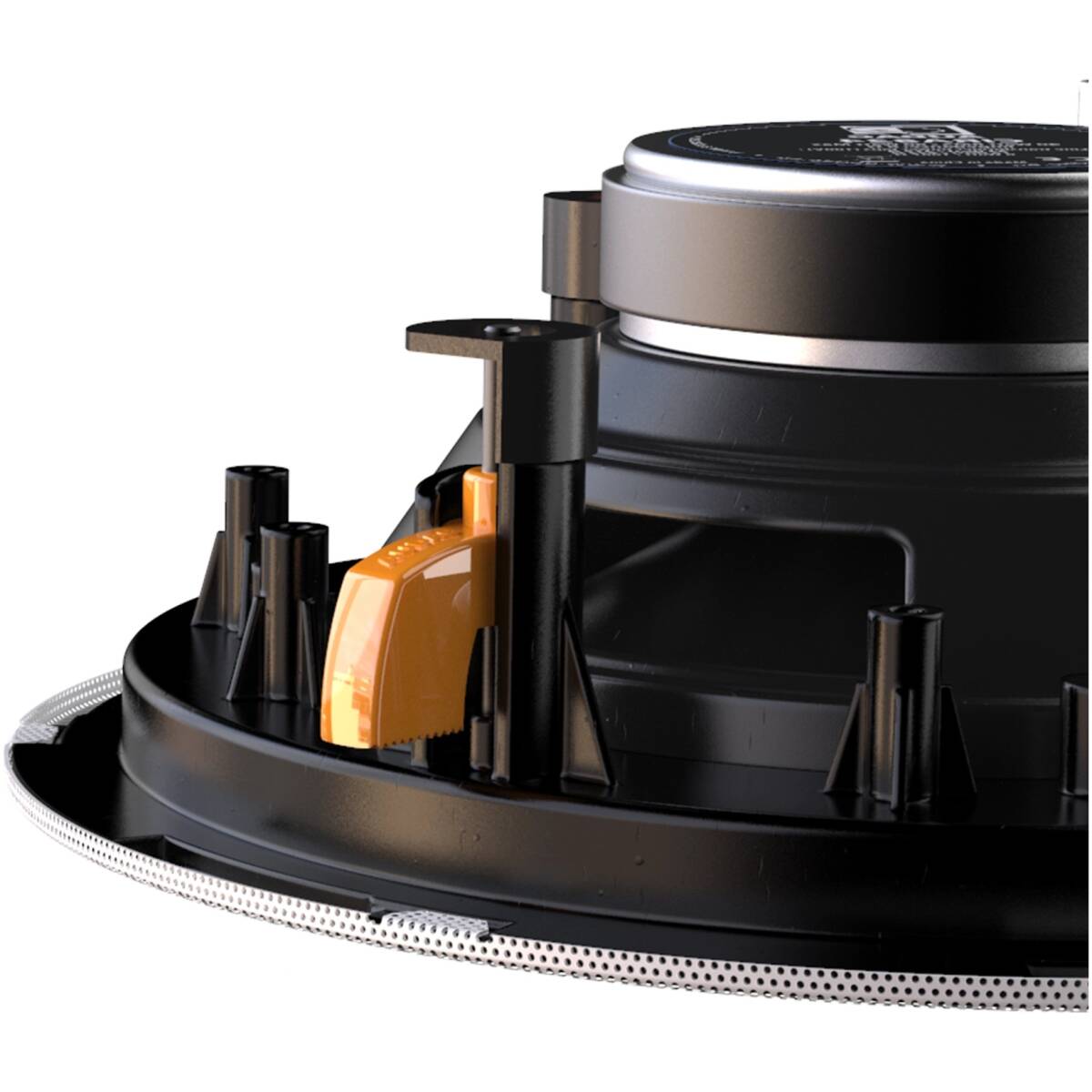

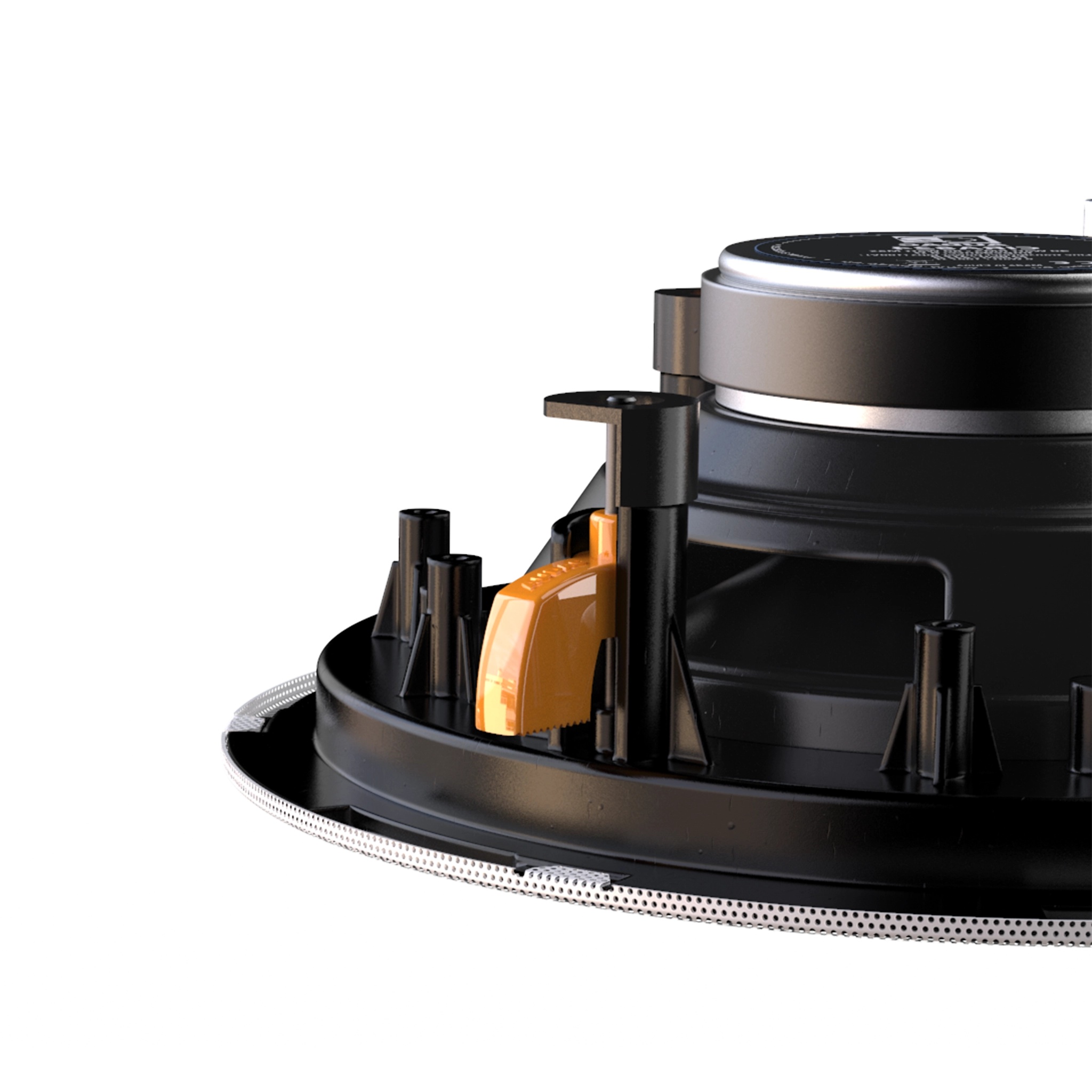

The QuickFit mounting system allows fast and secure installation into ceiling panels, reducing installation time while ensuring stable mounting.

The CIRA730D/W is ideal for retail stores, restaurants, offices, hospitality venues, schools, and commercial buildings, where reliable background music and paging audio are required.

Key Features

• 6.5-inch two-way ceiling loudspeaker
• QuickFit mounting system for fast installation
• Compatible with 70 V / 100 V distributed audio systems
• Coaxial tweeter for improved high-frequency clarity
• Wide dispersion for consistent sound coverage
• Clean architectural design for discreet ceiling integration
• System Specifications

Speaker type: Two-way ceiling loudspeaker
Driver configuration: 1 × 6.5-inch mid/low driver with coaxial tweeter

Power Handling

Continuous power (AES / RMS): 30 W
Program power: 60 W
Peak power: 120 W

Frequency Performance

Frequency response (±3 dB): 70 Hz – 20 kHz
Frequency range (-10 dB): 60 Hz – 20 kHz

Line Transformer Tappings

100 V taps: 30 W / 15 W / 7.5 W / 3.75 W
70 V taps: 15 W / 7.5 W / 3.75 W / 1.875 W

Construction

Mounting type: QuickFit ceiling mount
Front finish: Steel grille
Colour: White
