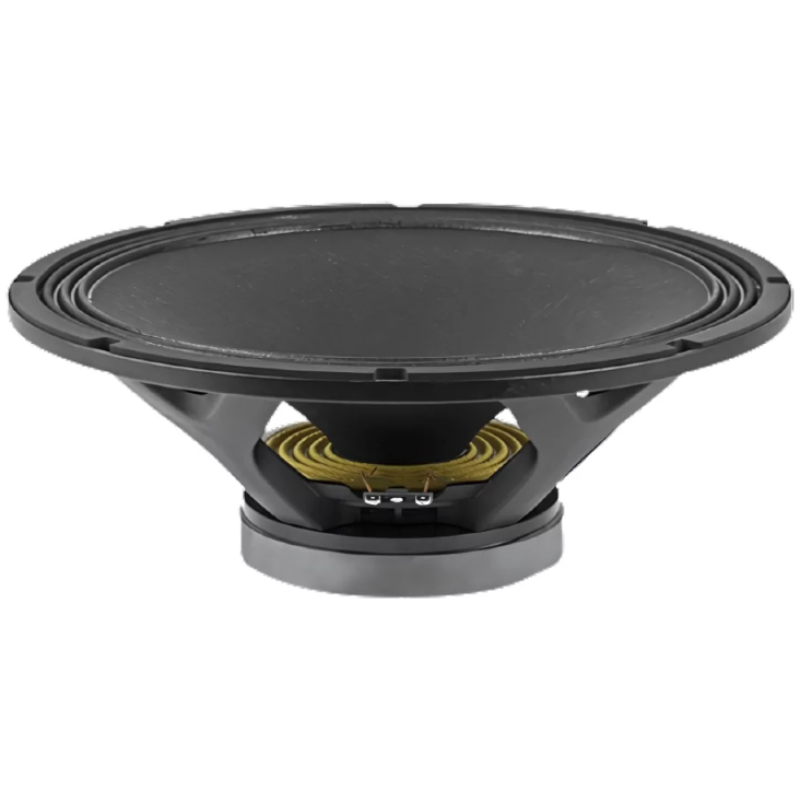

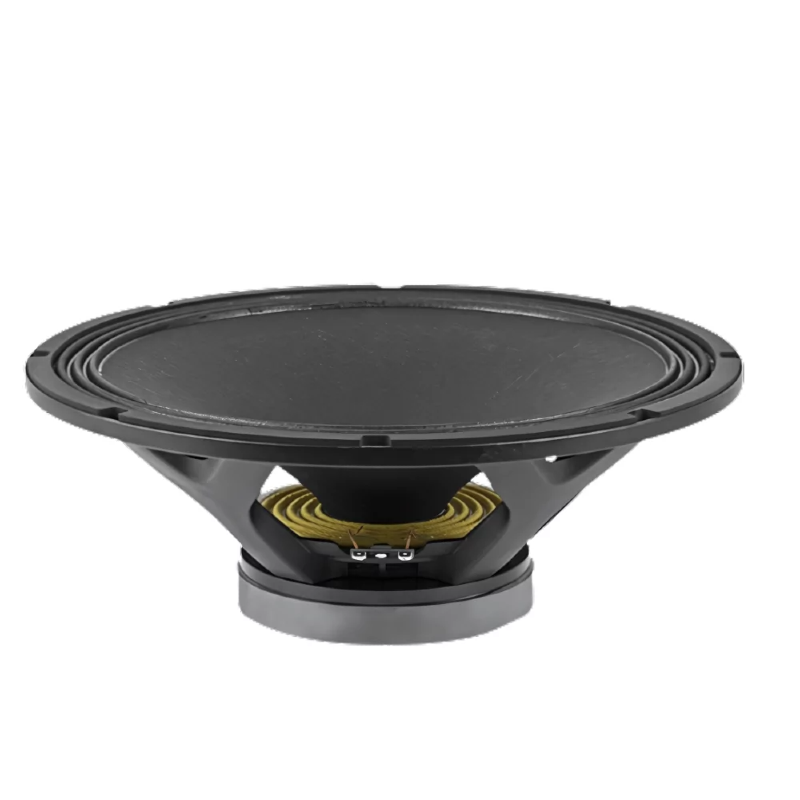

The Beyma 15MC500 is a high-efficiency 15″ transducer designed for professional sound reinforcement, focusing on mid-bass and low-mid reproduction. Built with a robust ferrite magnet, 3″ copper voice coil, and a treated paper cone, it delivers punchy response, excellent sensitivity, and reliable power handling. Its wide frequency range and smooth response make it ideal for 2-way and 3-way PA systems, stage monitors, and compact bass enclosures.
Key Features
- Nominal Diameter: 15″ (380 mm)
- Voice Coil Diameter: 3″ (76 mm) copper voice coil
- Nominal Impedance: 8 Ω
- Power Handling (AES): 500 W AES (1000 W program)
- Sensitivity: 98 dB (1W/1m)
- Frequency Response: 45 Hz – 4 kHz
- Magnet Type: Ferrite
- Cone Material: Reinforced treated paper cone with cloth surround
- Xmax (linear excursion): ±6.5 mm
- Recommended Enclosure: Bass reflex or horn-loaded designs
Applications
- Professional PA systems (2-way or 3-way)
- Stage monitors
- Compact bass reinforcement
- Fixed installations
