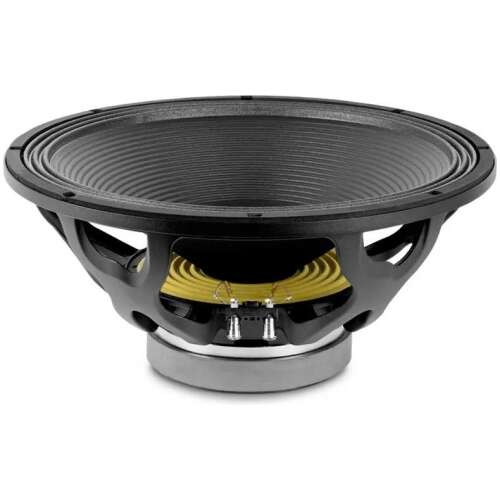

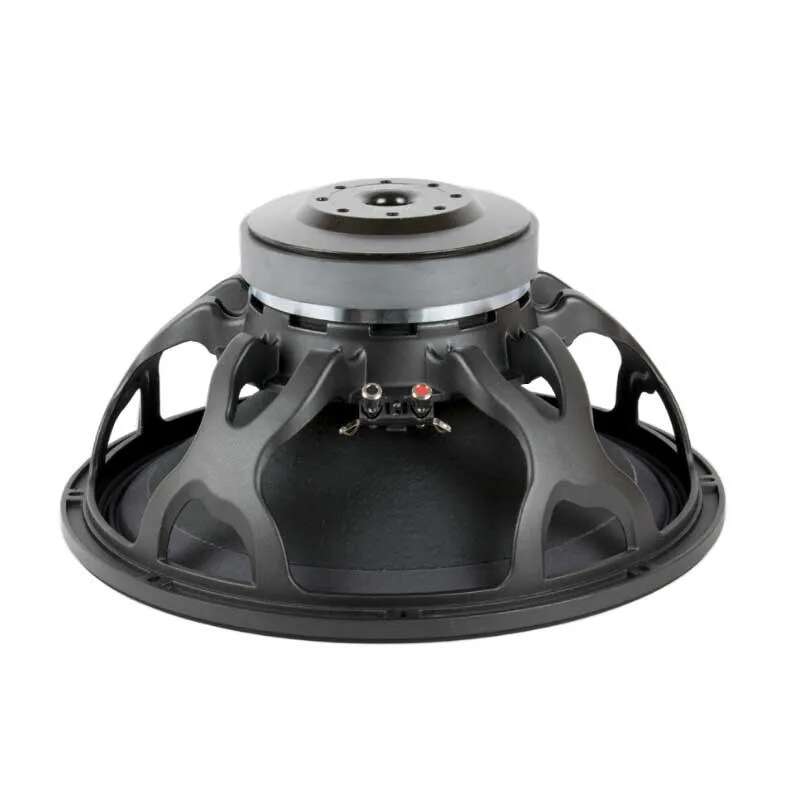

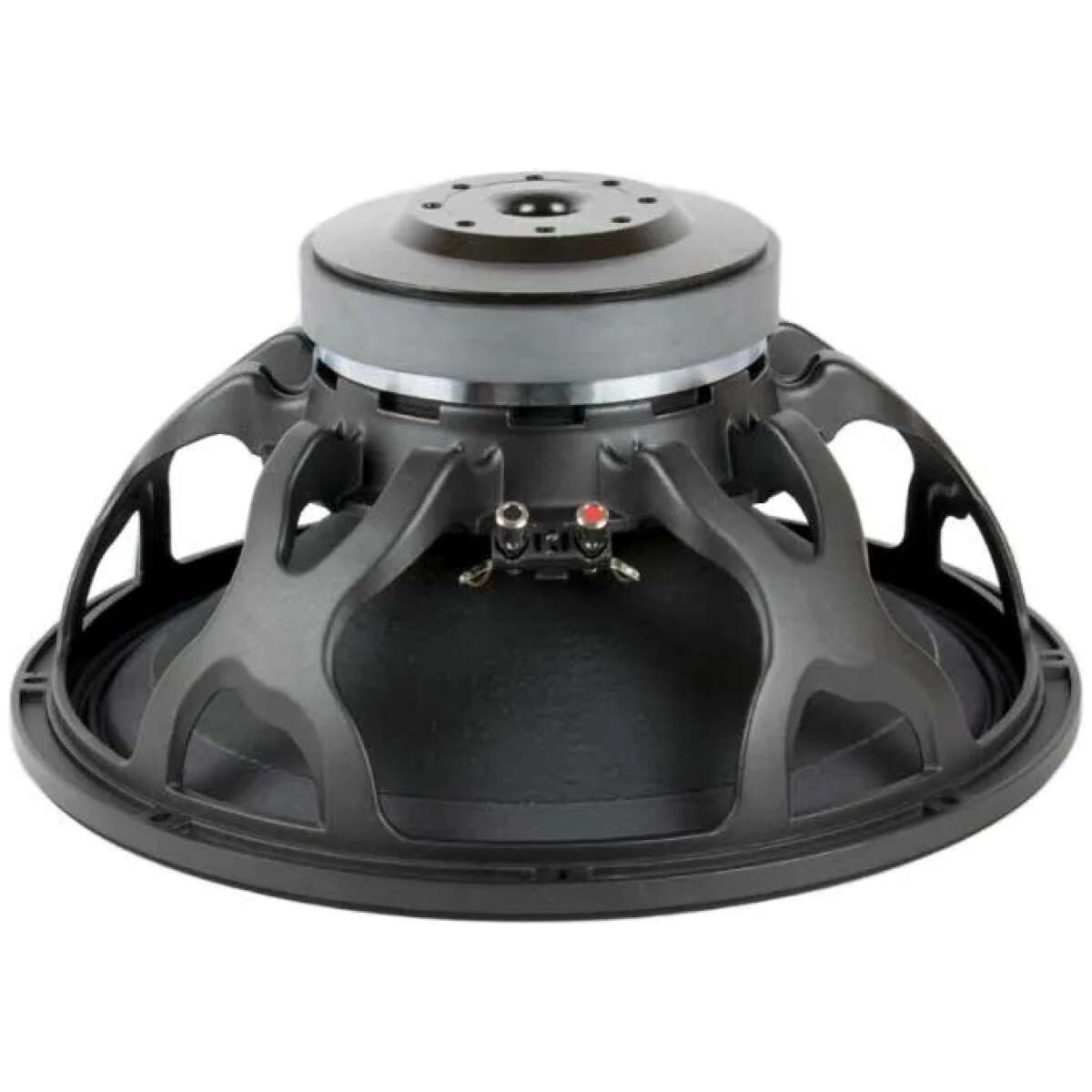

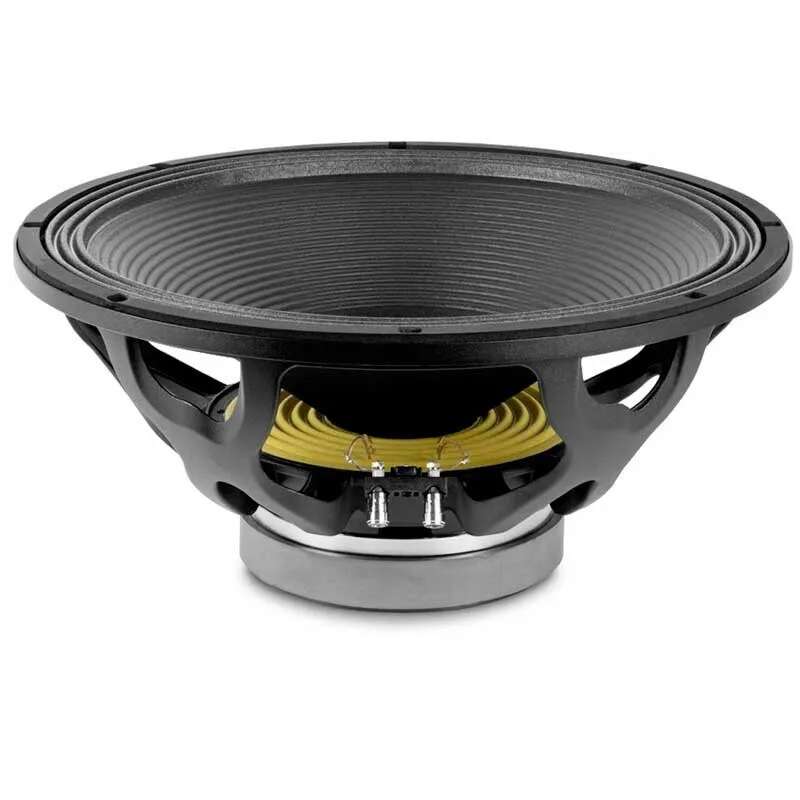

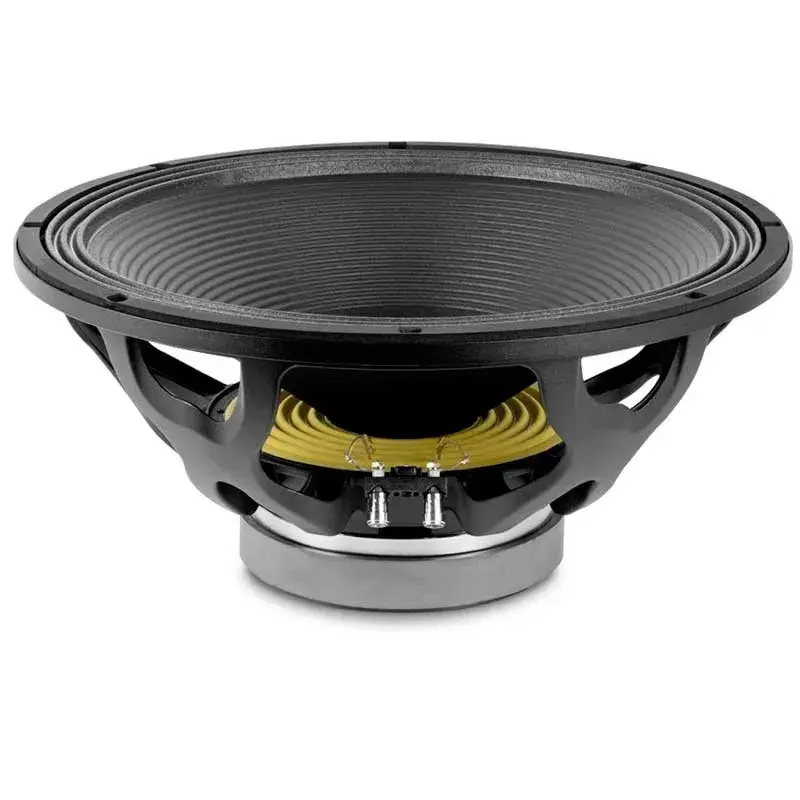

Beyma 18LEX1000Fe 2000W, 8 Ohm 18-inch Bass Woofer

The Beyma 18LEX1000Fe is a professional 18-inch loose subwoofer driver designed for powerful low-frequency reproduction in high-performance PA systems and custom speaker cabinets.

It delivers 1,000W RMS power handling and 2,000W program power at an 8-ohm nominal impedance. With a sensitivity of 98 dB, a 3.5-inch voice coil and an 11 mm Xmax, the driver produces strong, controlled bass while maintaining reliable performance at high output levels.

Beyma’s Maltcross cooling technology improves heat dissipation around the voice coil, allowing the driver to handle demanding professional applications with reduced power compression. Its ferrite magnet structure and durable construction make it suitable for live sound systems, DJs, venues, touring systems and fixed installations.

Specifications

Speaker Size: 18 inch
Speaker Type: Loose subwoofer driver
Power Rating (RMS): 1,000W
Program Power: 2,000W
Nominal Impedance: 8 Ohms
Minimum Impedance: 7.2 Ohms
Sensitivity: 98 dB
Frequency Range: 35 Hz – 1,000 Hz
Voice Coil Diameter: 88.9 mm / 3.5 inch
Magnet Type: Ferrite
Xmax: 11 mm
BL Factor: 23.8 N/A
Recommended Enclosure Volume: 174 litres
Mounting Depth: 224 mm
Overall Diameter: 460 mm
Net Weight: 11.7 kg

Thiele and Small Parameters

Fs: 34 Hz
Re: 5.4 Ohms
Qms: 7.3
Qes: 0.39
Qts: 0.38
Vas: 250 litres
Cms: 111 µm/N
Rms: 5.7 kg/s
Moving Mass: 0.196 kg
Sd: 0.1255 m²
Vd: 1,380 cm³
Le at 1 kHz: 1.9 mH
