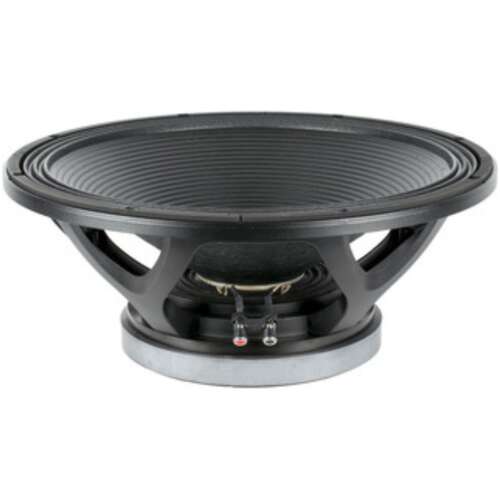

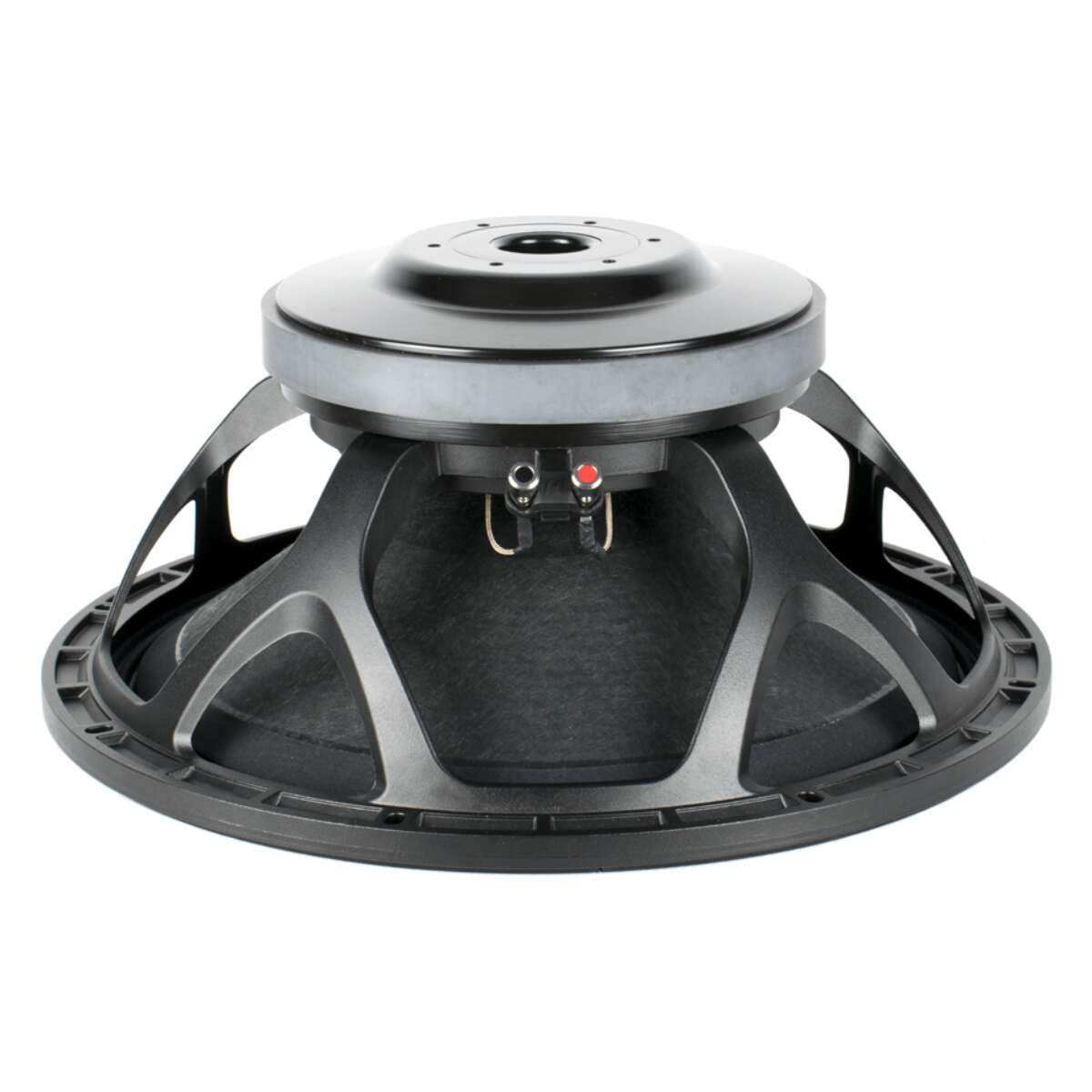

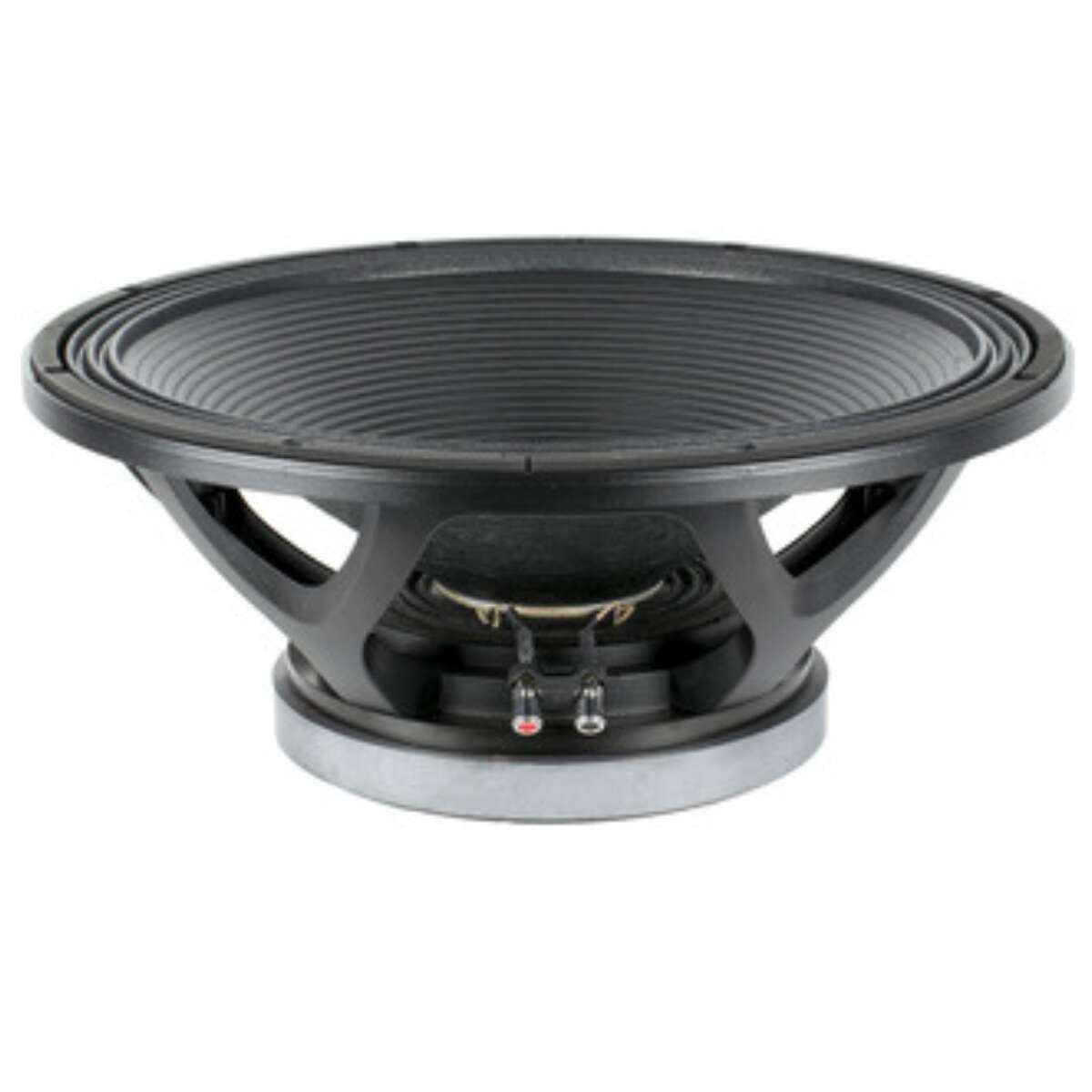

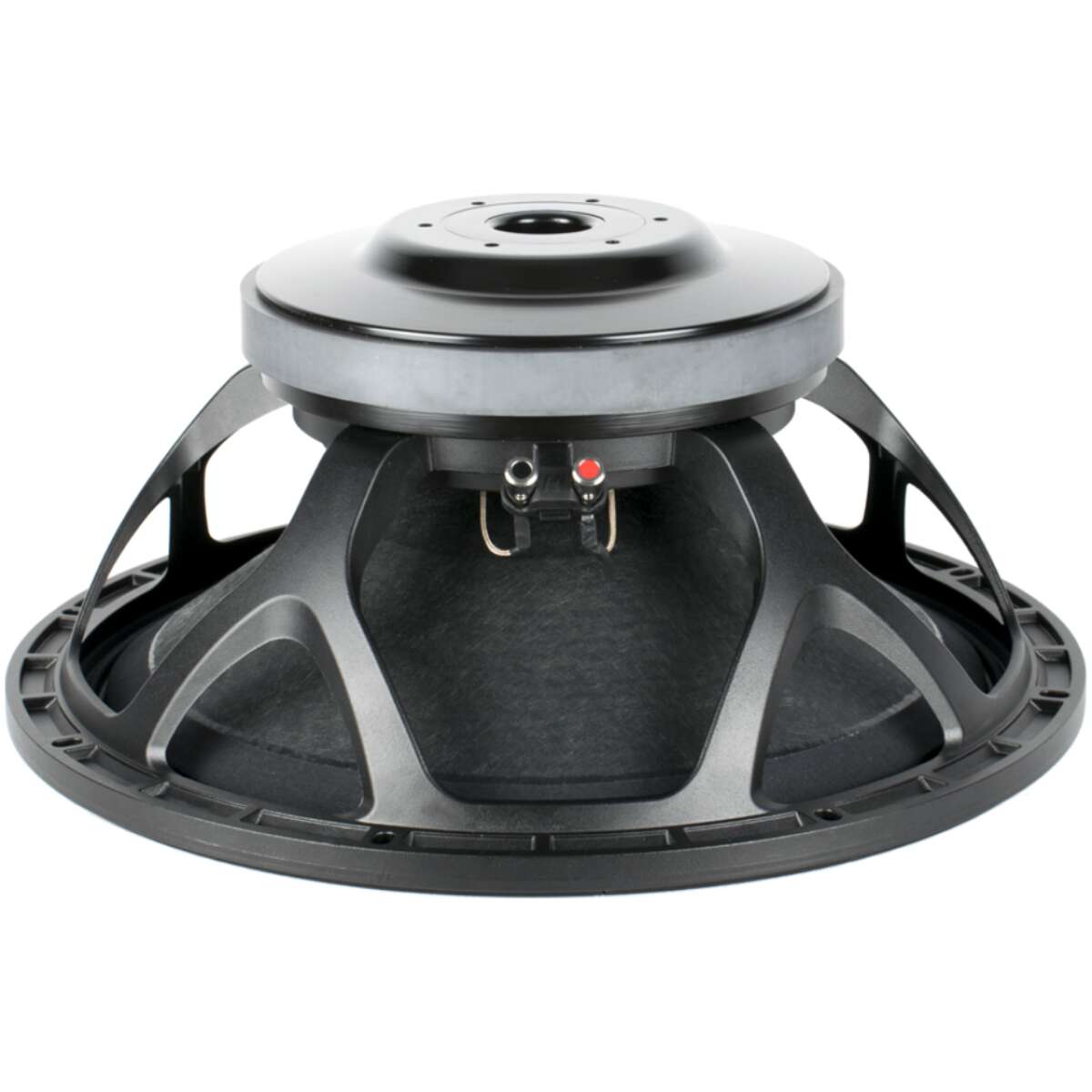

Beyma 18PW1400Fe 18″ Loose Speaker (Subwoofer)

The Beyma 18PW1400Fe is a professional 18-inch ferrite low-frequency transducer designed for powerful bass reproduction in high-output PA speakers and subwoofer cabinets. It features Beyma’s Malt Cross cooling system, a weather-treated cone and a 4-inch copper voice coil for improved reliability under continuous use.

Key Specifications

• Power handling: 1,400W AES
• Program power: 2,800W
• Nominal impedance: 8 Ohms
• Minimum impedance: 5.3 Ohms
• Sensitivity: 98 dB
• Frequency range: 25 Hz – 1,800 Hz
• Voice coil: 4-inch / 101.6 mm copper
• Resonant frequency: 32 Hz
• Xmax: ±10 mm
• Maximum excursion before damage: 55 mm peak-to-peak
• Magnet type: Ferrite
• Recommended bass-reflex enclosure: 180 litres
• Recommended tuning frequency: 42 Hz
