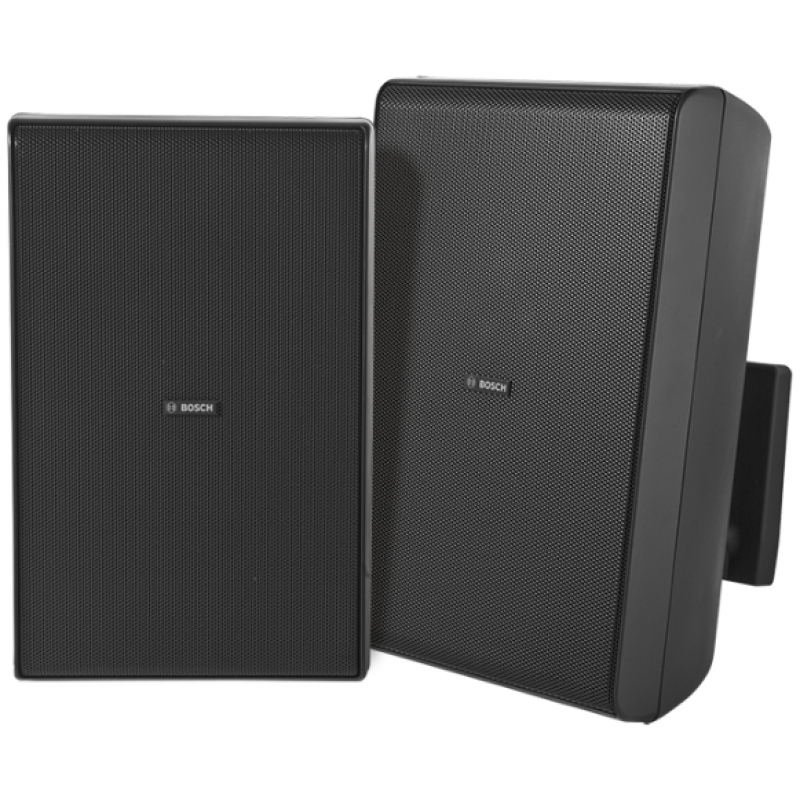

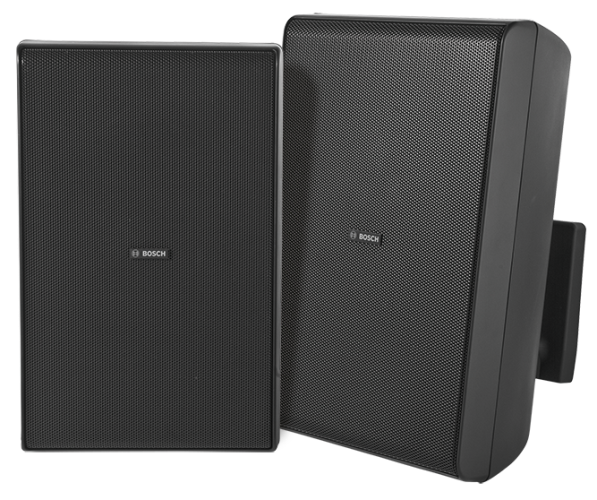

Bosch LB20-PC60-8 8″ Cabinet Speaker (70/100V, Pair)

Key Features

• Supplied as a matched pair

• 8″ two-way full-range cabinet speaker

• Indoor and outdoor use (IP54 rated)

• 70V / 100V line or 8-ohm low-impedance operation

• Integrated 60W transformer with multiple power taps

• Wide 90° × 90° coverage

• Adjustable wall/ceiling mount included

• Paintable black or white enclosure

Specifications

• Power handling: 90 W continuous (360 W peak)

• Transformer taps:

  • 70 V: 7.5 W / 15 W / 30 W / 60 W / 8 Ω

  • 100 V: 15 W / 30 W / 60 W / 8 Ω

• Frequency response (-10 dB): 50 Hz – 20 kHz

• Sensitivity: 90 dB (1 W / 1 m)

• Max SPL: 110 dB (116 dB peak)

• Coverage: 90° horizontal × 90° vertical

• LF driver: 8″ (203 mm)

• HF driver: 1″ (25 mm)

• Nominal impedance: 8 Ω

• Minimum impedance: 6 Ω

Mechanical & Environmental

• Enclosure: Fire-rated ABS plastic

• Protection rating: IP54

• Dimensions (H × W × D): 390 × 250 × 224 mm

• Net weight (each): 5.8 kg

• Colour options: Black (RAL 9004) or White (RAL 9003)

Included

• 2 × LB20-PC60-8 speakers

• Adjustable mounting brackets

• 5 mm Allen key

Shipping

• Packaged quantity: Pair

• Shipping weight (pair): 14.8 kg
