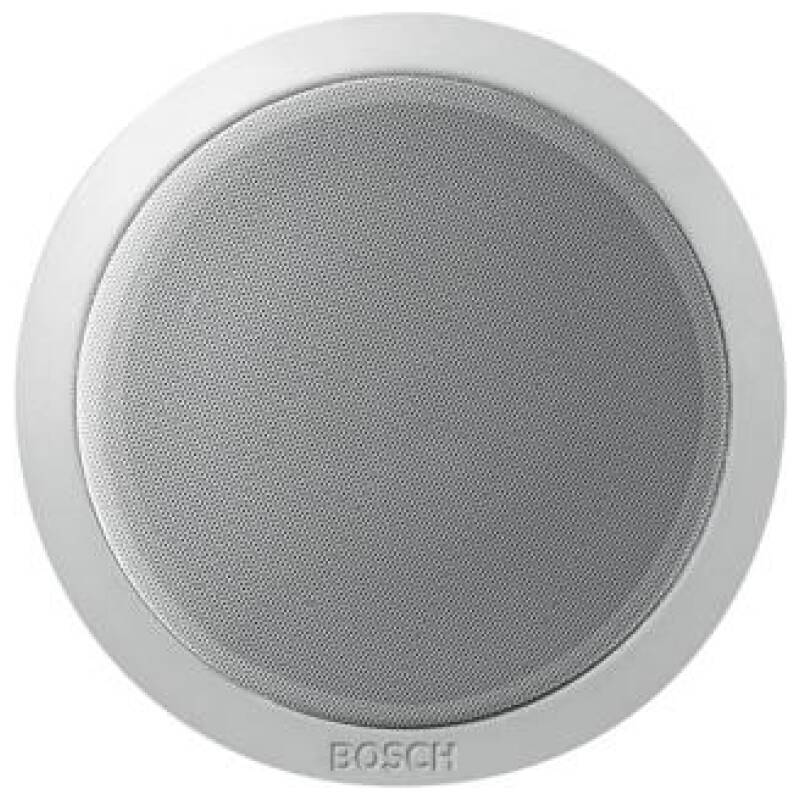

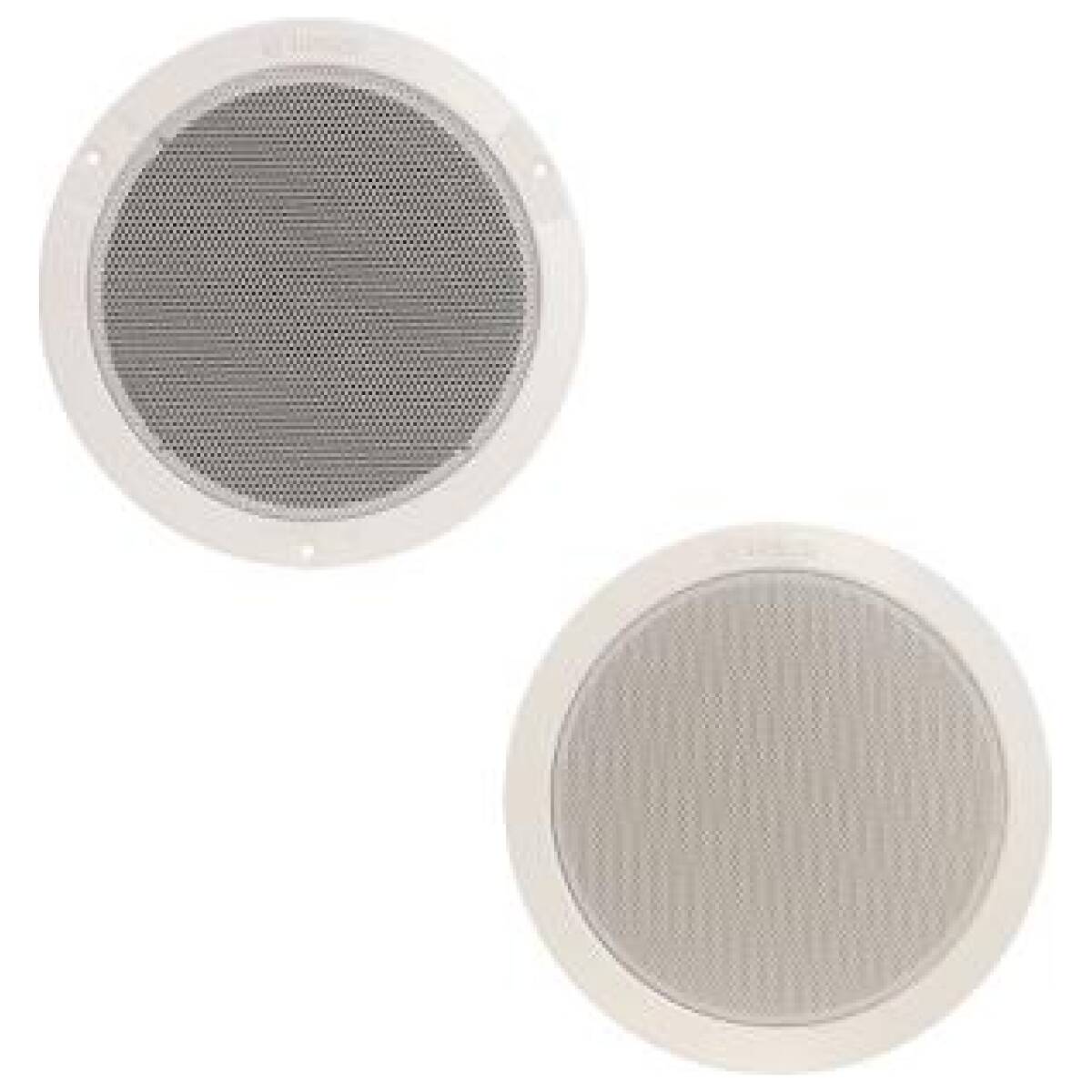

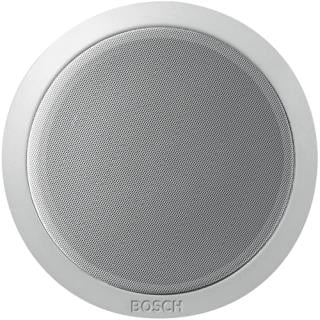

Bosch LHM0606/10 Ceiling loudspeaker

Key Features

• 6W bidirectional cabinet loudspeaker

• Wide dispersion for corridor applications

• Good speech intelligibility and background music reproduction

• 100V line transformer with selectable power taps

• MDF cabinet with wedge-shaped design

• Rear keyhole slots for fast wall mounting

• Available in black or white finishes

Specifications

• Rated power:6 W

• Maximum power: 18 W

• Input voltage: 100 V

• Impedance: 833 ohm

• Frequency range (-10 dB): 140 Hz – 20 kHz

• SPL (12 W / 1 W, 1 kHz, 1 m): 97 dB / 86 dB

• Opening angle (-6 dB): 270° at 1 kHz, 165° at 4 kHz

• Dimensions (H × W × D): 240 × 238 × 133 mm

• Weight: 1.5 kg

• Operating temperature: -25 °C to +55 °C

Variants

• LB1-BW10-D: Black

• LB1-BW10-L: White

Shipping

• Shipping dimensions: 24.0 × 23.8 × 13.3 cm

• Shipping weight: 1.5 kg
