R8 150,00
| Attribute | Value |
|---|---|
| Number of Channels | Not listed |
| Power Output at 8 Ohms Per Channel: | Not listed |
| Power Output at 4 Ohms Per Channel: | Not listed |
| Power Output at 2 Ohms Per Channel: | Not listed |
| Bridge Mode Power | Not listed |
| Amplifier Class: | Not listed |
| Shipping Weight: | Not listed |

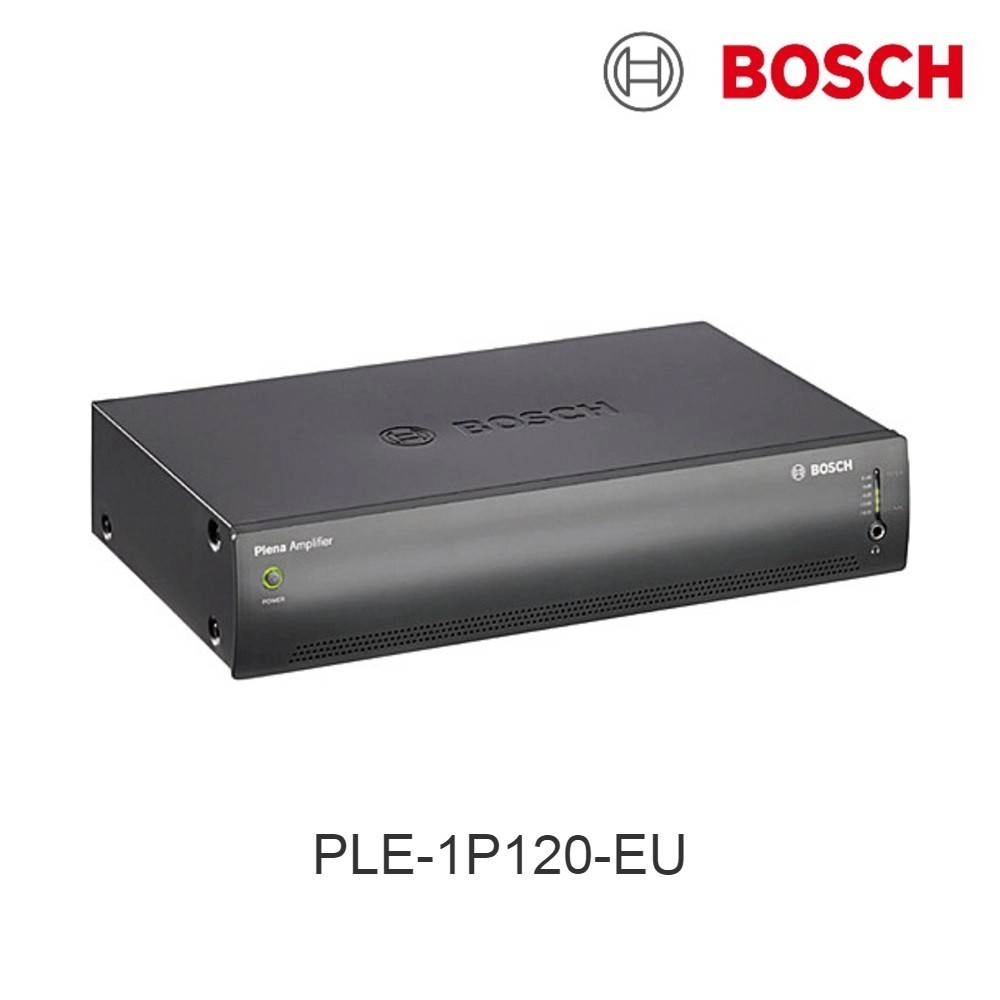

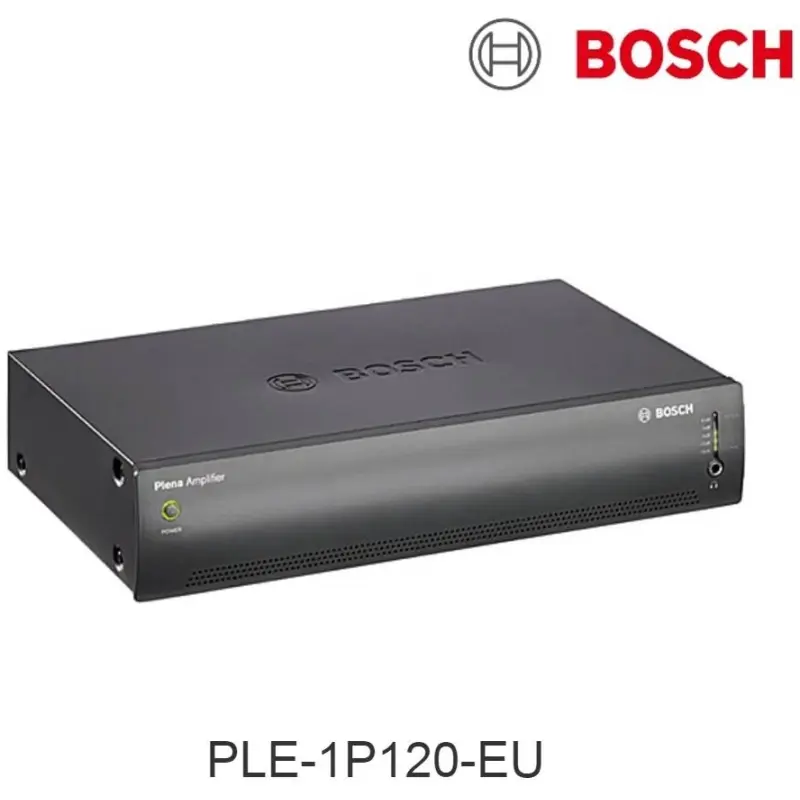

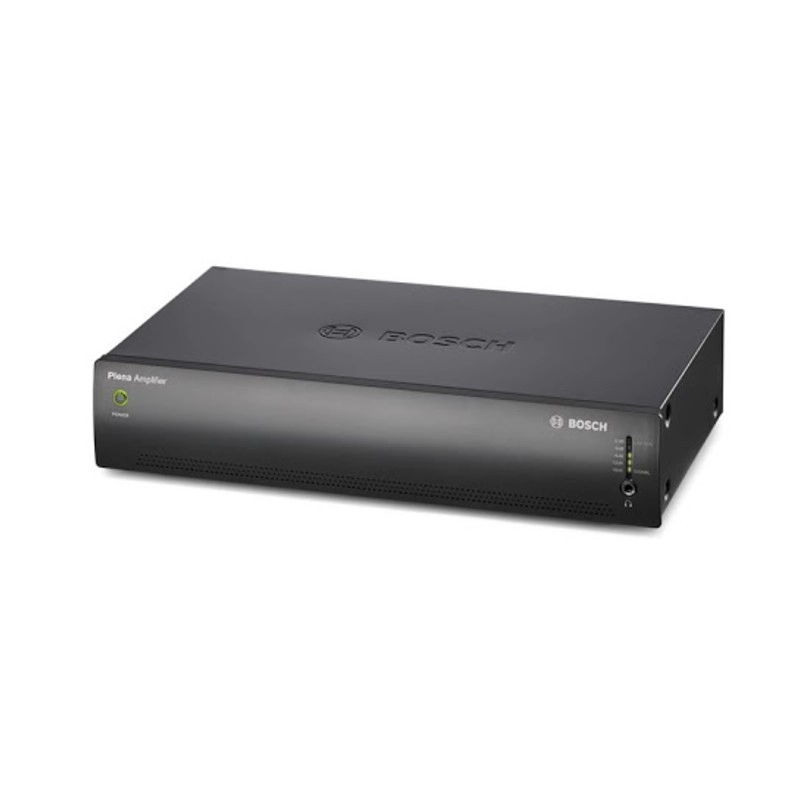

The Bosch PLE-1P120-EU is a high power plug-and-play cost effective power amplifier that deliver 120 and 240 Watts to constant voltage or 8 ohm loads. Built with premium quality and protections, it offers basic functionality at a budget price. The Bosch PLE-1P120-EU amplifiers offer straight 1V and 100V line in, and 70V, 100V and 8 ohms out. They can extend the power of the PLE- series mixer amplifiers or be combined with the PLE-10M2-EU mixer, or work anywhere where more power on an existing 100 V line is needed or when a line level signal is provided.
The amplifier is protected against overload and short circuits. A limiter protects the amplifier and loudspeaker against accidental overdriving. A temperature-controlled fan ensures proper cooling without producing acoustic noise at lower output levels.

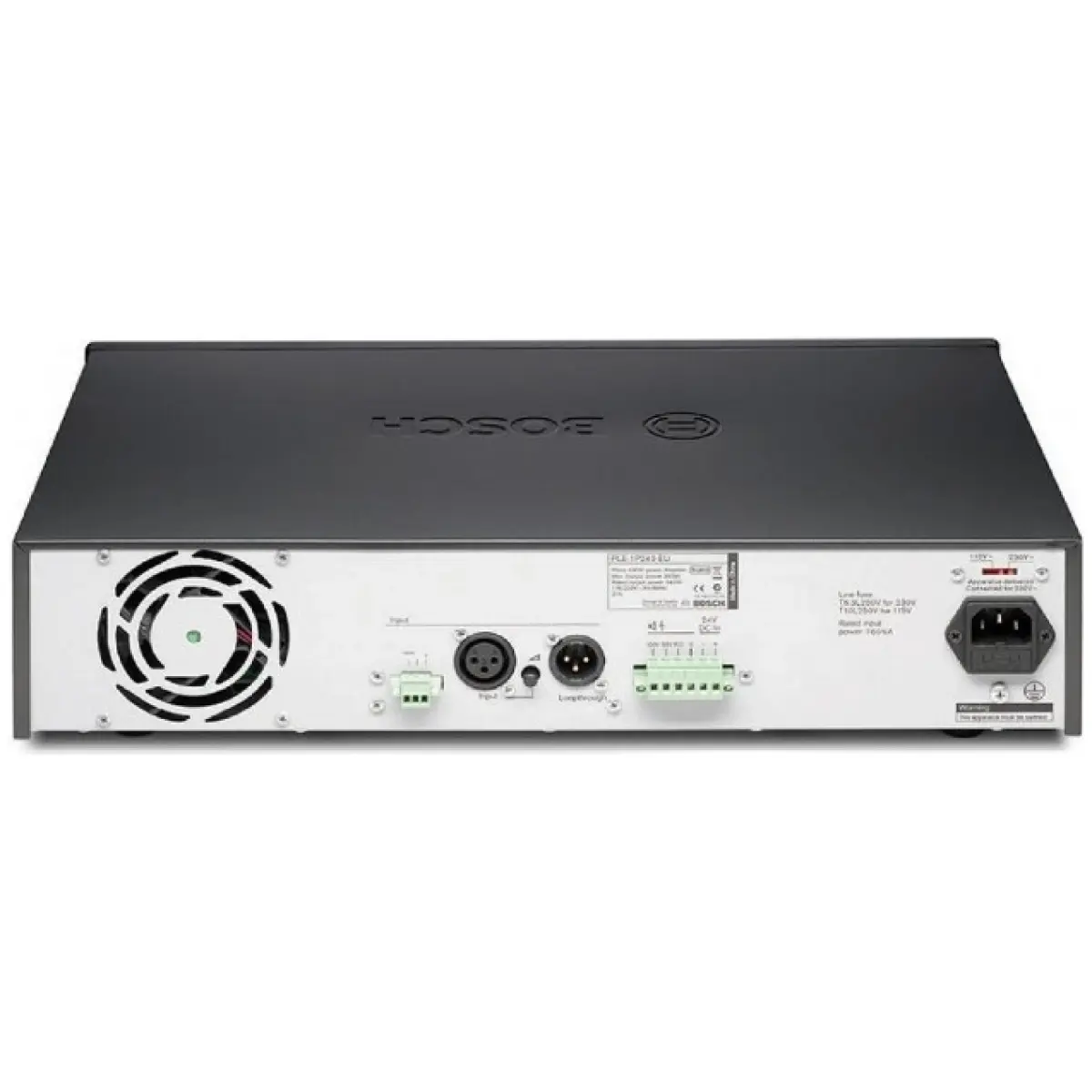

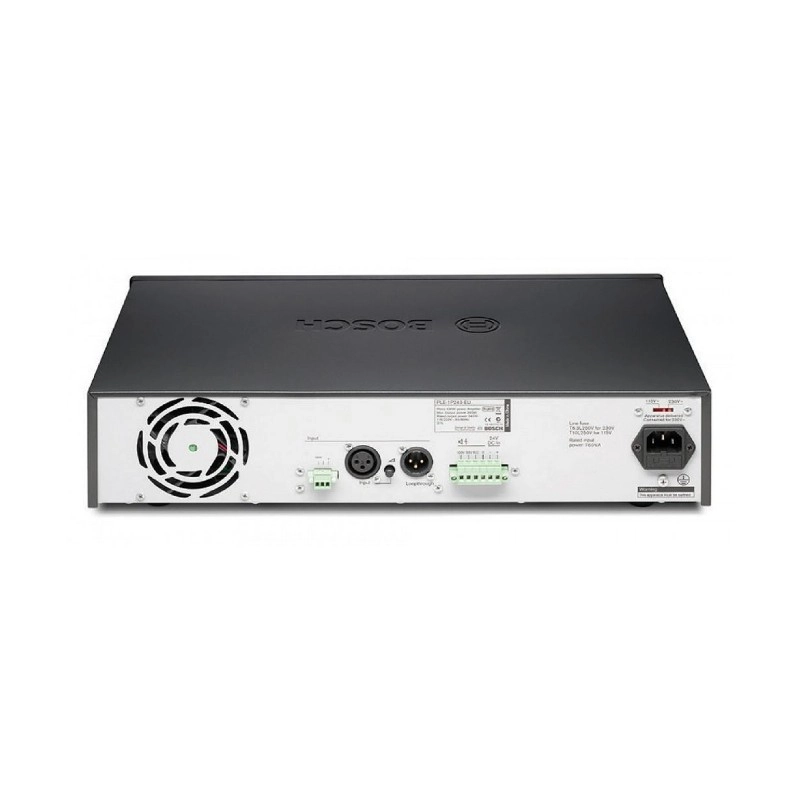

The unit operates both on mains power and on a 24V battery power supply for emergency back up, with automatic switchover. The amplifier also has a built‑in charger to charge the connected battery. The system has a balanced input and loop‑through facility. This makes it easy to connect multiple amplifiers. The secondary input is a 100V line input to connect the amplifier to a 100V loudspeaker line to provide more power in remote locations. Gain or level control is located on the rear of the unit to avoid accidental setting change. A meter with LED bar shows the output level. The amplifier has a 70V or 100V output for constant voltage loudspeaker systems, and a low impedance output for 8 ohm loudspeaker loads.
