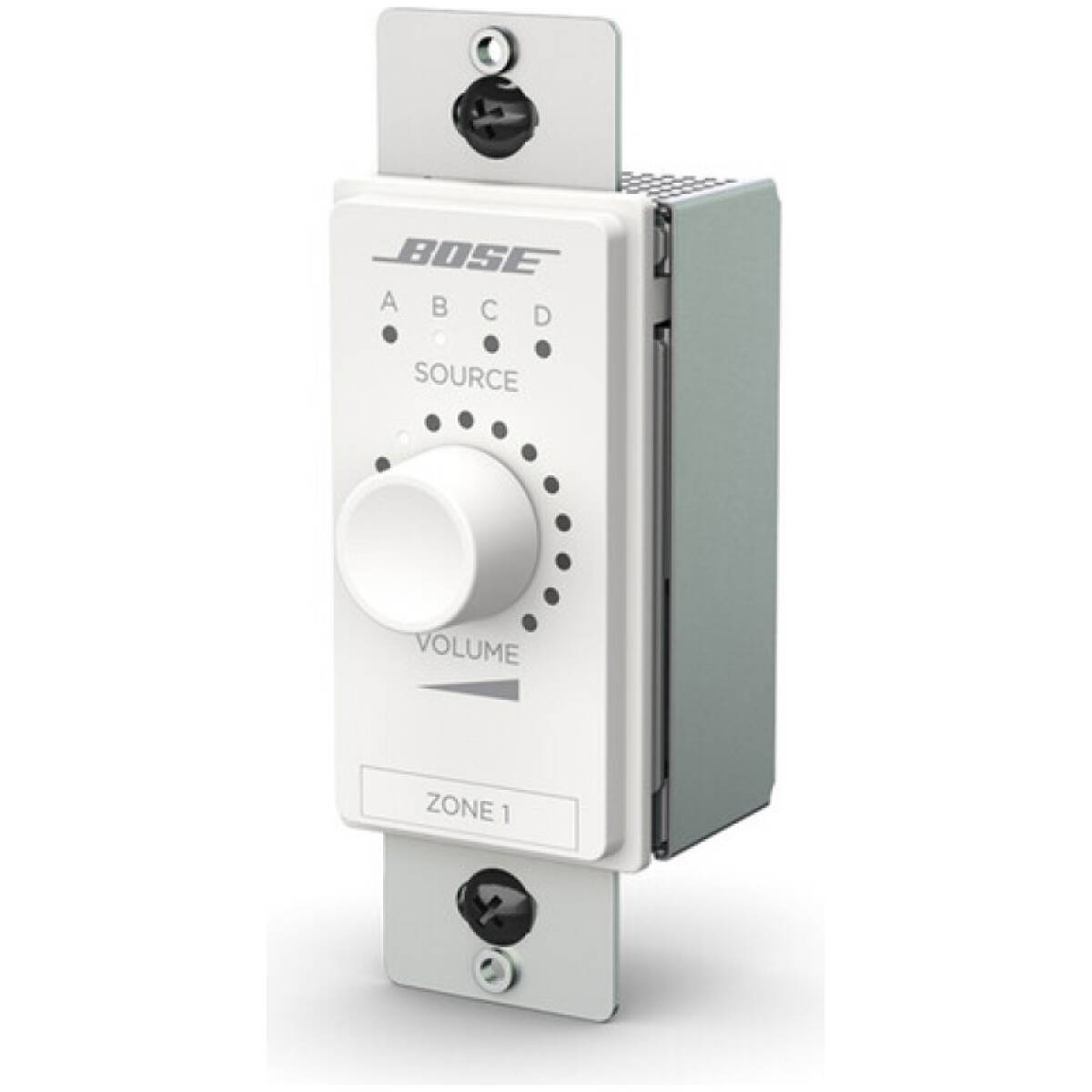

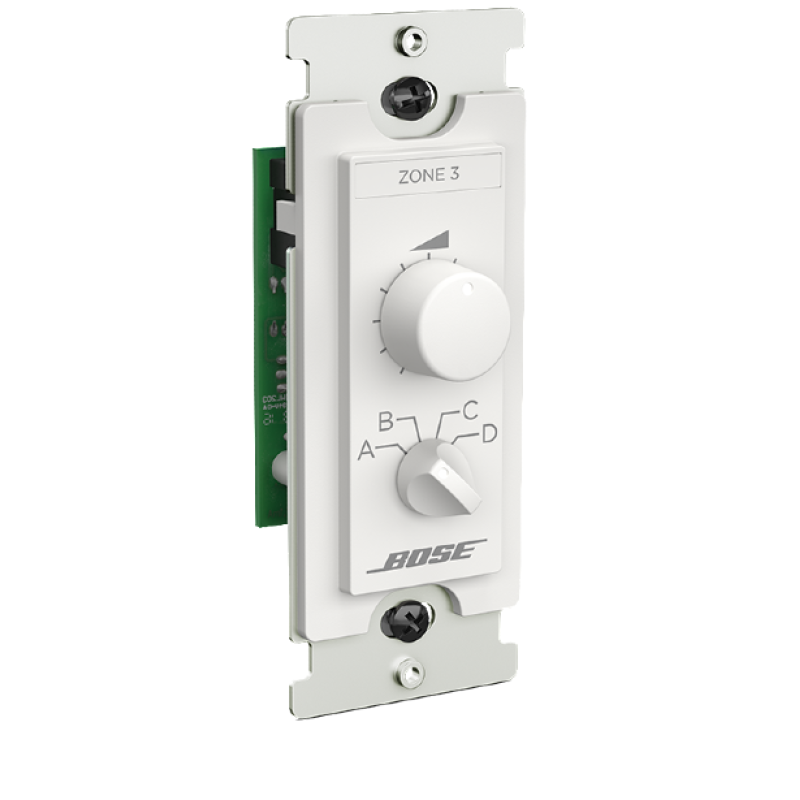

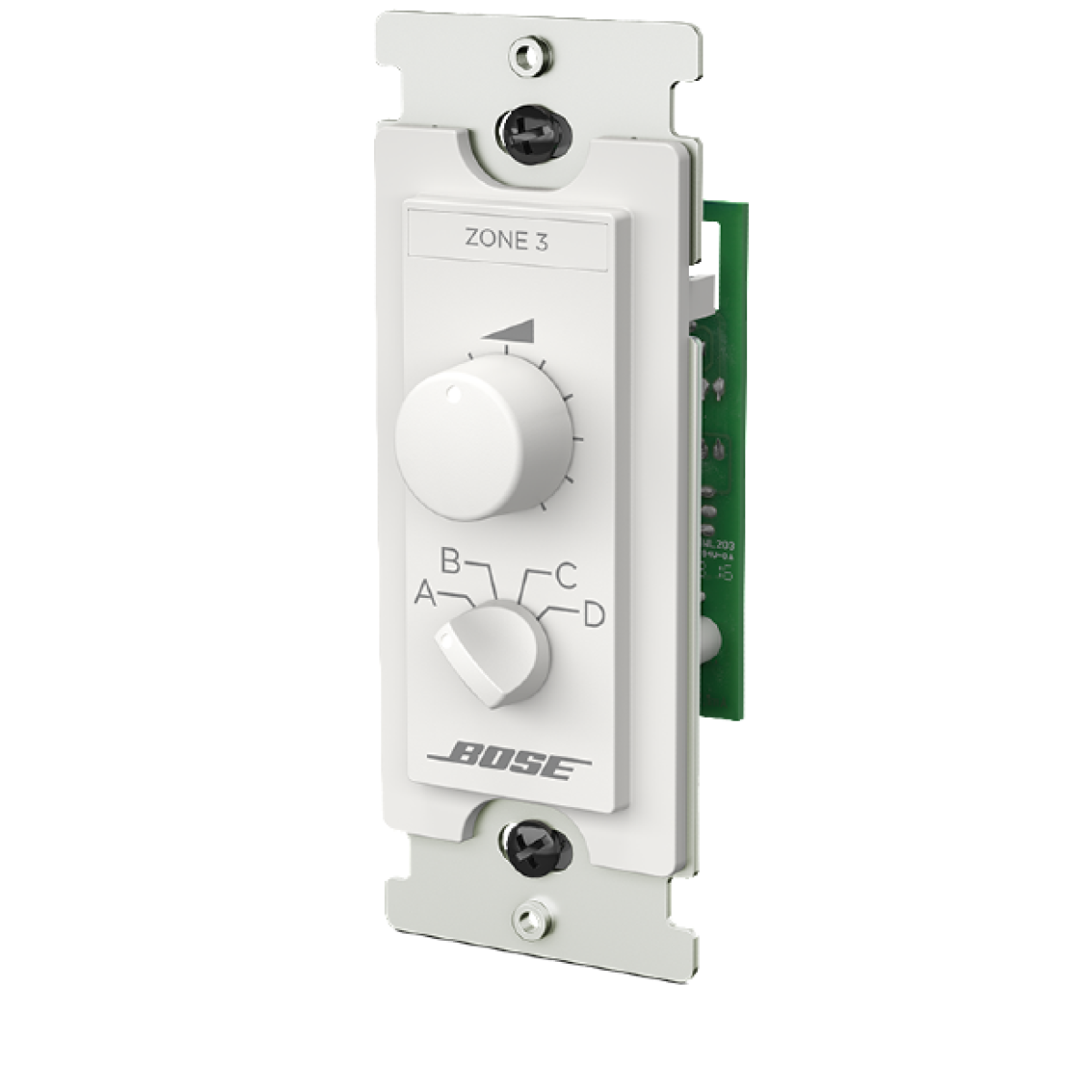

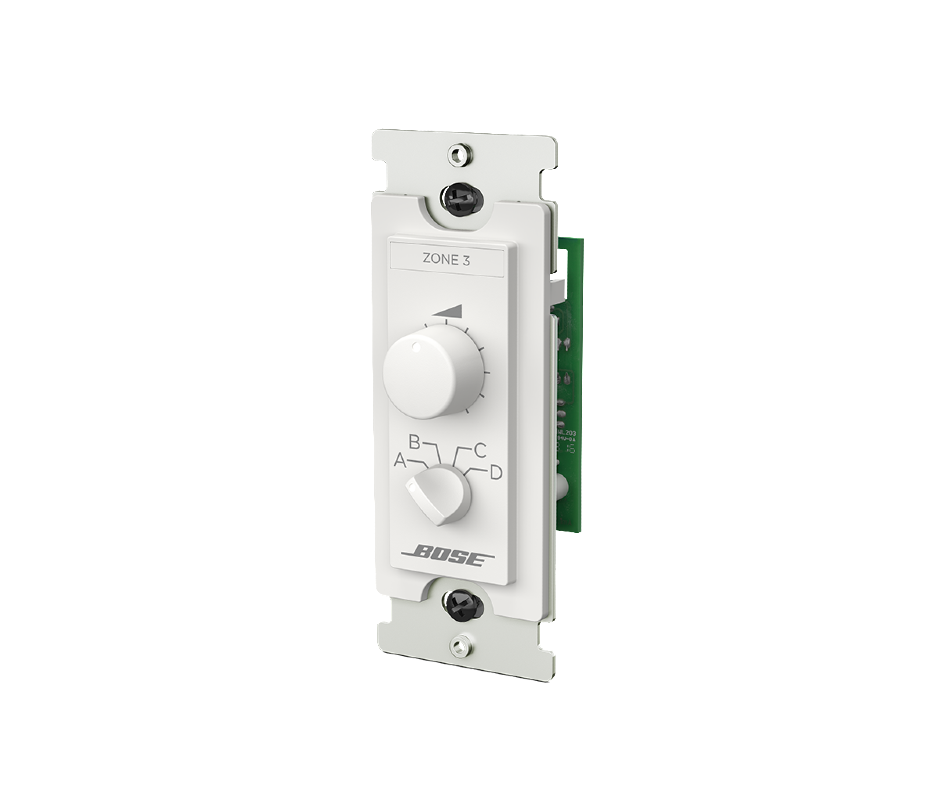

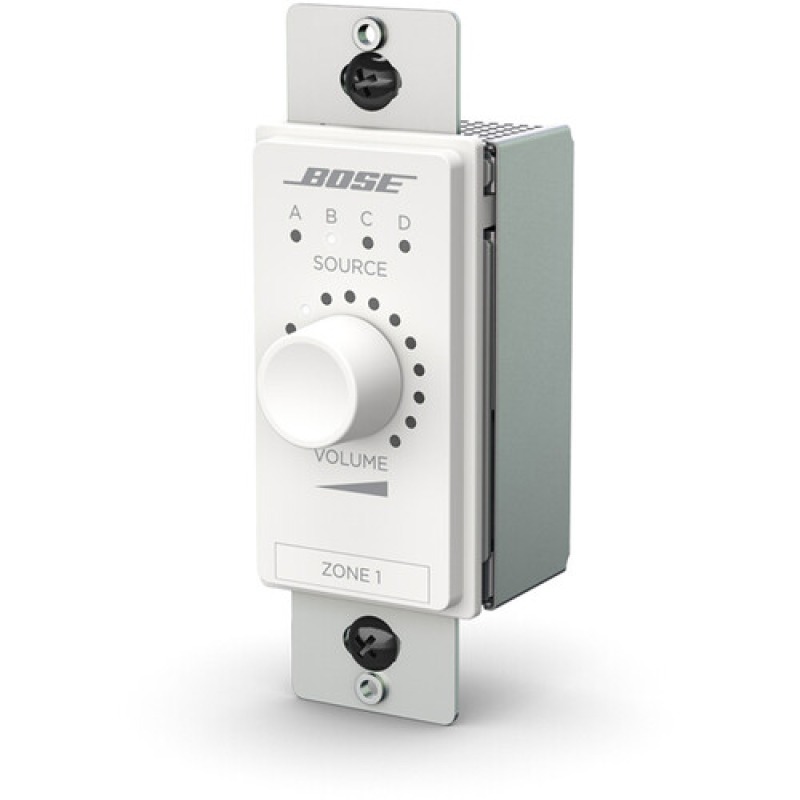

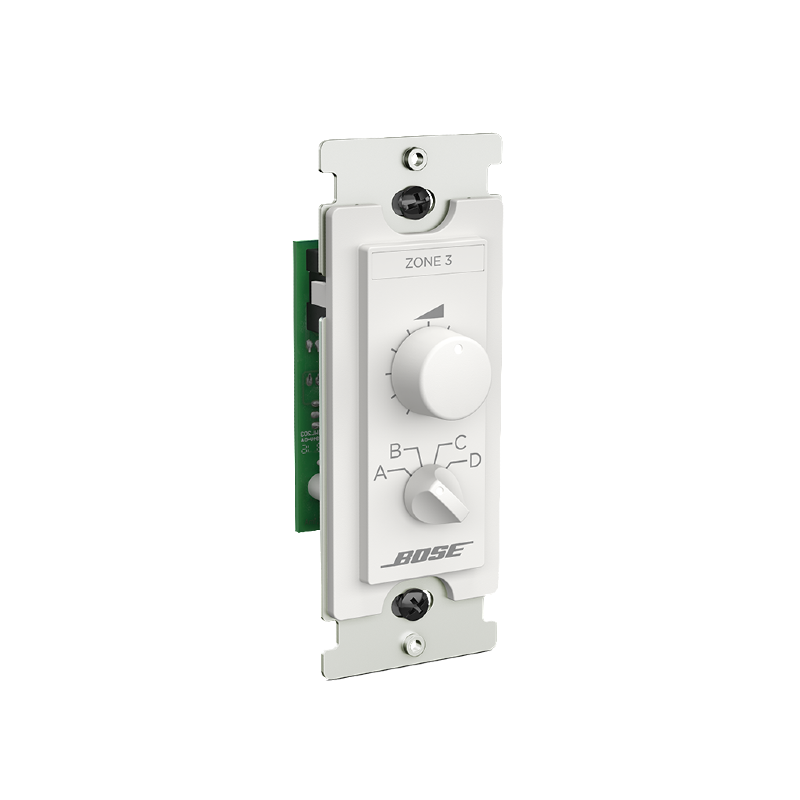

The ControlCenter CC-3W is a wall-mounted digital zone controller designed to provide intuitive end-user control for Bose Professional DSPs, including CSP, ControlSpace ESP, and ControlSpace EX processors.
It allows users to adjust zone volume and select from multiple audio sources with a simple, rotary knob interface and integrated source selection control. The digital connection via RS-485 ensures reliable communication over long distances, making it ideal for installed sound systems in retail, hospitality, corporate, and education environments.
- Digital zone controller for CSP, ESP, and EX processors
- Provides zone volume control + multi-source selection
- Digital RS-485 communication for reliable, scalable integration
- White finish for discreet installation (also available in black, CC-3B)
- User-friendly rotary knob with LED indicators for source selection
- Fits standard U.S. single-gang wall boxes
Specifications
- Functions: Zone volume adjustment and multi-source selection
- Source Selection: Supports multiple sources assigned in system configuration
- Communication: RS-485 (daisy-chain capable)
- Power: Supplied via host processor (no external power supply required)
- Dimensions (H × W × D): 114 × 70 × 17 mm (4.5″ × 2.8″ × 0.7″)
- Net Weight: ≈ 110 g (0.24 lb)
- Color: White (also available in black, CC-3D-B)
