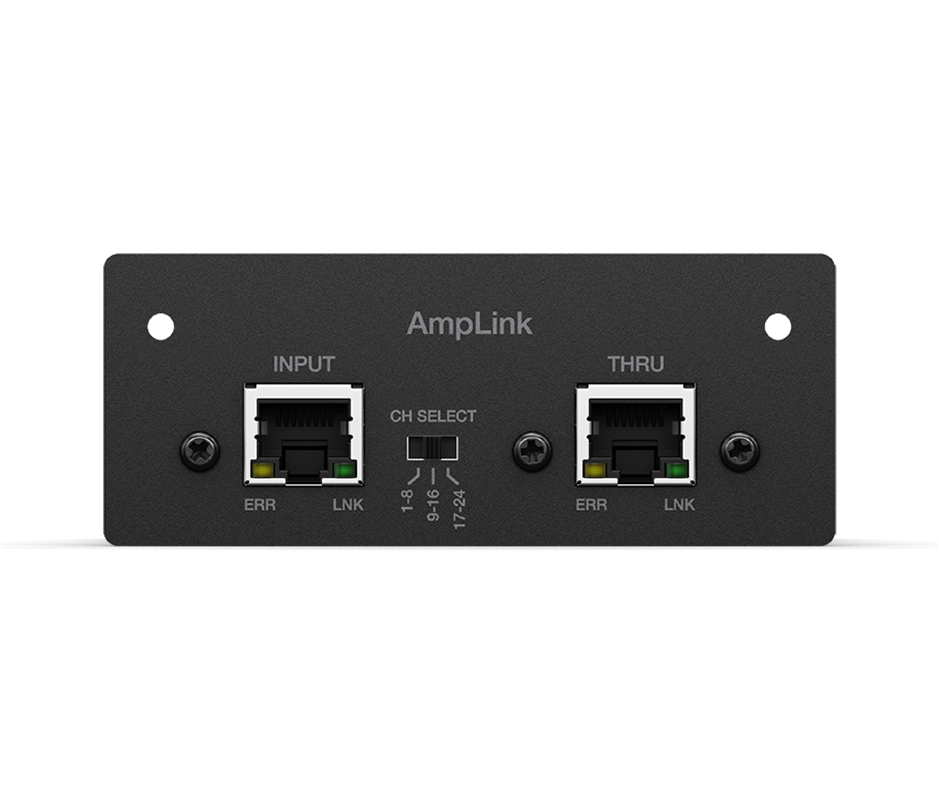

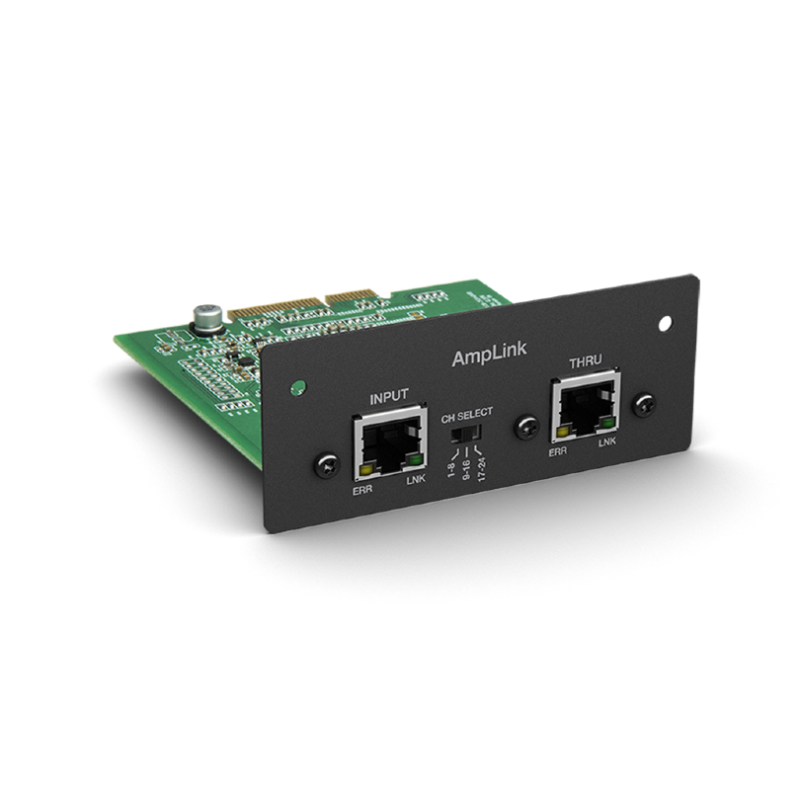

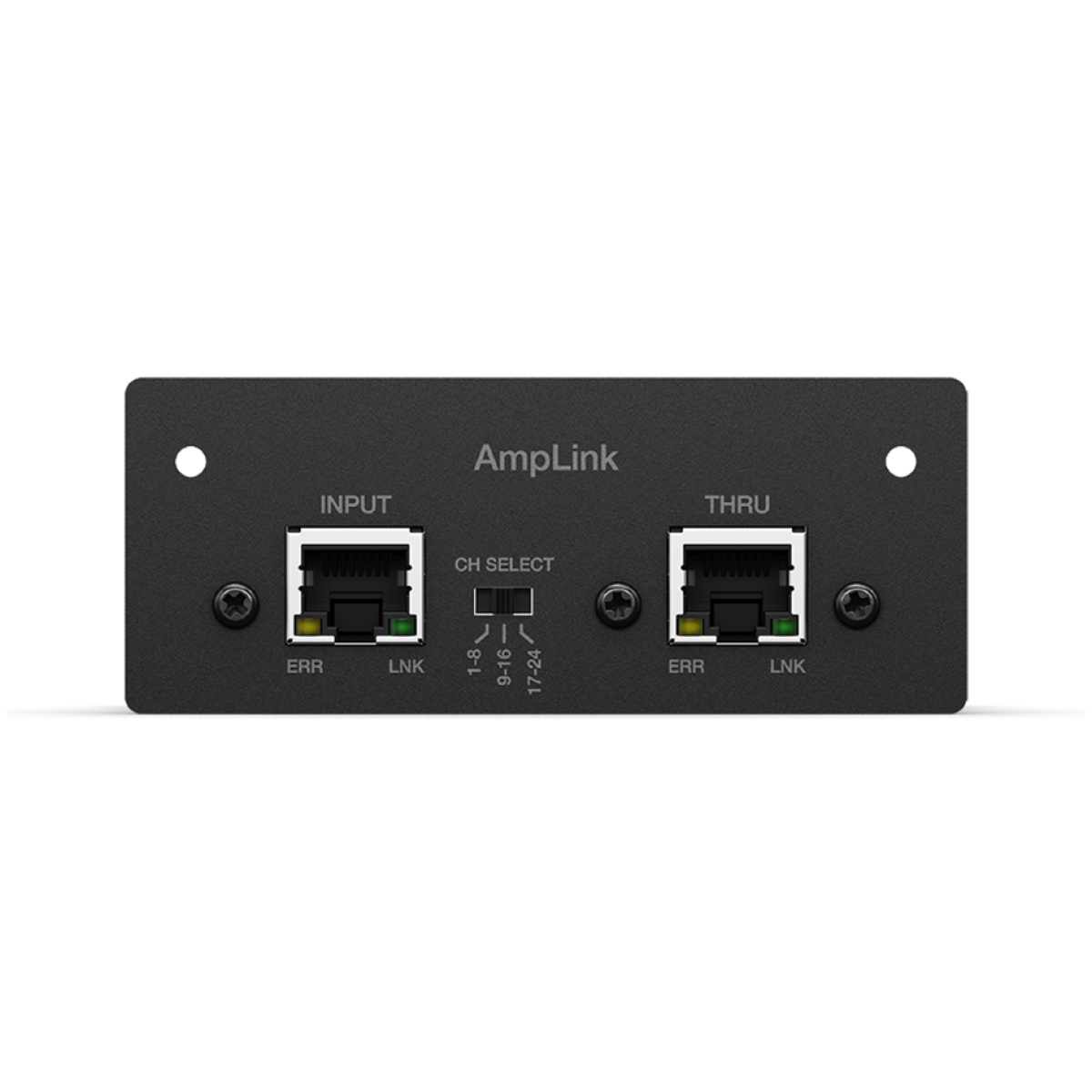

The PowerMatch AmpLink 24-Channel Input Card is an expansion option designed for Bose PowerMatch configurable power amplifiers. It provides up to 24 channels of uncompressed, low-latency digital audio over a standard shielded CAT 5e (or better) cable, using AmpLink — Bose’s proprietary digital audio transport protocol.
By replacing multiple analog connections with a single lightweight network cable, the AmpLink card simplifies wiring, reduces potential noise, and provides a highly reliable audio distribution method.
- Adds 24 channels of Bose AmpLink digital audio input to PowerMatch amplifiers
- Provides high-quality, low-latency, uncompressed digital audio transport
- Uses standard shielded CAT 5e (or better) cabling
- Simplifies connectivity vs. multiple analog cables
- Seamlessly integrates with Bose DSPs and networked audio systems
- Installs easily into the input card slot of PowerMatch amplifiers
Specifications
- Channels: Up to 24 channels of digital audio input
- Format: Bose AmpLink digital audio protocol
- Cabling: Shielded CAT 5e or better (up to 45 m / 150 ft)
- Latency: Near-zero (uncompressed digital audio)
- Connectors: RJ-45 network ports
- Compatibility: Bose PowerMatch configurable power amplifiers with input card slots
- Dimensions (H × W × D): Approx. 22 × 100 × 127 mm (0.9″ × 3.9″ × 5.0″)
- Weight: Approx. 0.2 kg (0.45 lb)
Applications
- Large-scale installed sound systems
- Houses of worship
- Arenas and stadiums
- Theaters and performing arts venues
- Corporate, hospitality, and education facilities
- Multi-zone commercial audio systems requiring simplified cabling
