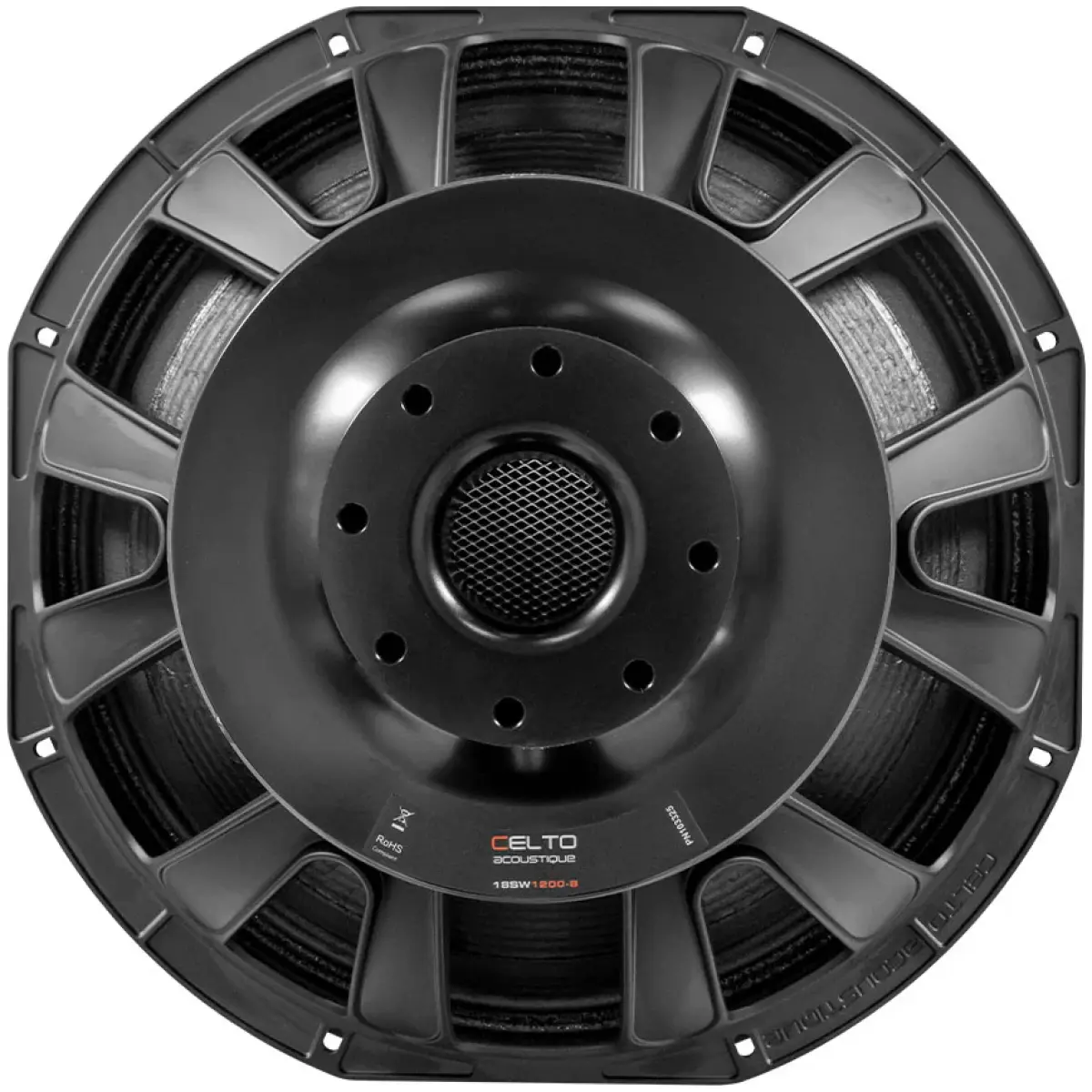

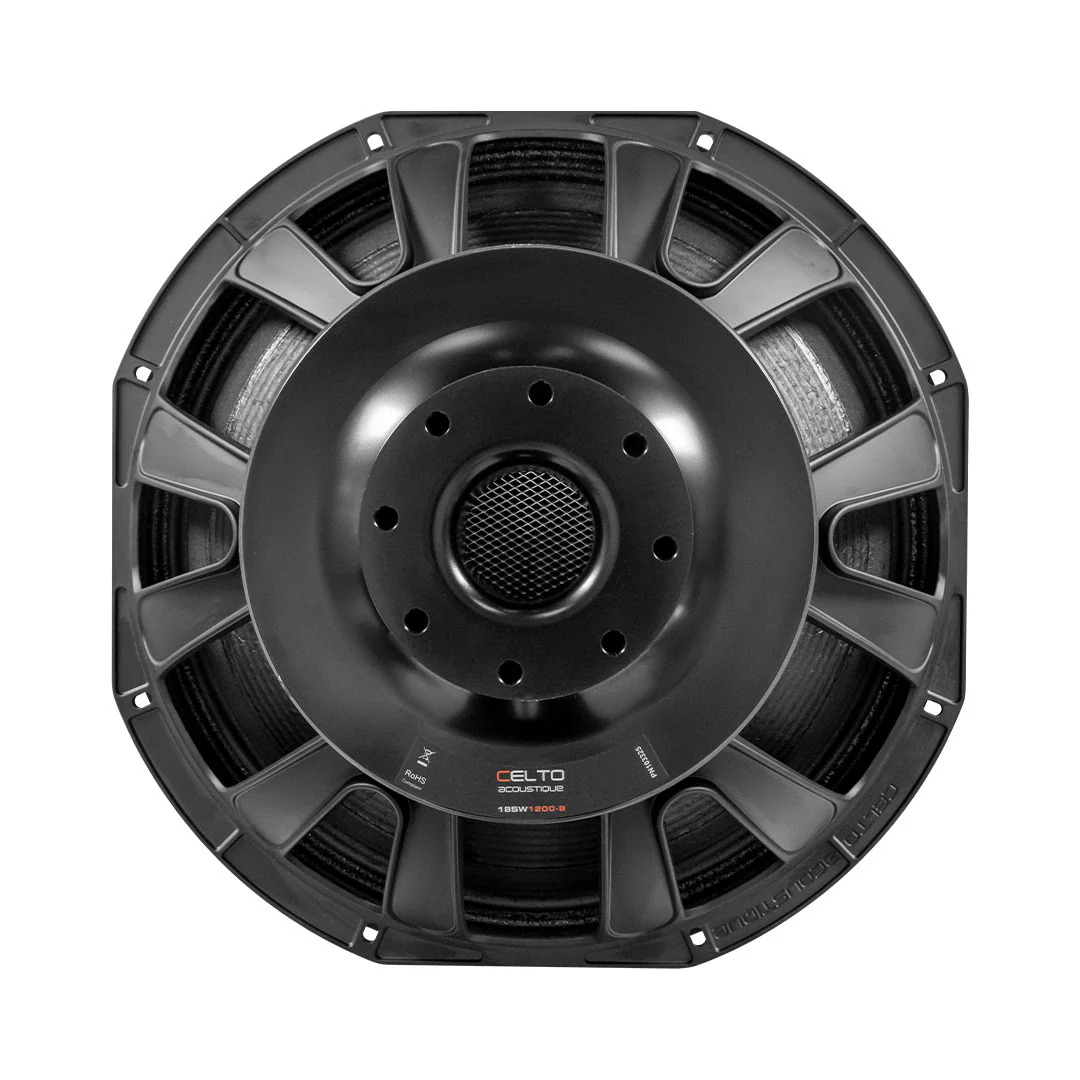

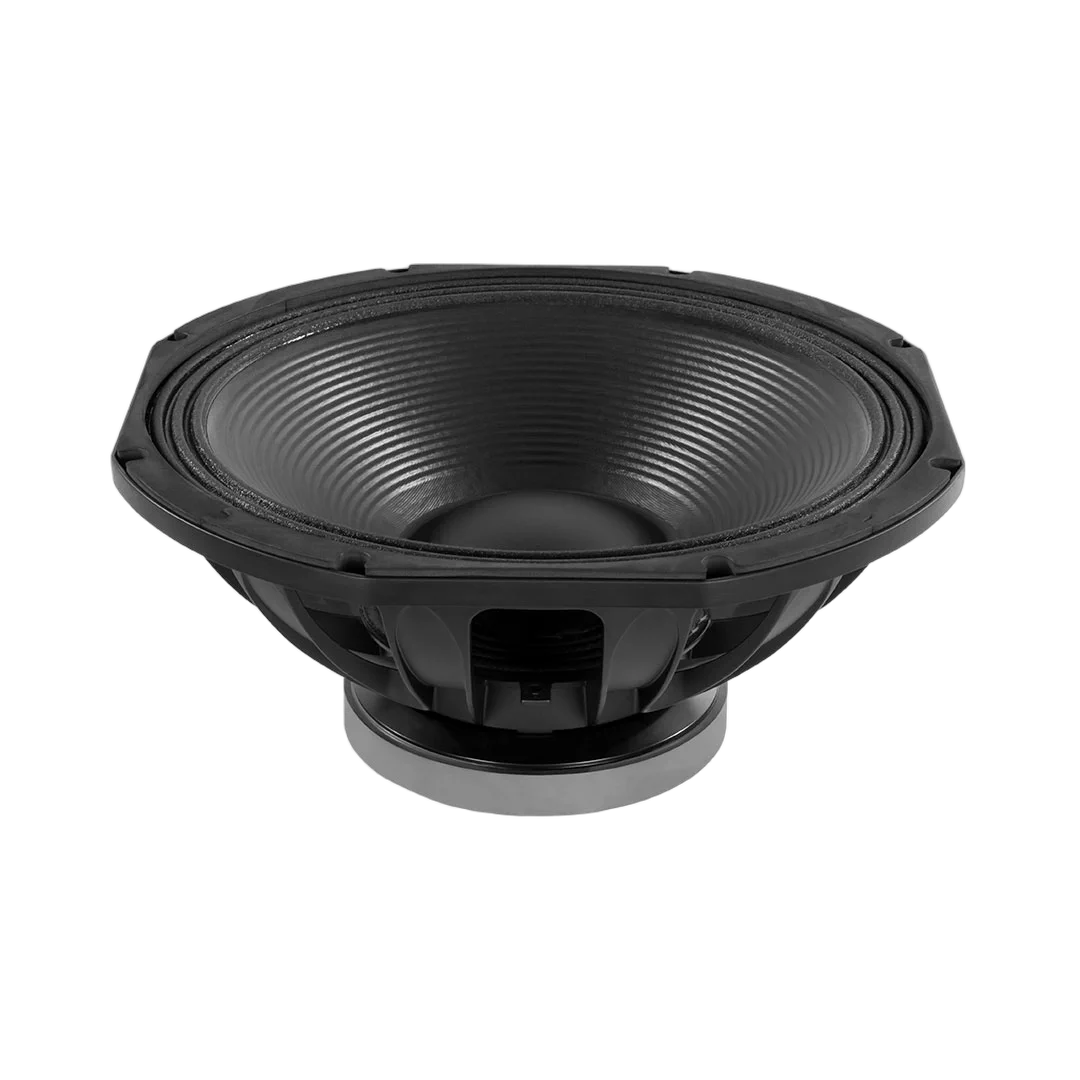

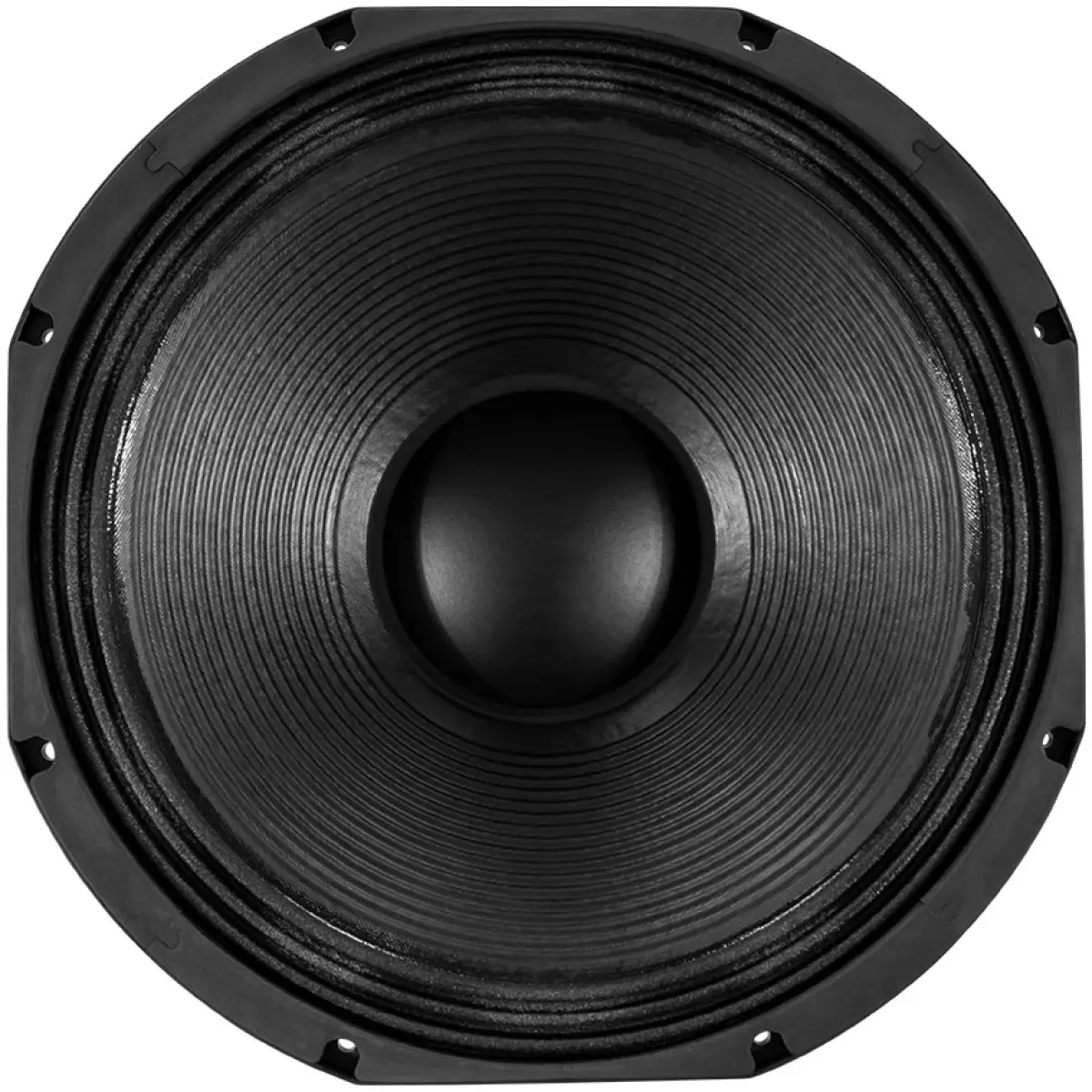

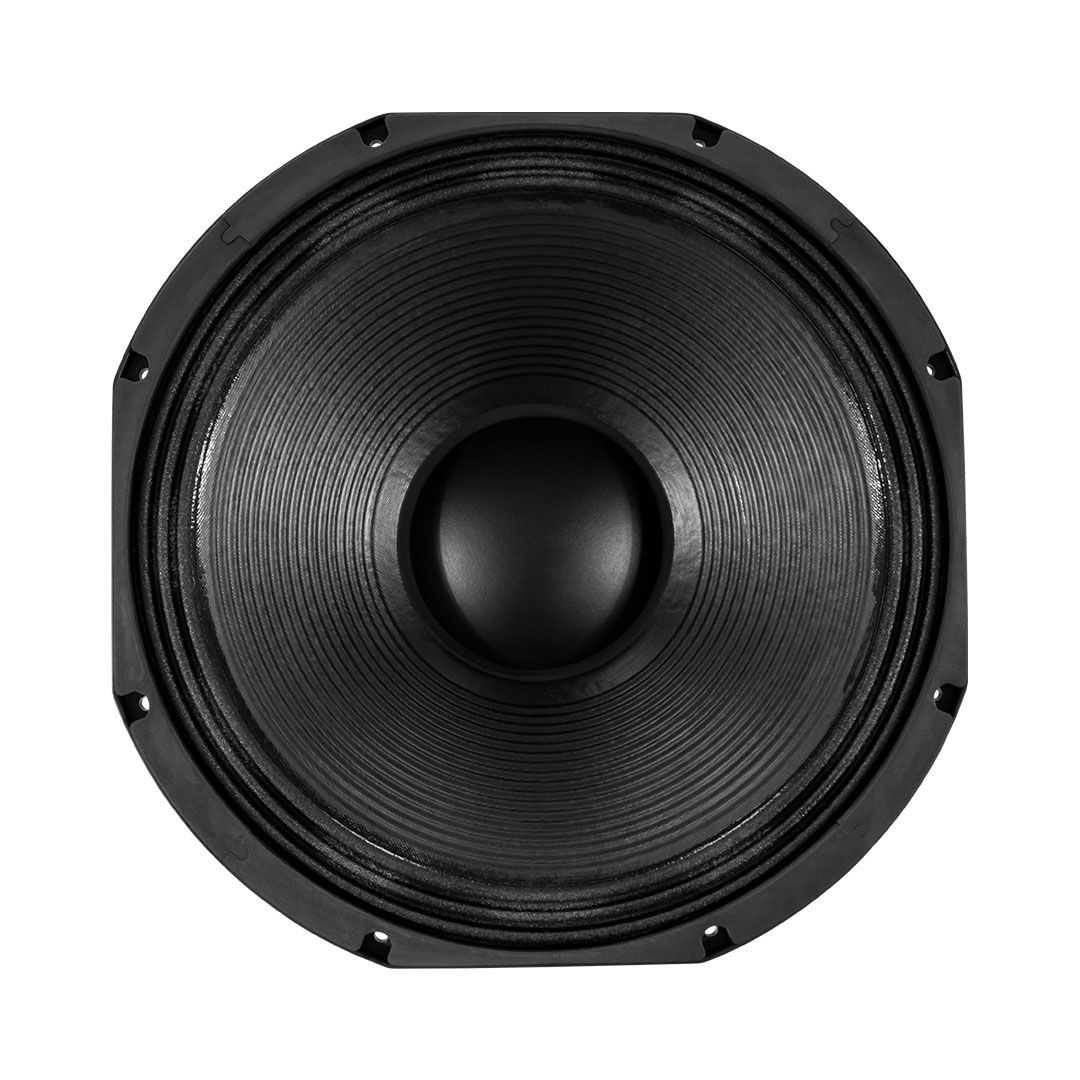

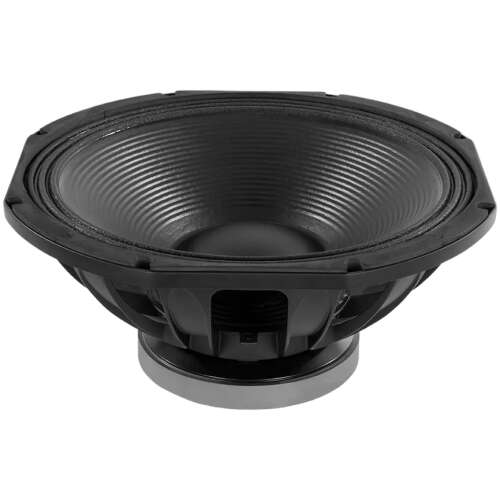

Celto Acoustique 18NGW1200-8 18″ 1200RMS Woofer

The Celto Acoustique 18NGW1200-8 Featuring An Exclusive Blend Of Canadian Pulp Cone Reinforced By KEVLAR Fibre, This High-Efficiency Driver Has Been Designed To Provide Deep And Precise Low Frequency Reproduction In Compact Vented Cabinets.

The 18NGW1200 Features The Beautifully Crafted CELTO Low Turbulence Aluminium Basket With A Flawless Powder-Coated Finish, Robust Push Terminal Connectors, And 240°C Thermal Class Voice Coil (500°C Peak), Guaranteeing The Longevity Of This Product.

FEATURES

Long Excursion, Low Distortion Design
Deep, Clean And Punchy Sound
Water Resistant KEVLAR® Loaded Paper Cone
Optimized Parameters For Compact Cabinets

SPECIFICATIONS

Nominal Diameter = 460mm (18 Inch)
Nominal Impedance = 8 Ohms
Power Handling = 1200W RMS (AES Standard)
Sensitivity = 97 Db / 1W / 1m
Voice Coil Diameter = 4 Inch (100mm)
Voice Coil Height Hvc = 26mm
Voice Coil Air Gap Hag = 12mm
Xmax (Hvc-Hag)/2 + Hag/4 = ±10mm
Xmech (Peak-Peak) = 50mm
Voice Coil Winding = 2 Layers IN / OUT
Voice Coil Material = 240°C Thermal Class Copper
Voice Coil Former = BAF Fiberglass
Suspension = Triple Roll, Impregnated Fabric
Spider = Dual With Silicon Damping, NOMEX®
Cone = Fibre Loaded, Waterproof Treated Paper<br /&amp;gt;Chass

is = Die Cast Aluminium
Magnet = Ø220mm Y35 Ferrite

MOUNTING & SHIPPING
Overall Diameter = 470 Mm
Bolt Circle Diameter = 445 Mm
Baffle Cutout Diameter = 422 Mm
Flange

And Gasket Thickness = 13 Mm
Overall Depth = 212 Mm
