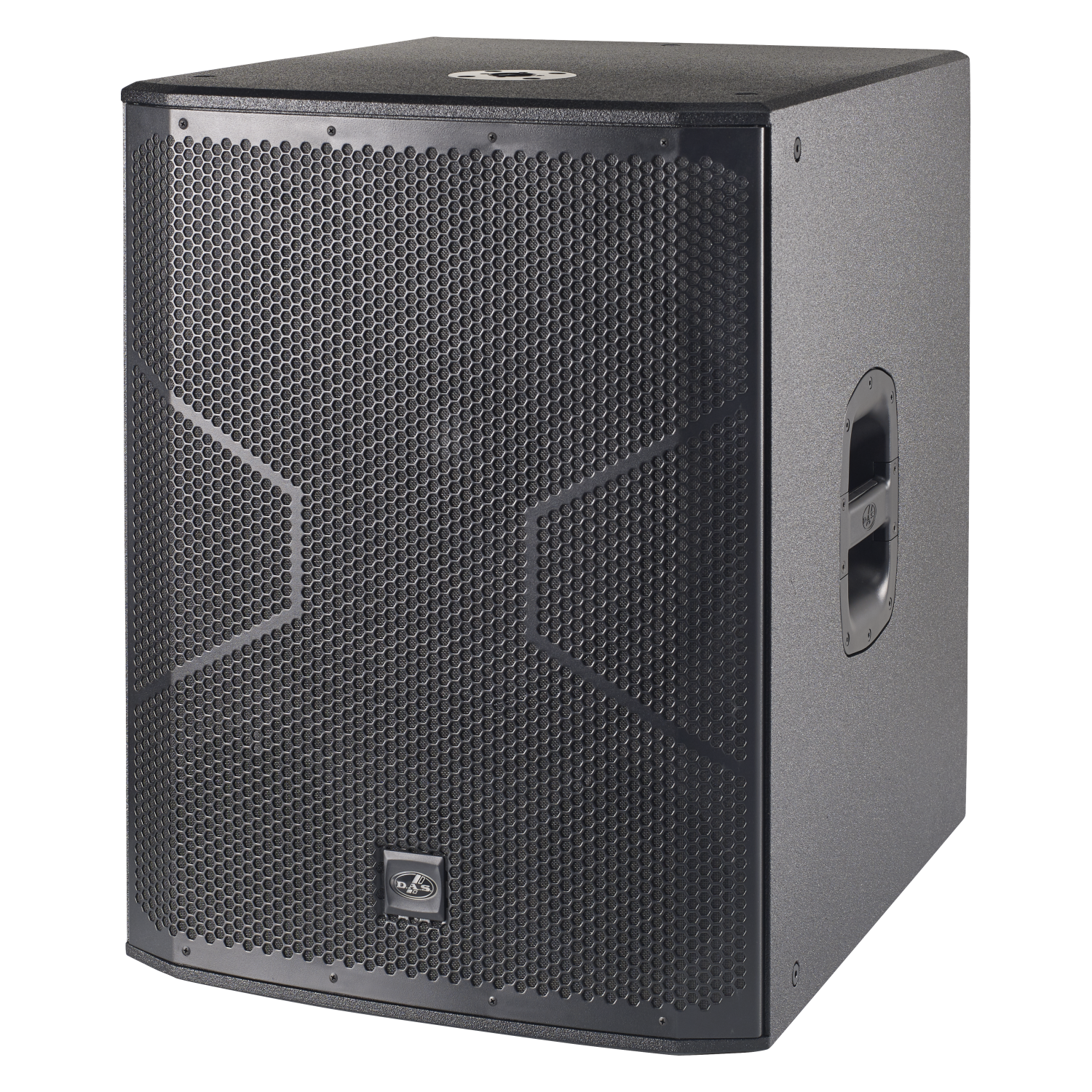

Das Altea-718 Single 18'' Passive Bassbin - Image 1

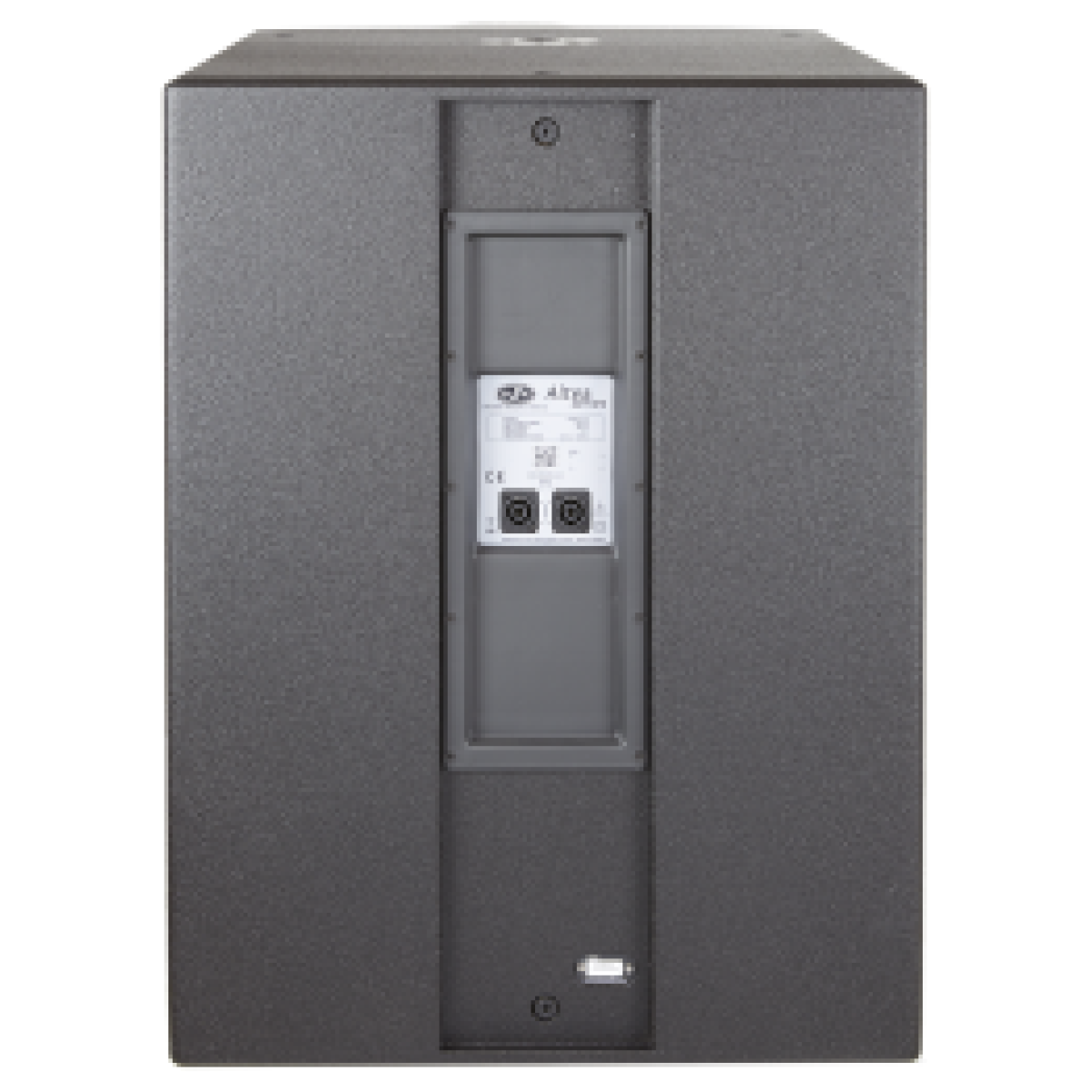

Das Altea-718 Single 18'' Passive Bassbin - Image 2

Das Altea-718 Single 18” Passive Bassbin

Name: Das Altea-718 Single 18'' Passive Bassbin - A1 Sound
Brand: DAS
SKU: ALTEA-718
Price: 13500.00 ZAR
Availability: BackOrder

SKU: ALTEA-718 Brand: DAS

R13 500,00

Back order notice: Products may be available within 2 days depending on supplier stock availability.

Attribute	Value
Driver Configuration:	1 X 18'' Long excursion bass-reflex subwoofer,
Impedance	8 ohms
Power Rating (RMS):	600 W
Power Rating (Peak):	2400 W
Cabinet Material:	MDF Wood
Frequency Response:	45 Hz – 138 Hz
Decibel (dB)	134 dB
Magnet Type:	Ferrite
Shipping Weight	48

Compare

16 People watching this product now!

Description

Das Altea-718 Single 18” Passive Bassbin

The ALTEA-718 is powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3″ voice coil for long excursion. Cooling is assured thanks to the 18FW´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable systems.

Features

Passive, 600 W, 18″, long excursion bass-reflex subwoofer, black

SPL Max: 134 dB
Dispersion: Omnidirectional

Key Specs

Speaker Type	Passive Subwoofer
Enclosure Type	Bass-Reflex
Total Passive Power Handling	600 W RMS / 2400 W Peak
Nominal Impedance	8 Ohms
LF Driver	1x 18″ / 45.7 cm Woofer Voice Coil: 3″ / 7.6 cm Magnet: Ferrite
Frequency Range/Response	45 Hz to 138 Hz

Speaker Type	Passive Subwoofer
Enclosure Type	Bass-Reflex
Total Passive Power Handling	600 W RMS / 2400 W Peak
Nominal Impedance	8 Ohms

Drivers

LF Driver

1x 18″ / 45.7 cm Woofer
Voice Coil: 3″ / 7.6 cm
Magnet: Ferrite

Performance

Frequency Range/Response	45 Hz to 138 Hz
Maximum SPL	134 dB SPL
Speaker Sensitivity	98 dB SPL

Signal Processing

EQ & Filters	No
Dynamic Processing	No

Connectivity

Audio I/O

1x speakON NL4 Speaker/Subwoofer Input
1x speakON NL4 Speaker/Subwoofer Thru

Physical

Color	Black
Mounting	Stand Mount 1.38″ / 35 mm Pole Socket (Top) Suspension Points M10 Integrated Rigging
Handles	1x Side
Construction Material	Plywood
Environmental Resistance	No
Dimensions	28.4 to 25.6 x 21.5″ / 72.1 to 65 x 54.6 cm
Weight	89.3 lb / 40.5 kg
