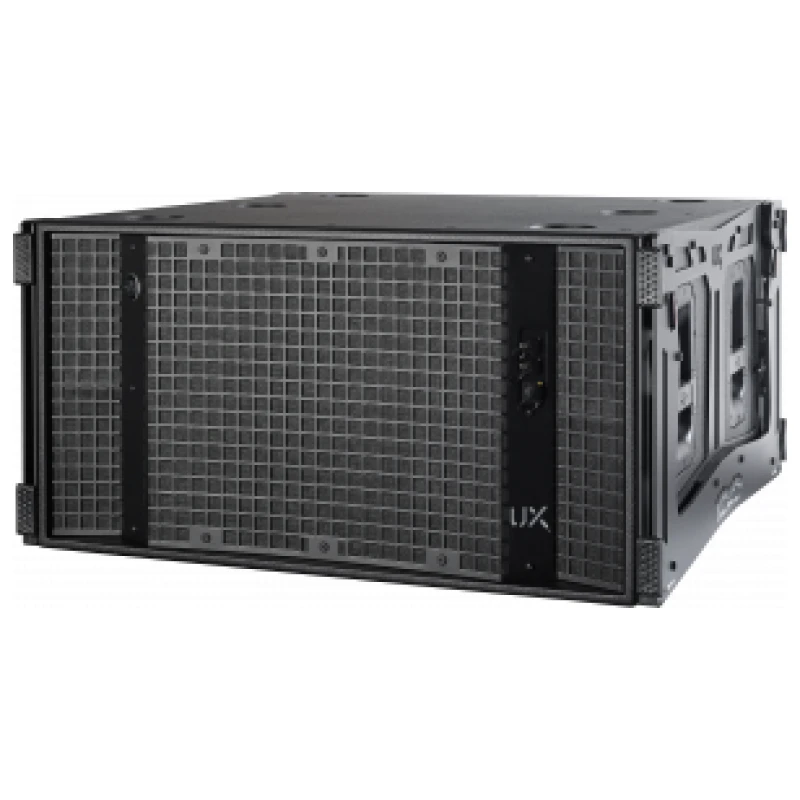

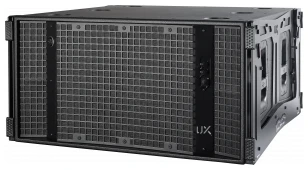

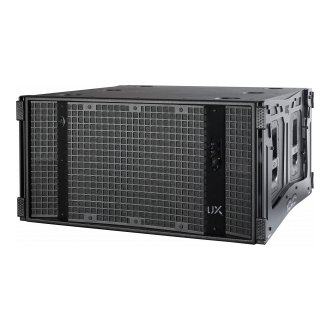

Das UX-218R Dual 18” Passive Bass Bin

This 2×18″ passive subwoofer from DAS is designed to deliver powerful room-filling low end to your House of Worship, club, or live sound event.

The UX-218-R can handle 2200 watts (RMS) power to drive a pair of 18″ subwoofers that’ll place the thump directly in their chest.

The kind of low end that drives the entire performance no matter what the performance is, the UX-218 has 4″ voice coils that use every bit of available power to drive the tandem 18″ woofers. The sandwich-split design of the coils delivers superior heat dissipation, leading to better peak handling, greater efficiency, and increased service time.

The UX-218-R adds a captive rigging system to the stackable UX-218. While comfortable in permanent install applications, the UX-218A-R has the heart of a road warrior. Constructed from 21mm Birch plywood with extensive internal bracing and an exterior ISO-flex coating, can easily take the night-in and night-out of life on the road. Plus, a universal power supply with integrated power factor correction (PFC) allows for worry-free use worldwide.

DAS UX-218-R Applications:

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services

DAS UX-218-R Features:

• High performance subwoofer for external amplification
• Two new 18UXN long excursion loudspeakers
• Front loaded crossfire configuration
• Solid Birch plywood construction

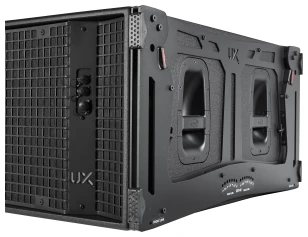

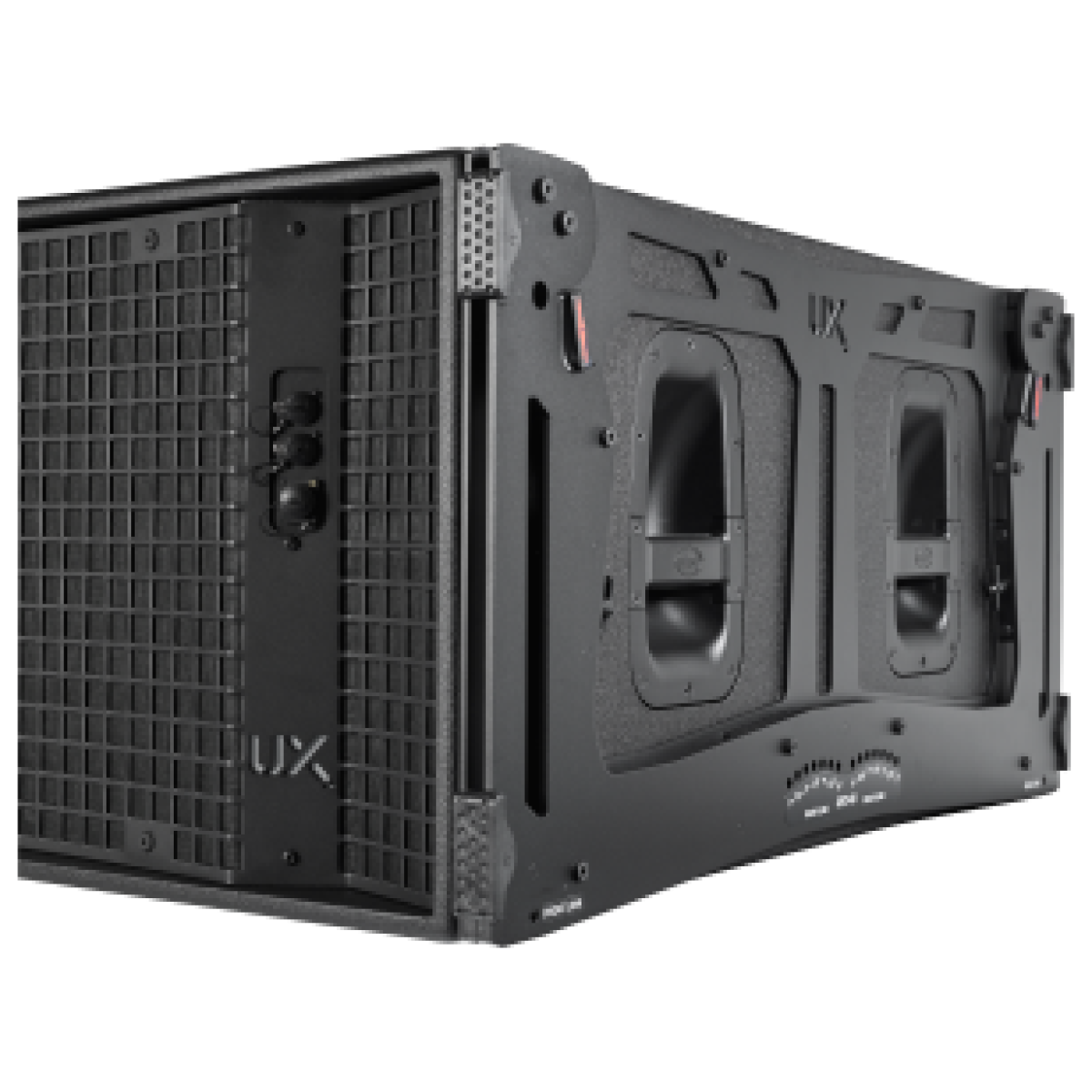

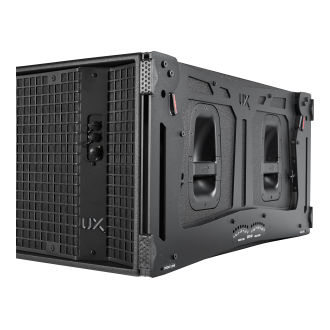

• Captive Rigging System

DAS UX-218-R Specifications:

• Frequency Range (-10 dB): 28 Hz – 125 Hz
• Nominal Impedance: 4 ohms
• RMS Power Handling: 2200 W
• Peak Power Handling: 8800 W
• On-axis Sensitivity 1W/1 m: 103 dB SPL
• Maximum Peak SPL at 1 m: 143 dB
• Recommended Amplifier: DX-100-230, DX-100-115
• Recommended Processor: DSP-4080
• Audio Input Connector: 1 x speakon NL4
• Audio Output Connector: 1 x speakon NL4
• Enclosure Construction: Birch Plywood
• Enclosure Geometry: Rectangular
• Rigging: Captive Rigging System
• Finish: ISO-flex Paint
• Color: Black
• Depth: 1.010 mm (39,8 in)
• Dimensions ( H x W x D ): 515 x 1.015 x 1.010 mm, 20,3 x 40,0 x 39,8 in
• Net Weight: 129,0 kg ( 283,8 lb )
• LF Driver: 18UXN
• Carton Dimensions ( H x W x D ): 560 x 1.060 x 1.055 mm, 22,0 x 41,7 x 41,5 in
• Shipping Weight: 137,0 kg ( 302,0 lb )
