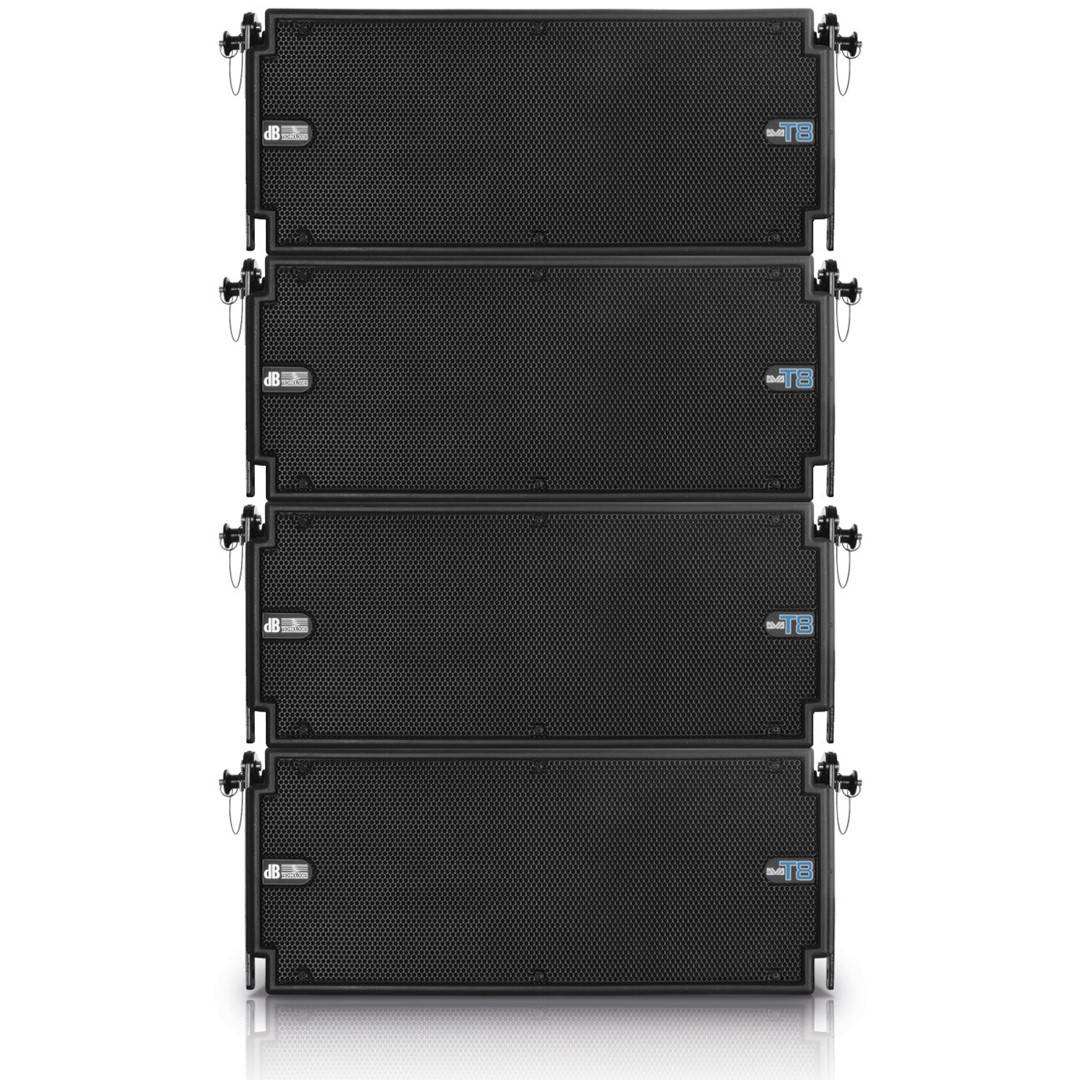

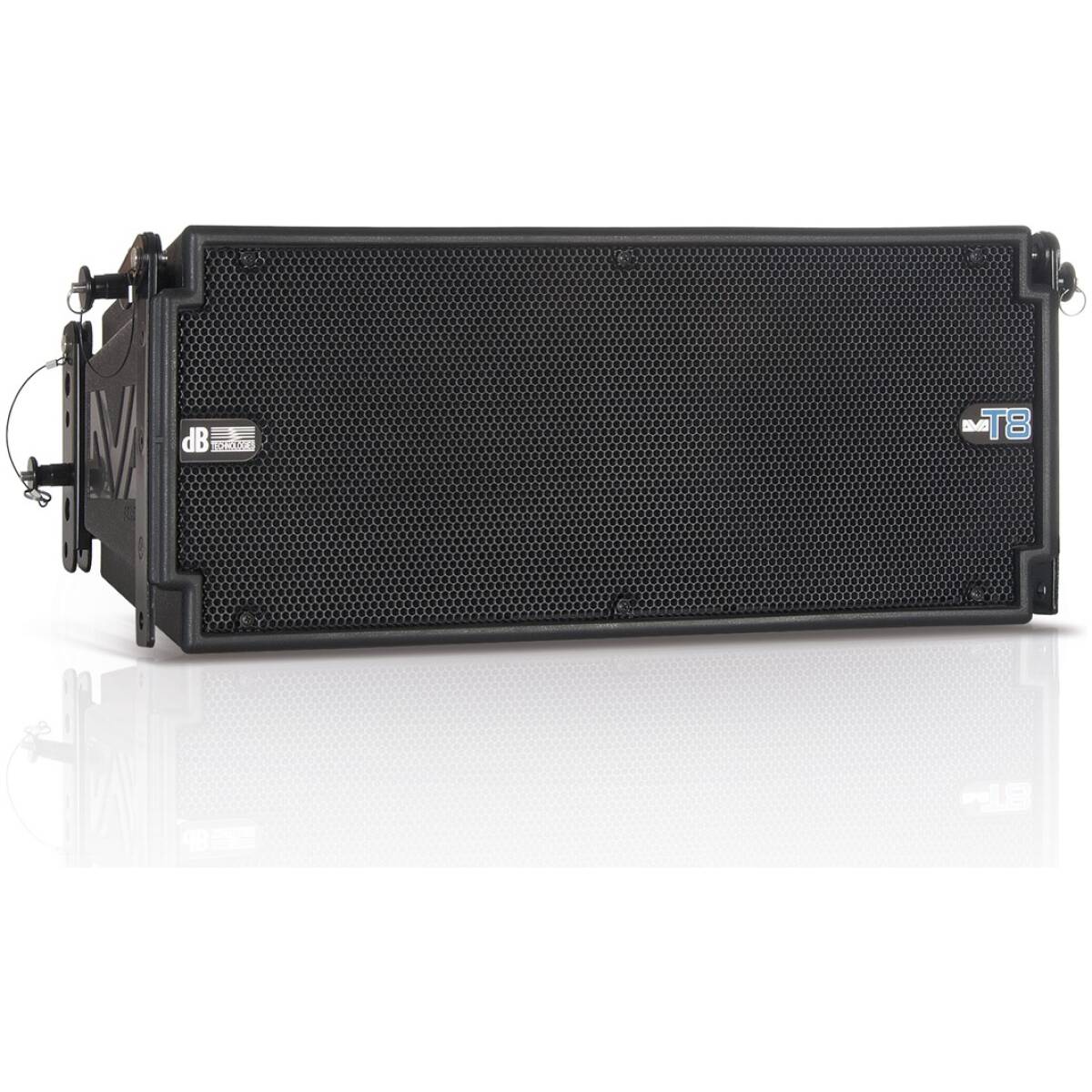

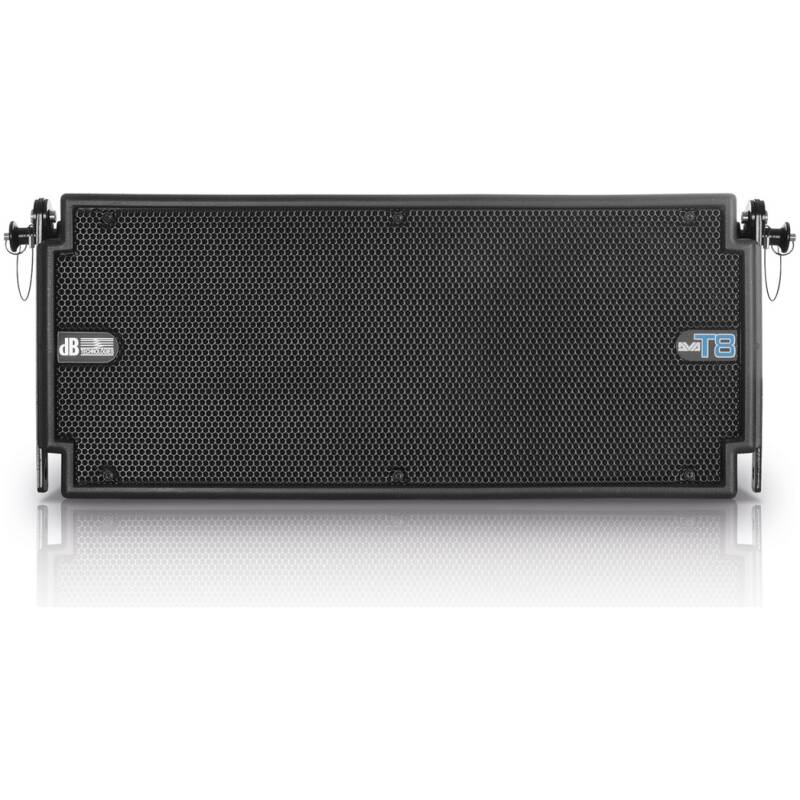

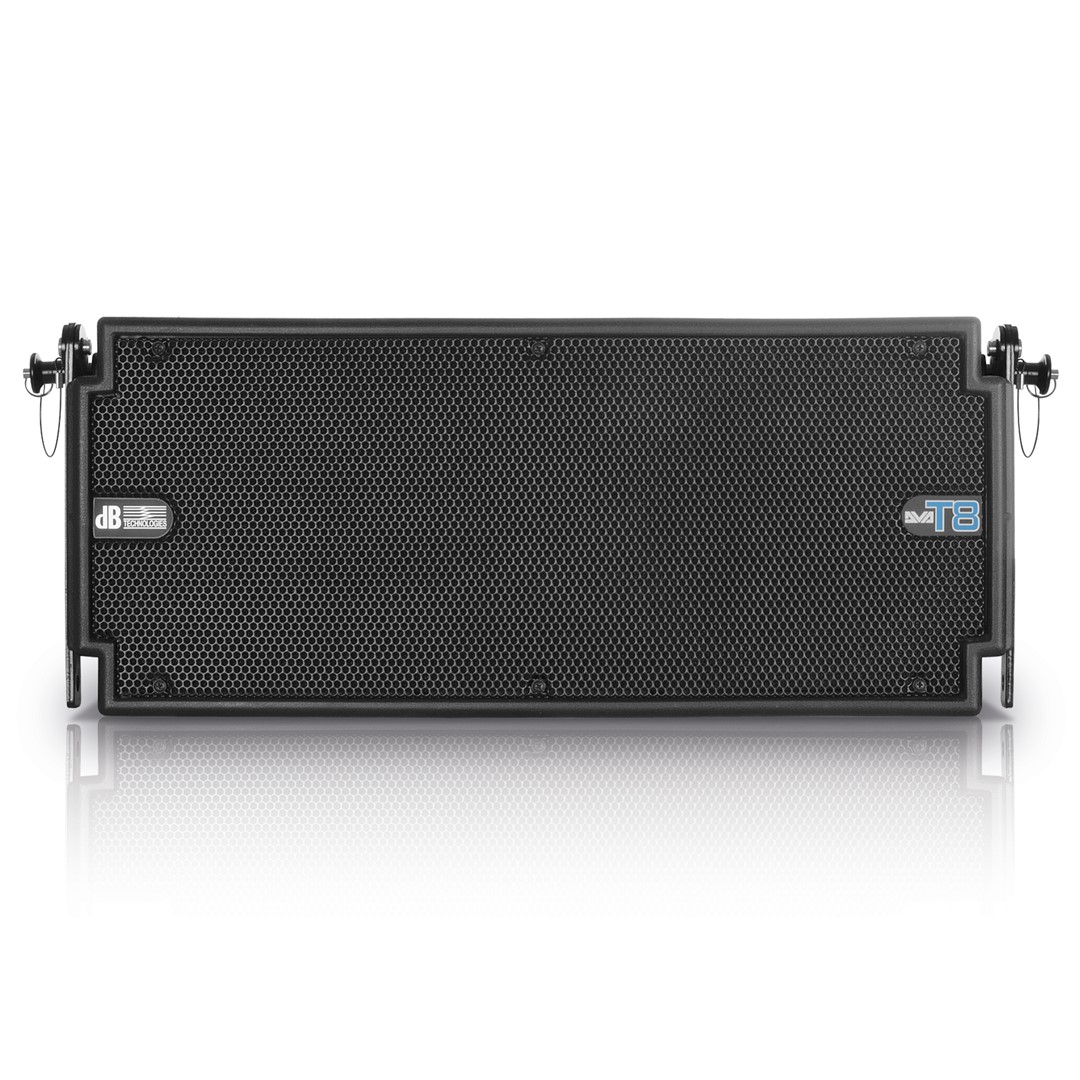

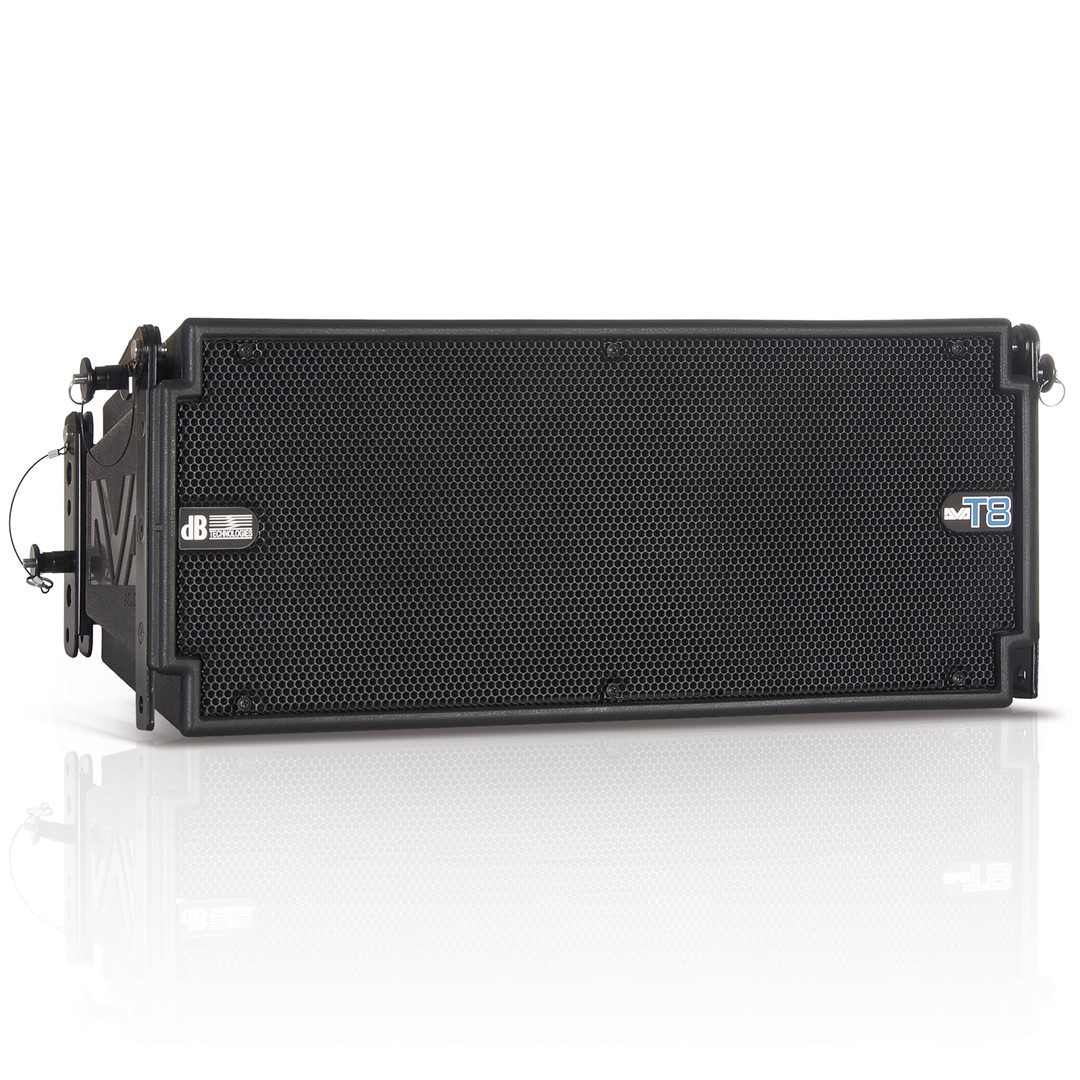

dB Technologies DVA T8 8″ Active Line Array

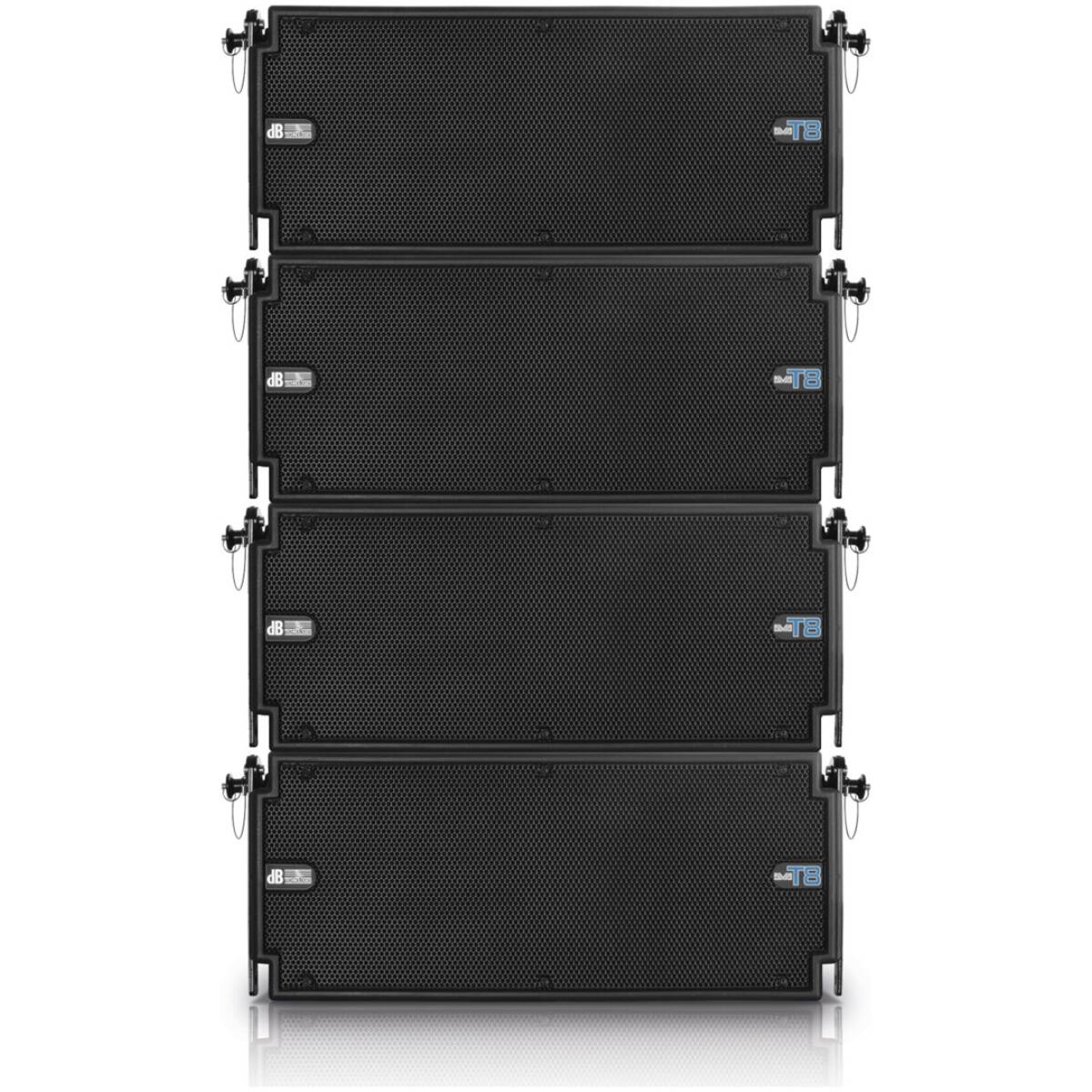

The DB Technologies DVA T8 8″ Active Line Array system represents a significant advancement in line array technology. It evolves from the DVA T4 and DVA T12. Despite its compact design, it delivers impressive power and clarity. This 3-way module includes an 8” bass reflex neodymium woofer. It also features a 6.5” midrange driver with a 2” voice coil and phase plug. Additionally, it has two 1” drivers with a constant directivity horn. This arrangement ensures uniform coverage of 100° by 15° per module. The Class D 700 W RMS Digipro G2 digital amplifier allows the DVA T8 to reach a maximum SPL of 132 dB. This capability makes it ideal for various sound reinforcement applications.

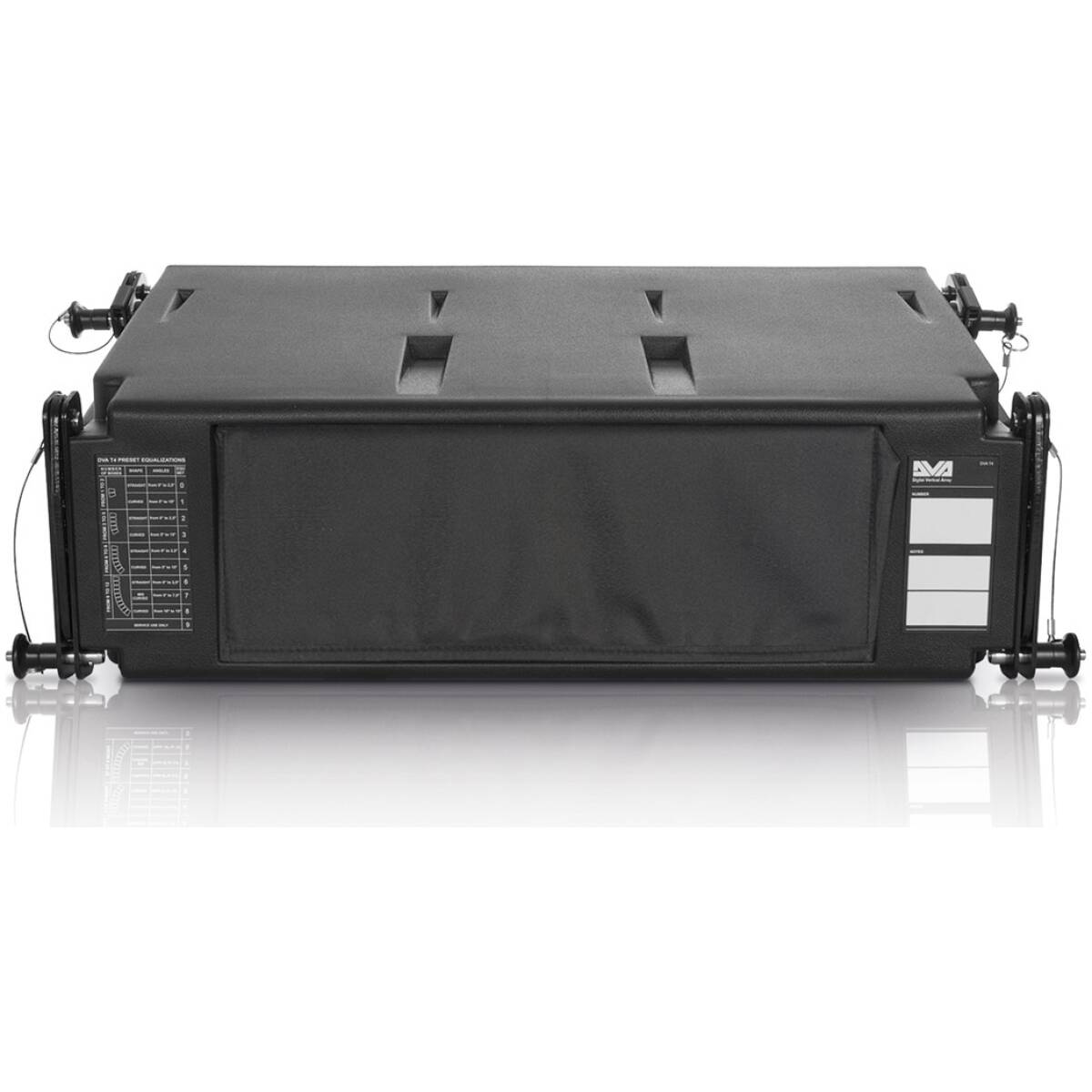

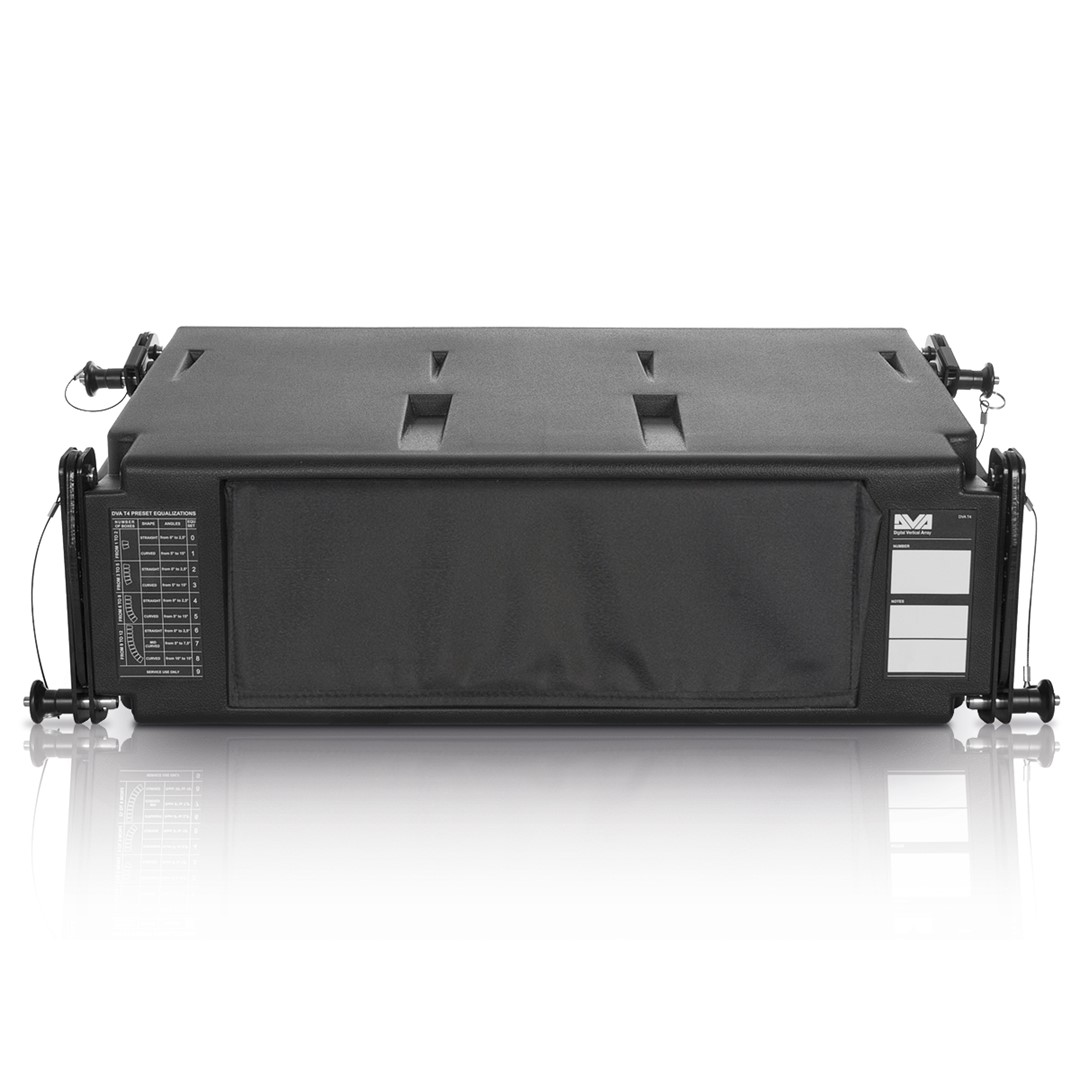

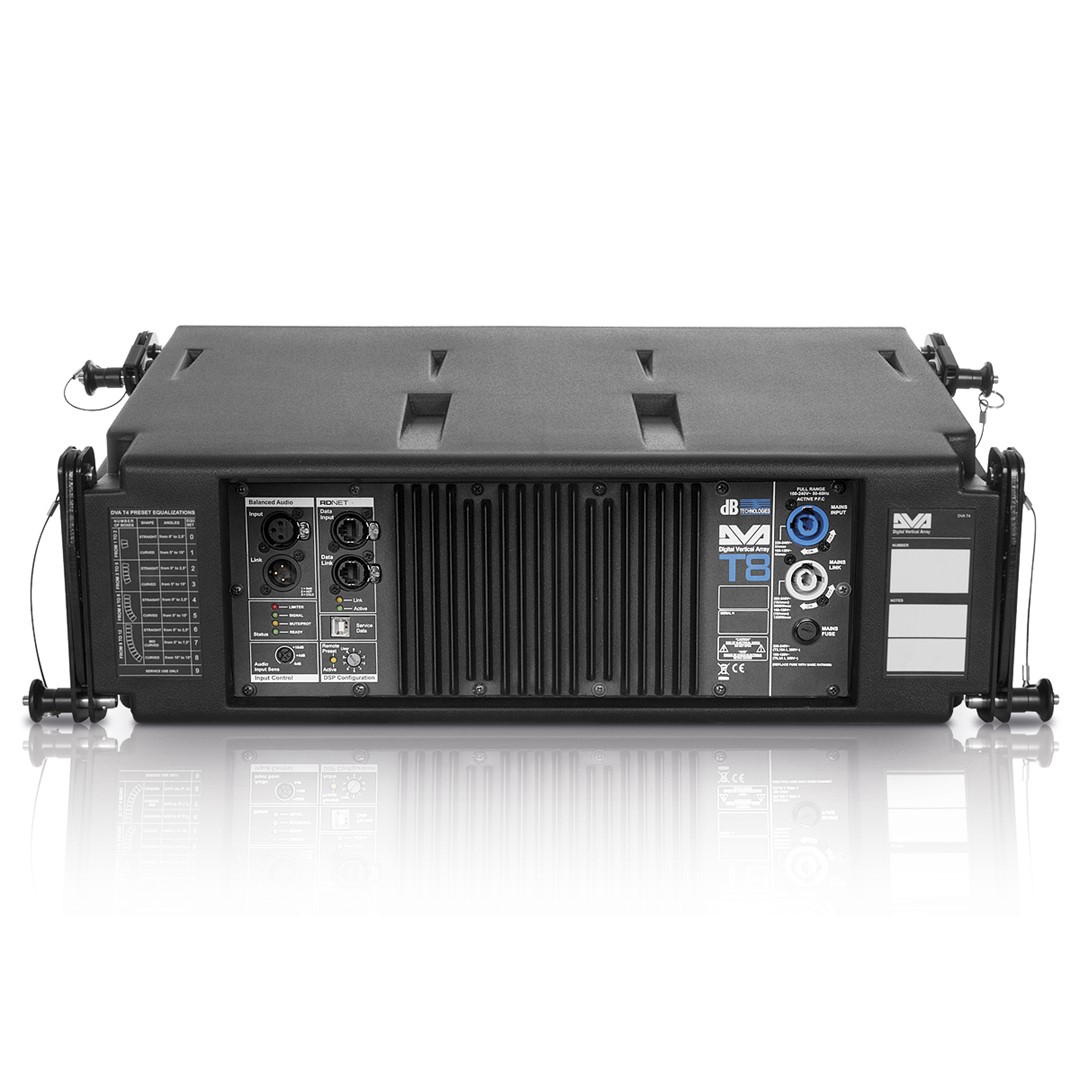

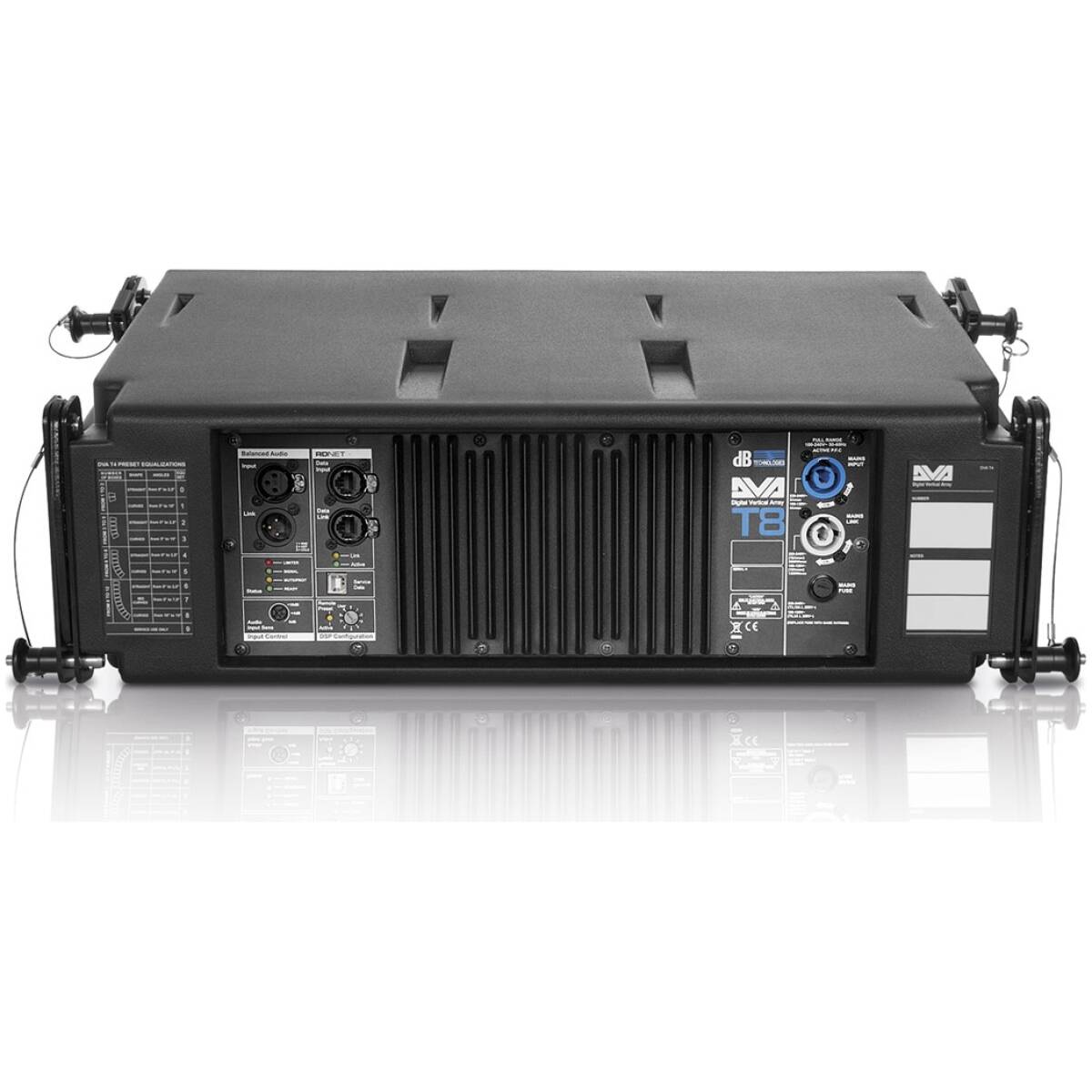

Furthermore, the system includes an RDNET port for remote control and real-time monitoring. Users can access this feature through dBTechnologies’ network control software. A convenient rotary control on the rear panel lets users choose from nine preset options. They can also create a custom setting based on their needs. This flexibility enables users to adjust frequency response and optimize sound quality across the array. Additionally, the rugged polypropylene housing is reinforced with an internal anti-vibration metal structure. This design minimizes resonance while maximizing acoustic response. Weighing just 14.2 kg (31.3 lbs), the DVA T8 boasts an exceptional weight-to-performance ratio. Its compatibility with other DVA T series modules enhances versatility for various applications.

In summary, the DB Technologies DVA T8 8″ Active Line Array system excels in both performance and versatility. Its compact design, advanced components, and remote monitoring capabilities make it suitable for a wide range of applications. Users will appreciate its impressive sound quality and lightweight construction, enhancing any audio experience.

Specifications:

Technical Data:

• Speaker Type: 3-Way Active Line Array Module

Acoustical Data:

• Frequency Response [-6dB]: 66 – 18,000 Hz
• Max SPL (One Unit): 132 dB
• HF Drivers: 2 x 1″
  • Voice Coil (HF): 1.4″
• Directivity: 100° x 15° (Single Unit)
• MF Driver: 1 x 6.5″
  • Voice Coil (MF): 2″
• LF Driver: 1 x 8″
  • Voice Coil (LF): 2.5″

Amplifier:

• Amp Technology: Digipro® G2
• Amp Class: Class D
• HF Amp: 175 W RMS
• MF Amp: 175 W RMS
• LF Amp: 350 W RMS
• Cooling: Convection

Processor:

• Controller: 56-bit DSP with double precision filters
• AD/DA Converter: 24 bit / 96 kHz
• System Presets: 9 (8x HF and Low-Mid correction)
• Limiter: Dual Active Limiter (Multiband RMS, Peak, Thermal)
• Crossover Frequency MF-HF: 1900 Hz
• Slope MF-HF: 24 dB/Octave
• Crossover Frequency LF-MF: 400 Hz
• Slope LF-MF: 24 dB/Octave

Input:

• Signal Input: 1 x XLR Female, Balanced
• Signal Output: 1 x XLR Male, Balanced
• Network: RDNET remote control RJ45 connector IN/OUT
• Power Socket: 1 x Powercon In, 1 x Powercon Out
• Voltage Range: 90 – 240 V

Mechanics:

• Housing: Polypropylene (PP), Metal Reinforced
• Housing Design: Trapezoidal 15°
• Rain Cover: Included

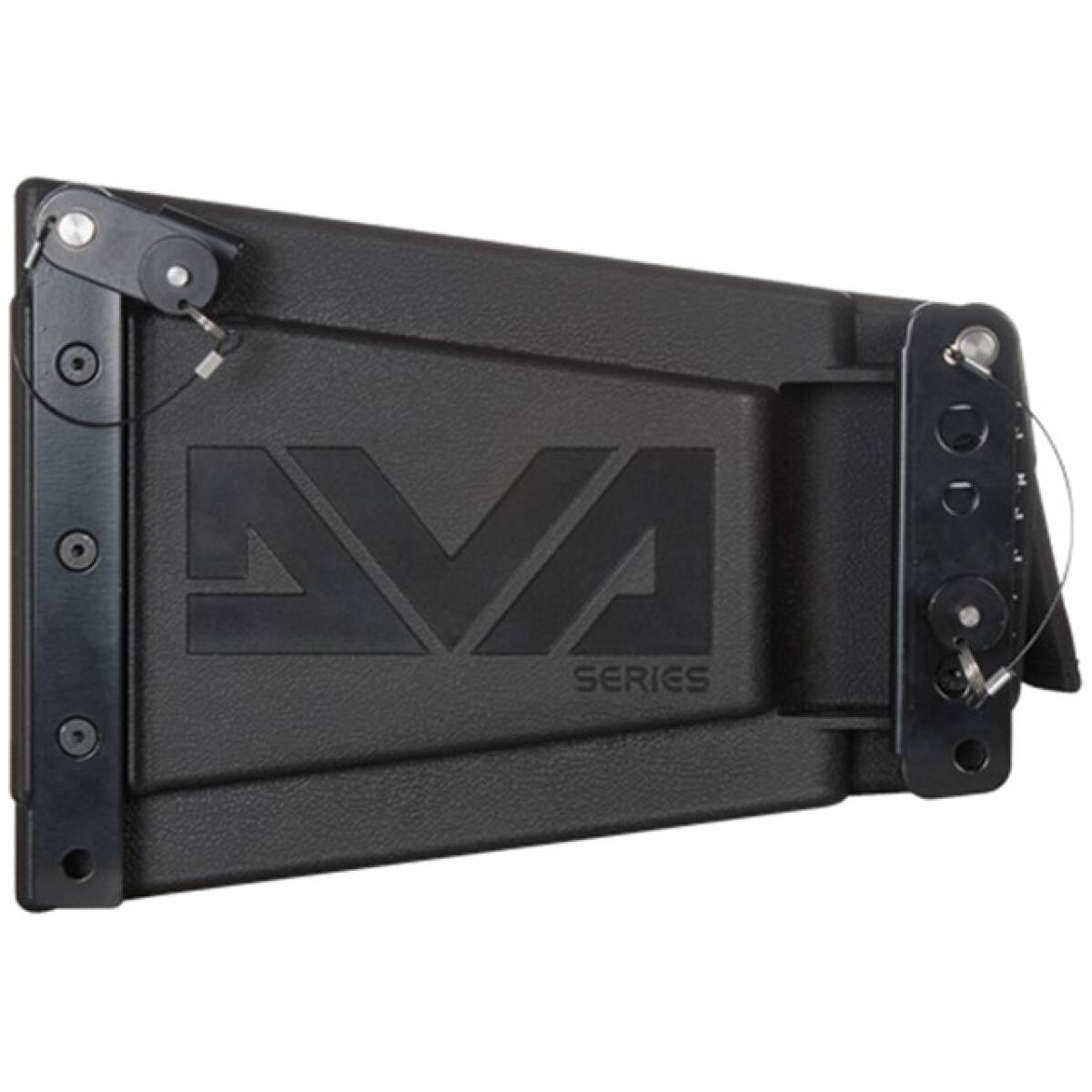

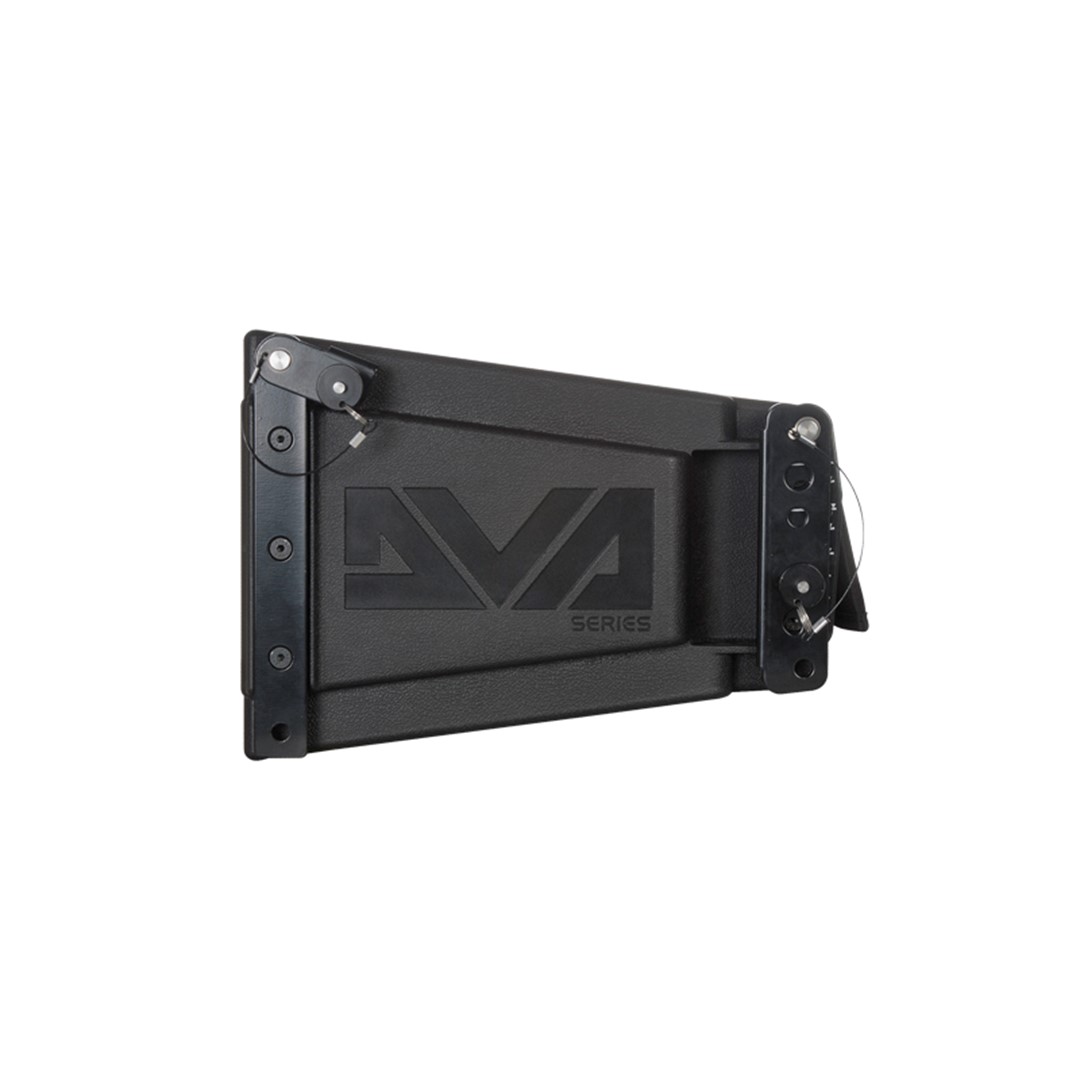

• Rigging Points: Integrated rigging hardware
• Width: 580 mm (23.2 in)
• Height: 240 mm (9.6 in)
• Depth: 327 mm (13.08 in)
• Weight: 14.2 kg (31.3 lbs)
