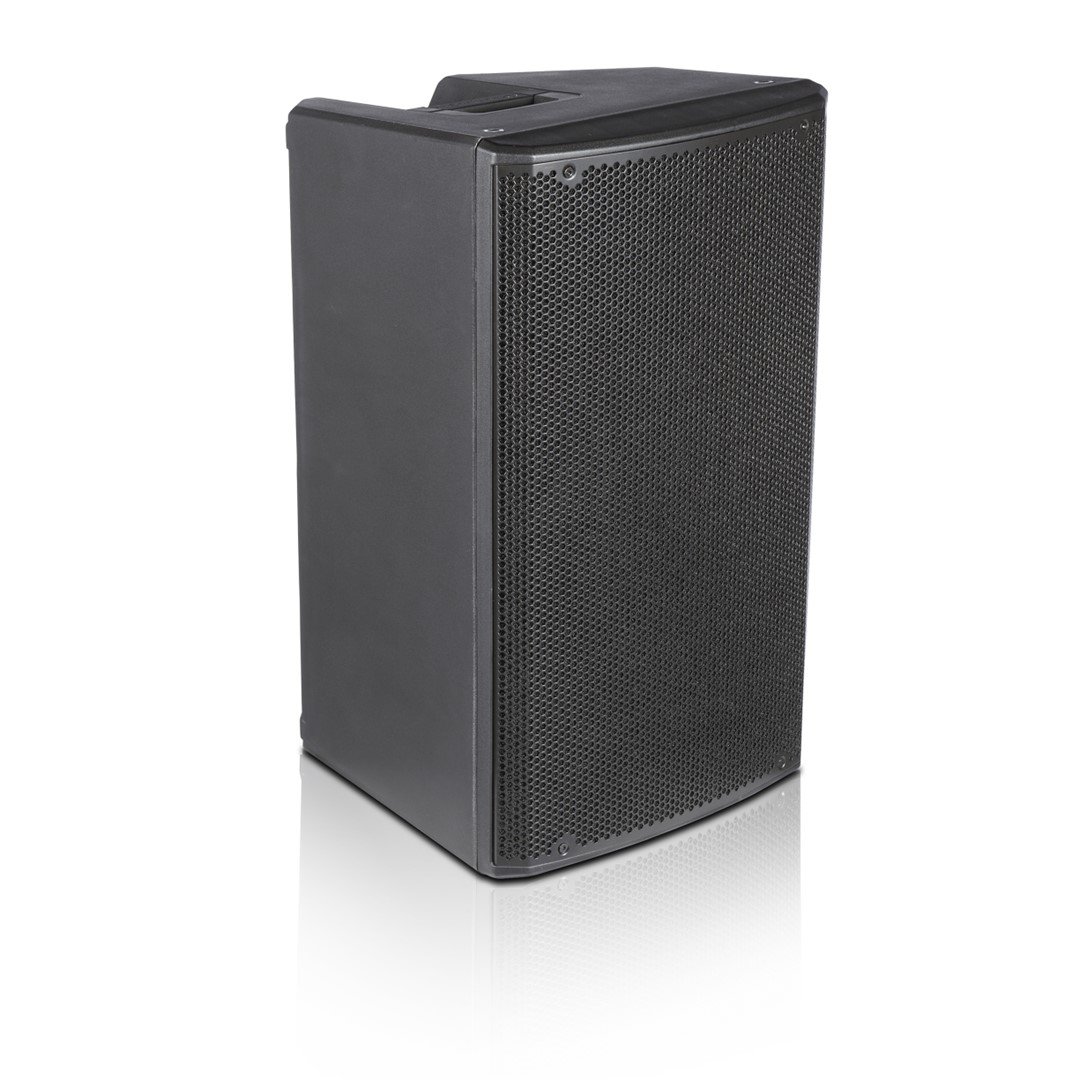

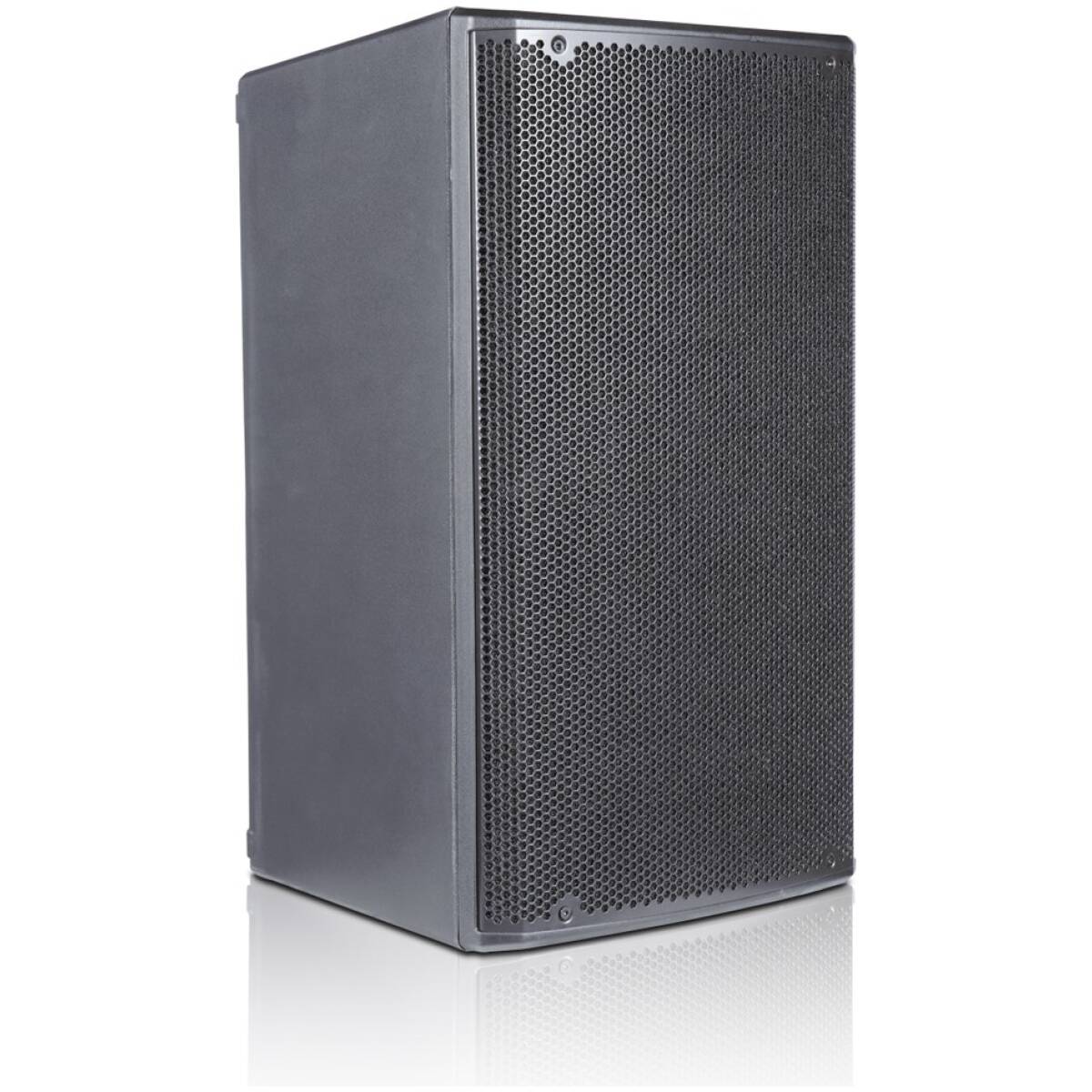

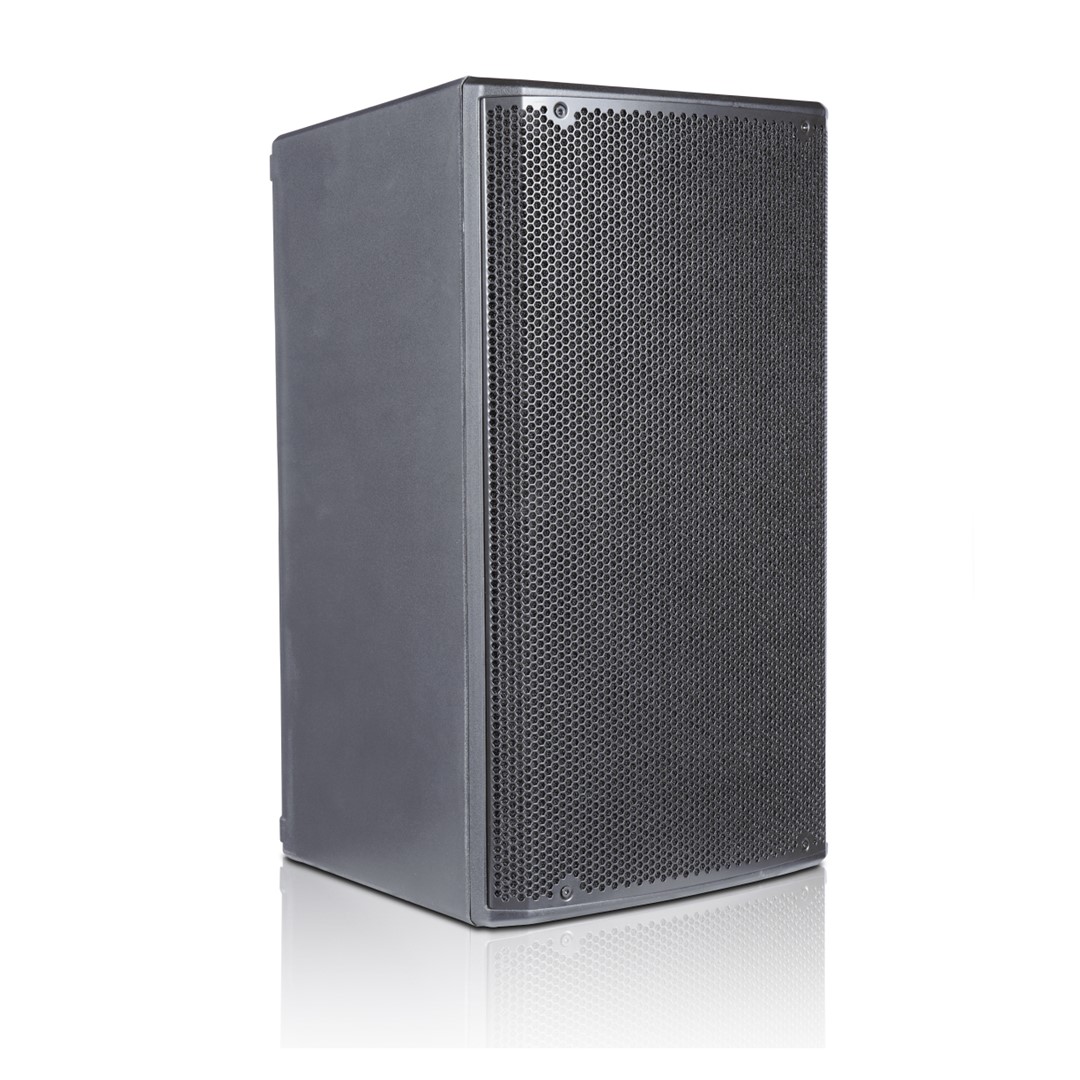

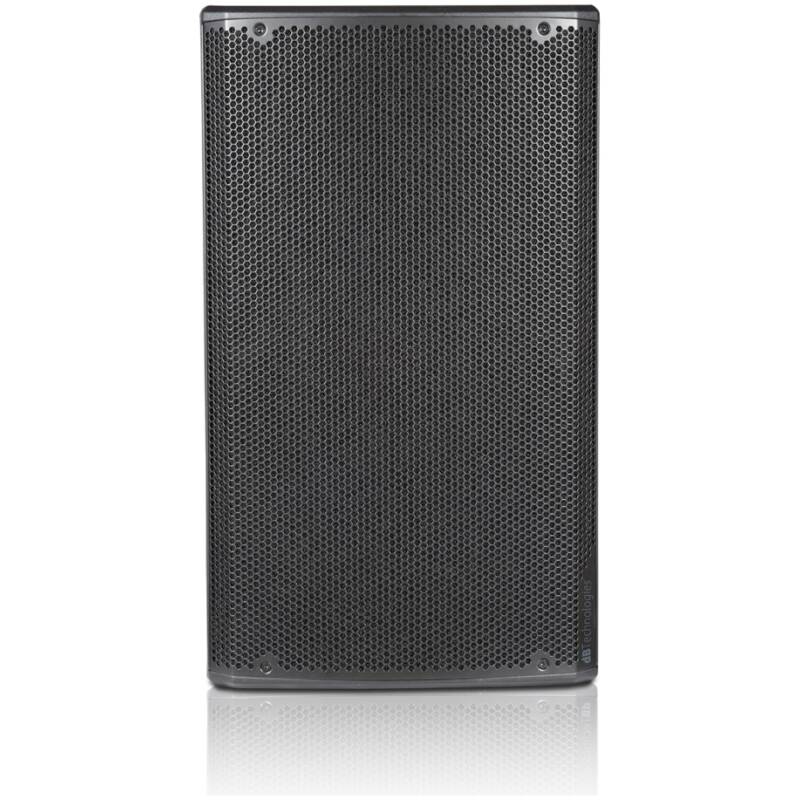

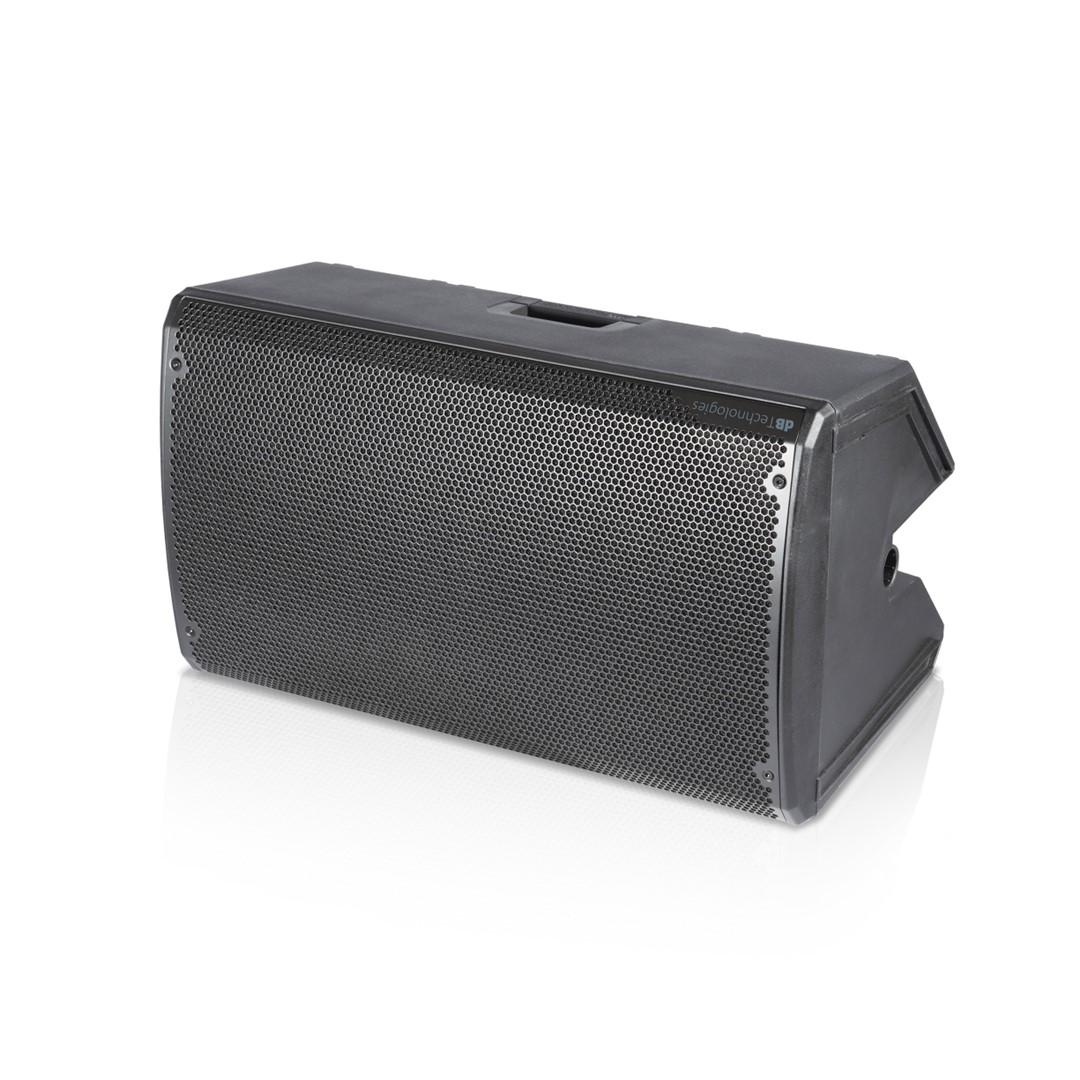

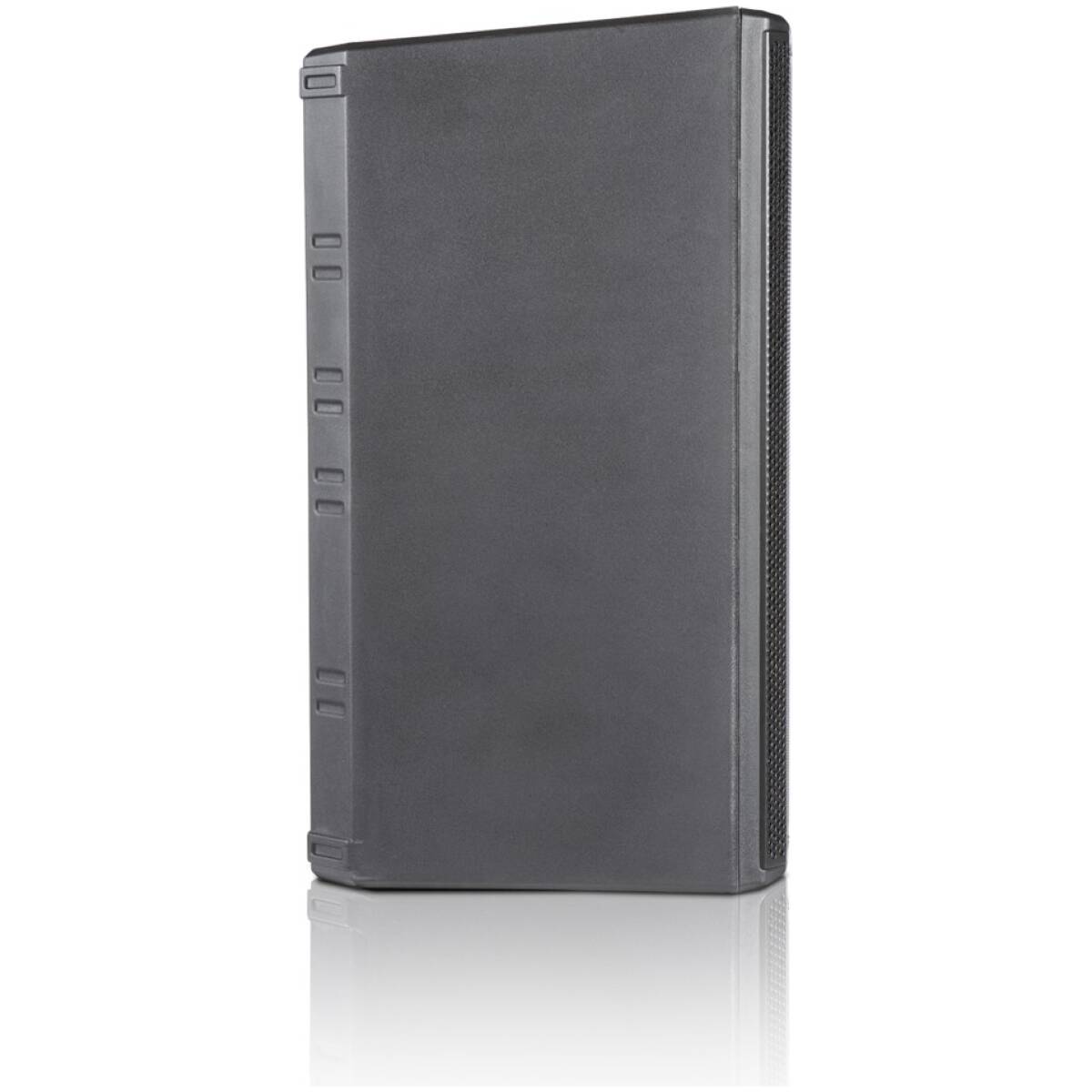

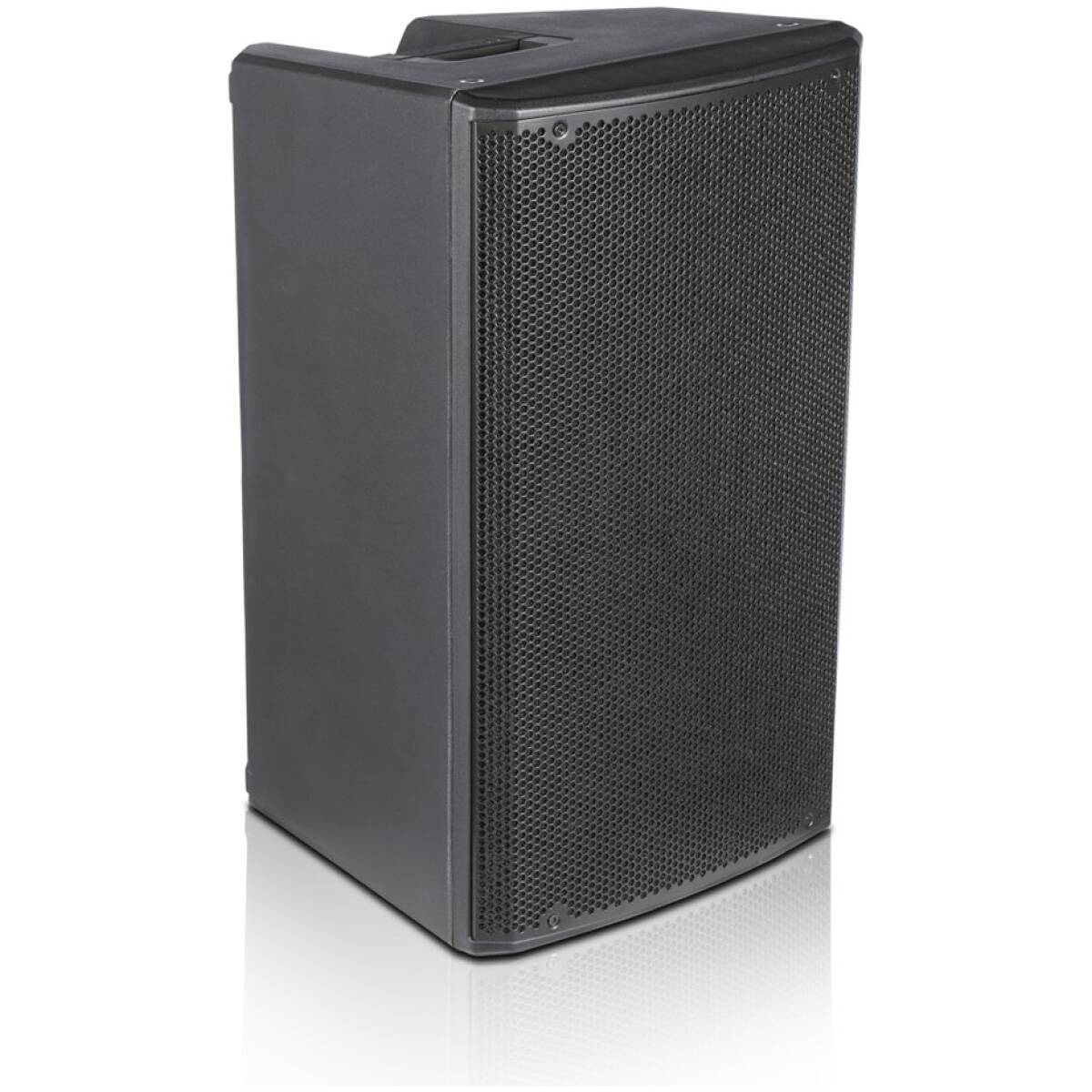

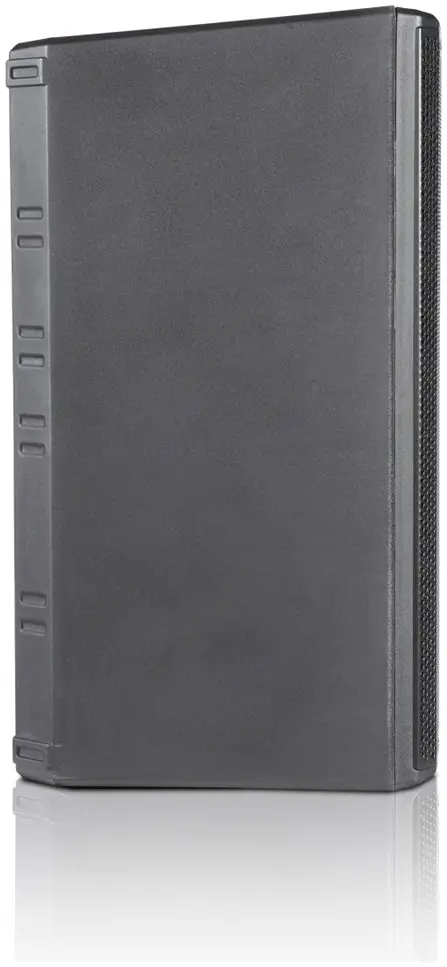

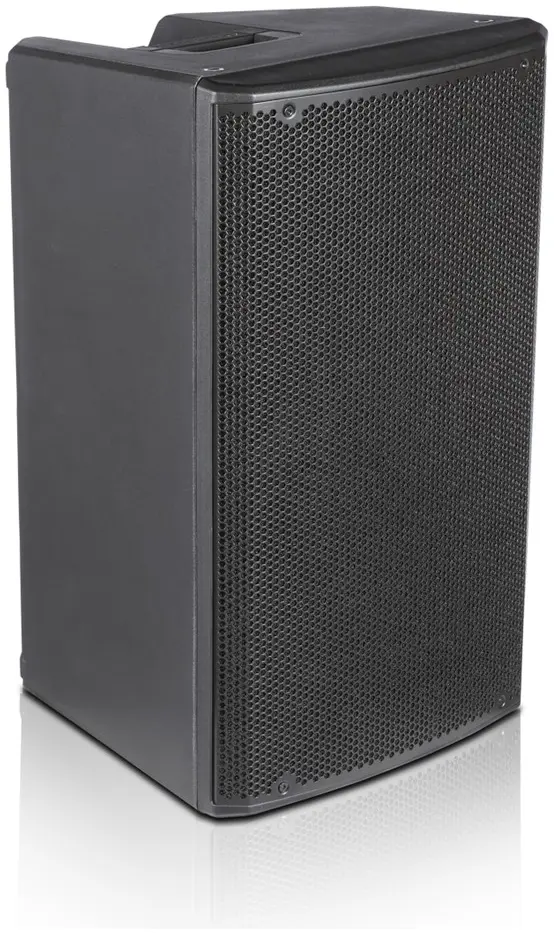

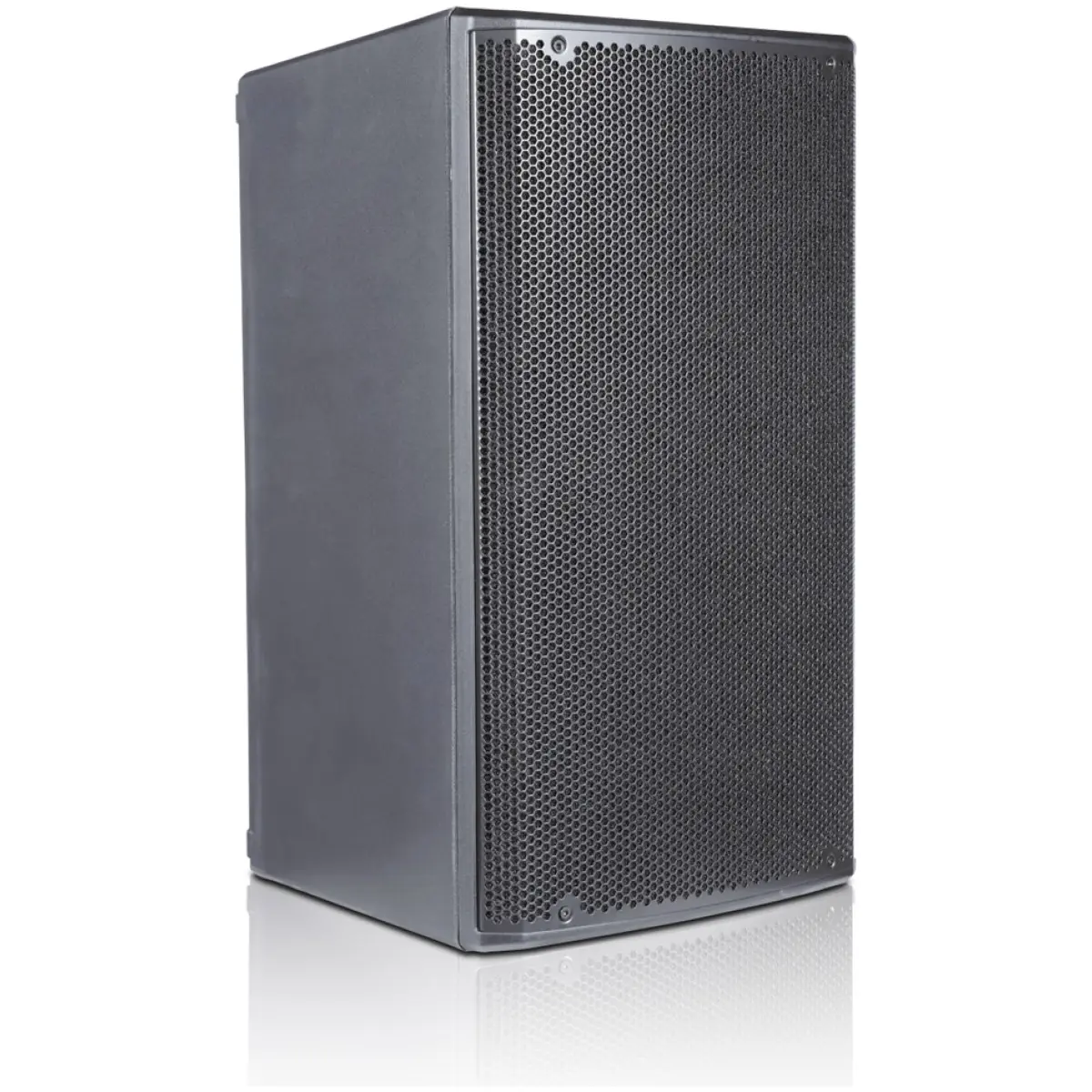

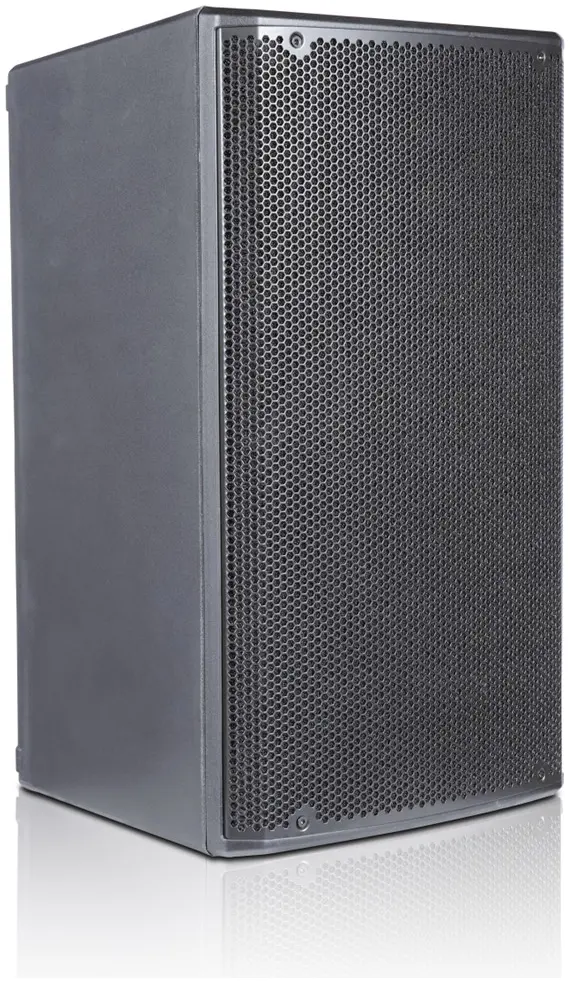

dB Technologies OPERA 15 15″ 2-Way Active Speaker

The DB Technologies OPERA 15 is a 15″ 2-way active speaker designed to deliver powerful, precise sound for both live and playback applications. With advanced DSP processing and a 600-watt Class D amplifier, this speaker provides clear, coherent audio performance. Its redesigned asymmetrical horn ensures broader horizontal and vertical dispersion, improving sound coverage and clarity across the venue, resulting in an exceptional audio experience.

Capable of handling up to 1200 watts of peak power, the Opera 15 delivers deep bass and crisp highs. It operates in a frequency range of 50 Hz to 20,000 Hz, offering a wide sound spectrum with a maximum SPL of 130 dB, making it ideal for both small and large venues. FIR filters enhance audio accuracy and clarity, delivering precise sound for all listeners.

The speaker features two combo XLR/Jack inputs for microphones and instruments, along with a selectable output channel, offering users greater flexibility. Its durable polypropylene housing ensures rugged use, while the integrated handles make it easy to transport. Weighing only 18.3 kg, the Opera 15 is lightweight, ensuring easy setup and transport for sound engineers and performers. With reliability and top-tier performance, the Opera 15 is an excellent choice for high-quality sound in any performance environment.

In conclusion, the DB Technologies OPERA 15 15″ 2-Way Active Speaker delivers powerful, precise sound for live and playback applications. Its advanced DSP processing and 600-watt Class D amplifier provide clear, coherent audio. The redesigned asymmetrical horn enhances sound coverage and clarity across the venue. With high peak power and a wide frequency range, it excels in any setting. Lightweight and easy to transport, the OPERA 15 offers reliability and performance, making it a top choice for professionals.

Specifications:

• Speaker Type: 2-Way Active Speaker
• Frequency Response (-10 dB): 50 Hz – 20,000 Hz
• Frequency Response (-3 dB): 56 Hz – 19,000 Hz
• Max SPL: 130 dB
• High-Frequency Driver (HF): 1″ exit, 1.4″ voice coil, compression driver
• Horizontal Directivity: 100° (85° up / 120° down)
• Vertical Directivity: 85° (+25° / -60°)
• Horn: Newly designed asymmetrical horn
• Low-Frequency Driver (LF): 15″, 2″ voice coil

Amplifier

• Amp Class: Class D
• RMS Power: 600 W
• Peak Power: 1200 W
• Amp Technology: SMPS power supply with dual range

Processor

• Controller: DSP 56-bit
• AD/DA Converter: 24-bit / 48 kHz
• System Presets: 8 presets via rotary encoder
• Crossover Frequency: 1800 Hz
• Limiter: Peak, RMS, thermal protection
• Advanced DSP Functions: Linear phase FIR filters

Input/Output

• Signal Input: 1x Combo (XLR/Jack 6.3 mm) MIC/Line, 1x Combo (XLR/Jack 6.3 mm) MIC/Inst
• Signal Output: 1x XLR Male (CH1 Link/Mix OUT), selectable

Mechanical Features

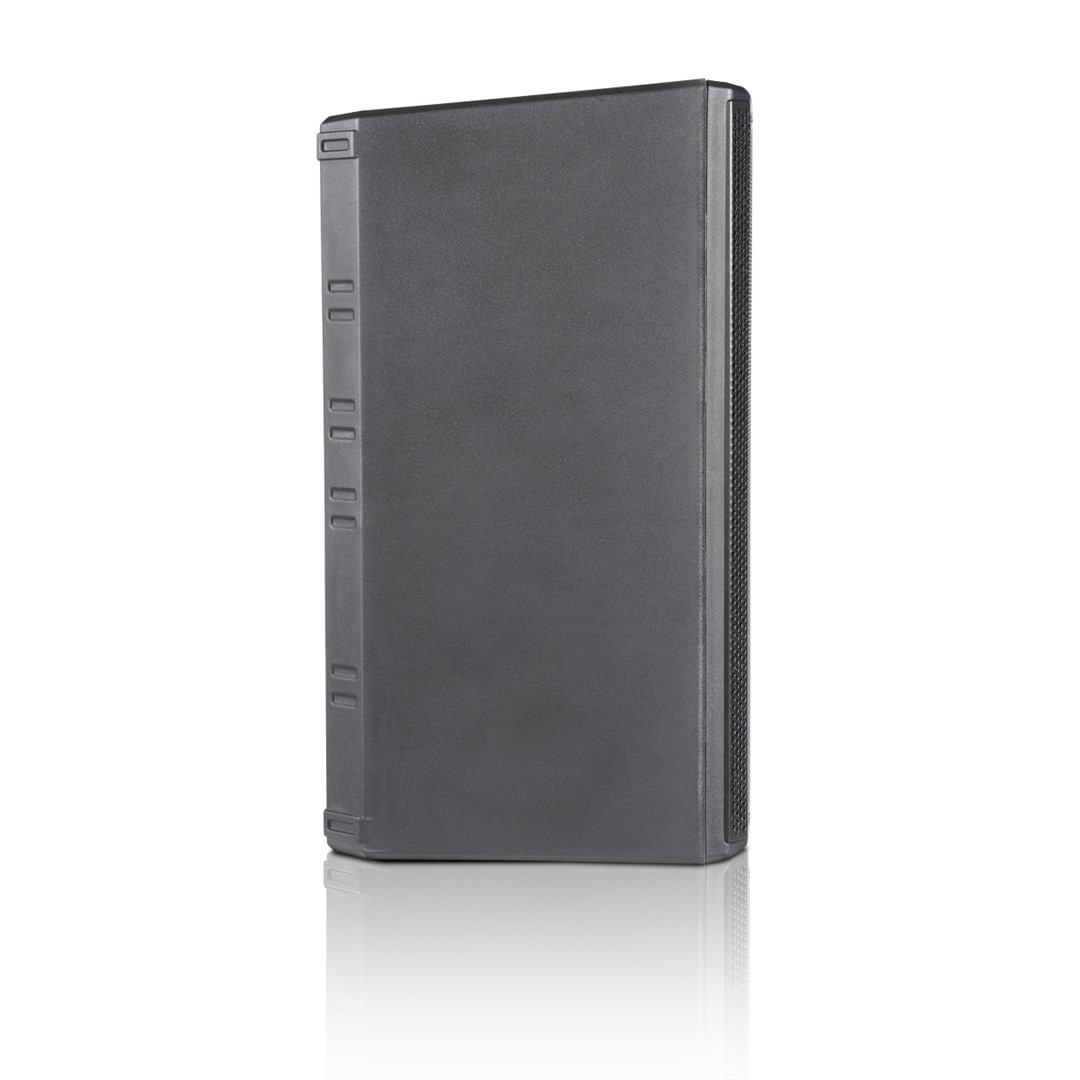

• Housing Material: Polypropylene with internal frame

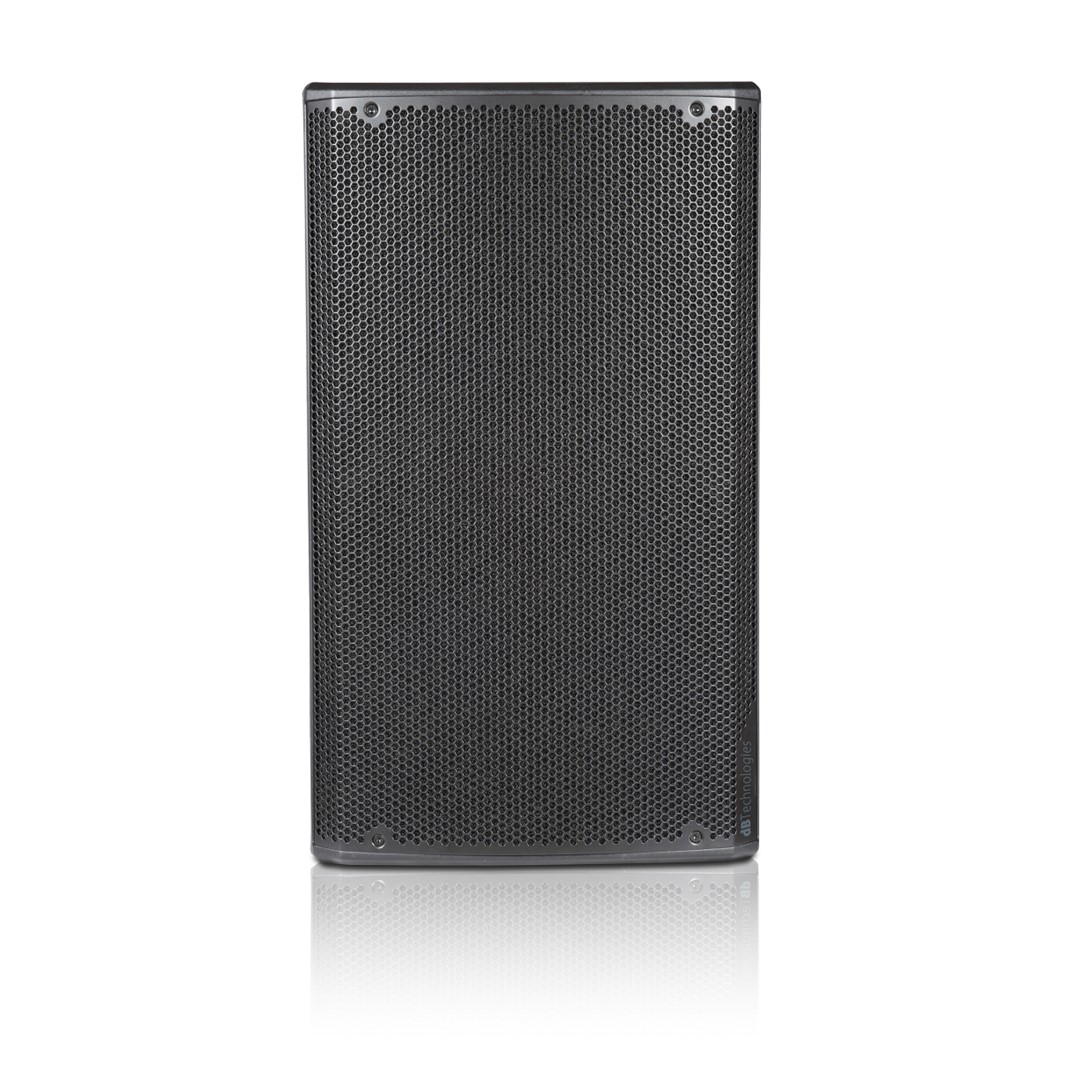

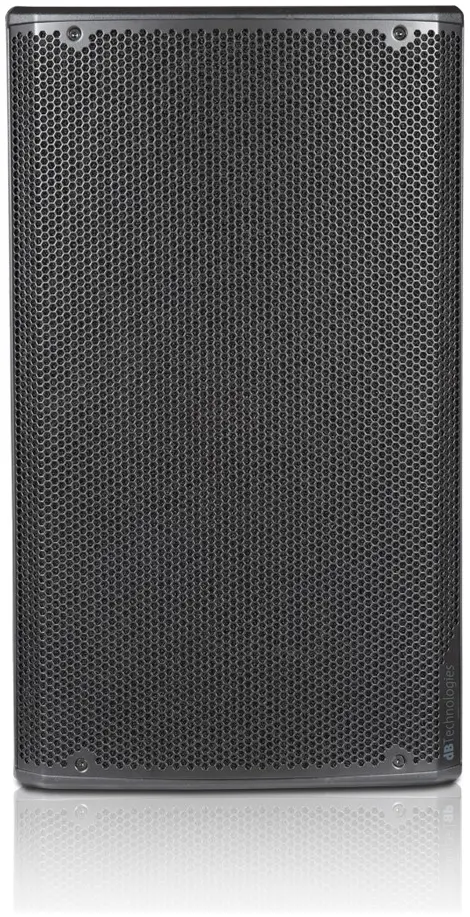

• Grille: Full metal grille design

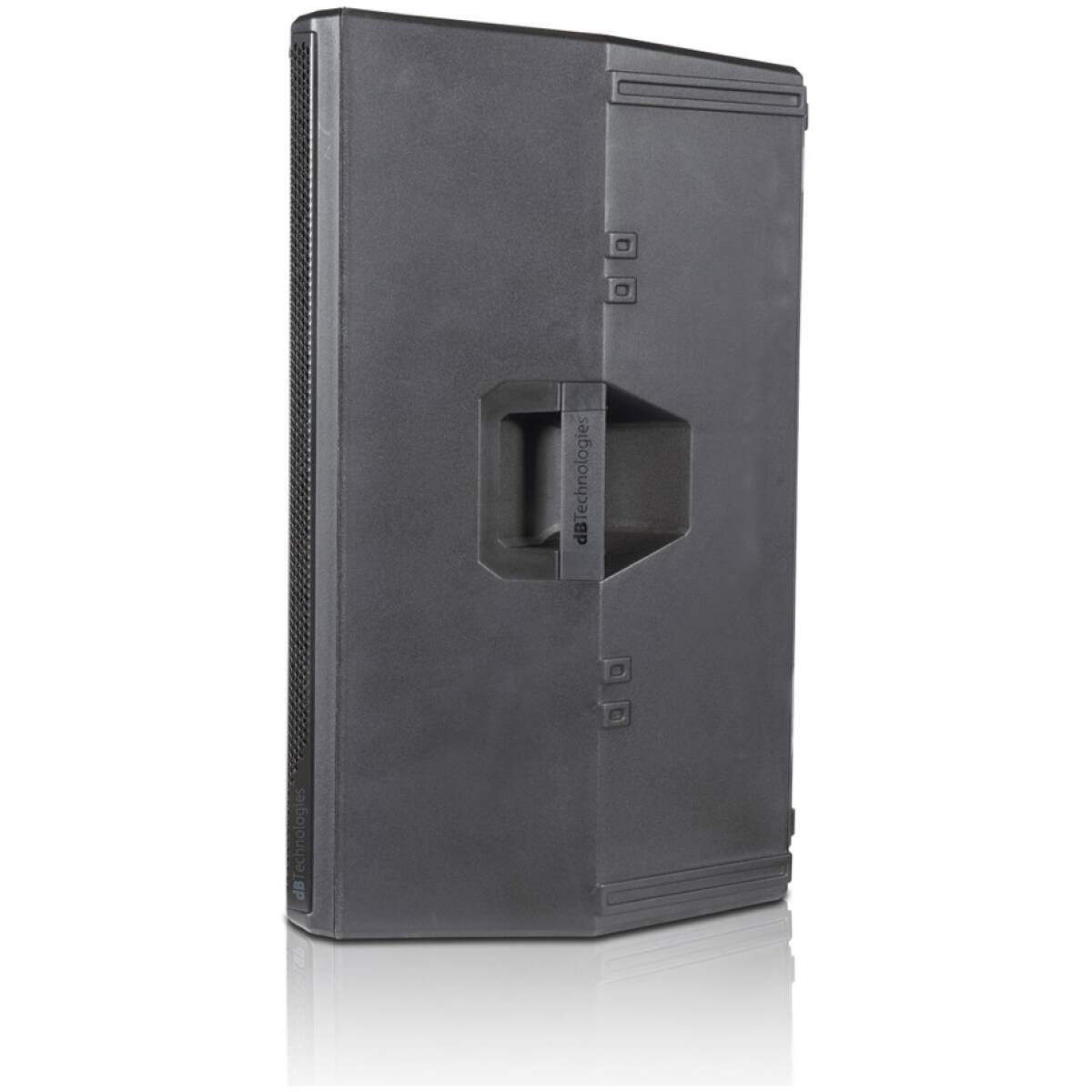

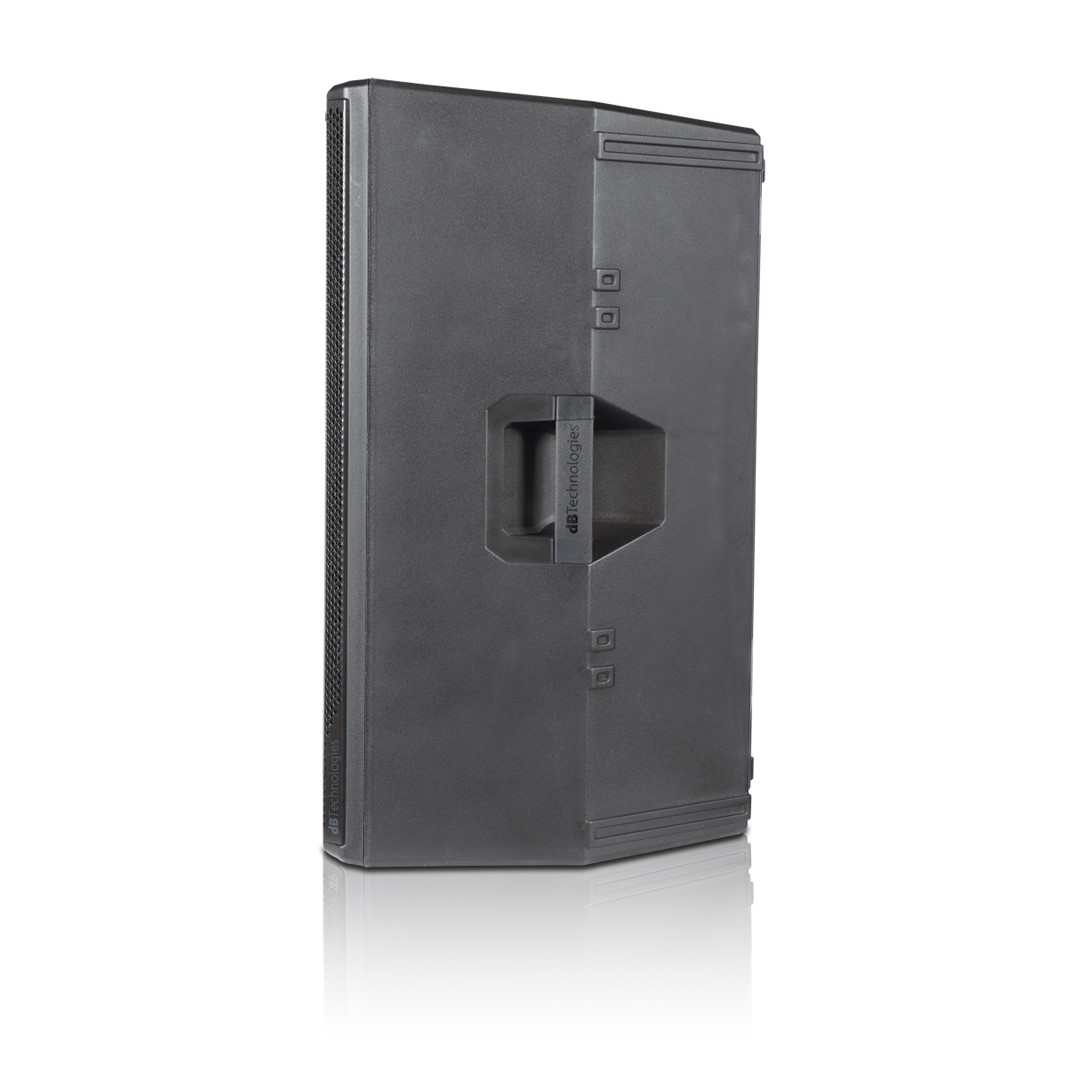

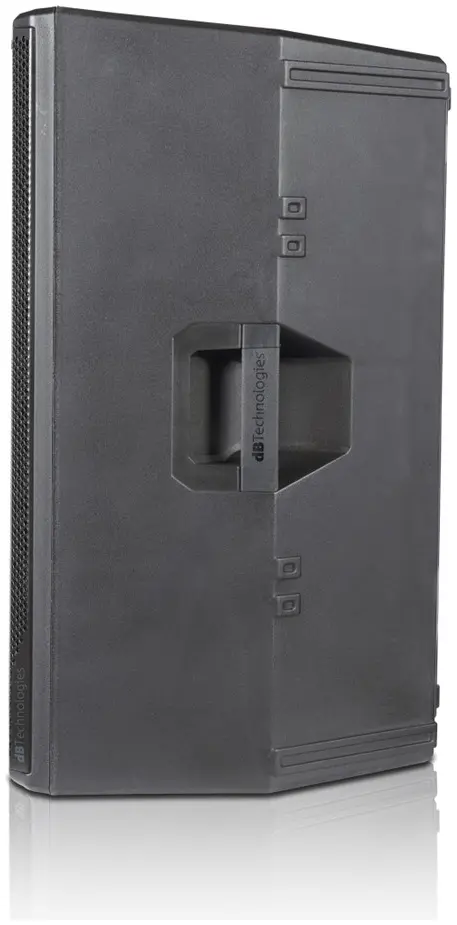

• Handles: 1 handle on left side, 1 on top
• Rigging Points: 2x M10 on top, 1x M10 on back
• Pole Mount: D36 mm

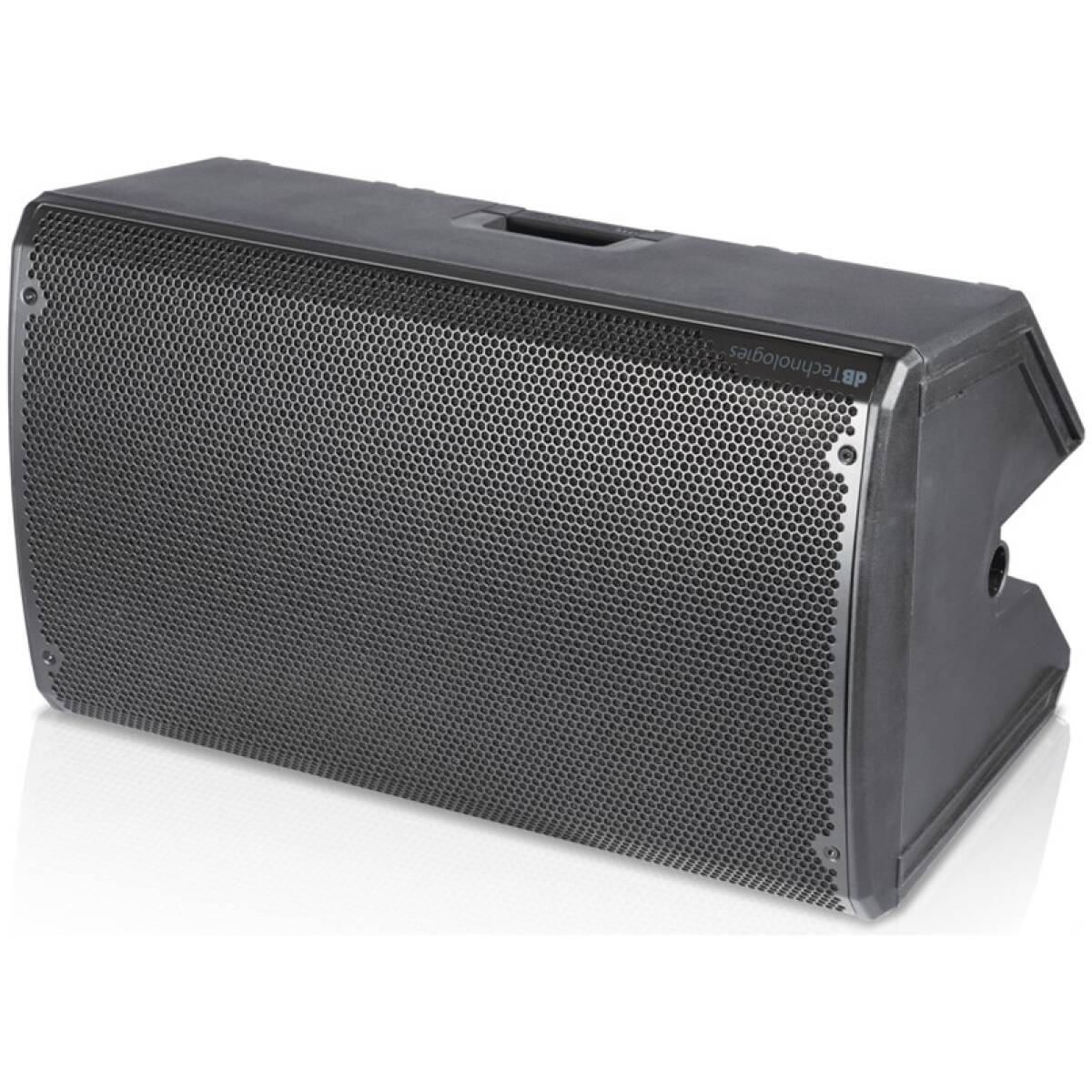

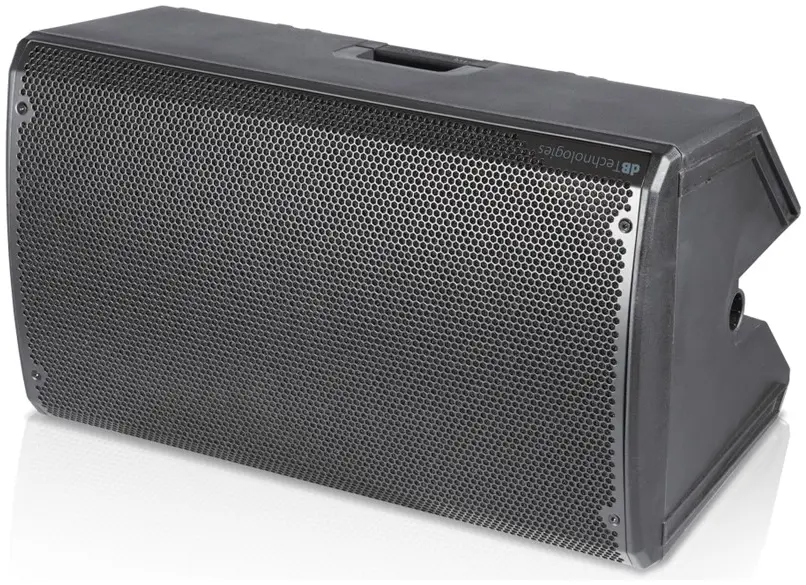

• Monitor Angle: 45° for stage monitor use
• Dimensions (W x H x D): 420 mm x 722 mm x 419 mm (16.54 in x 28.43 in x 16.50 in)
• Weight: 18.3 kg (40.34 lbs)
