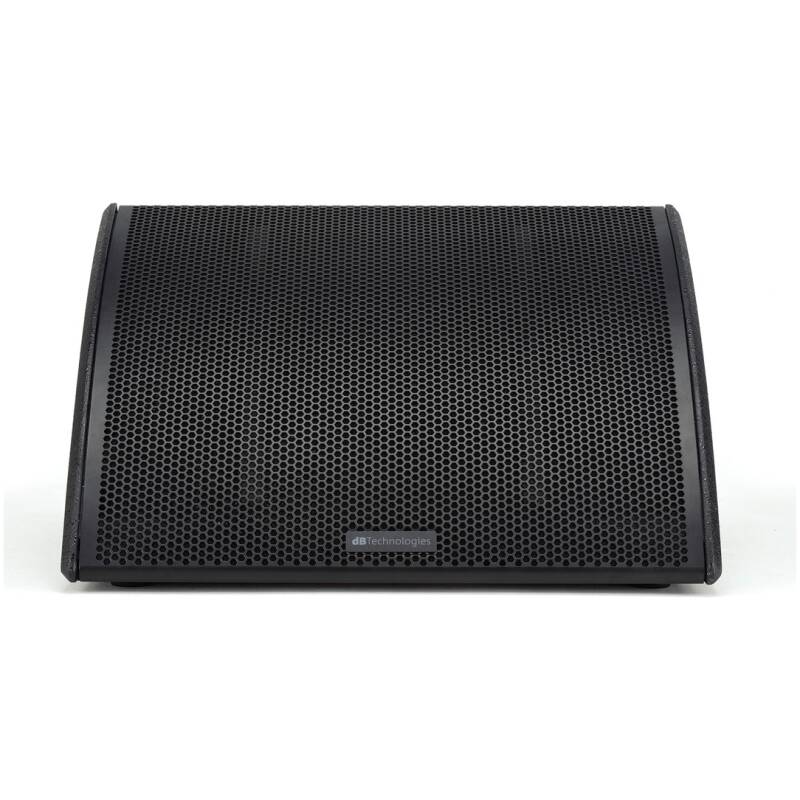

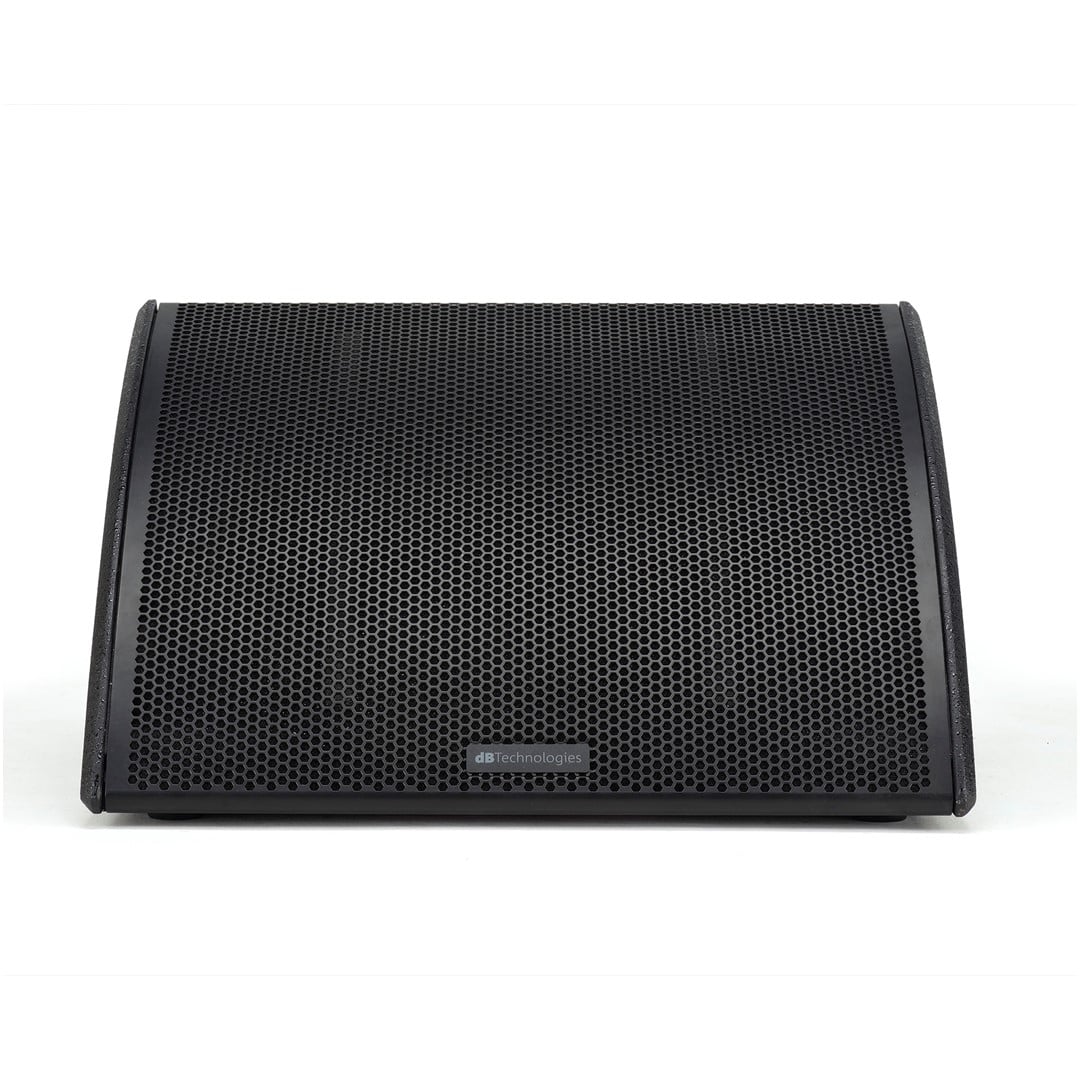

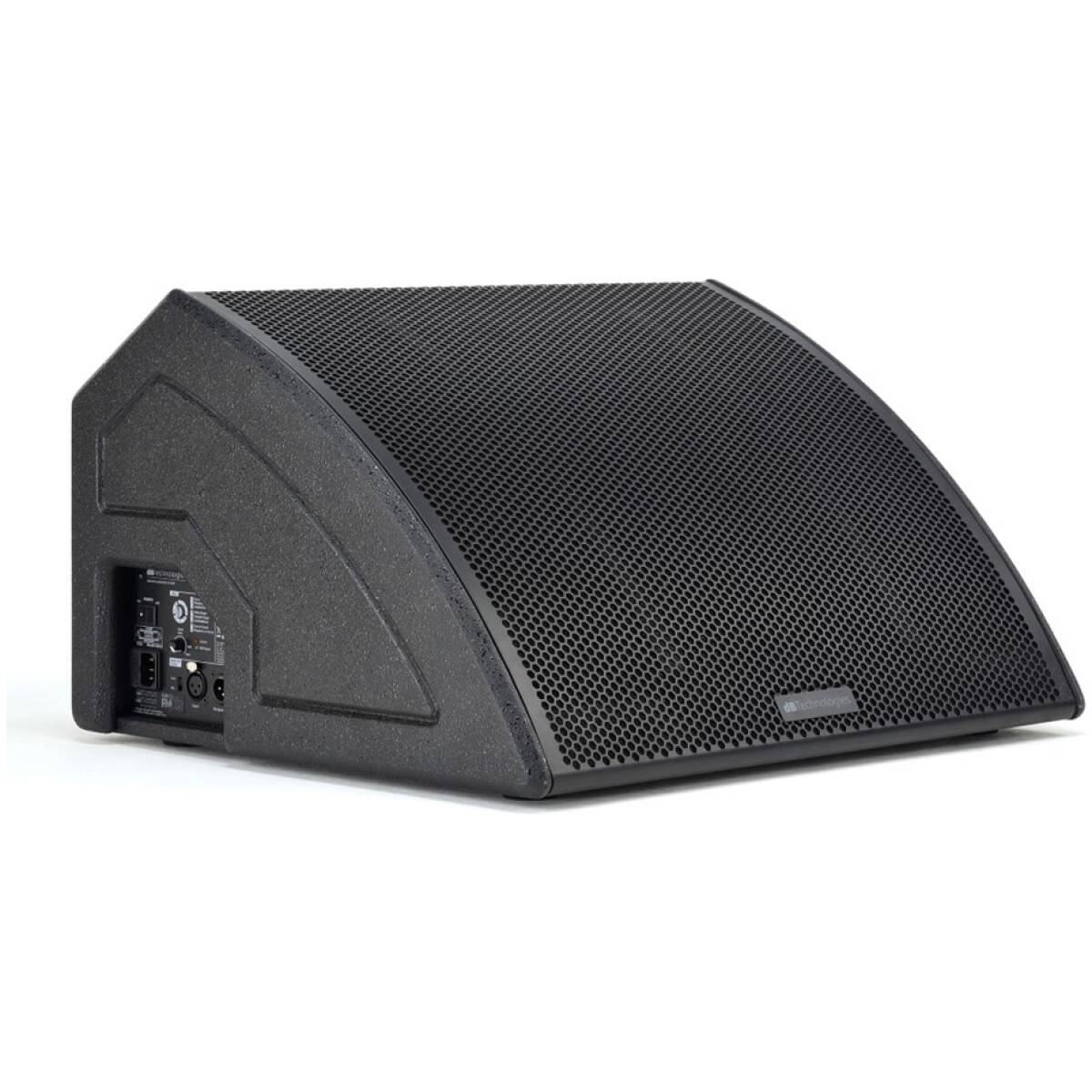

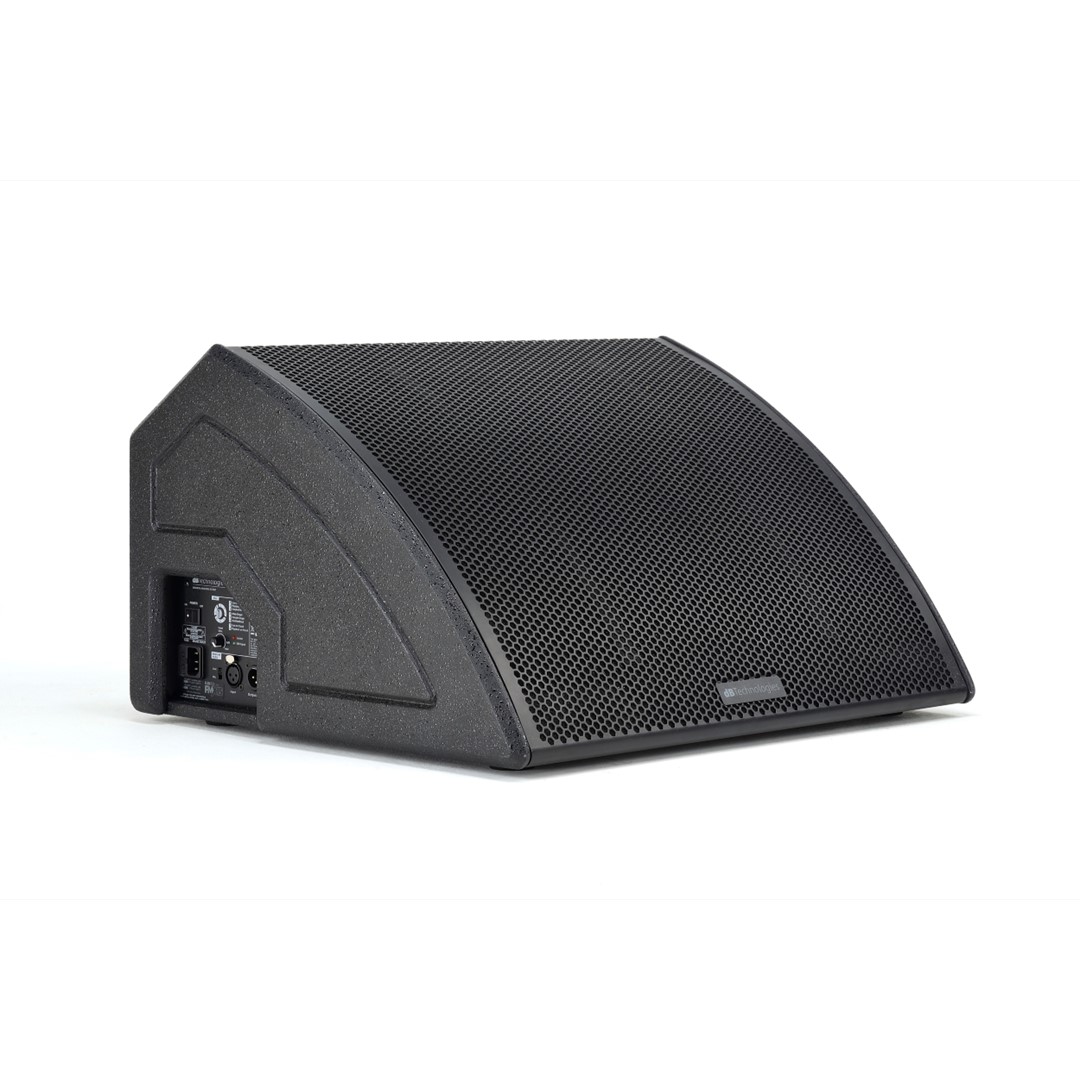

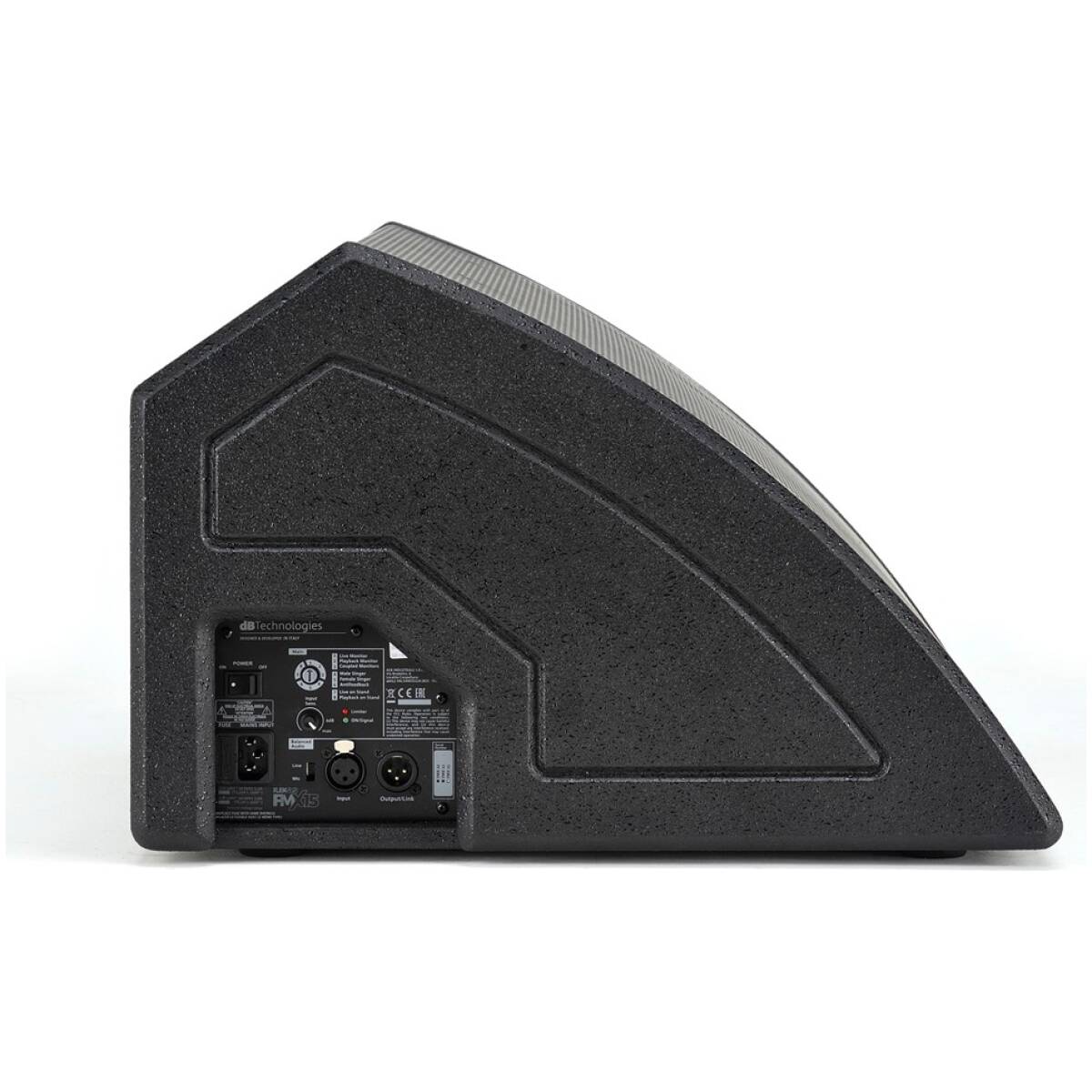

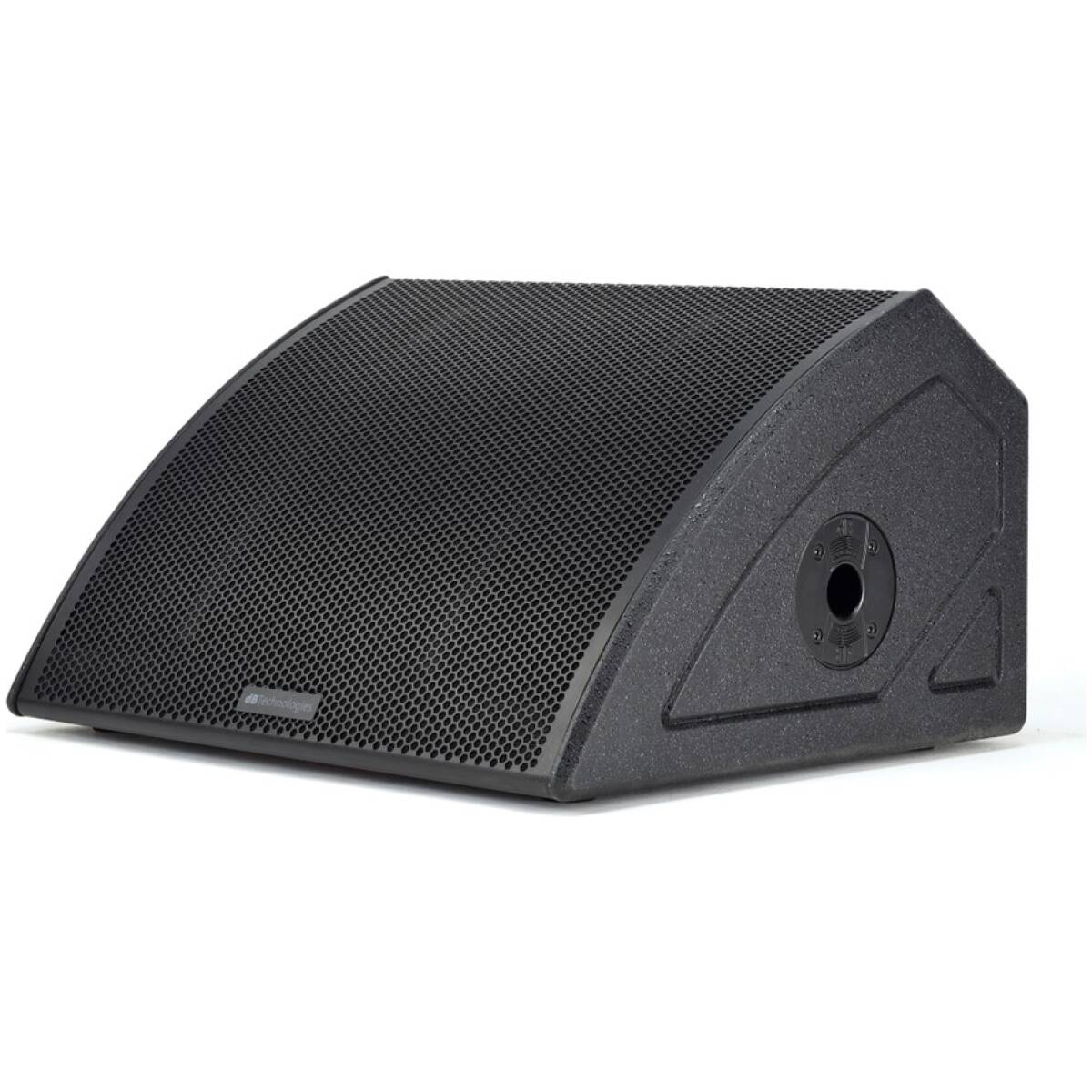

dB Technologies FMX 15 15″ Active Stage Monitor

The DB Technologies FMX15 15″ Active Stage Monitor is designed for professional sound monitoring in live performances. This flagship monitor features a powerful 600 RMS Class D amplifier and innovative technology to deliver exceptional audio quality. Its coaxial design ensures optimal sound dispersion, providing a consistent listening experience across the stage.

With a frequency response from 46 Hz to 19 kHz and a maximum sound pressure level of 128 dB, the FMX 15 guarantees clarity and impact. Additionally, it incorporates advanced linear phase FIR filters that enhance sound intelligibility while reducing unwanted phase distortion.

The custom horn design allows for a precise directivity pattern of 60° horizontal and 90° vertical. Users can easily rotate the horn to achieve a 90° horizontal and 60° vertical configuration, adapting to their preferences. The monitor includes eight onboard presets that facilitate quick adjustments to EQ settings, ensuring optimal sound for various environments.

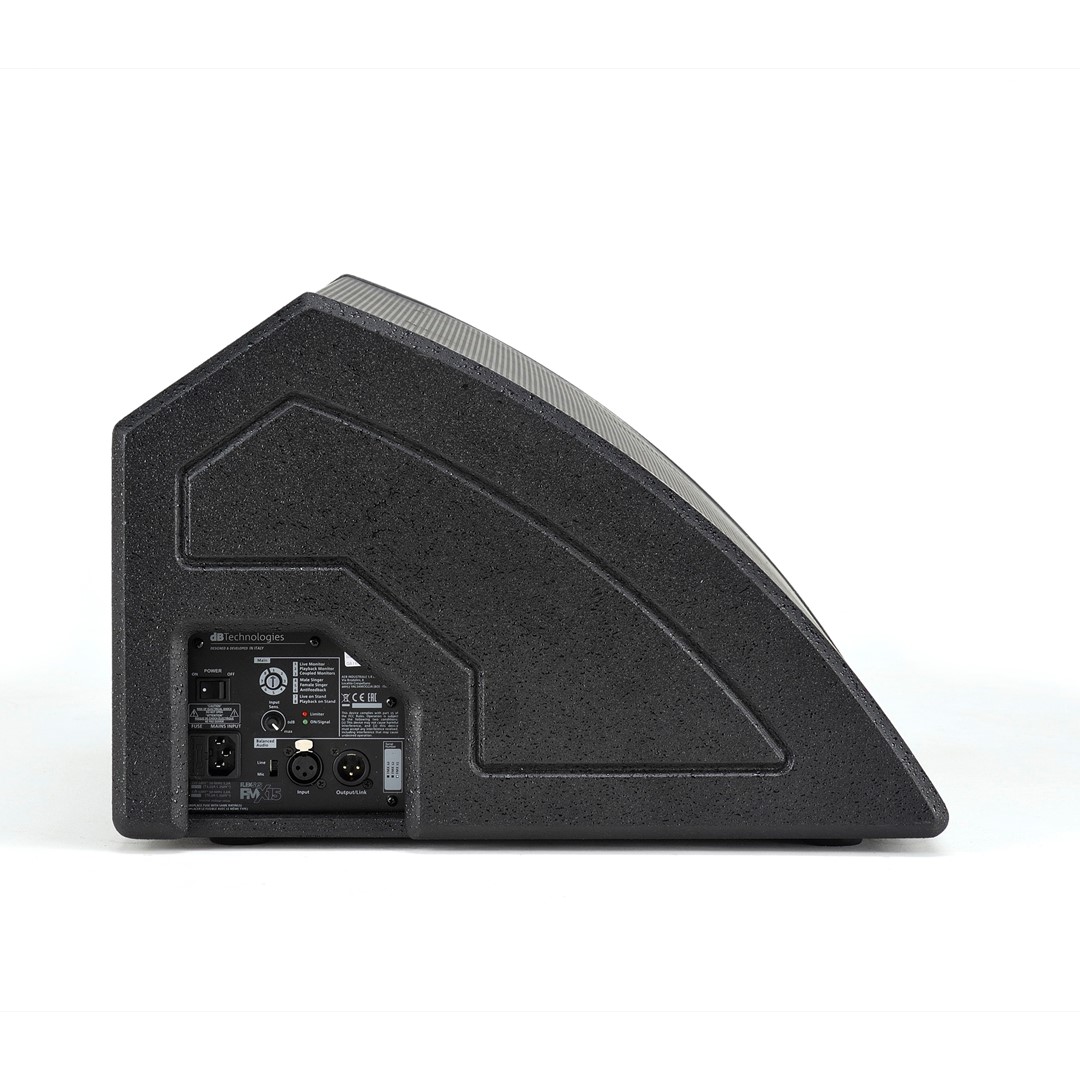

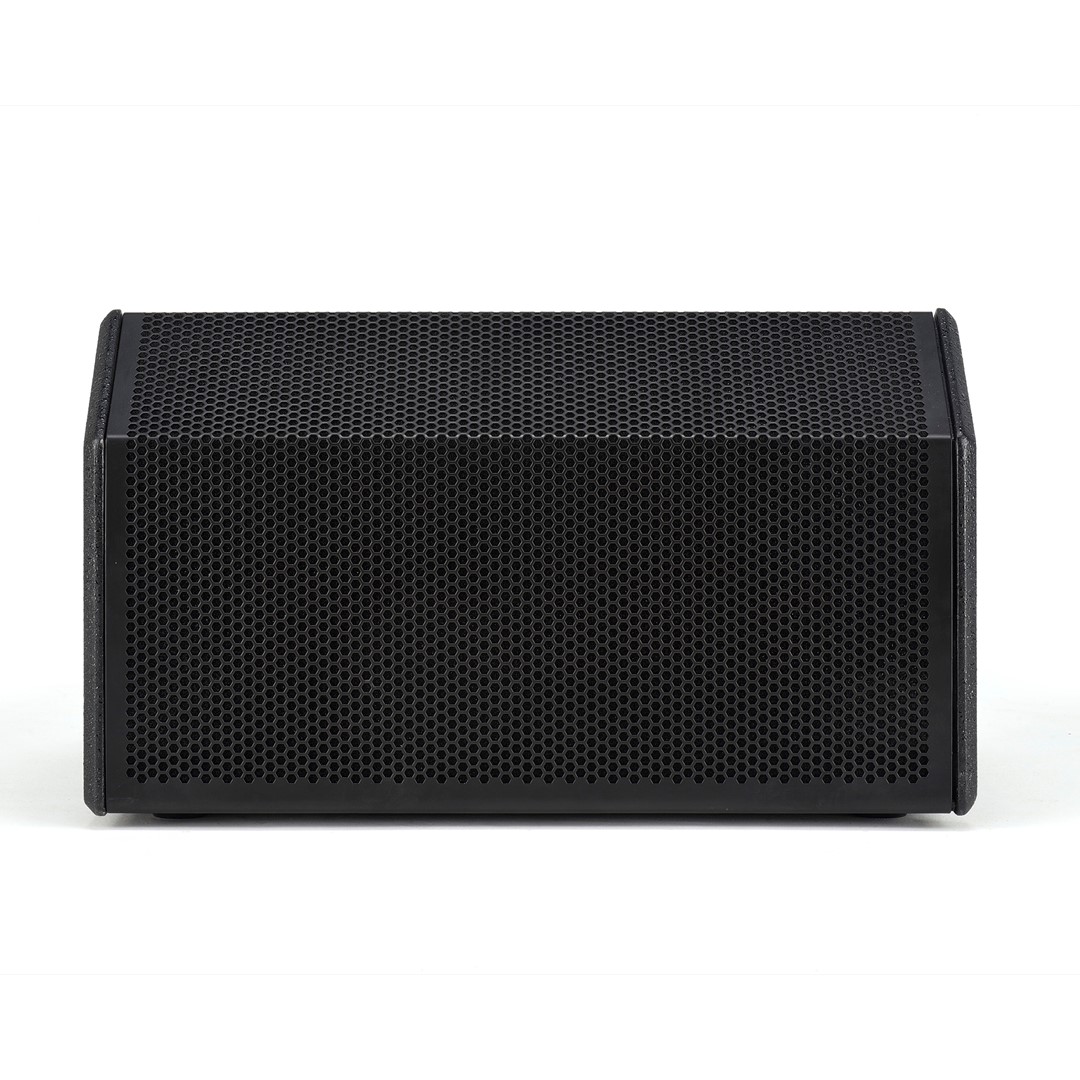

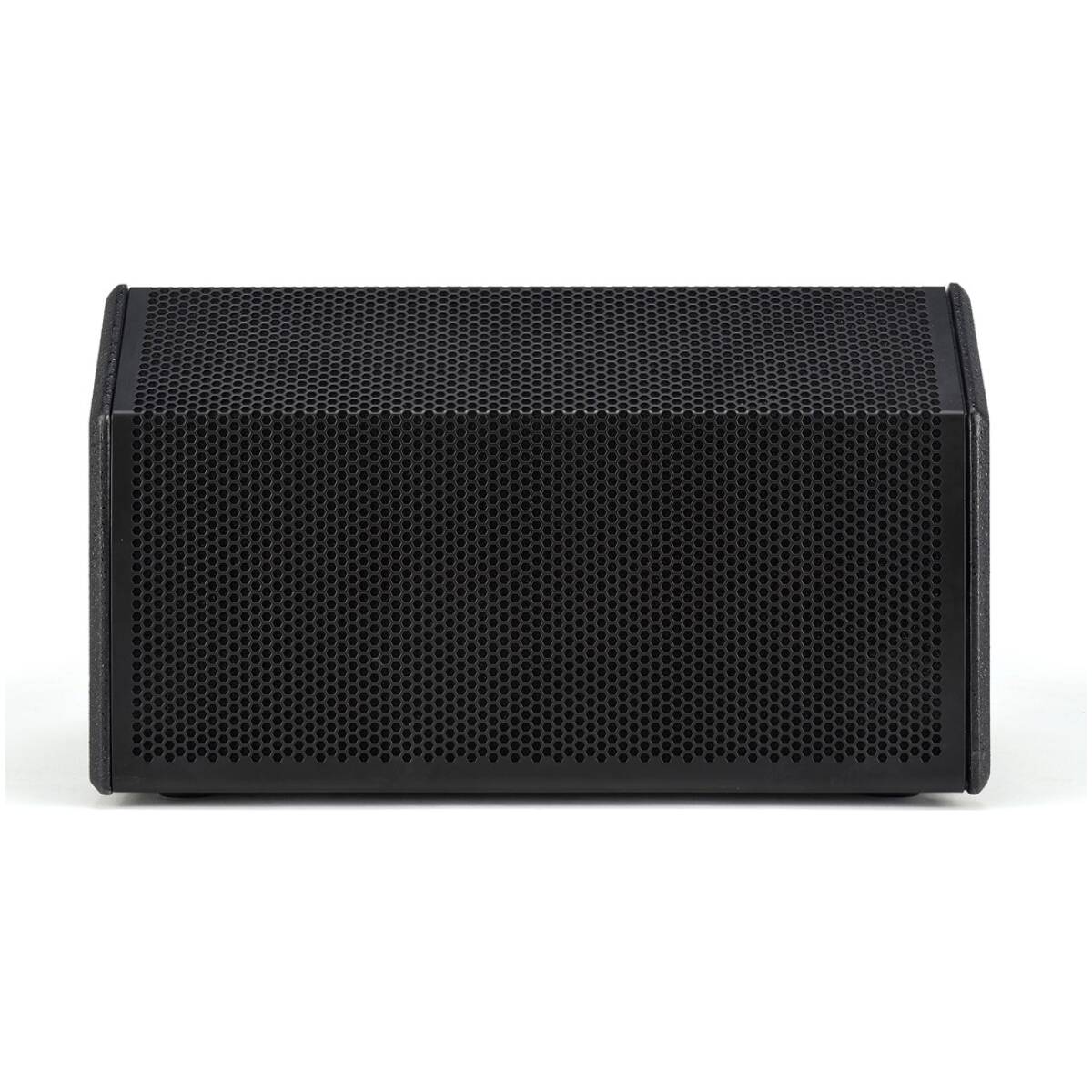

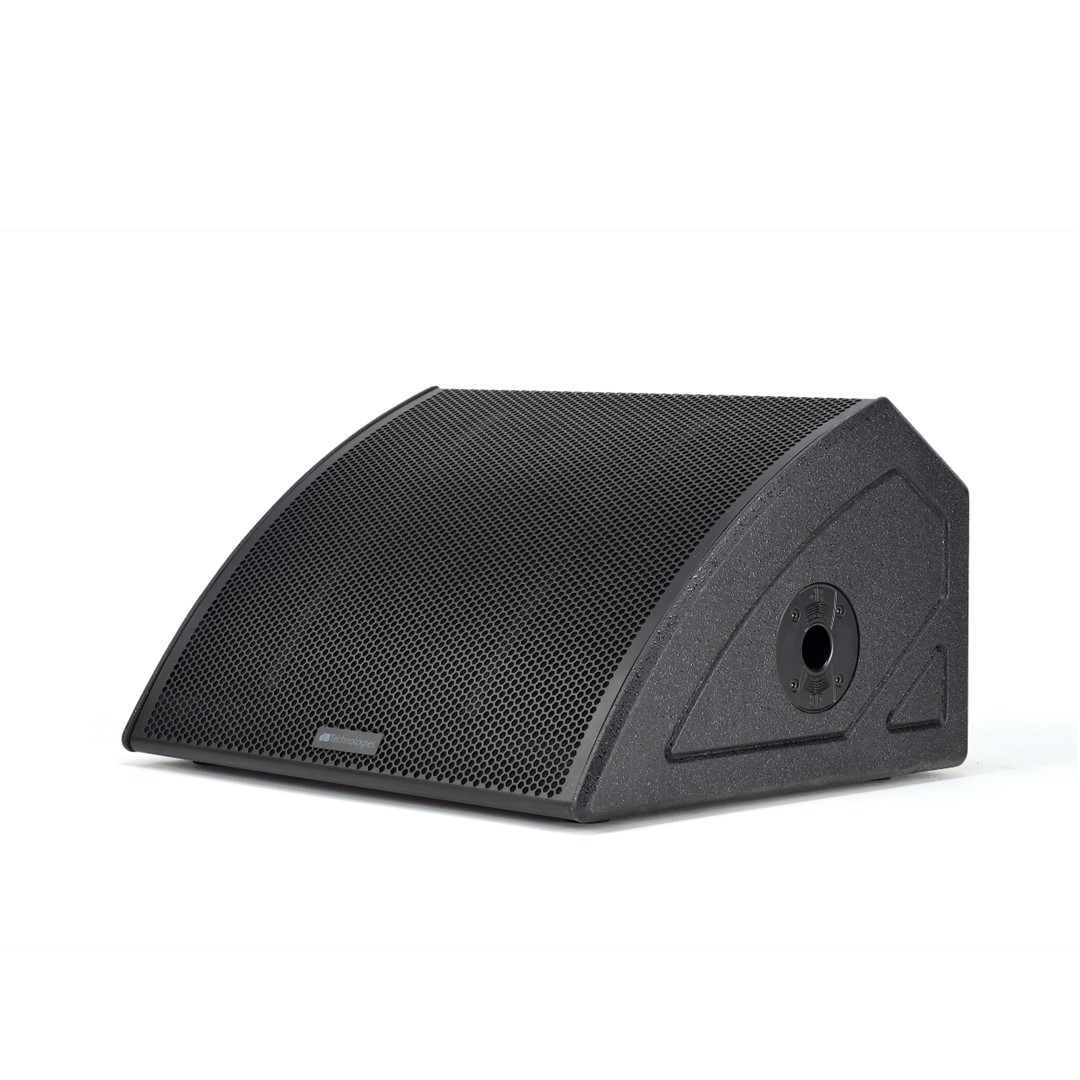

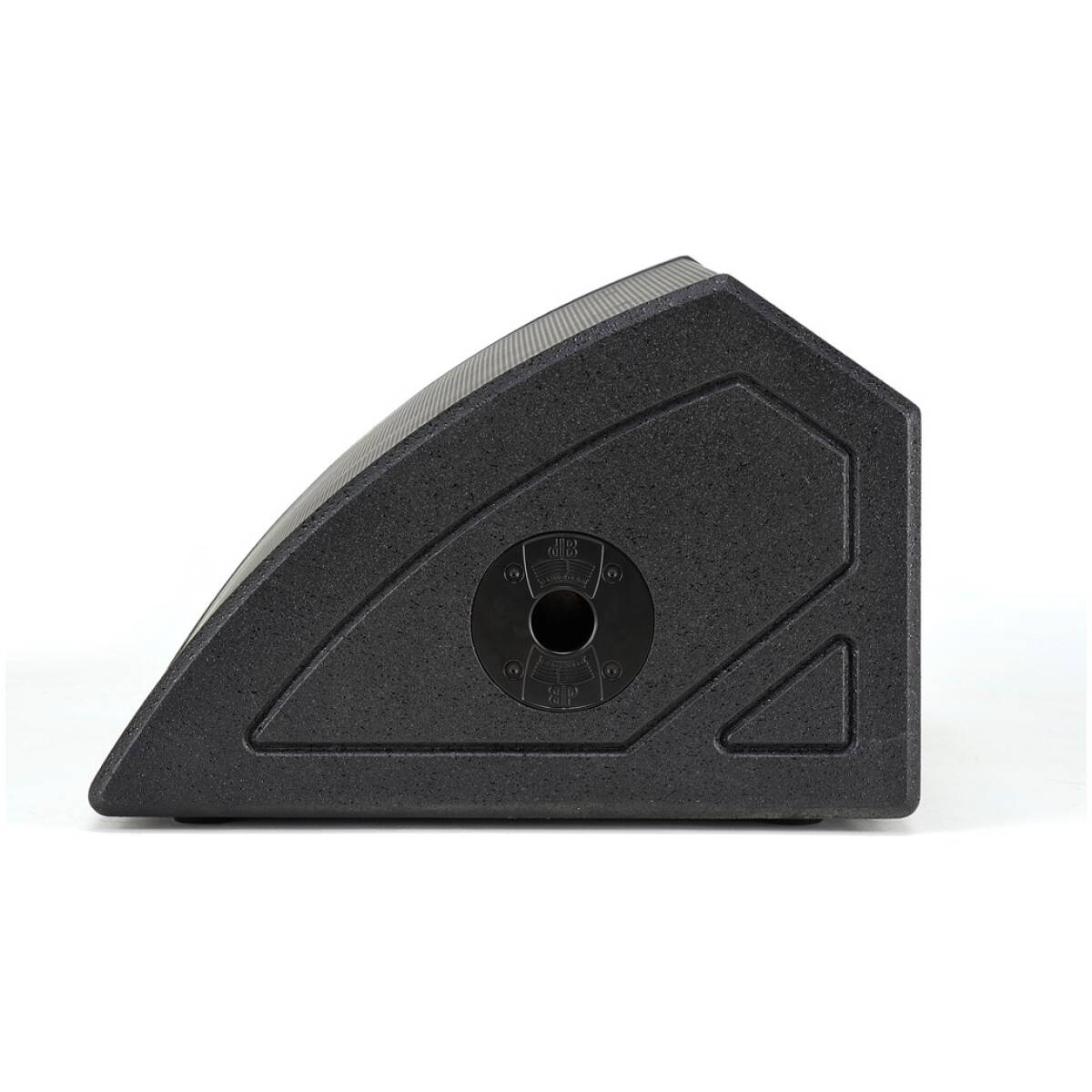

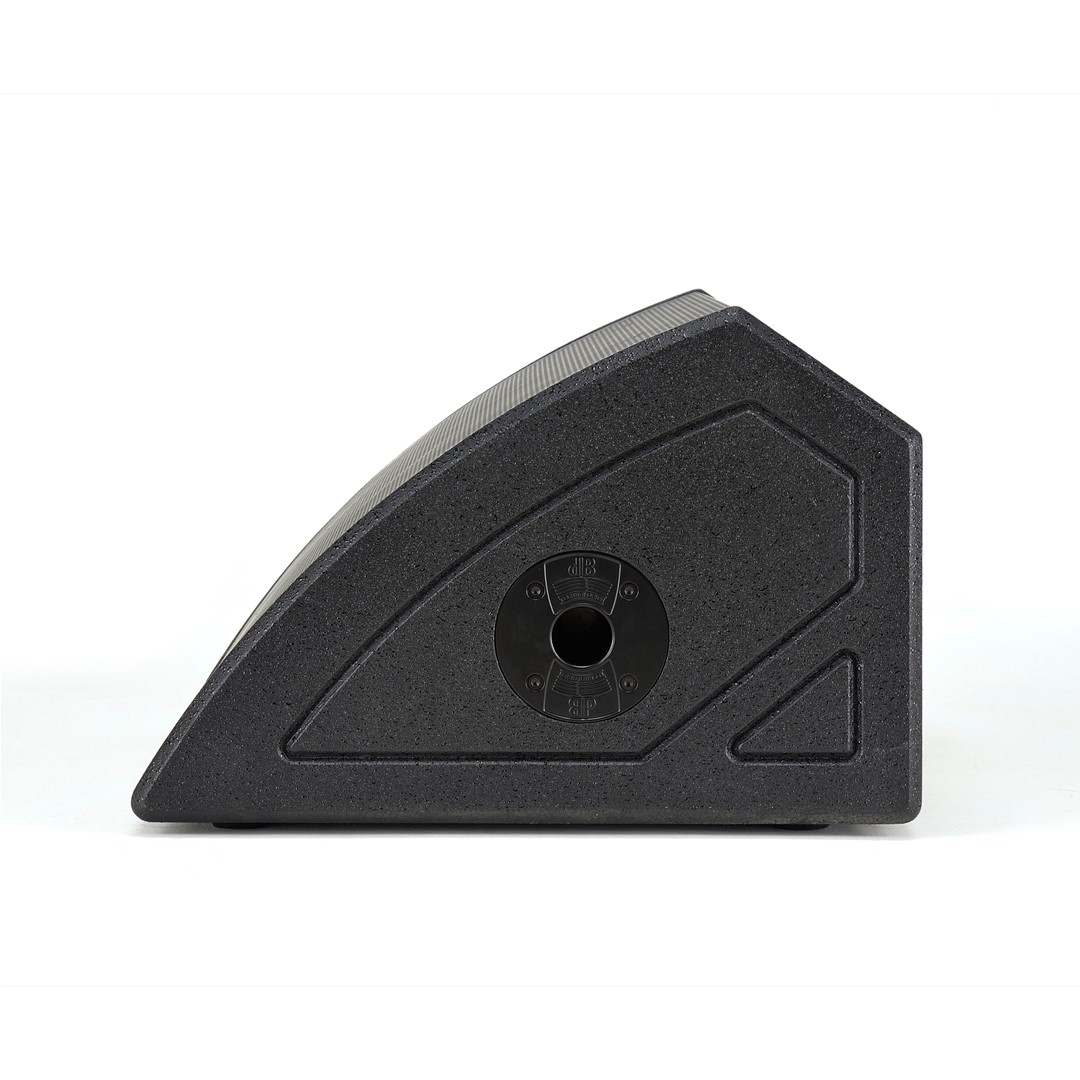

Constructed from durable plywood, the FMX 15 features a unique front-rear grille design that enhances aesthetics and sound quality. It also includes an integrated handle for easy transport and a 36 mm pole mount on the side panel, offering versatility for various stage setups. Overall, the FMX 15 is an ideal choice for sound engineers and performers seeking reliable, high-quality audio in diverse live performance scenarios.

In summary, the DB Technologies FMX15 15″ Active Stage Monitor provides powerful performance and outstanding audio quality for live events. Its innovative features include advanced DSP technology and customizable dispersion patterns. Additionally, its robust construction ensures reliability for sound professionals. With versatility and superior sound, the FMX 15 enhances any performance environment and ensures an optimal listening experience.

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

• Active 2-way stage monitor
• Coaxial configuration
• Linear phase FIR Filters
• Ultra-precise directivity
• Rotatable horn (90°x60° or 60°x90° dispersion)
• Front-rear grille design
• Integrated handle on bottom side

Technical Data

Speaker Type

2-Way Active Coaxial Stage Monitor

Acoustical data

Frequency Response [- 10 dB]

46 – 19.000 Hz

Max SPL

128 dB

HF

1″, 1.3″ v.c.

Directivity

60°X90°

Horn

Rotatable

LF

15″, 2″ v.c.

Amplifier

Amp Class

Class D

Peak Power

1200 W

Processor

Controller

DSP 28/56 bit

AD/DA Converter

24 bit/48 kHz

System Presets

8 presets

Limiter

Peak, RMS, Thermal

Advanced DSP Function

FIR Filters

Crossover Frequency

1740 Hz

Slope LF/HF

24 dB/oct

Mechanics

Housing

Plywood

Housing Design

Multifunctional

Handles

1 integrated on bottom side

Pole mount

36 mm

Width

580 mm (22,83 in)

Height

340 mm (13.38 in)

Depth

500 mm (19.68 in)

Weight

16.9 kg (37.2 lbs)
