Fbt MIURA4004I Amplifier 4X 1000W 100V

Name: Fbt MIURA4004I Amplifier 4X 1000W 100V - A1 Sound
Price: 57500.00 ZAR
Availability: OutOfStock

R57 500,00

Out of stock

Compare

10 People watching this product now!

Description

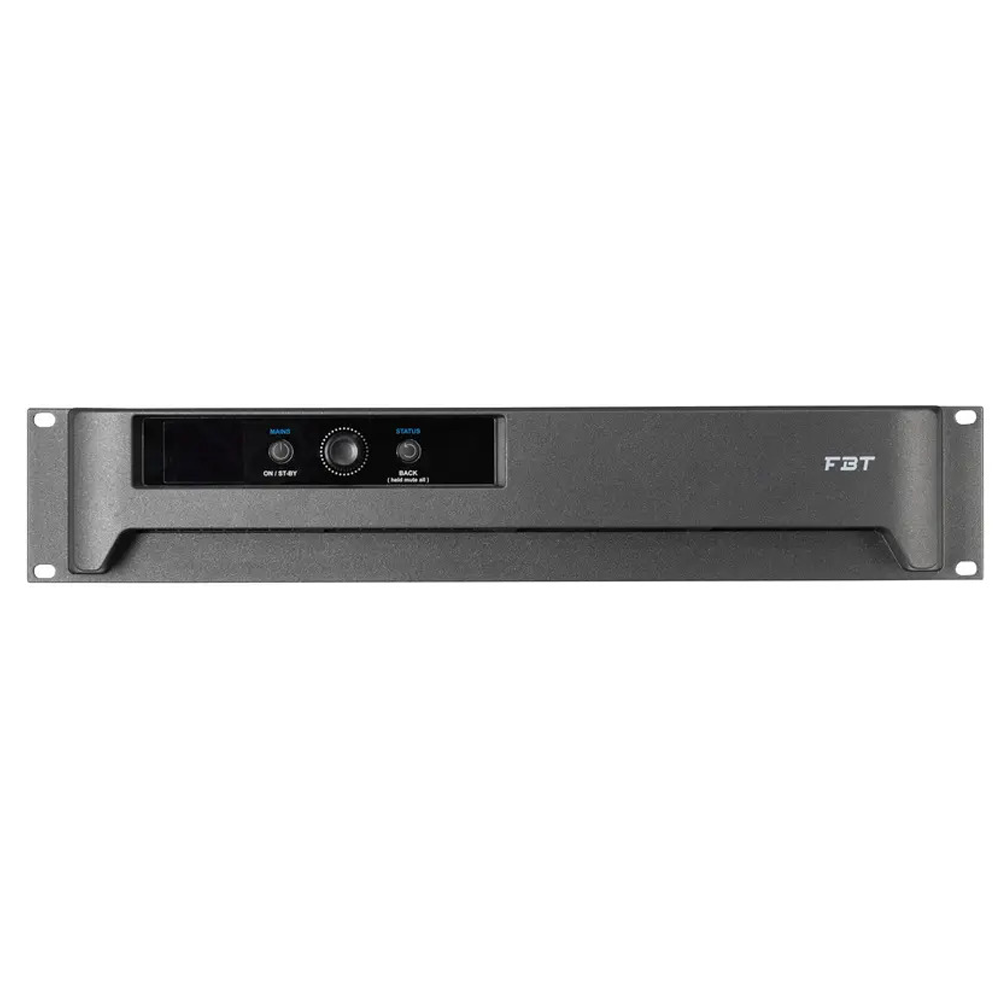

The MIURA 4004I is a high-power 4-channel Class D amplifier housed in a robust 2U chassis, designed for fixed installations and demanding AV applications. It delivers up to 4×1000 W at 4 Ohm, 4×900 W at 70V, or 2×2000 W at 100V in bridge mode, with asymmetric output distribution per channel. The amplifier supports Single-Ended, Bridge, and Parallel modes, offering direct drive to both low and high-impedance systems with extended headroom and efficiency. Network control is enabled via TCP/IP (AES70 compatible) and fully integrated with INFINITO software. A 4-channel Dante receiver, AES3 digital audio input/output with link, and EtherCON ports provide full network integration. The front OLED display with encoder enables onboard configuration, while rear Euroblock I/O and GPIO ensure secure and professional installation.

Features:

4×1000 W at 4 Ohm – 4×900 W at 70V – 2×2000 W at 100V (BTL)
Asymmetric power sharing with SE, Bridge, and Parallel modes
Class D topology with PWM and ultra-low distortion (<0.05% THD+N)
4-channel Dante receiver (24bit, 48–96kHz) over TCP/IP
Network control via EtherCON (TCP/IP – AES70 – INFINITO)
AES3 digital audio I/O with link
Auto-Standby and universal PSU with Power Factor Correction
OLED display with encoder for local configuration
Euroblock connectors, 8-channel GPIO

Specifications:

Output power LoZ 4 Ohm single channel driven: 1500W – 4 Ohm
Output power LoZ 8 Ohm single channel driven: 1200W – 8 Ohm
Output power LoZ 16 Ohm single channel driven: 600W – 16 Ohm
Output power LoZ 4 all channels driven: 8 x 1000W – 4 Ohm
Output power LoZ 8 all channels driven: 8 x 750W – 8 Ohm
Output power LoZ 16 all channels driven: 8 x 600W – 16 Ohm
Output power HiZ (70/100V): 8 x 900W / 70V – 4 x 2000W / 100V
Max output voltage unloaded: 140Vp Lo-Z (70V HiZ) / 280Vp (100V-HiZ)
Amplifier typology: Class D – PWM modulator with ultra-low distortion
S/N ratio: >106dB (A-weighted)
THD+N: <0.05% (20Hz – 20kHz, 8 Ohm, 3dB below rated power)
Frequency response: 20Hz – 20kHz (-0.5dB, -3dB below rated power)
Protection: Short Circuit, DC, Undervoltage, Temperature, Overload
Cooling: Variable speed fan
Power supply: Regulated switch mode with Power Factor Correction and ST-BY feature
Operating voltage: Universal main voltage 100 – 240Vac @ 50/60Hz
Power consumption | St-by – Idle – 1/8 PWR: 1700W | 19W – 50W – 1350W
Operating temperature: 0 – 40°C
Net dimensions (W x H x D): 2U Rack Mount | 482 x 88 x 504 mm
Net weight: 9kg
