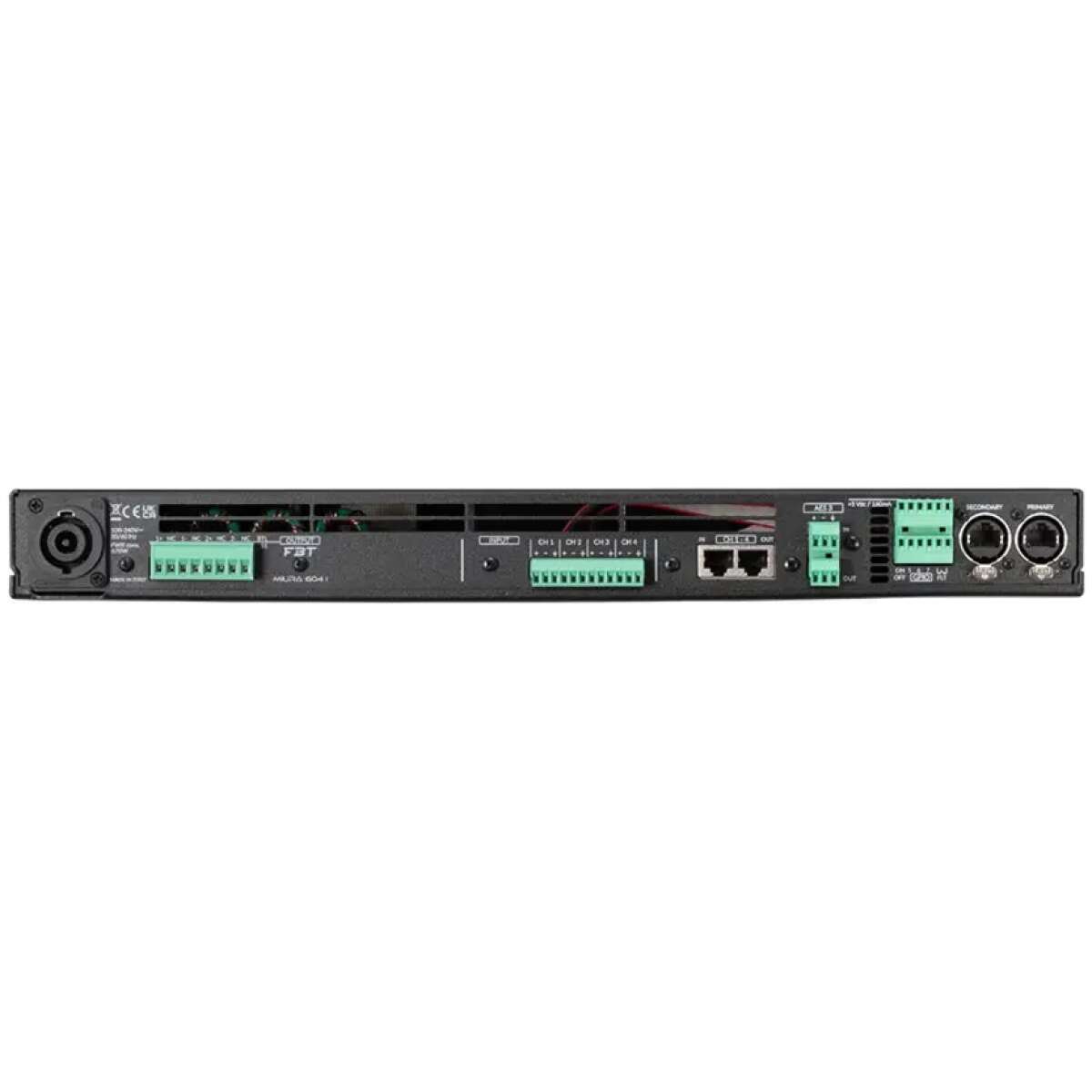

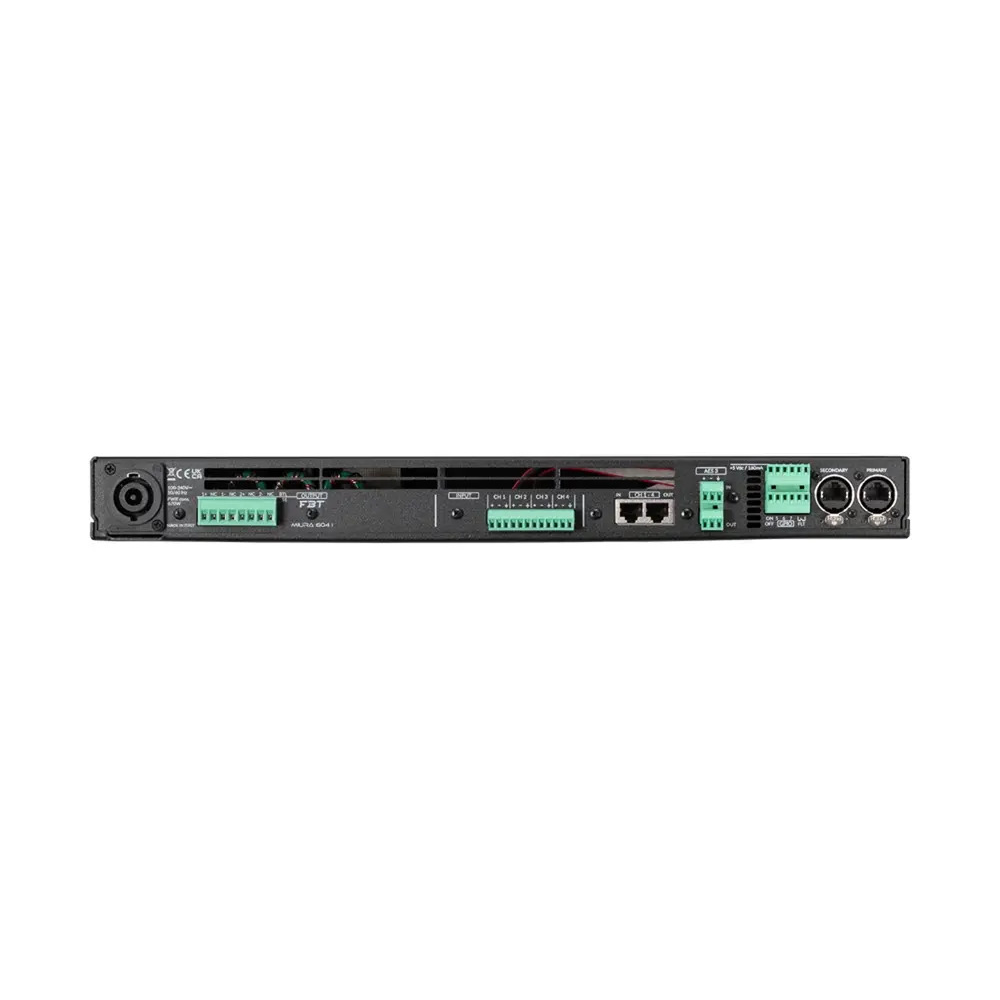

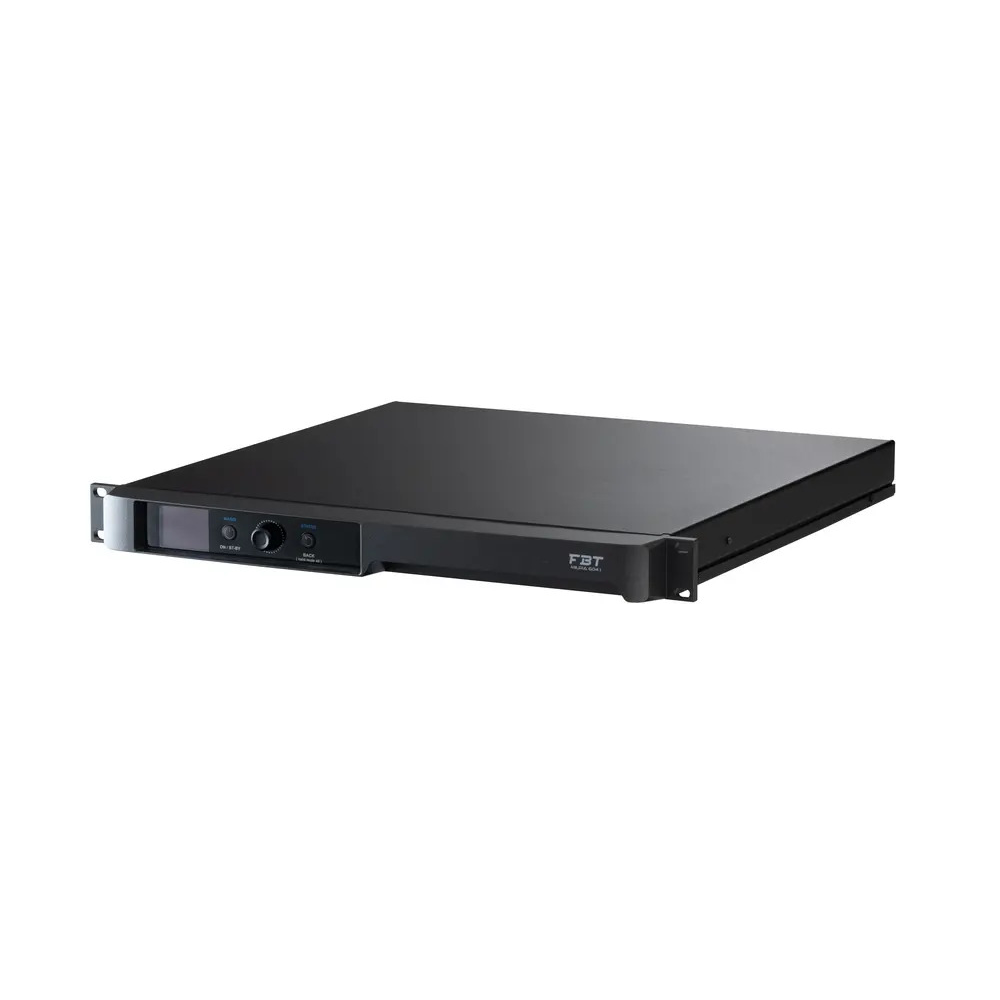

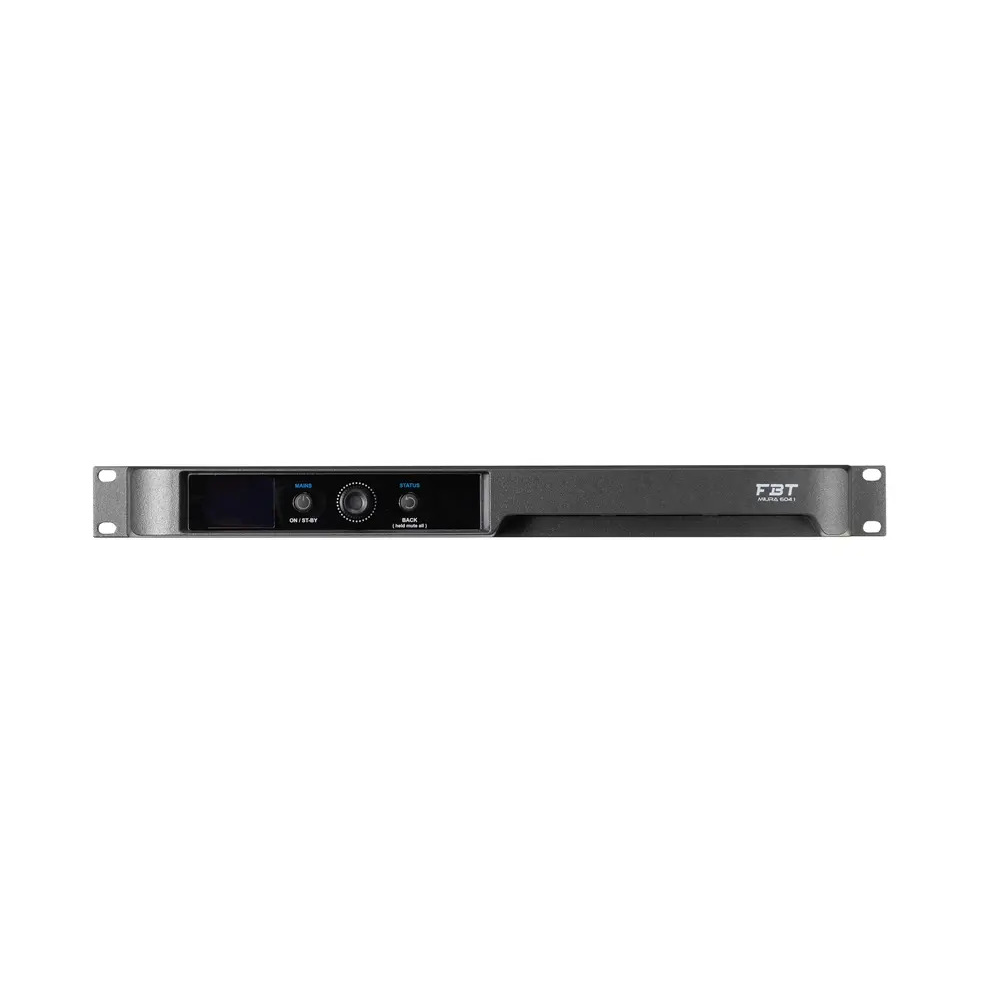

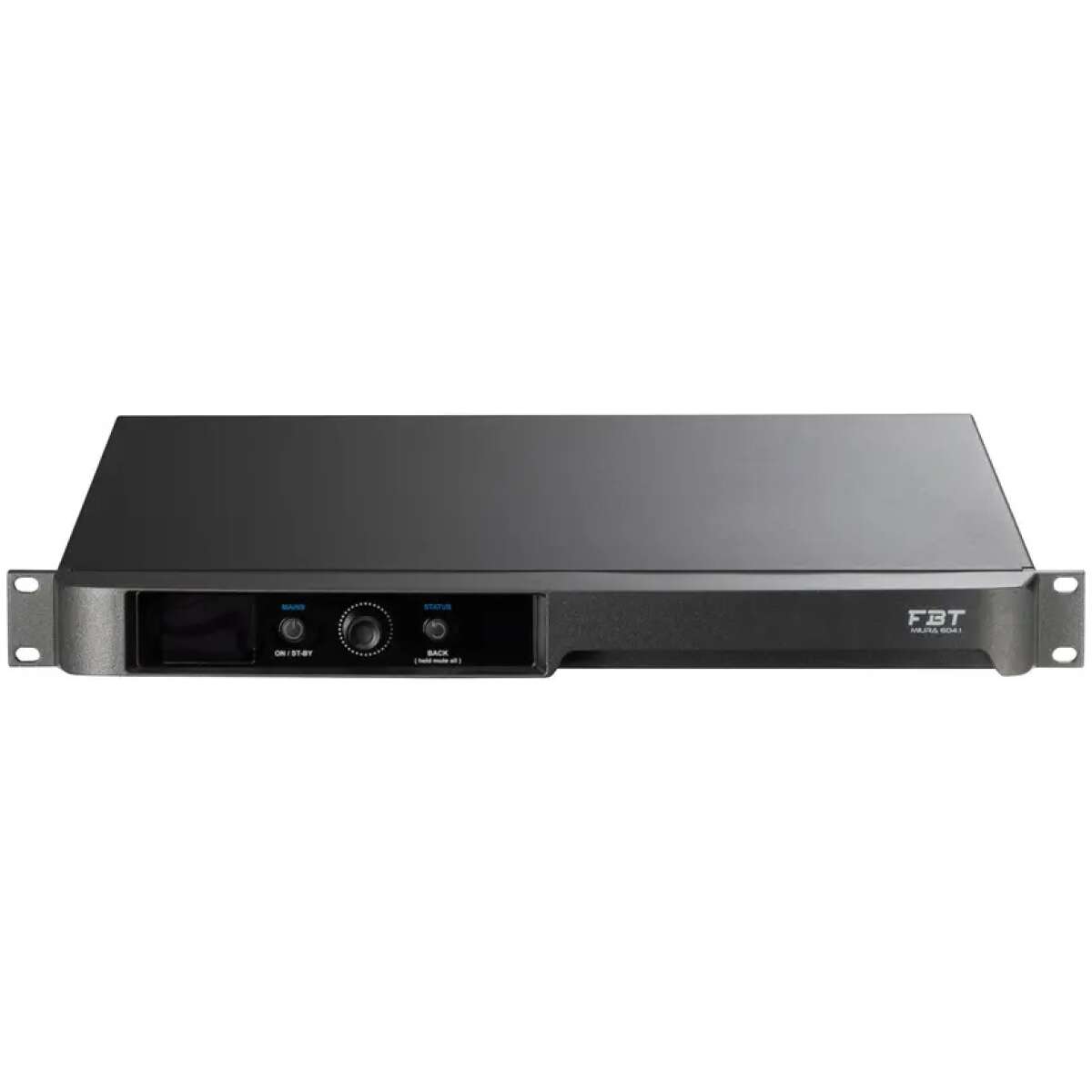

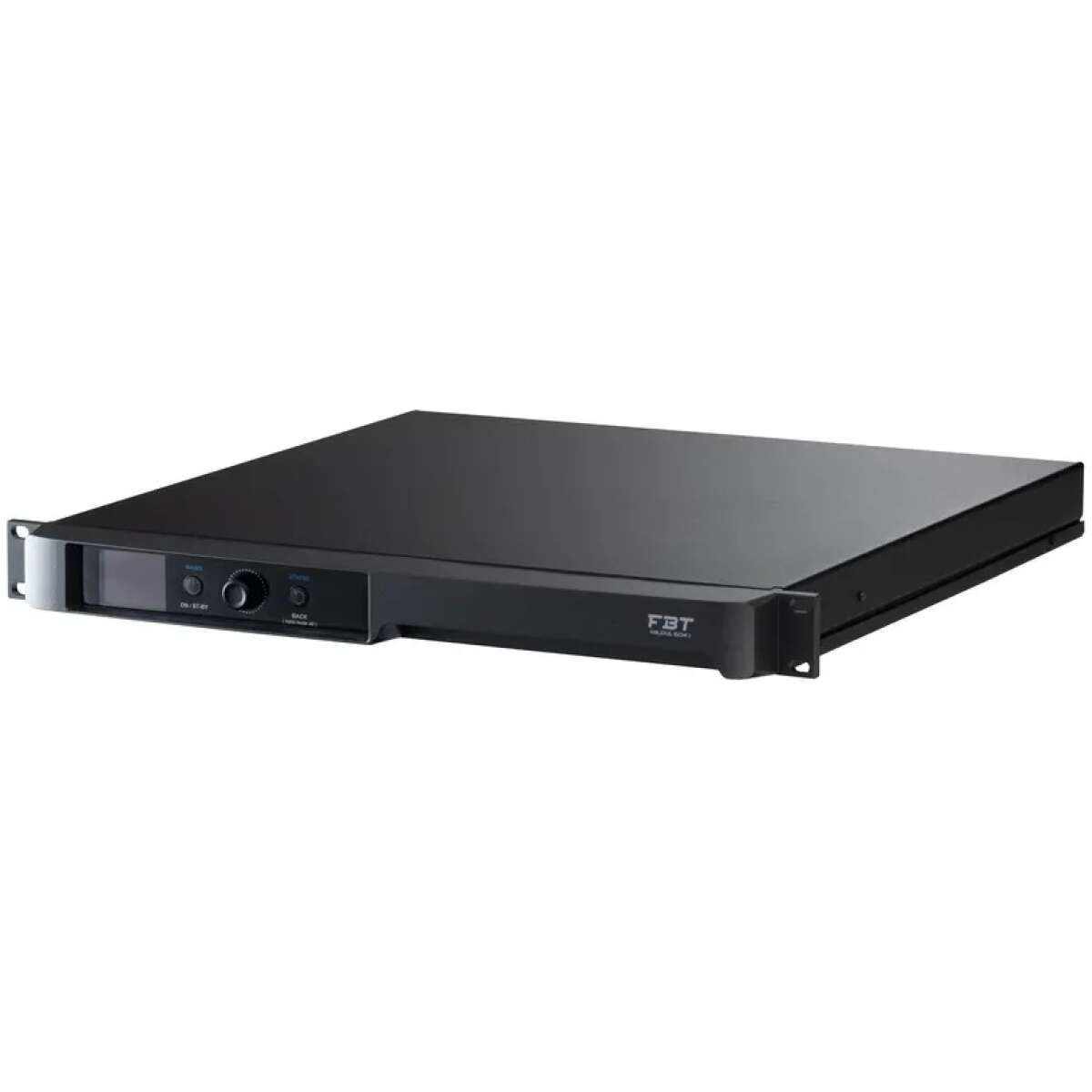

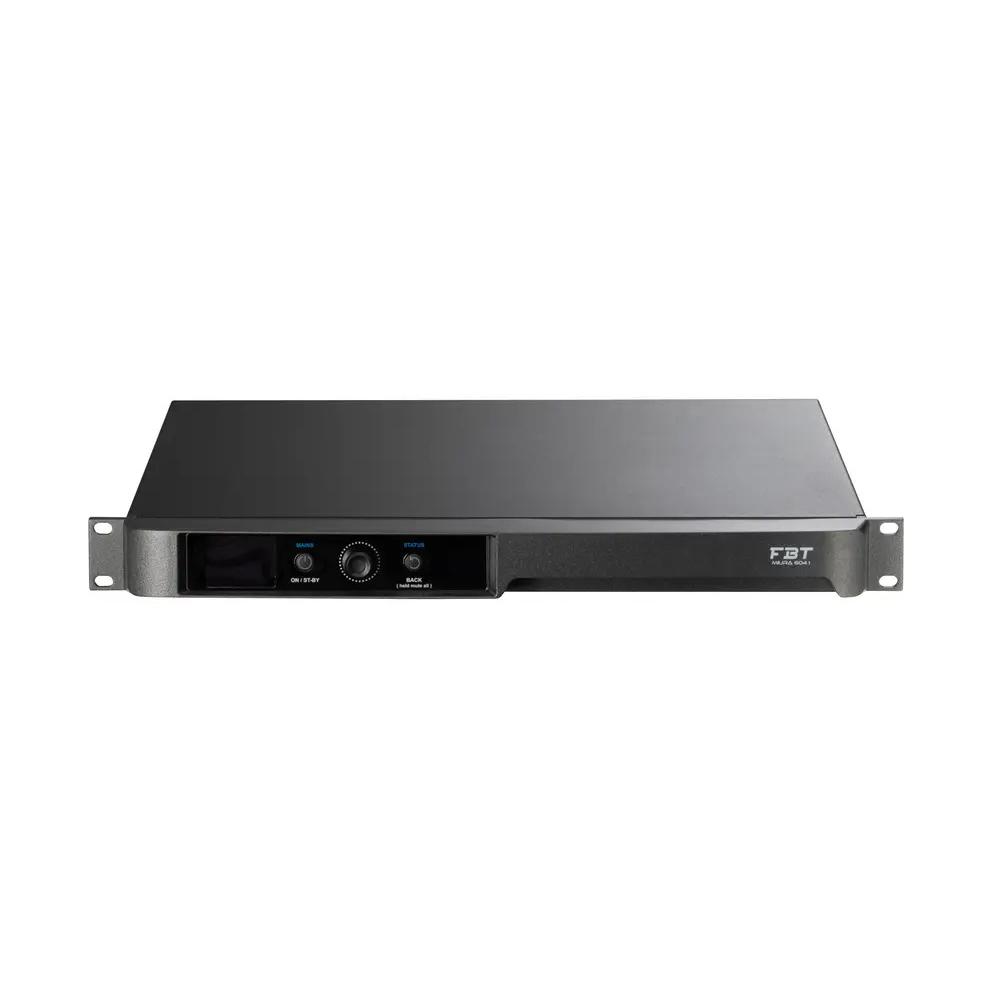

Fbt MIURA604I Amplifier 4X 160W 100V

Name: Fbt MIURA604I Amplifier 4X 160W 100V - A1 Sound
Price: 35220.00 ZAR
Availability: OutOfStock

R35 220,00

Out of stock

Compare

15 People watching this product now!

Description

MIURA 604I is a compact 1U, 4-channel Class D amplifier developed for installation applications requiring efficiency, flexibility, and low-profile integration. It delivers 4×150 W at 4–16 Ohm or 2×300 W at 70/100V in bridge mode, supporting both low-impedance and high-impedance systems with full asymmetric loading. Dante audio streaming (4 channels), TCP/IP network control (AES70), and AES3 digital audio I/O with link are all integrated, enabling complete system configuration via INFINITO software. The unit features a universal SMPS with Power Factor Correction, an Auto-Standby/Wake function, and a front OLED display for onboard control. Connections include Euroblock I/O, EtherCON ports, 8-channel GPIO, and an IEC 20A power inlet, ensuring safe installation and professional-grade integration.

Features:

4×150 W at 4–16 Ohm | 2×300 W at 70/100V (BTL)
Class D PWM topology with ultra-low distortion
Full asymmetric power distribution per channel
Dante 4-channel audio receiver (24bit, 48–96kHz)
TCP/IP AES70 control via INFINITO software
AES3 digital audio input/output with link
Universal PSU with PFC and Auto-Standby function
OLED display with encoder for onboard configuration
EtherCON networking, 8 GPIO, Euroblock I/O

Specifications:

Output power LoZ (4/8/16 Ohm) single channel driven: 250W – 4 Ohm / 250W – 8 Ohm / 150W – 16 Ohm
Output power LoZ (4/8/16 Ohm) all channels driven:4 × 150 W
Output power HiZ (70/100V): 2 × 300 W
Max output voltage unloaded: 70 Vp (LoZ) / 140 Vp (HiZ)
Amplifier typology: Class D – PWM modulator with ultra low distortion
S/N ratio: >106 dB (A-weighted)
THD+N: <0.05% (20Hz–20KHz, 8Ω, 3dB below rated power)
Frequency response: 20Hz – 20kHz (-0.5dB, -3dB below rated power)
Protection: Short Circuit, DC, Undervoltage, Temperature, Overload
Cooling: Variable speed fan
Power supply: Regulated switch mode with Power Factor Correction (PFC) and ST-BY feature
Operating voltage: Universal main voltage 100 – 240Vac @ 50/60Hz
Power consumption | St-by – Idle – 1/8 PWR: 6 W / 13–25 W / 130 W
Operating temperature: 0 – 40°C
Net dimensions (WxHxD): 2U Rack Mount | 482 × 44 × 485 mm
Net weight: 4.50kg
