Fbt – STAGEMAXX12MA Active Stage Monitor 12IN 400W + 100W Rms

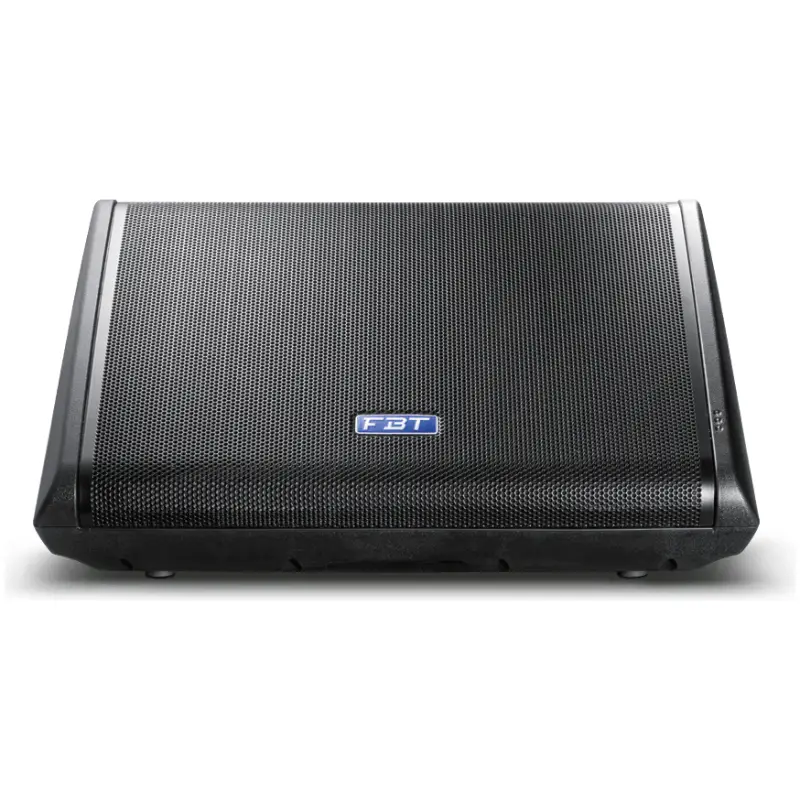

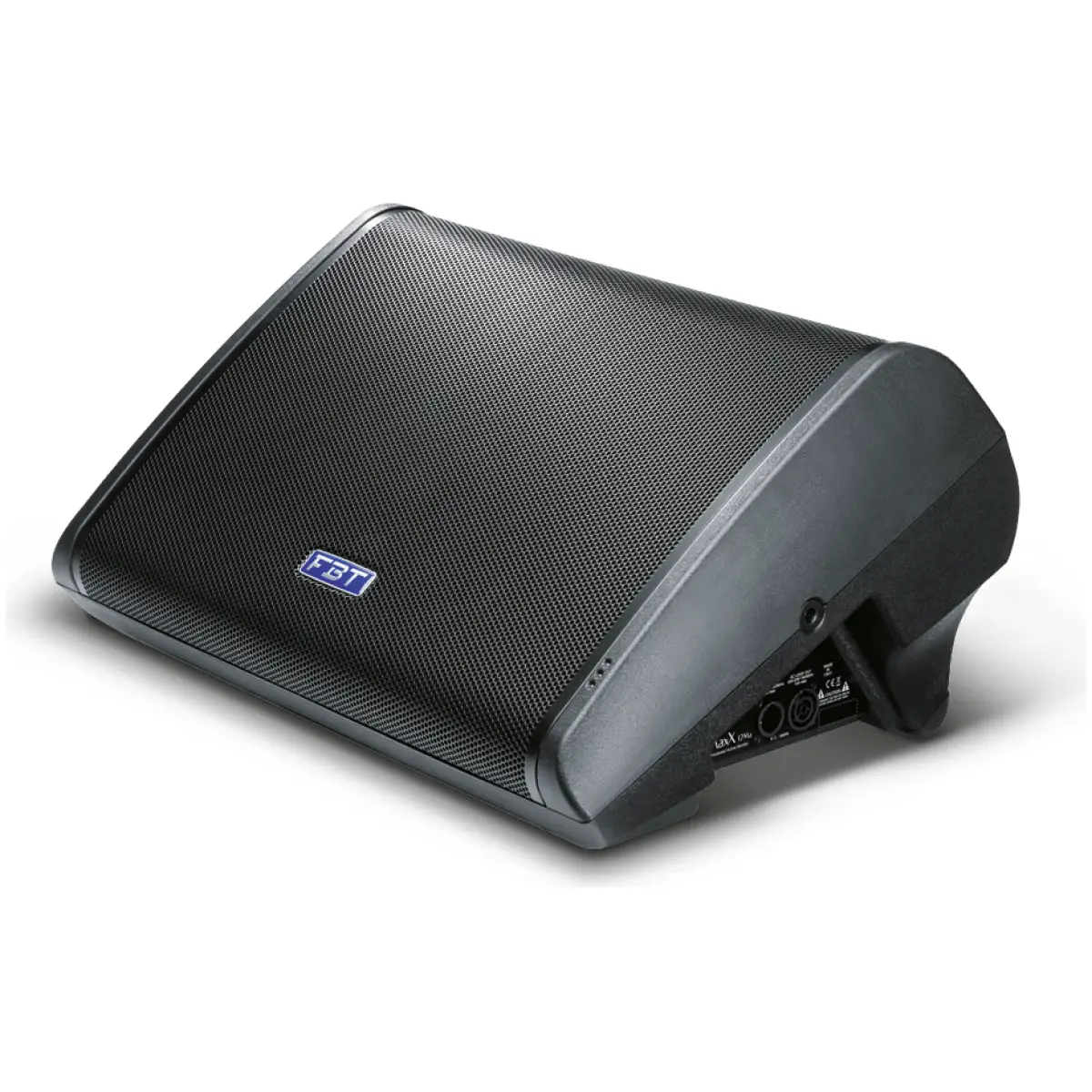

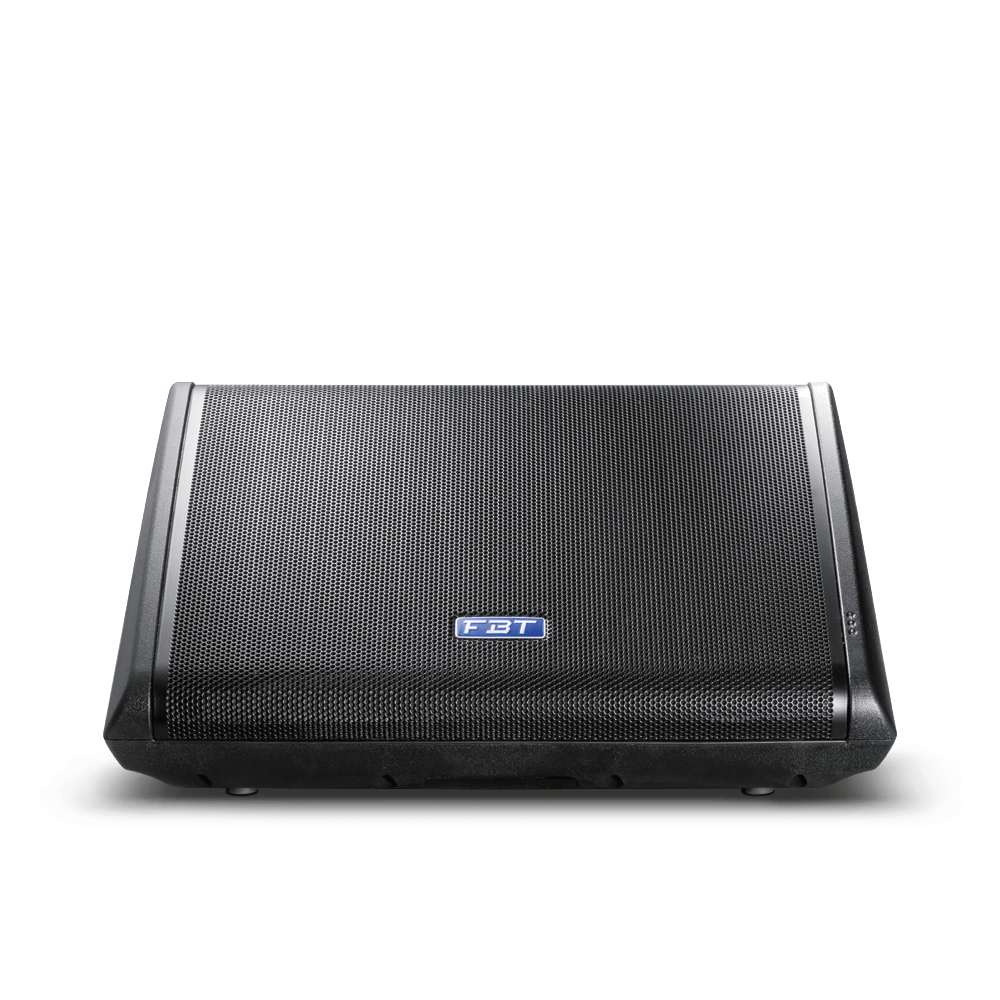

The StageMaxX processed active reinforcement monitor features sturdy gas-injected polypropylene construction cabinet with 12″ B&C loudspeaker custom made for FBT and coaxially mounted with a B&C 1″ exit throat compression driver. The internal Class D amplification, 400W + 100W RMS, and the digital signal processor with 4 factory equalization presets provides unexpected dynamics in the system; the FOH preset allows the use in suspended installation through two M10 rigging points and wall mounting bracket. The StageMaxX has 35° or 55° tilted front panel for an optimal listening distance for single user (35°) or for more users (55°). The control panel features: XLR/Jack input and XLR link out, Volume, Preset, HP Filter. With a frequency range from 60Hz to 20kHz the StageMaxX provides hi fidelity sound for both speech and music applications with a maximum SPLof 130dB. The coaxial configuration allows perfect alignment of the acoustic centers of the transducers. Aheavy duty perforated steel grille provides protection for the coaxial speaker. Three ergonomic integrated carrying handles providing easy transportability.

Features:

• 2-way, bi-amplified, bass reflex design cabinet
• Coaxial custom FBT 12” B&C speakers with 64mm (2.5”) voice coil
• B&C 25mm (1”) exit throat compression driver and 44mm (1.7”) voice coil
• Bi-amp: high dynamic Class D amplifiers 400W+100W RMS to provide a pleasant sound even at loud volume
• High efficiency switch mode power supply
• Digital Signal Processor with 4 factory equalization presets

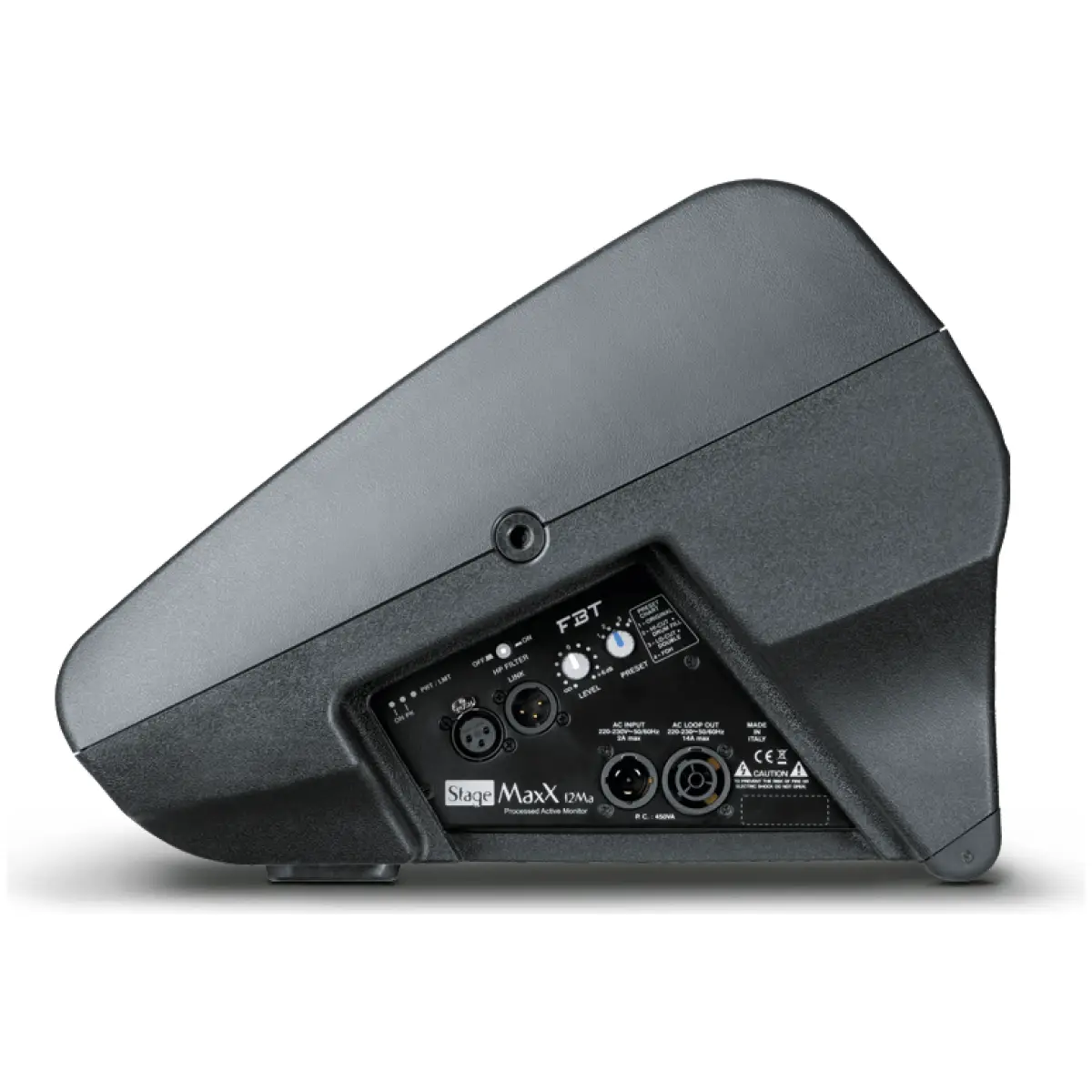

• Control Panel: XLR/Jack input and XLR link out, Volume, 4 Presets, HP Filter, 3 frontal status LED indicators
• 90° directivity horn
• Proprietary filtered algorithms, dynamic equalization at low frequencies, advanced energy control
• allows an high SPL while granting reliable and distortion-free audio reproduction with high headroom
• Sturdy gas-injected polypropylene molded enclosures to avoid undesired resonance
• Weather resistant coating under the grill to protect the driver and the speaker
• High SPL in a compact size monitor

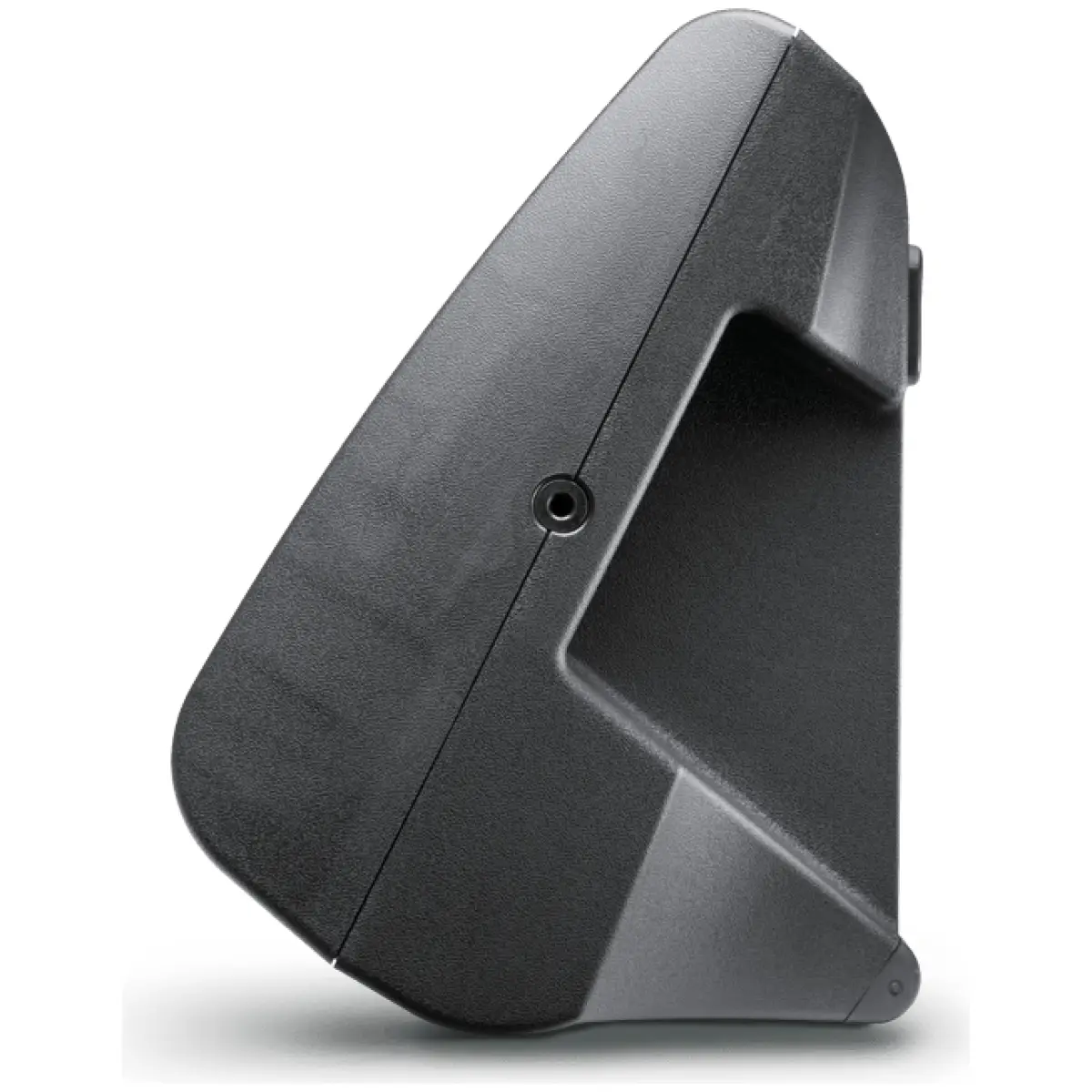

• 35° or 55° tilted front panel for an optimal listening distance for single or multiple users
• Three ergonomic integrated carrying handles, two M10 rigging points
• Teflon replaceable feet allow an easy use on stage
• Available in white colour
• SM-C12 SPEAKER COVER FOR STAGEMAXX12 (360.650FB)

Specifications:

• Configuration: 2 way
• Built-in amplifier LF/HF: 400/100 W RMS
• Built-in amplifier peak LF/HF: 800/200 W
• Frequency response: 60Hz – 20kHz -6dB
• Low Frequency woofer: 300 – bobina 64 inch
• High Frequency driver: 25,4 – bobina 44 inch
• Maximum SPL cont/peak: 124 / 130 dB
• Dispersion: 90° HxV
• Input impedance: 22 Kohm
• Crossover Frequency: 1,8 KHz
• AC Power requirements: 450 VA
• Input connector: XLR con loop
• Power cord: 5 m
• Net Dimension (WxHxD): 550 x 289 x 392 mm
• Net Weight: 13,6 kg
• Transport Dimension (WxHxD): 670 x 430 x 500 mm
• Transport Weight: 16,4 kg
