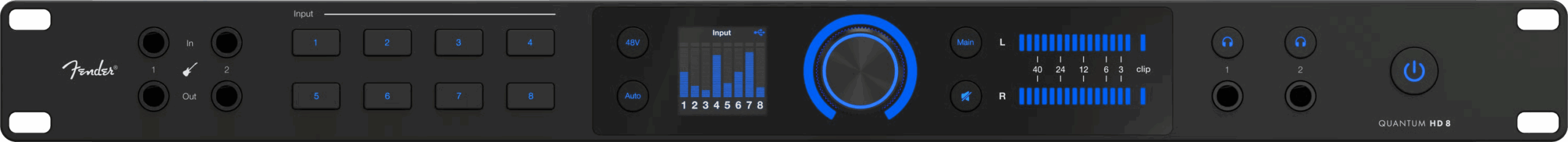

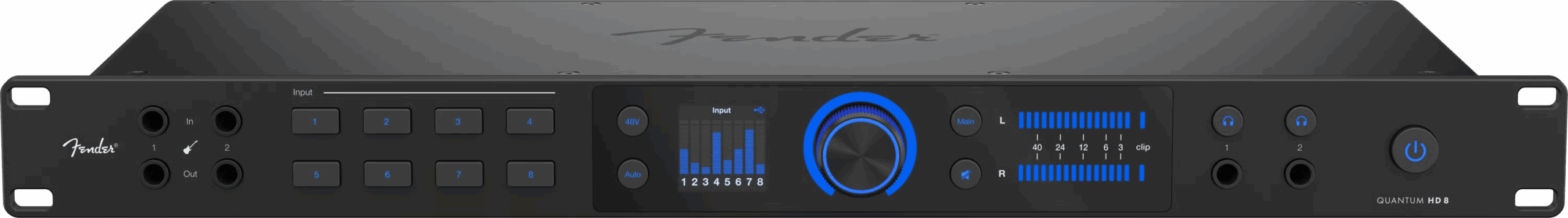

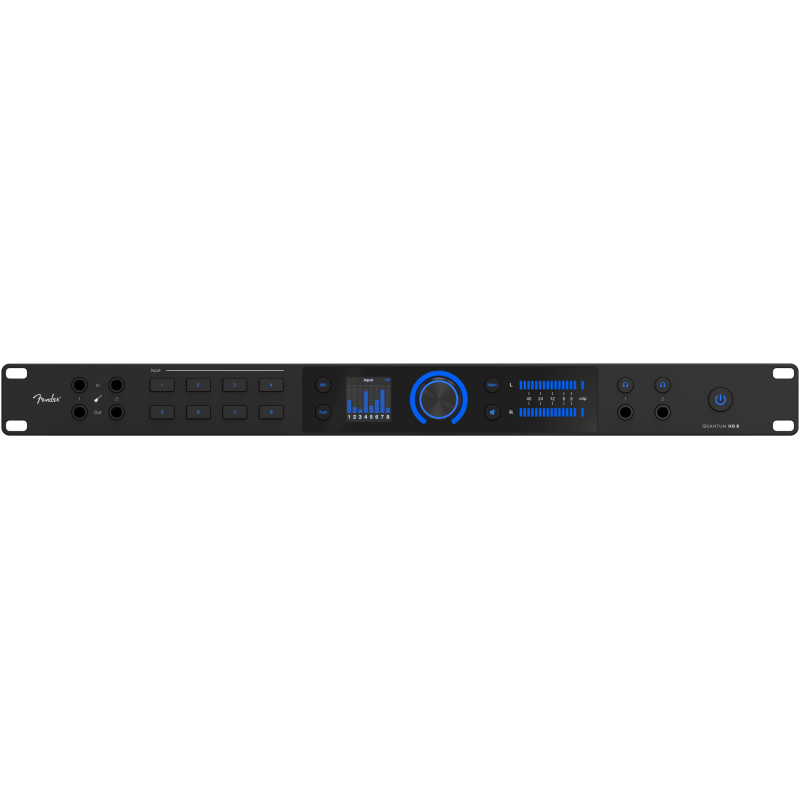

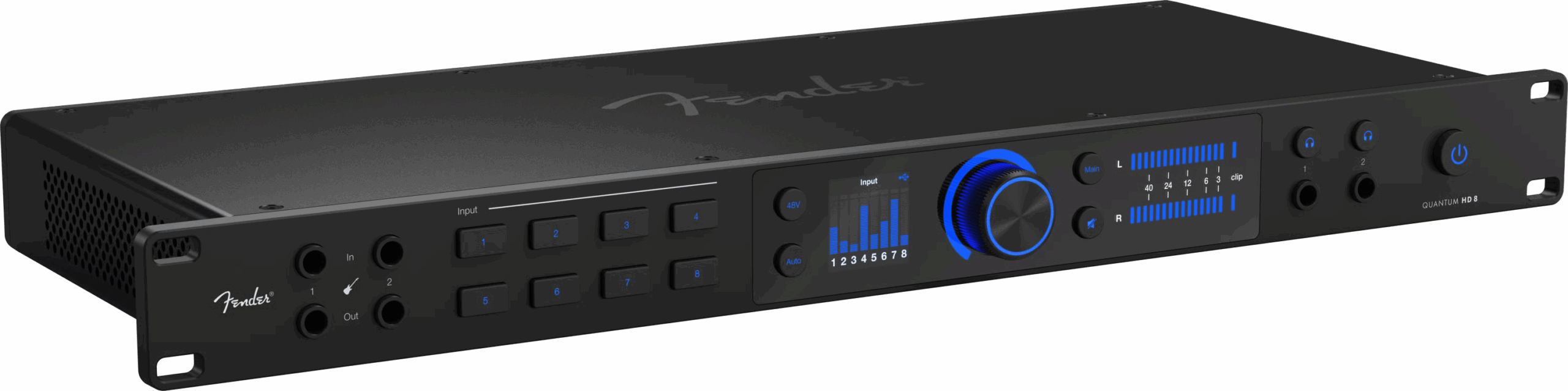

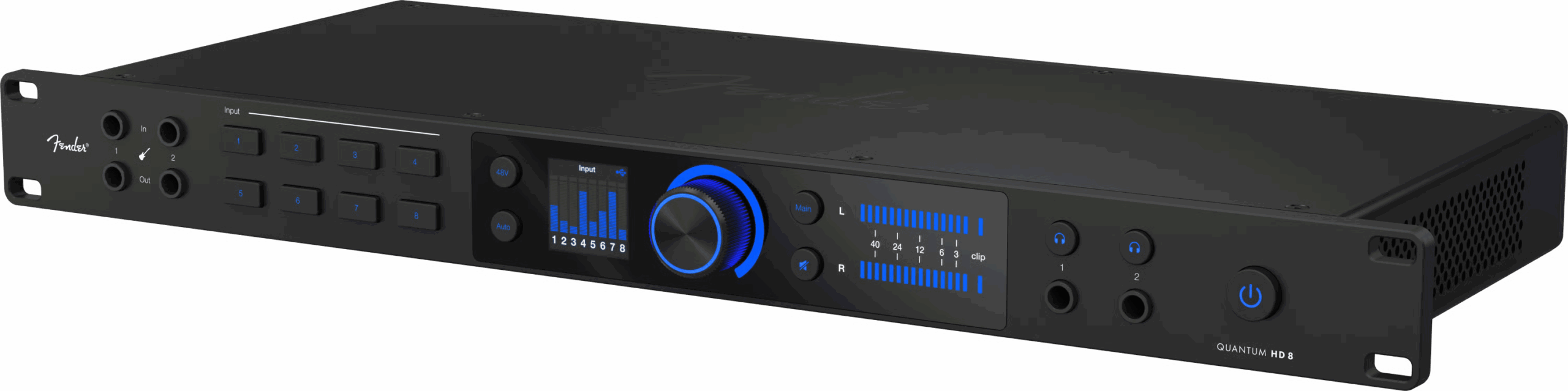

Fender Quantum HD 8 USB-C Audio Interface

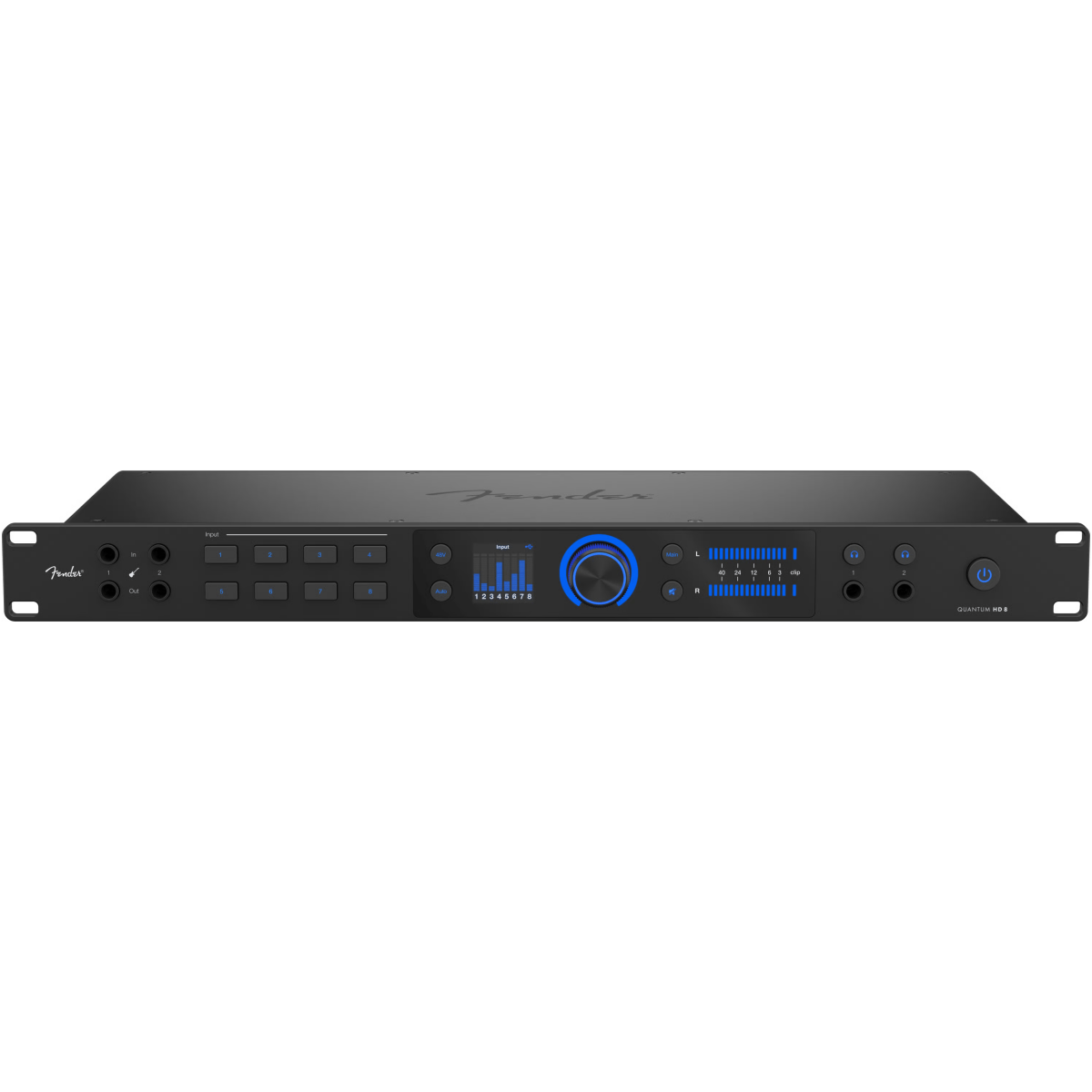

Fender Quantum HD 8 USB-C Audio Interface - Image 2

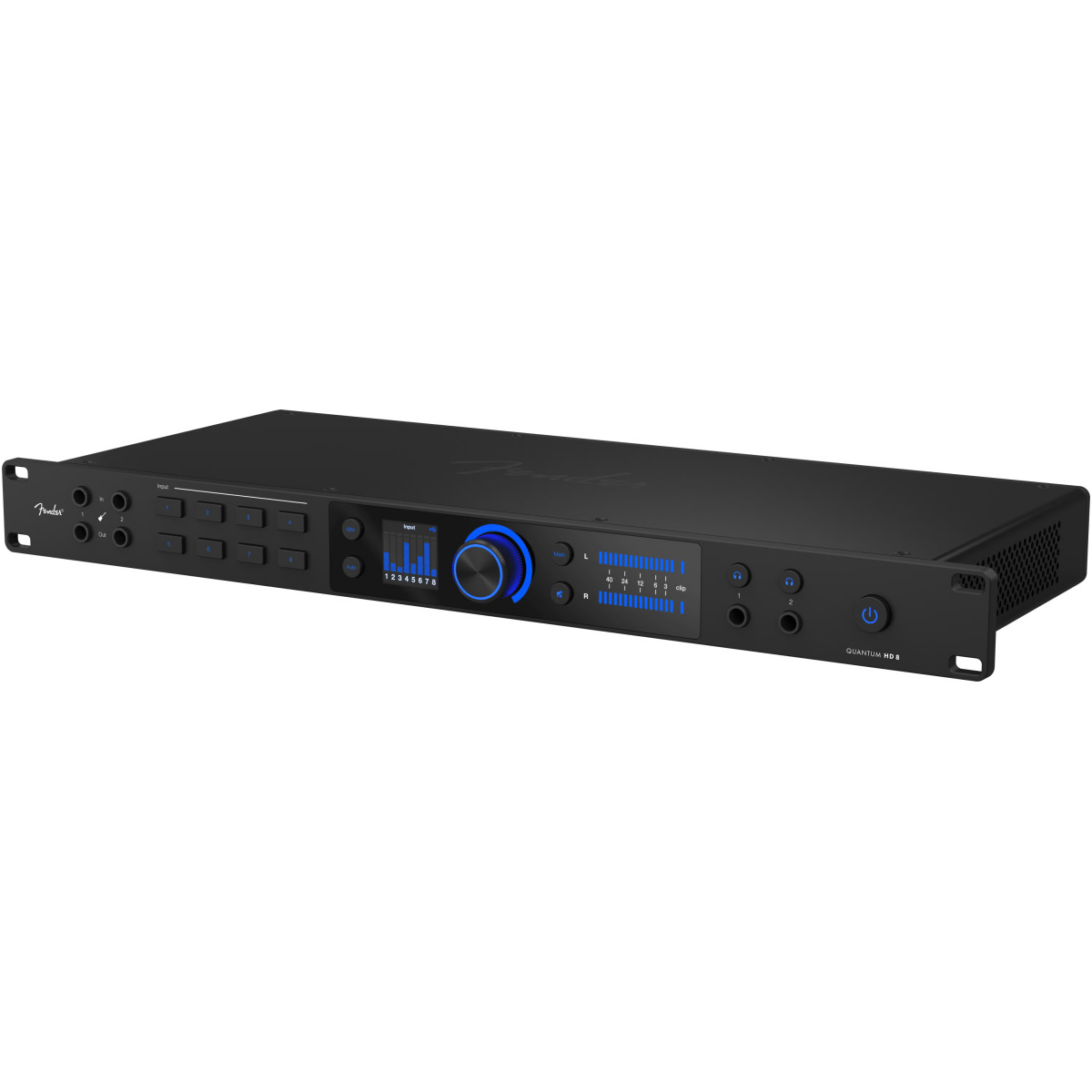

Fender Quantum HD 8 USB-C Audio Interface - Image 3

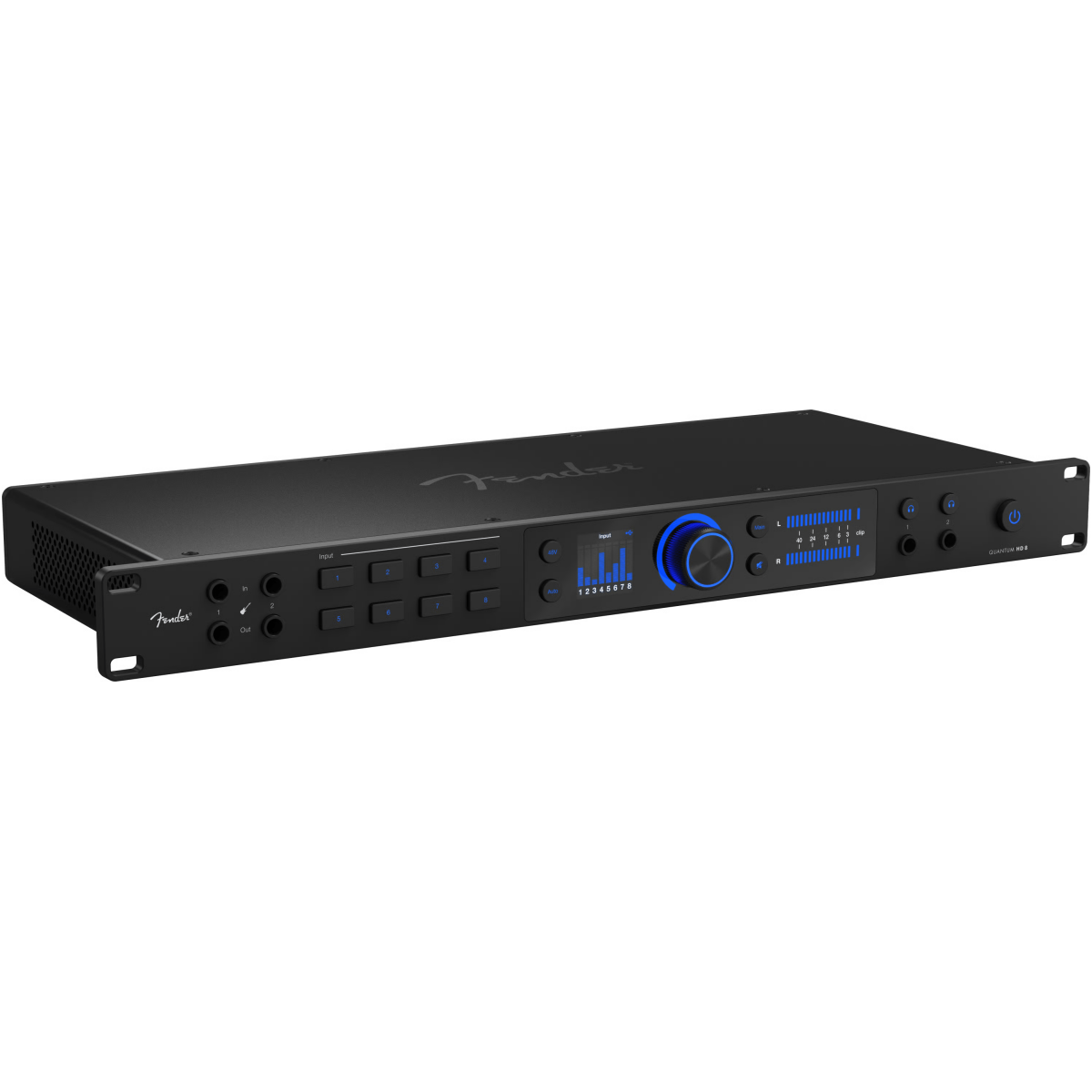

Fender Quantum HD 8 USB-C Audio Interface - Image 4

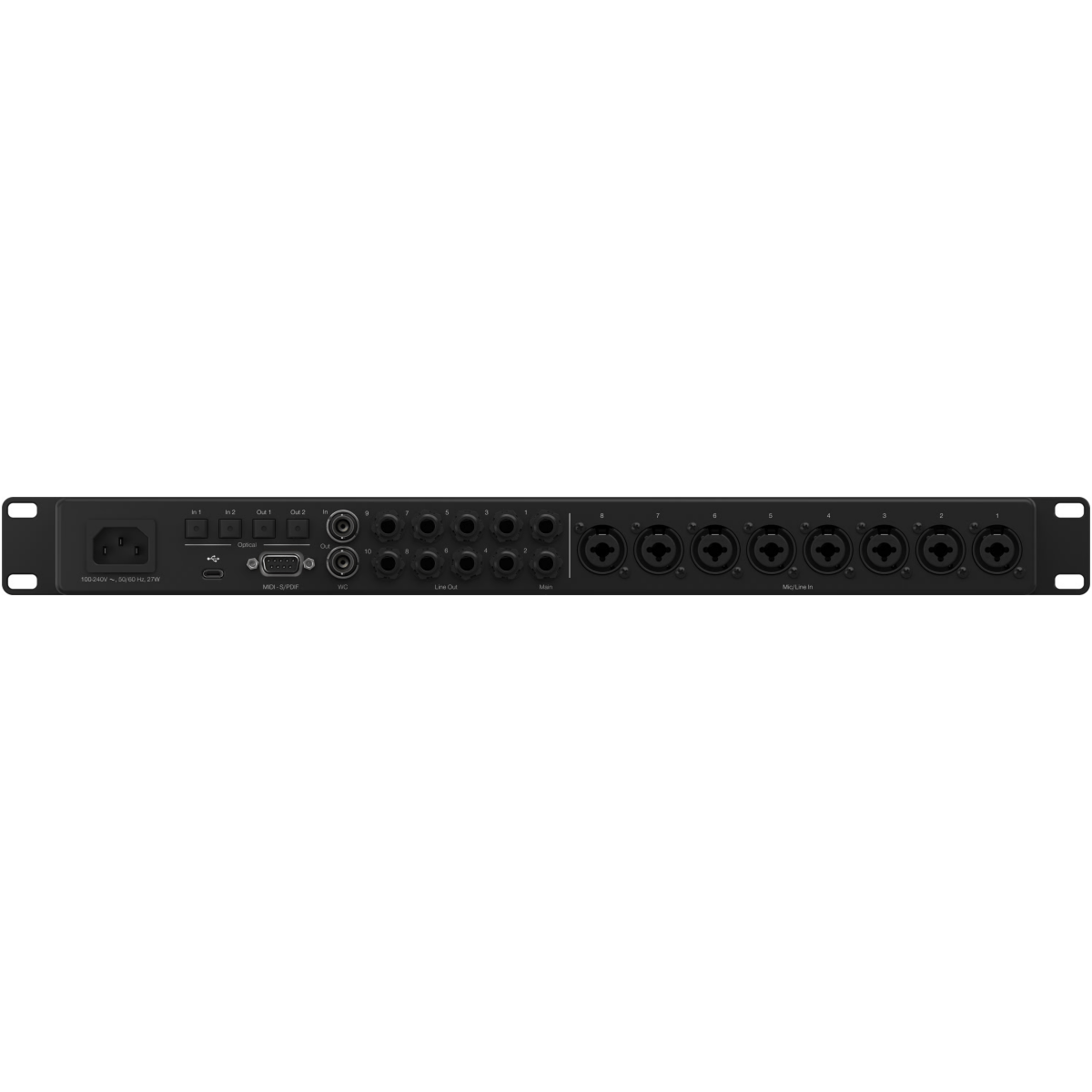

Fender Quantum HD 8 USB-C Audio Interface - Image 5

Fender Quantum HD 8 USB-C Audio Interface

Brand:

R25 999,00

×

Beat The Price Request

Got a lower price elsewhere? Share the link or an official quote with us, and we'll do our best to match or beat it!

AttributeValue
Inputs26
Output30
MIDI I/OYes
Phantom Power48V
Compare
12 People watching this product now!

Description

The Fender Quantum HD 8 expands on the HD 2’s precision and workflow, offering 26 x 30 channels, ADAT expansion, and versatile monitoring for full-band recordings and complex production setups. Featuring MAX-HD mic preamps, ultra-low-latency drivers, and 32-bit / 192 kHz converters, the HD 8 captures every detail of instruments, vocals, and line-level sources with studio-grade fidelity.

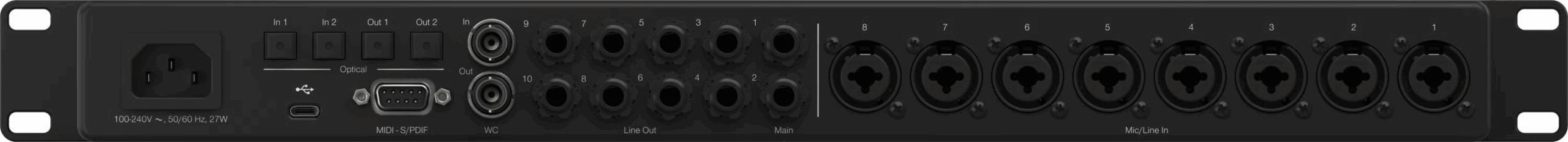

Front-facing Fender instrument inputs, Auto Gain, and re-amp outputs provide fast setup and creative flexibility. Expanded I/O includes ADAT inputs and outputs, additional TRS line outputs, MIDI I/O, and ADAT preamp standalone mode — making it easy to scale your studio and accommodate larger sessions.

Control preamp gain, phantom power, and outputs through Fender Studio Pro or the Universal Control app, while built-in DSP monitor mixing and loopback routing ensure a streamlined workflow. The HD 8 also comes with a perpetual Fender Studio Pro license.

Features

  • 26 x 30 USB-C recording interface with MAX-HD mic preamps and 32-bit / 192 kHz converters
  • Expanded Digital I/O: 16 ADAT channels, S/PDIF I/O, and ADAT preamp standalone mode
  • Front-facing Fender instrument inputs optimized for guitar and bass
  • Auto Gain button for fast and accurate recording levels
  • Re-amp outputs for creative tone experimentation
  • DSP monitor mixer and loopback routing for streaming and recording
  • Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
  • Professional software included: Fender Studio Pro perpetual license
  • Full-color high-resolution display with illuminated push encoder for intuitive operation
  • MIDI I/O and DC-coupled line outputs for modular synth control

General

Product Name

Quantum HD 8 USB-C Audio Interface

Series

Quantum

Color

Black

Microphone Inputs

Connection Type

XLR Female (Combo), Balanced

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Input Impedance

1600 Ohms

Dynamic Range

116 dB (A-Weighted, Minimum Gain)

EIN

-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)

THD+N

0.002% (1 kHz, Minimum Gain)

Gain Range

75 dB

Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Phantom Power

+48 VDC

Line Inputs

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Input Impedance

10K Ohms

Dynamic Range

118 dB (A-Weighted, Minimum Gain)

THD+N

0.001% (1 kHz, Minimum Gain)

Gain Range

± 10 dB

Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Instrument Inputs

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Dynamic Range

111 dB (A-Weighted, Minimum Gain)

THD+N

0.003% (1 kHz, Minimum Gain)

Gain Range

75 dB

Maximum Input Level

+21 dBu (Unbalanced, Minimum Gain)

Line Outputs

Connection Type

1/4″ TRS Female

Main Outputs

Connection Type

1/4″ TRS Female

Headphone Outputs

Connection Type

Two – 1/4″ TRS Female Stereo

Frequency Response

20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)

Impedance Working Range

33 Ohms

Dynamic Range

118 dB (A-Weighted)

THD+N

0.001% (1 kHz)

Maximum Output Level

11 dBu (50 Ohms)

MIDI I/O

Connection Type

5-Pin Female DIN

Power

Voltage

120V

Voltage Requirements

100-240 VAC, 50-60 Hz

Digital Audio

Connectivity

USB-C®

Bit Depth

32-bit

Dynamic Range

124 dB

Supported Sample Rates

44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Measurements

Height

1.7” (43.1mm)

Depth

8.6″ (218 mm)

Width

19″ (483mm)

Weight

6.3 lbs. (2.9 kg)
