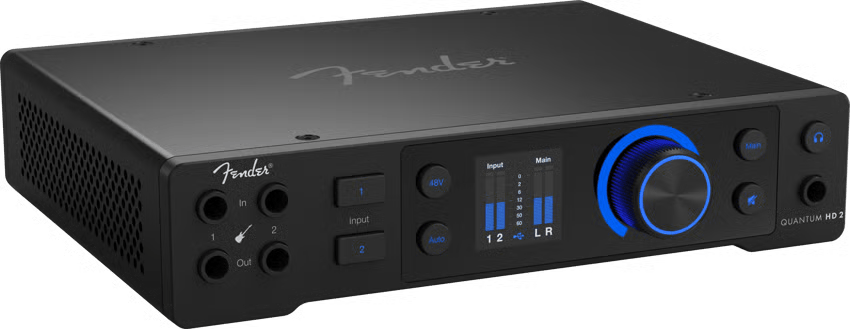

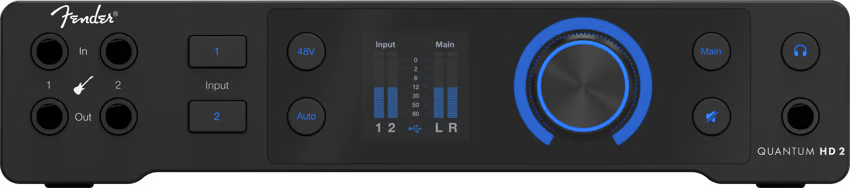

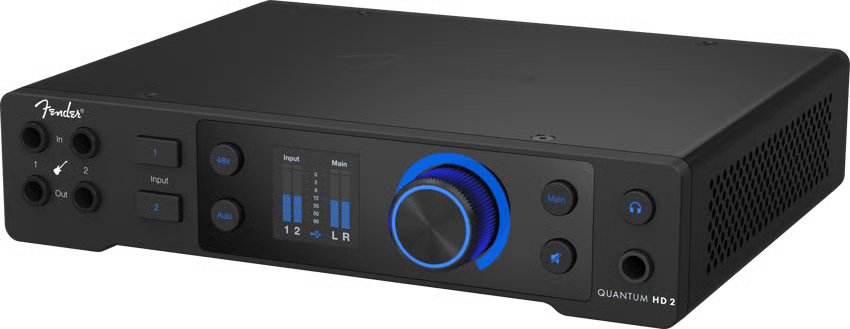

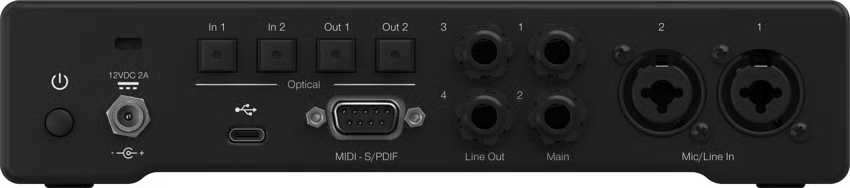

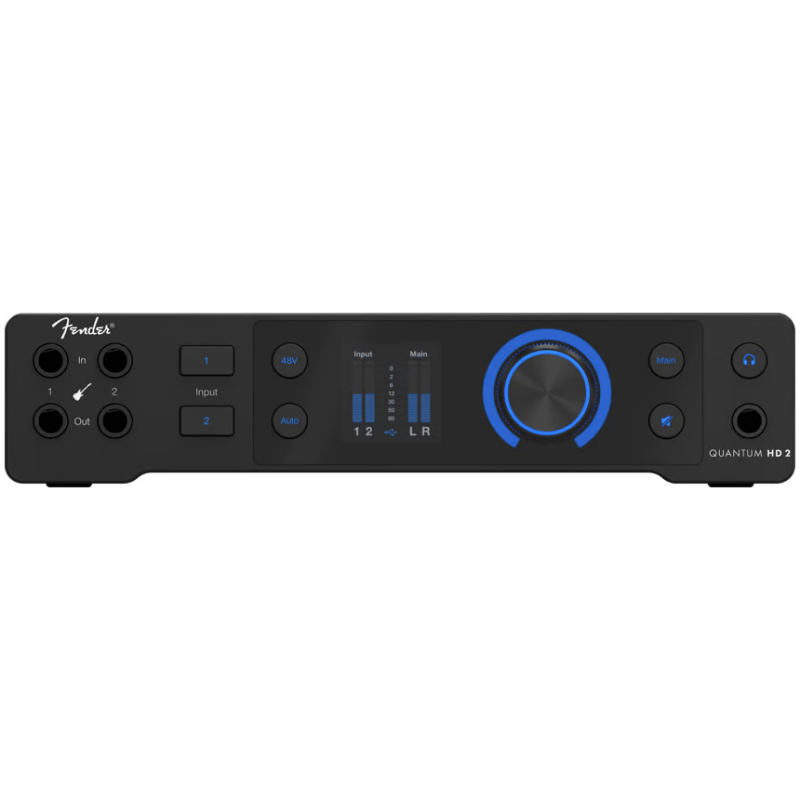

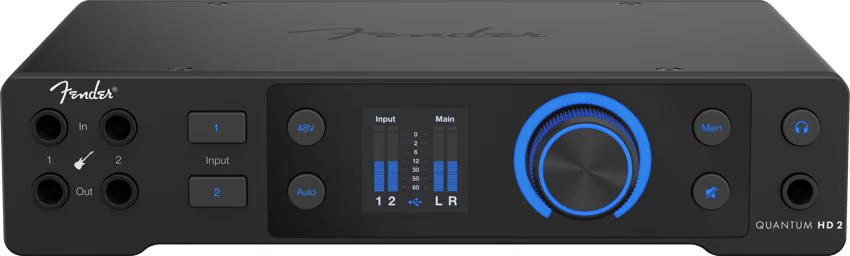

Fender Quantum HD 2 USB-C Audio Interface

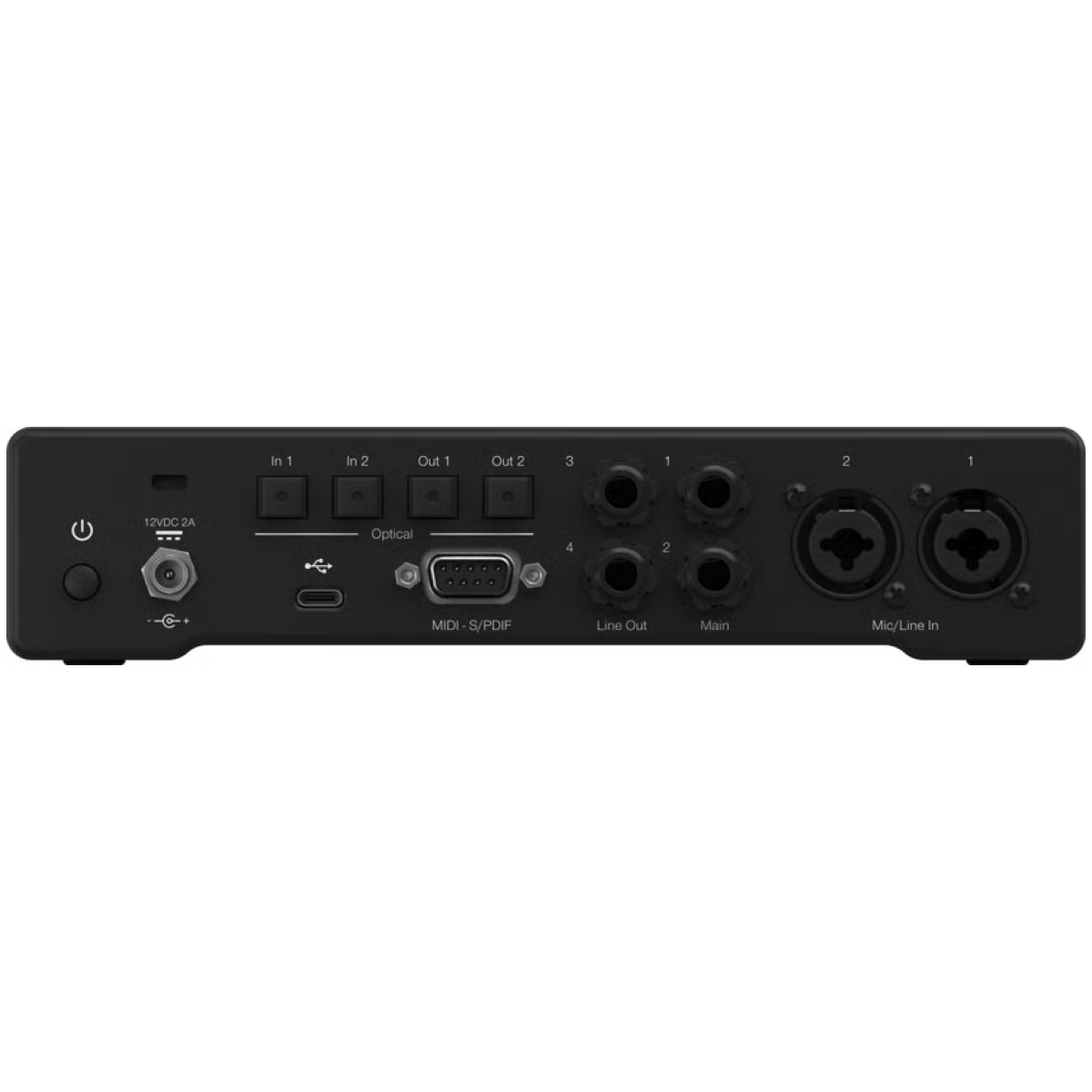

Fender Quantum HD 2 USB-C Audio Interface - Image 2

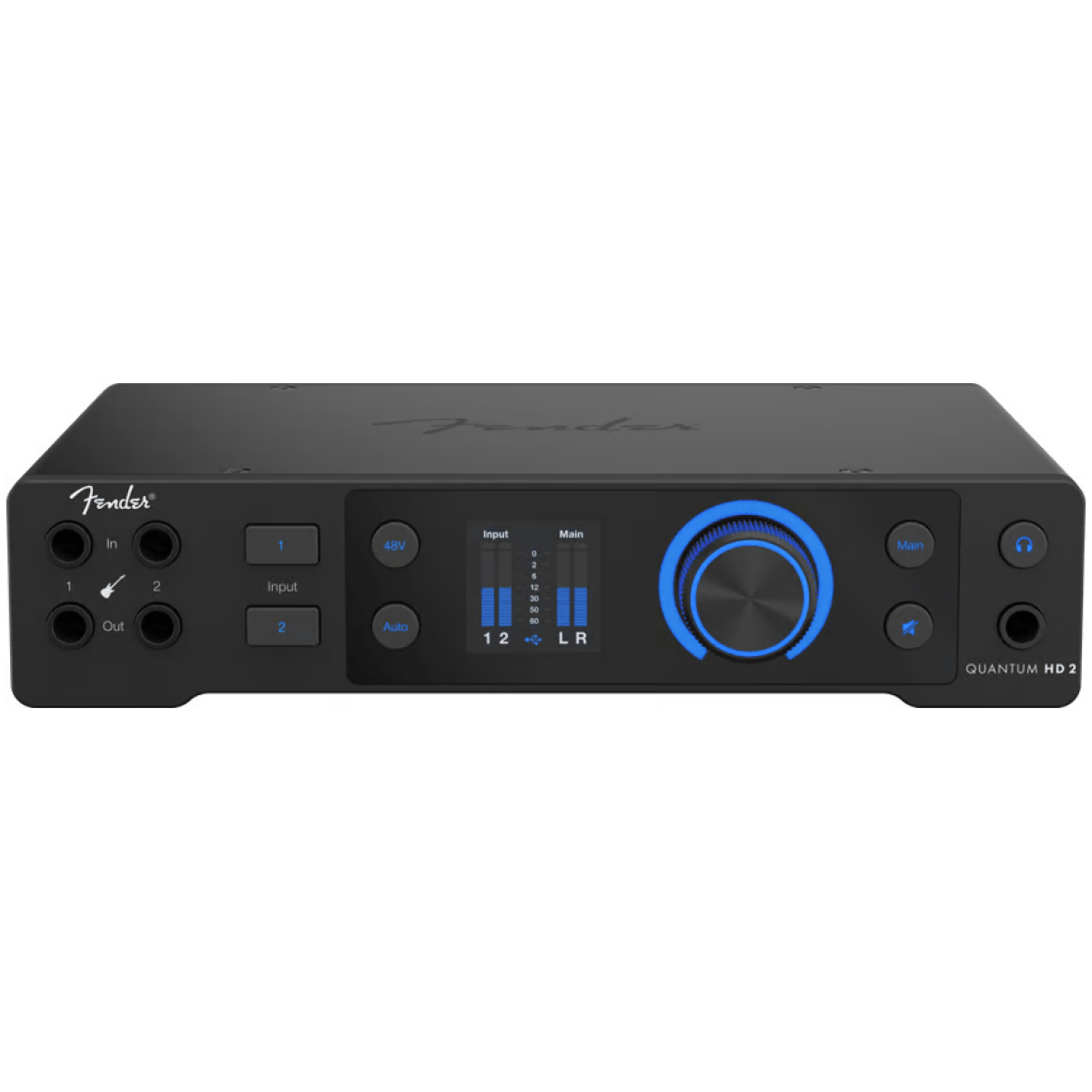

Fender Quantum HD 2 USB-C Audio Interface - Image 3

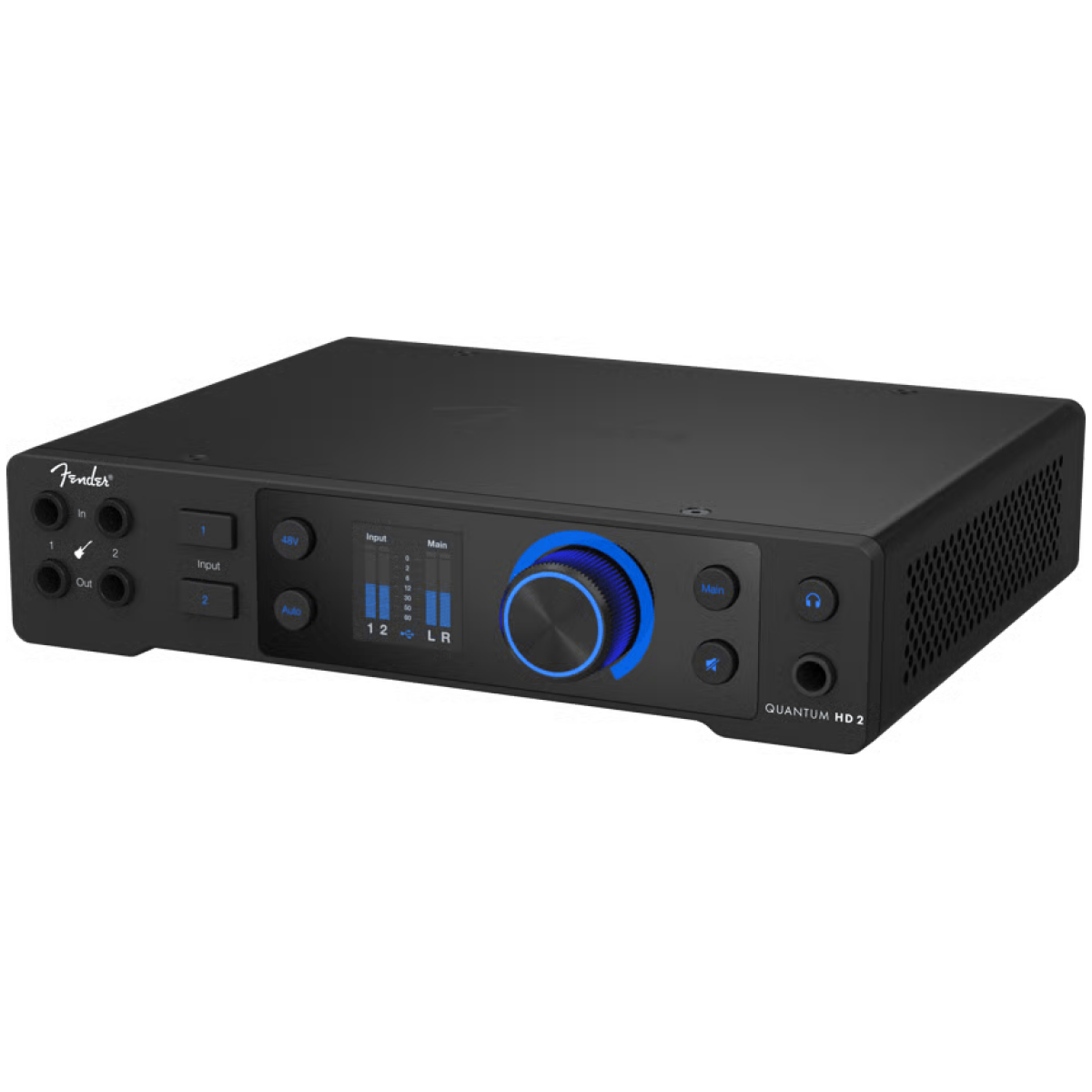

Fender Quantum HD 2 USB-C Audio Interface - Image 4

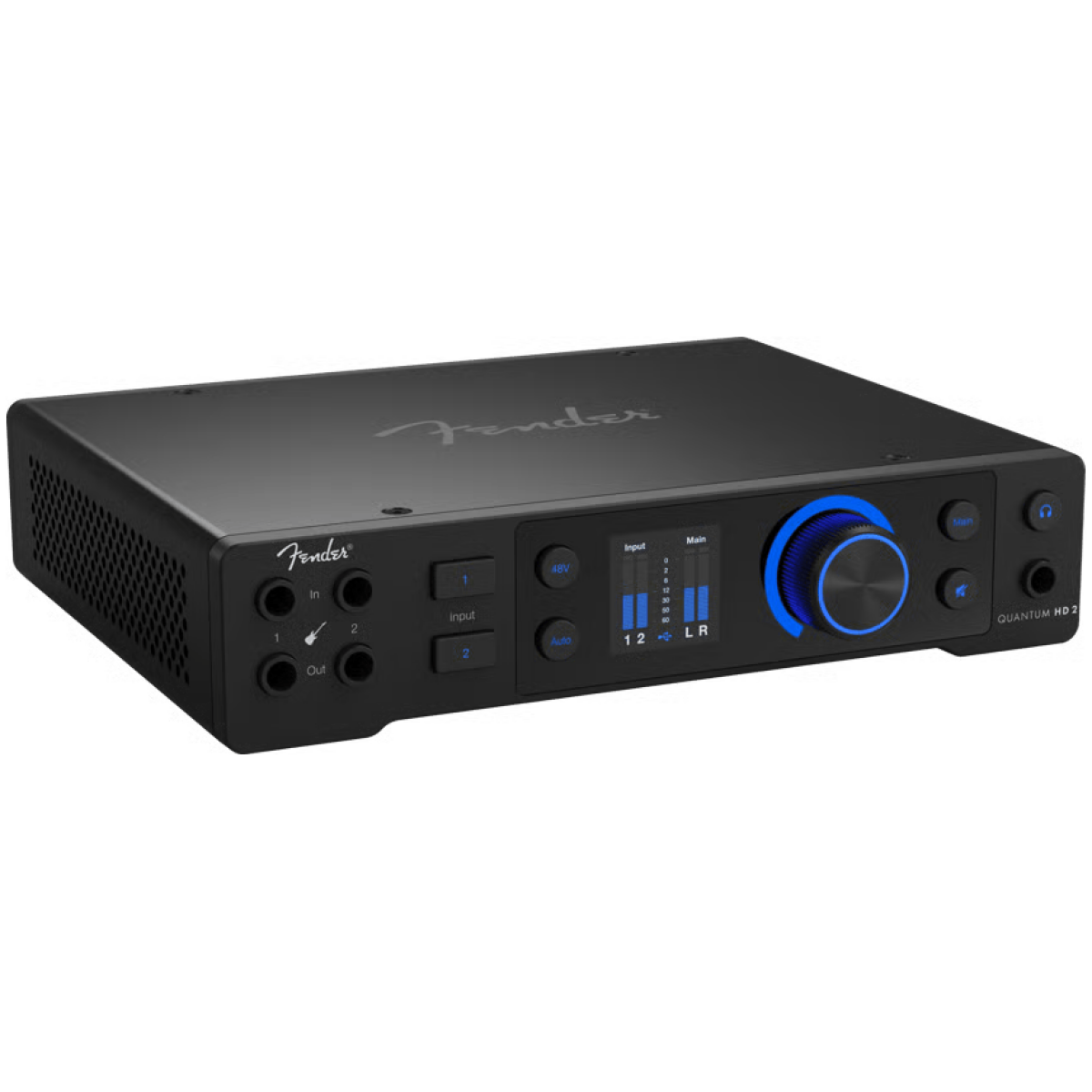

Fender Quantum HD 2 USB-C Audio Interface - Image 5

Fender Quantum HD 2 USB-C Audio Interface

Brand:

R14 999,00

×

Beat The Price Request

Got a lower price elsewhere? Share the link or an official quote with us, and we'll do our best to match or beat it!

AttributeValue
Inputs20
Output24
MIDI I/OYes
Phantom Power48V
Compare
18 People watching this product now!

Description

The Fender Quantum HD 2 is a 20 x 24 USB-C interface designed for musicians, producers, and project studios who demand accuracy, clarity, and flexibility. Featuring next-generation MAX-HD mic preamps, ultra-low-latency drivers, and high-performance converters, the HD 2 captures every nuance of vocals, guitars, bass, and full-band sessions with professional precision.

Features

  • Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps
  • 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
  • Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O.
  • Front-facing Fender instrument inputs optimized for guitar and bass
  • Auto Gain button for instant, hassle-free recording levels
  • Re-amp outputs for creative tone exploration with amps and pedals
  • DSP monitor mixer and loopback routing for streaming and monitoring
  • Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
  • Professional software included: Fender Studio Pro perpetual license

General

Product Name

Quantum HD 2 USB-C Audio Interface

Series

Quantum

Color

Black

Microphone Inputs

Connection Type

XLR Female (Combo), Balanced

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Input Impedance

1600 Ohms

Dynamic Range

116 dB (A-Weighted, Minimum Gain)

EIN

-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)

THD+N

0.002% (1 kHz, Minimum Gain)

Gain Range

75 dB

Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Phantom Power

+48 VDC

Line Inputs

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Input Impedance

10K Ohms

Dynamic Range

118 dB (A-Weighted, Minimum Gain)

THD+N

0.001% (1 kHz, Minimum Gain)

Gain Range

± 10 dB

Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Instrument Inputs

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Dynamic Range

111 dB (A-Weighted, Minimum Gain)

THD+N

0.003% (1 kHz, Minimum Gain)

Gain Range

75 dB

Maximum Input Level

+21 dBu (Unbalanced, Minimum Gain)

Line Outputs

Connection Type

1/4″ TRS Female

Main Outputs

Connection Type

1/4″ TRS Female

Headphone Outputs

Connection Type

One – 1/4″ TRS Female Stereo

Frequency Response

20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)

Impedance Working Range

33 Ohms

Dynamic Range

118 dB (A-Weighted)

THD+N

0.001% (1 kHz)

Maximum Output Level

11 dBu (50 Ohms)

MIDI I/O

Connection Type

5-Pin Female DIN

Power

Voltage

120V

Voltage Requirements

100-240 VAC, 50-60 Hz

Digital Audio

Connectivity

USB-C®

Bit Depth

32-bit

Dynamic Range

124 dB

Supported Sample Rates

44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Measurements

Height

1.9″ (48.3 mm)

Depth

7.5″ (191 mm)

Width

8.5″ (216 mm)

Weight

2.9 lbs. (1.3 kg)
