Specs
General
Product Name

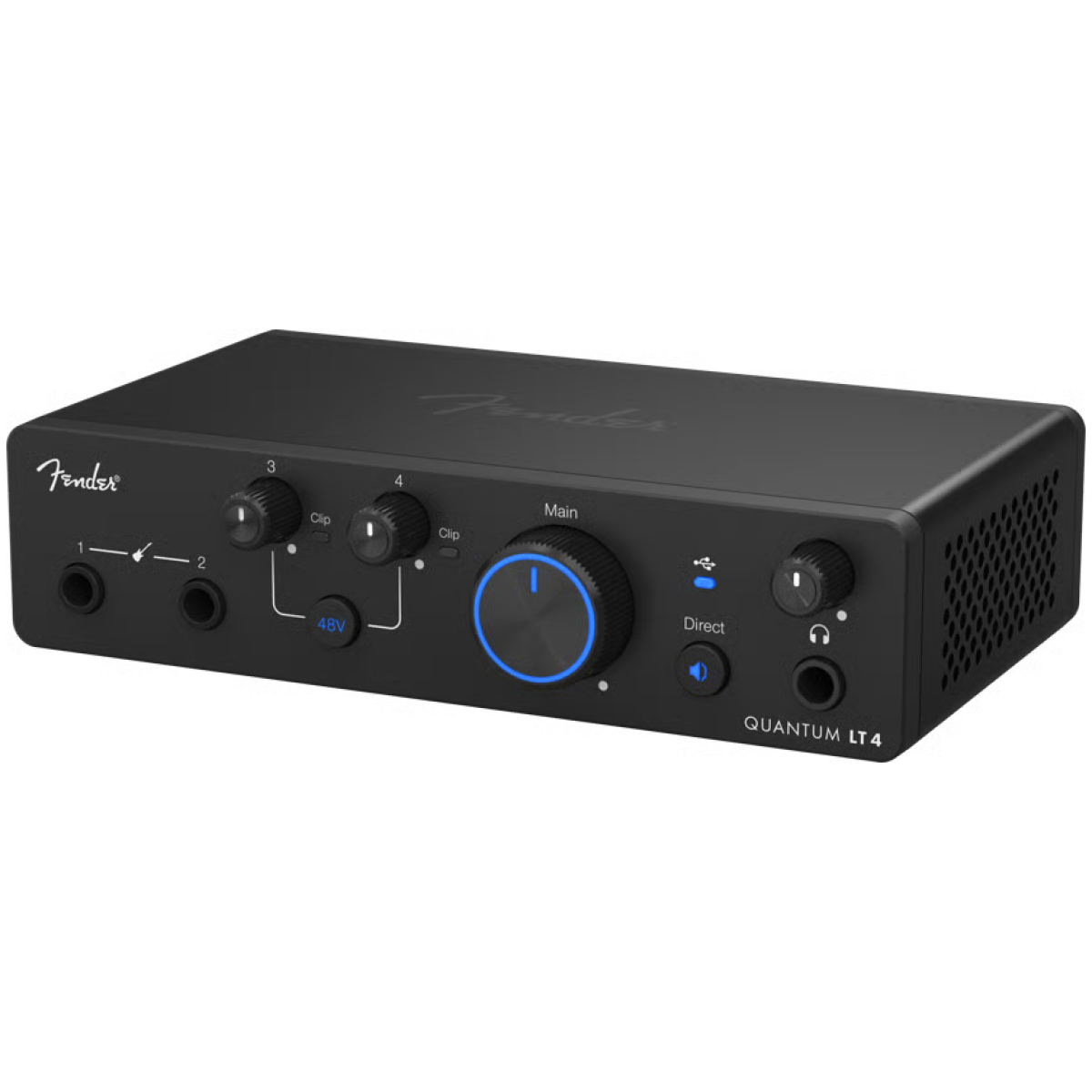

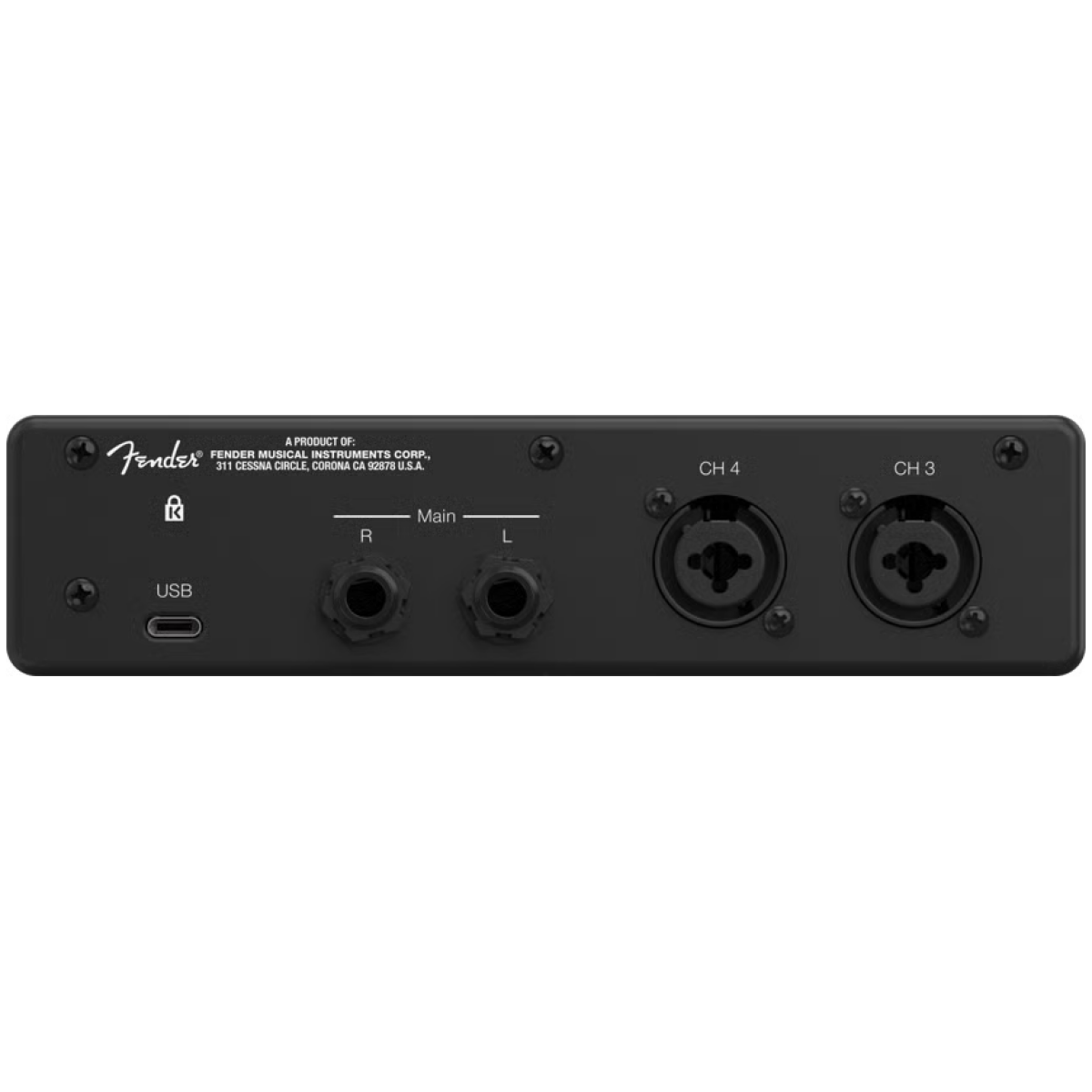

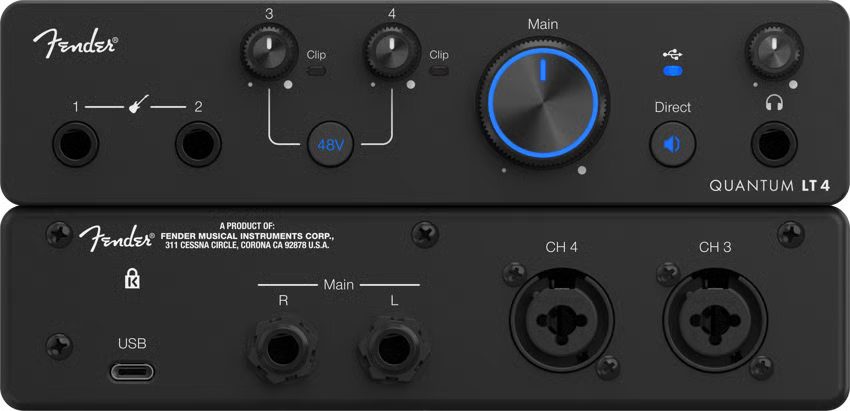

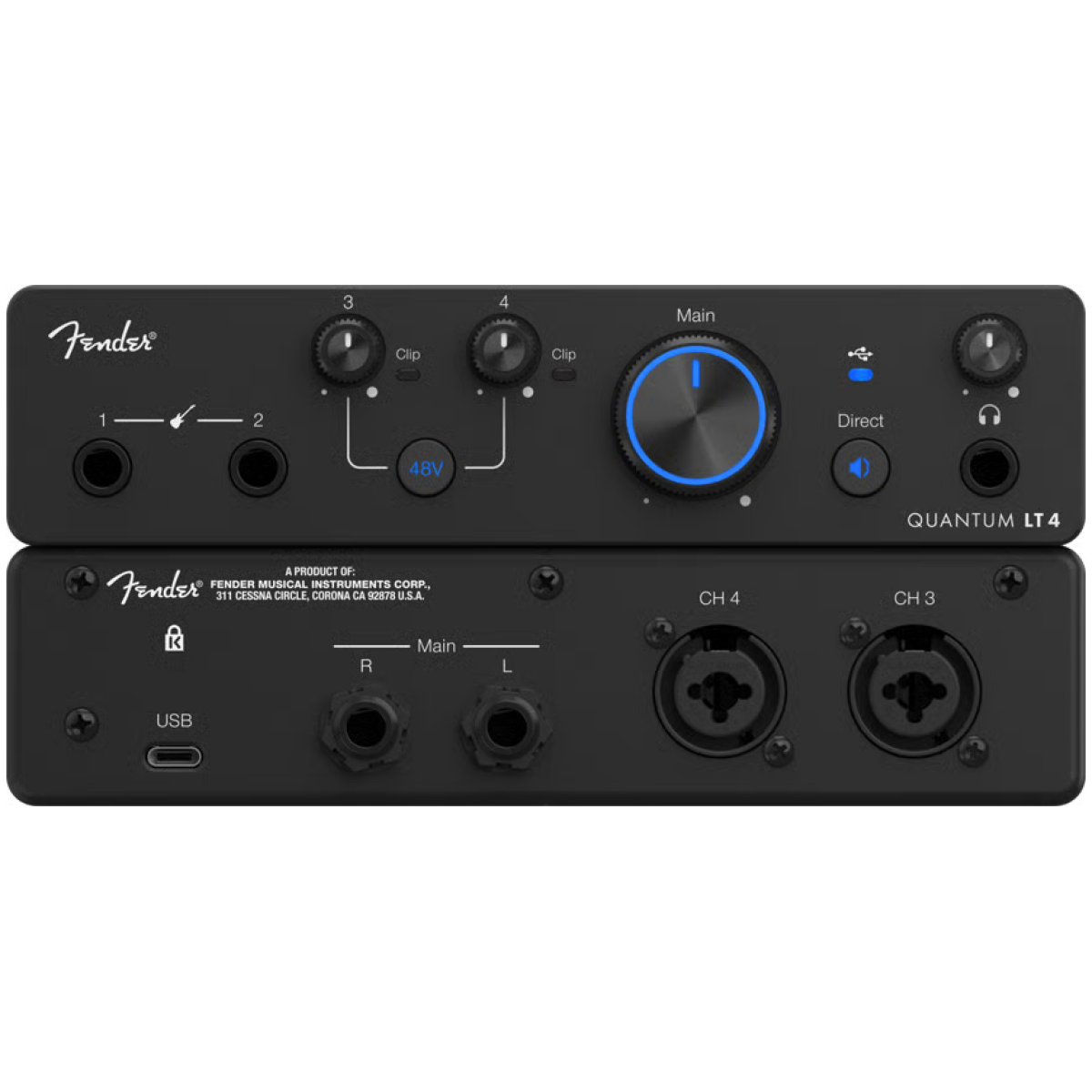

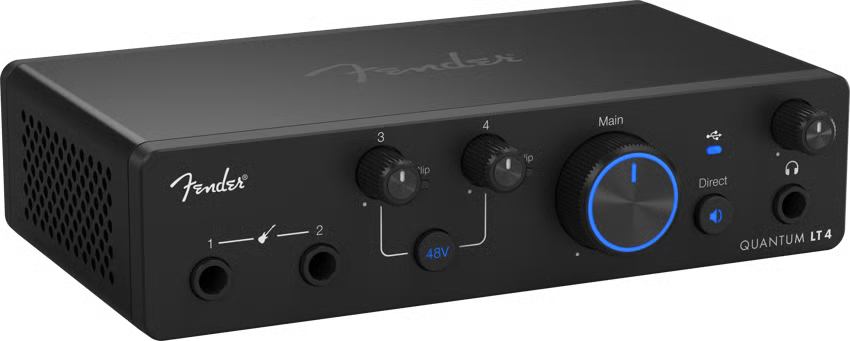

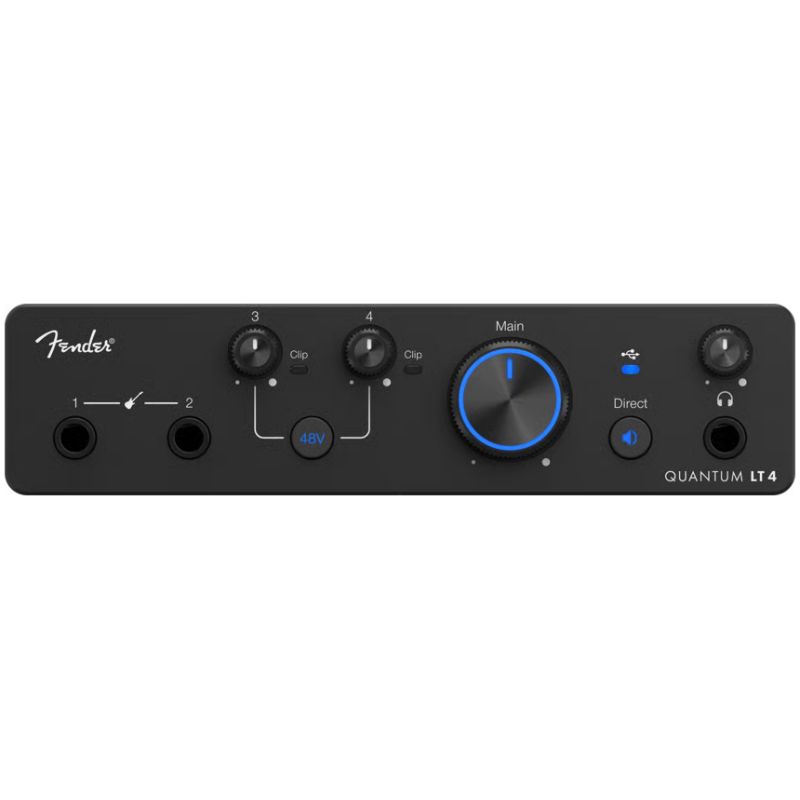

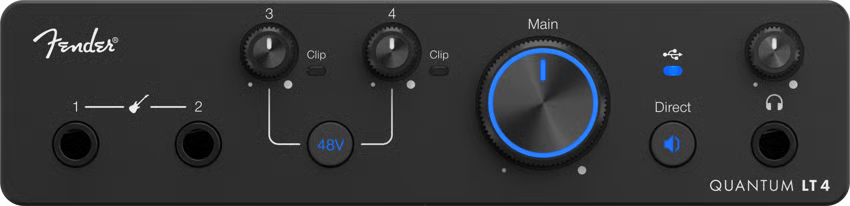

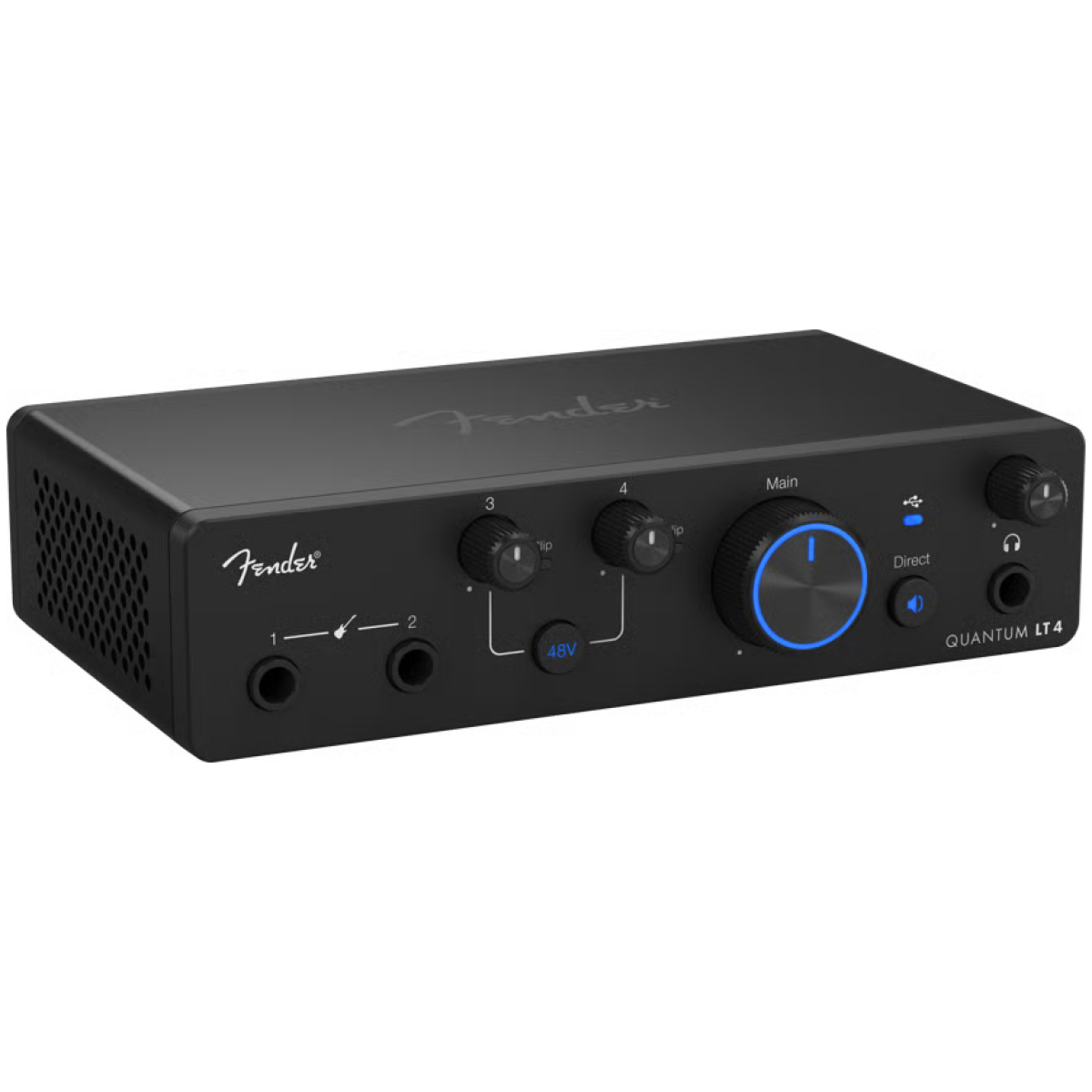

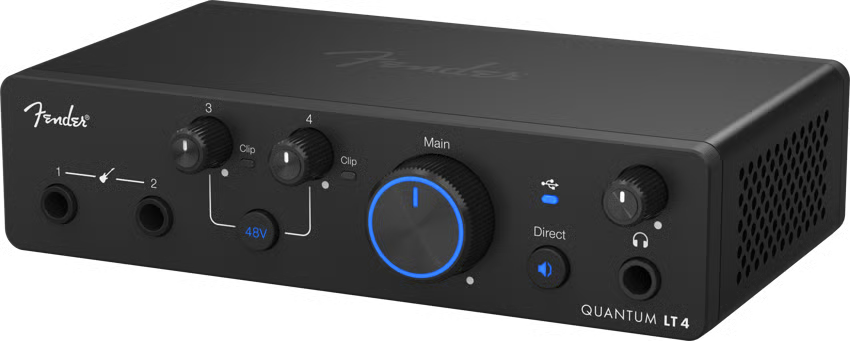

Quantum LT 4 USB-C Audio Interface
Series
Quantum
Color
Black
Microphone Inputs
Connection Type
XLR Female (Combo), Balanced
Frequency Response
20 Hz to 20 kHz
Dynamic Range
115 dB
EIN
-128.9 dBu
THD+N
0.001%
Gain Range
75 dB
Maximum Input Level
+14 dBu
Phantom Power
+48 VDC
Line Inputs
Connection Type
XLR/TRS Mic/Line Combo
Frequency Response
20 Hz to 20 kHz
Dynamic Range
115
THD+N
0.001%
Gain Range
-20 dB to +20 dB
Maximum Input Level
+15 dBu
Instrument Inputs
Connection Type
1/4” TS Female, Unbalanced, Hi-Z
Frequency Response
20 Hz to 20 kHz
THD+N
0.001%
Maximum Input Level
+12.9 dBu
Main Outputs
Connection Type
1/4″ TRS Female
Headphone Outputs
Connection Type
1/4″ TRS Female
Frequency Response
20 Hz to 20 kHz
Dynamic Range
113 dB
THD+N
0.002%
Maximum Output Level
46mW @ THD+N ≈ 0.007%
Power
Voltage
120V
Voltage Requirements
100-240 VAC, 50-60 Hz
Digital Audio
Connectivity
USB-C®
Bit Depth
24 Bit
Dynamic Range
115 dB
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Measurements
Height
1.75″ (4.45 cm)
Depth
3.5″ (8.8 cm)
Width
7″ (17.8 cm)
Weight
1.8 lbs. (0.82 kg)
