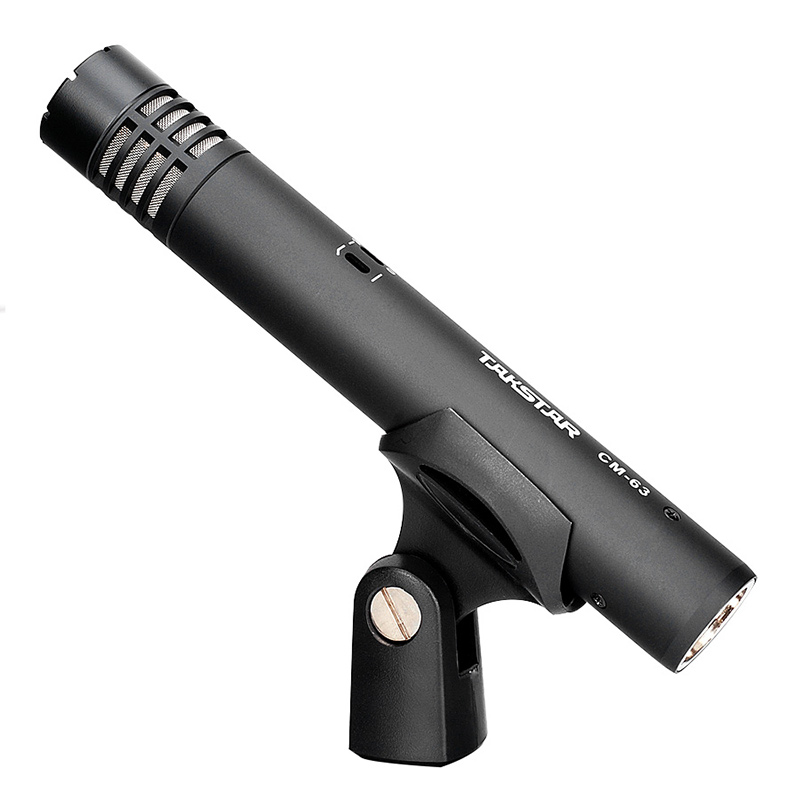

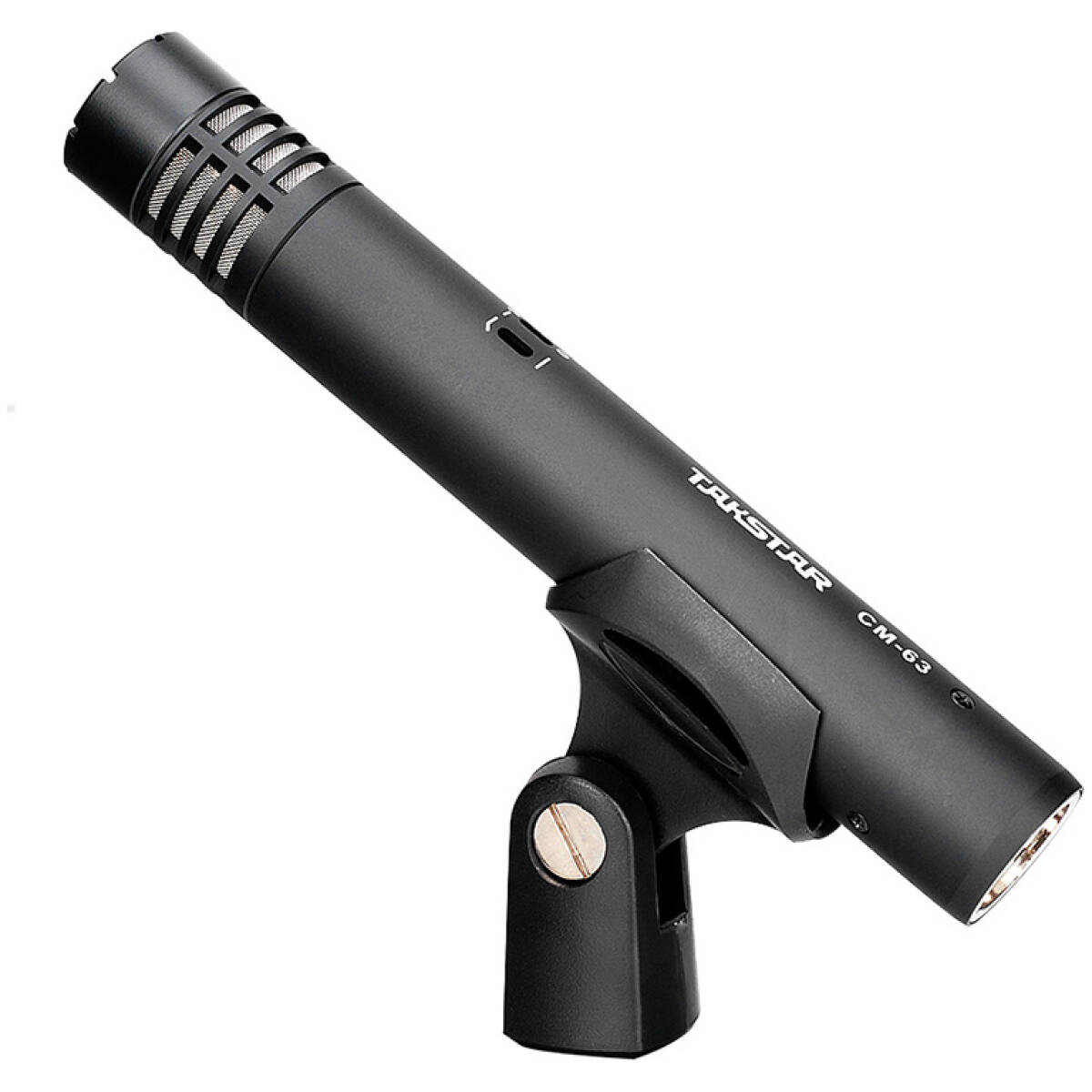

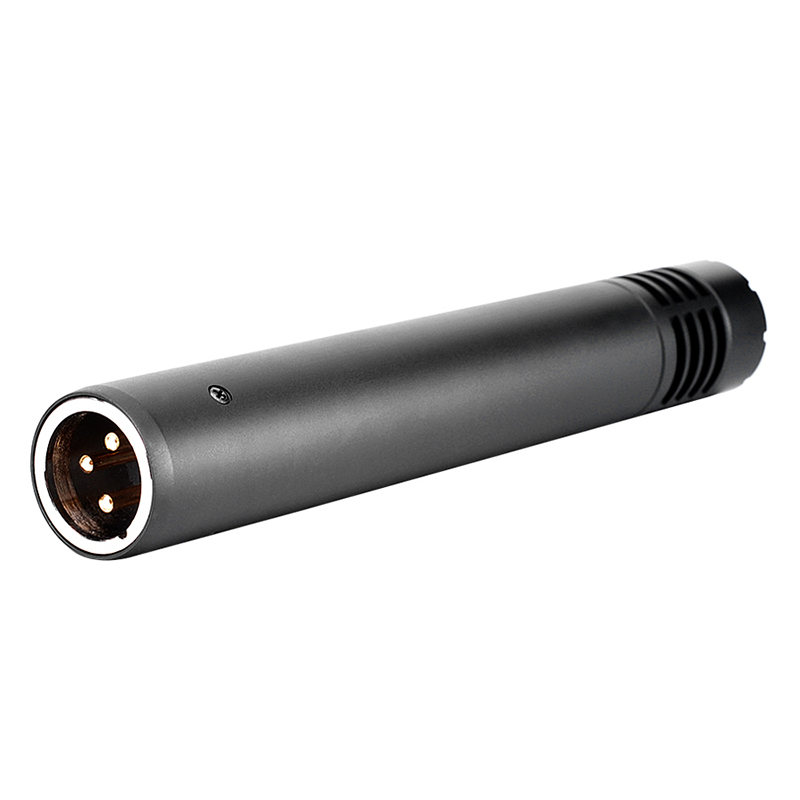

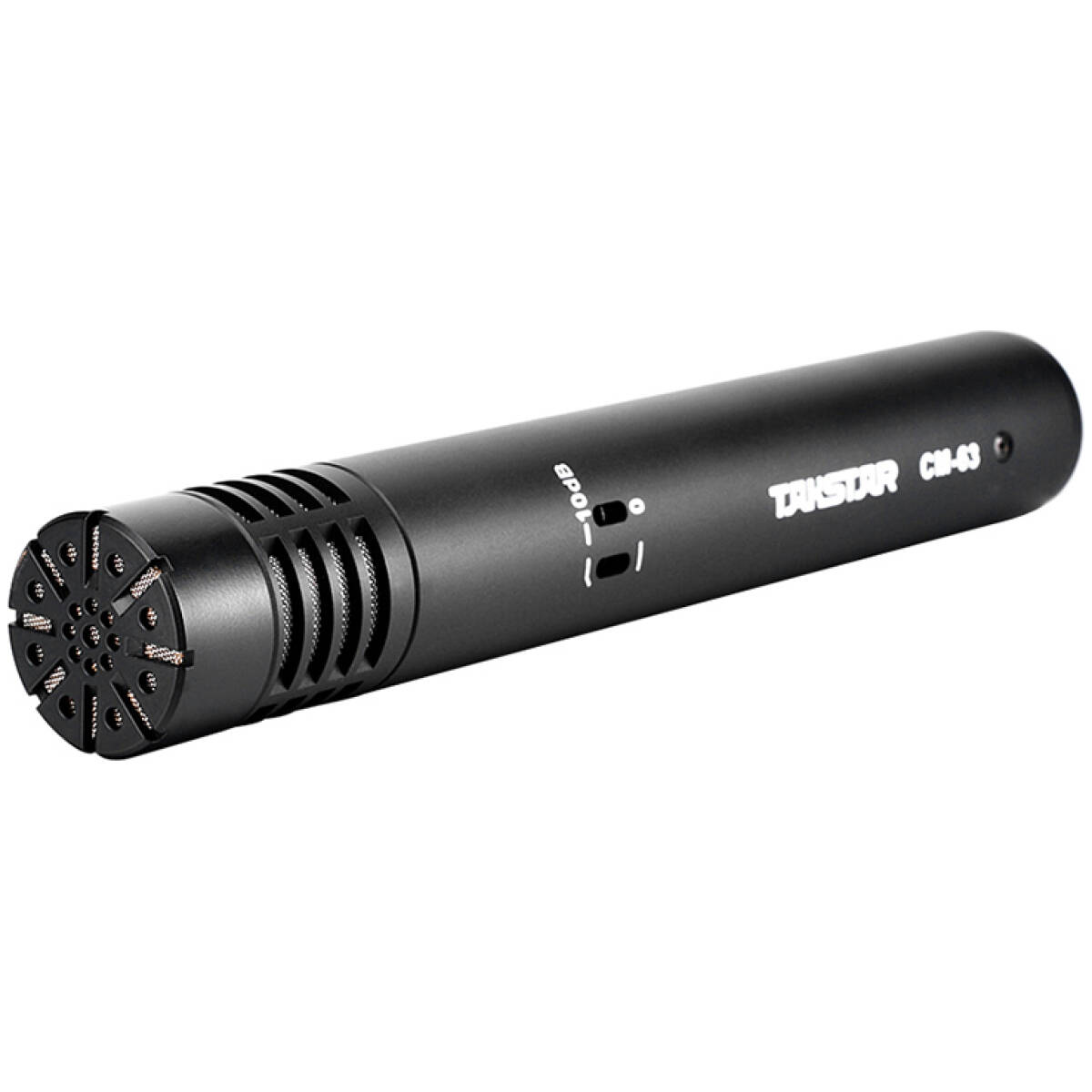

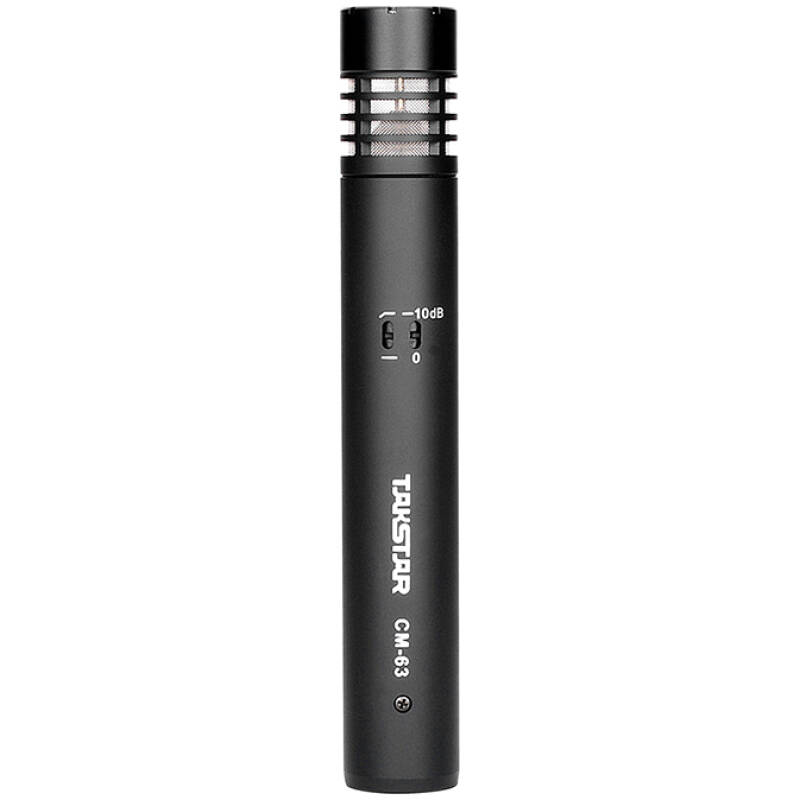

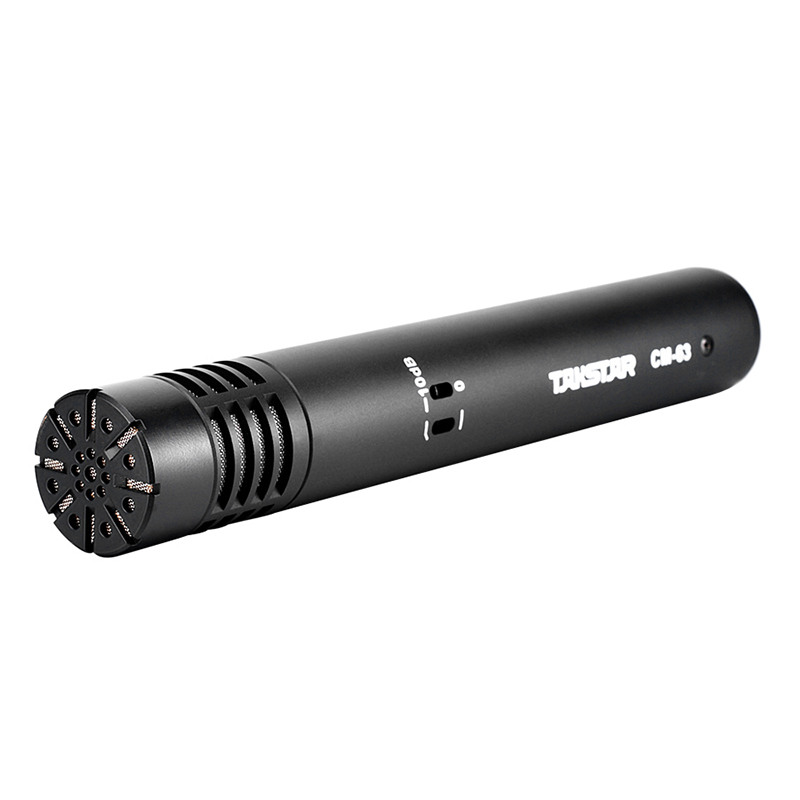

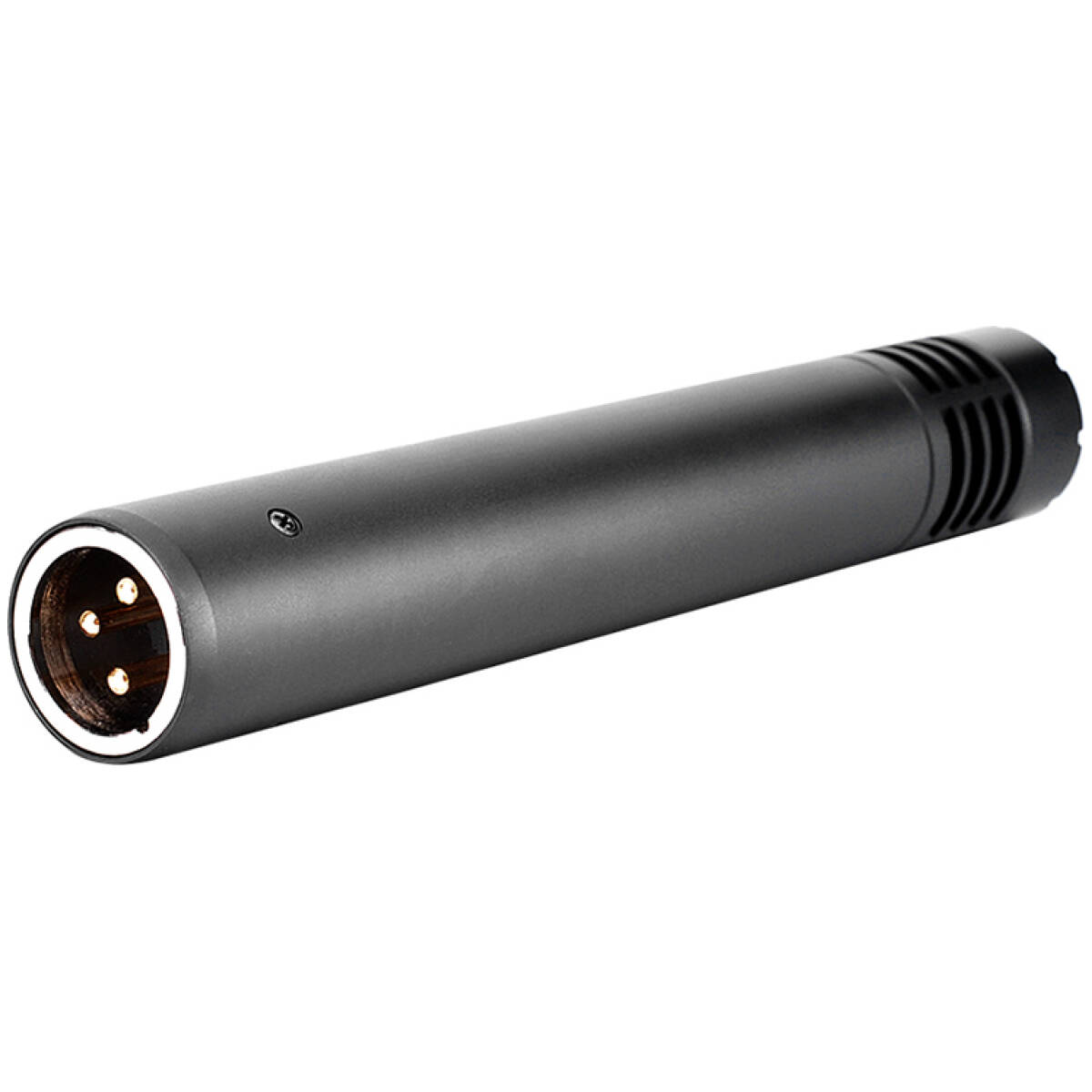

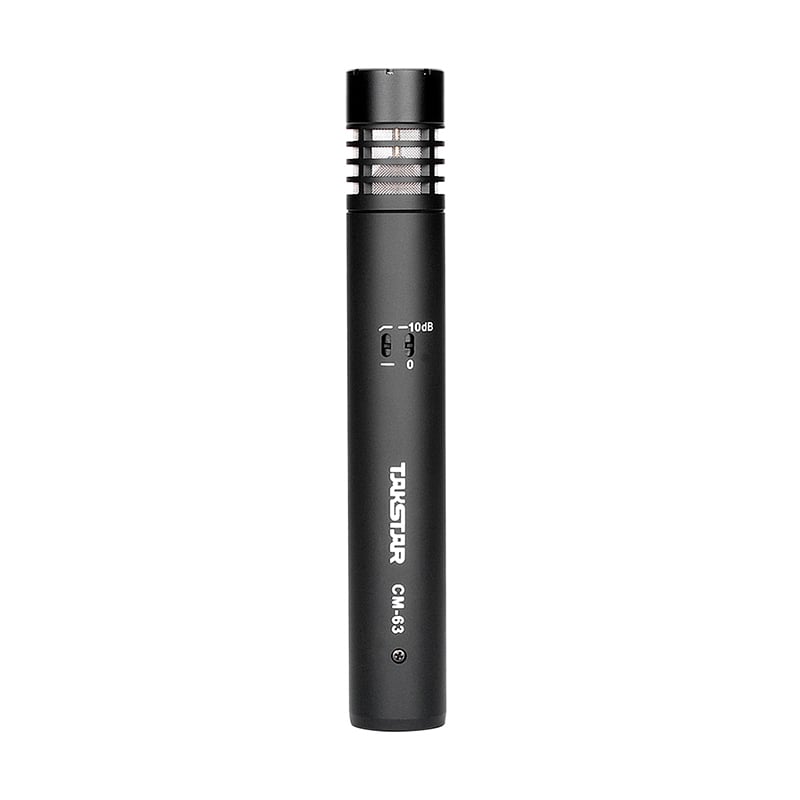

Takstar CM-63 Small-diaphragm Microphone

• Using anti-humidity technology ensures stable performance under allweather condition.

• Wide frequency response, high sensitivity.

• Gold-plated diaphragm condenser capsule, excellent transient responsecapability prevents from unwanted harmonic distortion.

• Built-in classic low noise FET for pre-impedance conversion.

• Low frequency attenuation and sensitivity attenuation switch suits forvarious applications.

• Hi-Fi OTL class A amplification and low impedance output reduces thecable transmission loss.

• Multiple finish process for durable use.

• Element: Gold-plated Diaphragm Capsule

• Transducer Principle: Pressure Gradient Transducer

• Polar Pattern: Cardioid

• Frequency Response: 30Hz-20KHz

• Sensitivity: -35dB±2dB (0dB=1V/Pa at 1KHz)

• Equivalent Noise Level: ≤20dB A (IEC 581-5)

• Max. Input SPL: ≥130dB (T.H.D≤1% at 1KHz)≥140dB (with 10dB pad)(T.H.D≤1% at 1KHz)

• Dynamic Range: 110dB

• Bass Filter: 12dB/octave at 100Hz

• Output Impedance: 200Ω±30% (at 1KHz)

• Load Impedance: ≥1000Ω

• Power Requirements: 48V DC Phantom Power
