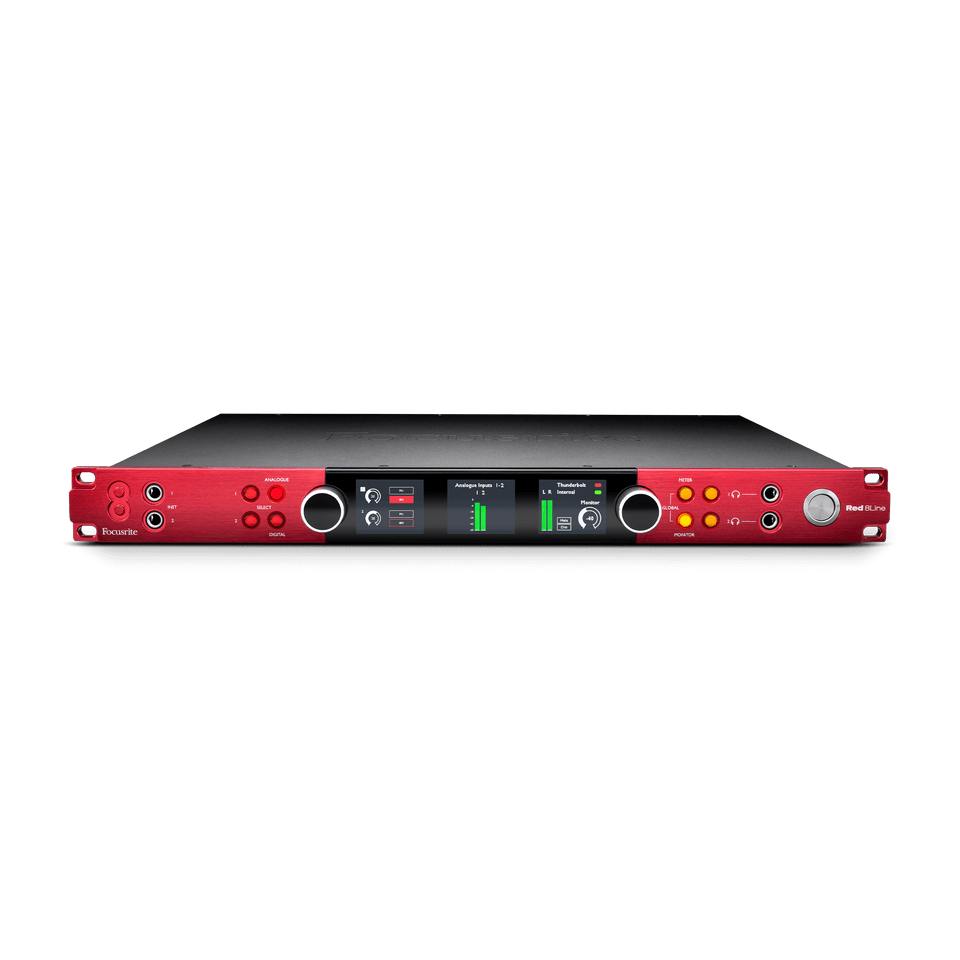

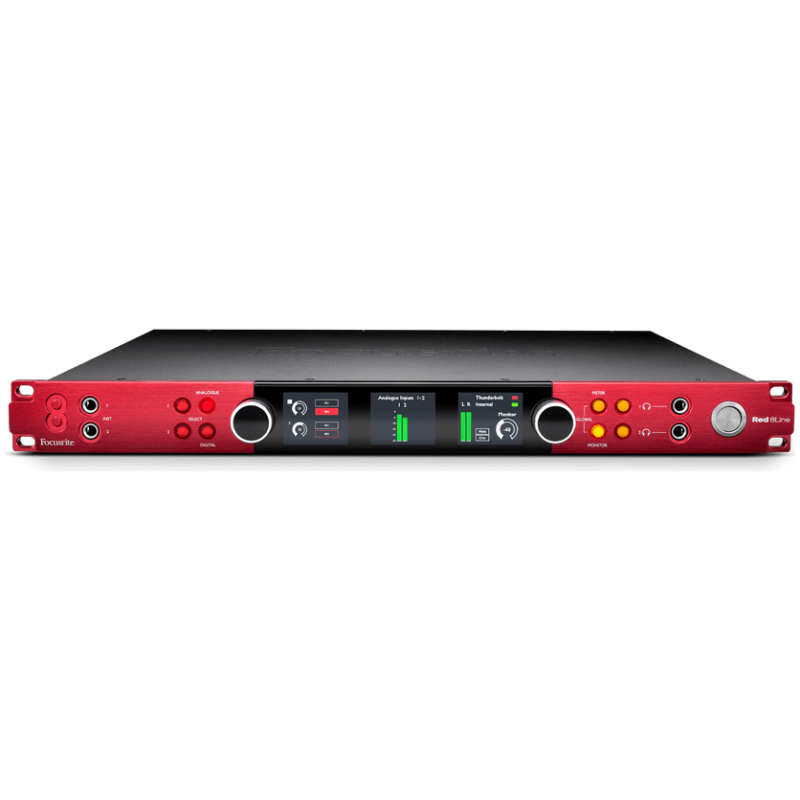

The Focusrite Red 8Line is a flagship professional 58-input / 64-output Thunderbolt 3 audio interface, designed for recording studios, post-production facilities, and high-end producers who demand uncompromising sound quality, flexibility, and speed. It combines ultra-low latency, Dante Audio-over-IP networking, and dual Thunderbolt 3 ports with Focusrite’s renowned “Red Evolution” mic preamps and pristine conversion.
Key Features
-
58 Inputs / 64 Outputs – Extensive connectivity for complex studio setups.
-
Two Red Evolution Mic Preamps – Remotely controllable, offering up to 63 dB of gain, 48V phantom power, polarity invert, high-pass filter, and “Air” mode for classic ISA-style brightness.
-
Premium Conversion Quality – Up to 24-bit / 192 kHz with 119 dB (A/D) and 121 dB (D/A) dynamic range.
-
Dual Thunderbolt 3 Ports – Ultra-low latency for Mac and Windows, with daisy-chaining support.
-
Dante Network Audio – Dual Ethernet ports for 32 channels of audio-over-IP connectivity.
-
Multi-Format I/O – Includes ADAT optical, S/PDIF, Word Clock, and Loop Sync.
-
Analog I/O – 8 balanced line inputs and 8 balanced line outputs on DB25 connectors.
-
Integrated Monitor Control – Dedicated stereo monitor outputs, two independent headphone outputs, and multi-channel monitoring up to 7.1.2.
-
Pro Tools | HD and Dante Integration – Simultaneous connectivity for hybrid studios.
-
Included Plug-in Bundle – Red 2 & Red 3 EQ and compressor plug-ins, plus Brainworx bx_console Focusrite SC and more.
Technical Specifications
-
Mic Inputs: 2 (with Red Evolution preamps)
-
Analog Line Inputs: 8 (DB25)
-
Analog Line Outputs: 8 (DB25)
-
Digital I/O: 32×32 Dante, ADAT, S/PDIF, Word Clock, Loop Sync
-
Mic Gain Range: Up to +63 dB
-
Bit Depth / Sample Rate: 24-bit / up to 192 kHz
-
Dynamic Range: A/D 119 dB, D/A 121 dB (A-weighted)
-
Power Supply: Internal (IEC AC input)
-
Computer Connection: Dual Thunderbolt 3 ports
-
Compatibility: macOS and Windows
