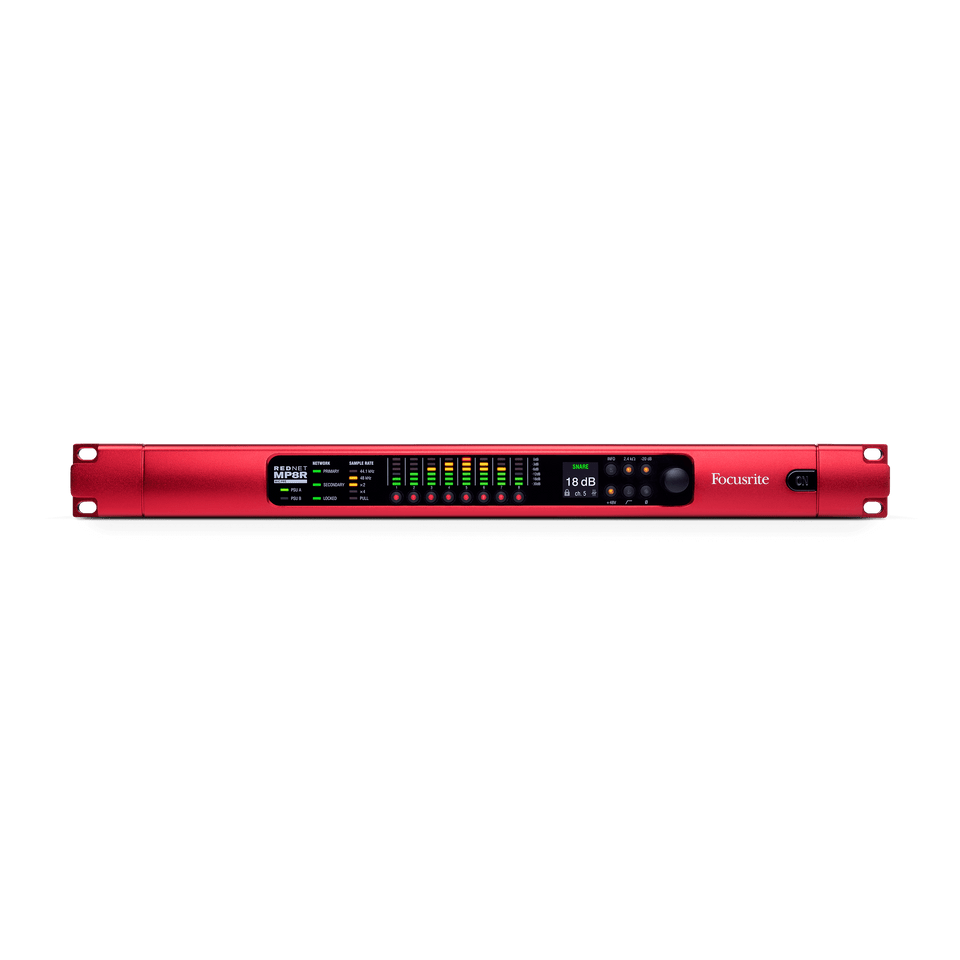

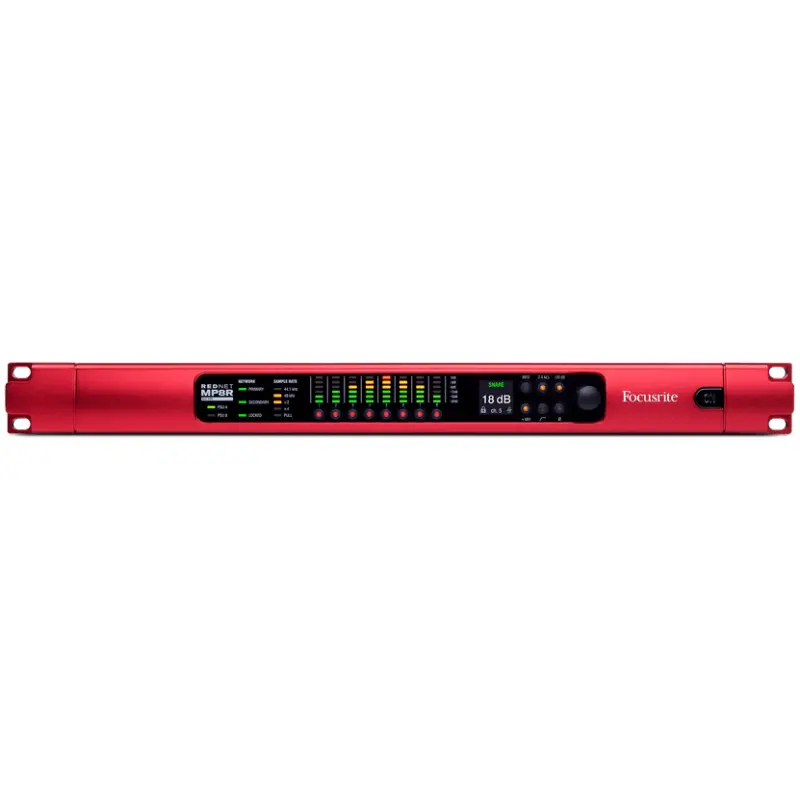

The Focusrite RedNet MP8R is a high-end 8-channel remote-controlled microphone preamplifier and A/D converter built for Dante Audio-over-IP networks. Designed for mission-critical live, broadcast, and studio environments, it delivers world-class Focusrite preamps with ultra-low noise and distortion, network redundancy, and precision digital conversion at up to 192 kHz.
Key Features
-
8 Remote-Controlled Mic Preamps – Digitally controlled Focusrite preamps with up to 63 dB of gain, ultra-low noise, and consistent sonic performance.
-
24-bit / 192 kHz Conversion – Premium A-D converters provide transparent, detailed audio with wide dynamic range.
-
Dual Dante Network Ports – Primary and secondary connections for network redundancy and fail-safe operation.
-
Network Control via RedNet Control Software – Adjust gain, phantom power, polarity, and more remotely from any connected computer.
-
Redundant Power Supplies – Dual universal PSUs for uninterrupted performance in critical applications.
-
8 Line-Level Analog Outputs – DB25 connector for direct monitoring or signal routing.
-
Per-Channel LED Meters – Front-panel indicators for level, phantom power, and network status.
-
Clocking Options – Dante, Word Clock, or internal sync for flexible integration into complex systems.
-
Compact 1U Design – Fits easily in mobile racks, live rigs, or studio installations.
Technical Specifications
-
Mic Inputs: 8 × XLR (electronically balanced, transformerless)
-
Analog Outputs: 8 × Balanced line-level (DB25, 25-pin female)
-
Gain Range: 0 dB to +63 dB (1 dB steps)
-
Dynamic Range (A/D): 119 dB (A-weighted)
-
THD+N: < 0.001%
-
Frequency Response: 20 Hz – 20 kHz ±0.1 dB
-
Sample Rates: 44.1 kHz – 192 kHz
-
Bit Depth: 24-bit
-
Network Interface: Dual Gigabit Ethernet (Dante Primary & Secondary)
-
Clocking: Dante, Word Clock (BNC), or Internal
-
Power Supply: Dual redundant internal (100–240 V AC auto-switching)
