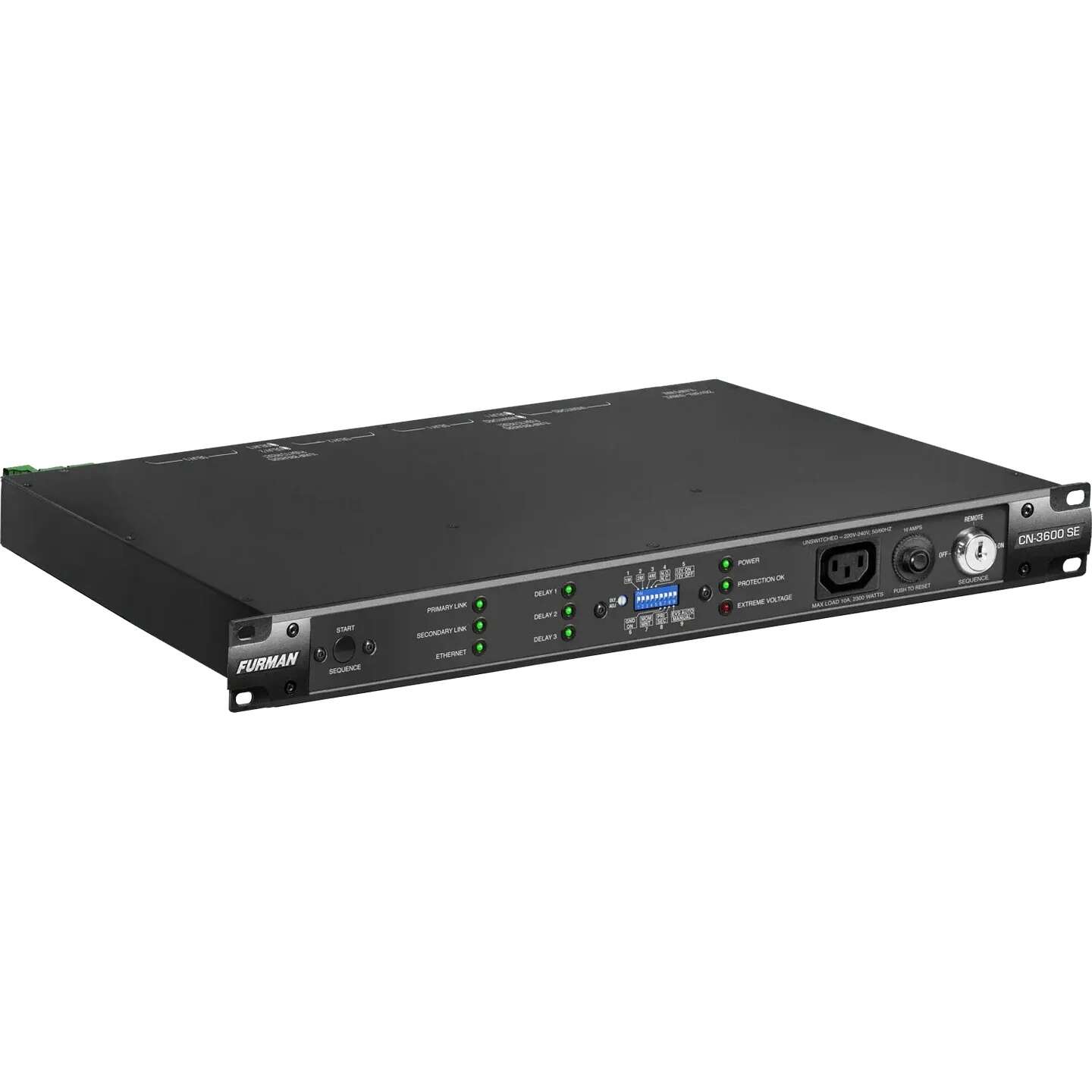

Furman CN-3600S E 16A SmartSequencing Power Conditioner – 220–240V

The Furman CN-3600S E combines professional power conditioning with intelligent three-stage sequencing. It safely switches connected equipment on in order and reverses the sequence during shutdown, helping prevent speaker pops, excessive inrush current and equipment damage.

Key Features

• Three-stage SmartSequencing power control
• Safe, delayed power-up and reverse-order shutdown
• 16A maximum total current capacity
• Series Multi-Stage Protection (SMP)
• Linear Filtering Technology (LiFT)
• Extreme Voltage Shutdown (EVS)

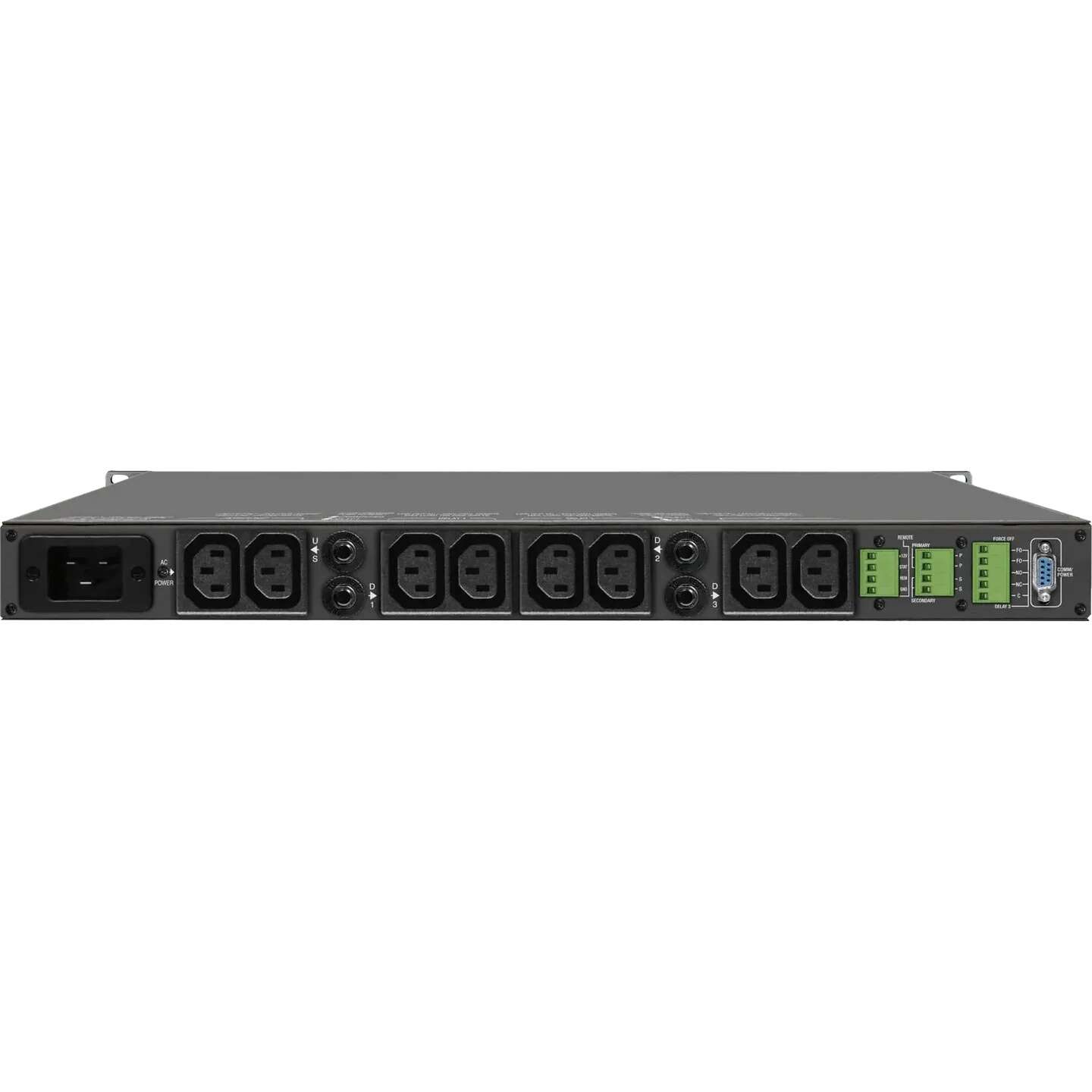

• Nine filtered and protected IEC outlets
• Eight rear outlets and one front convenience outlet
• One unswitched rear pair
• Three individually sequenced rear outlet pairs

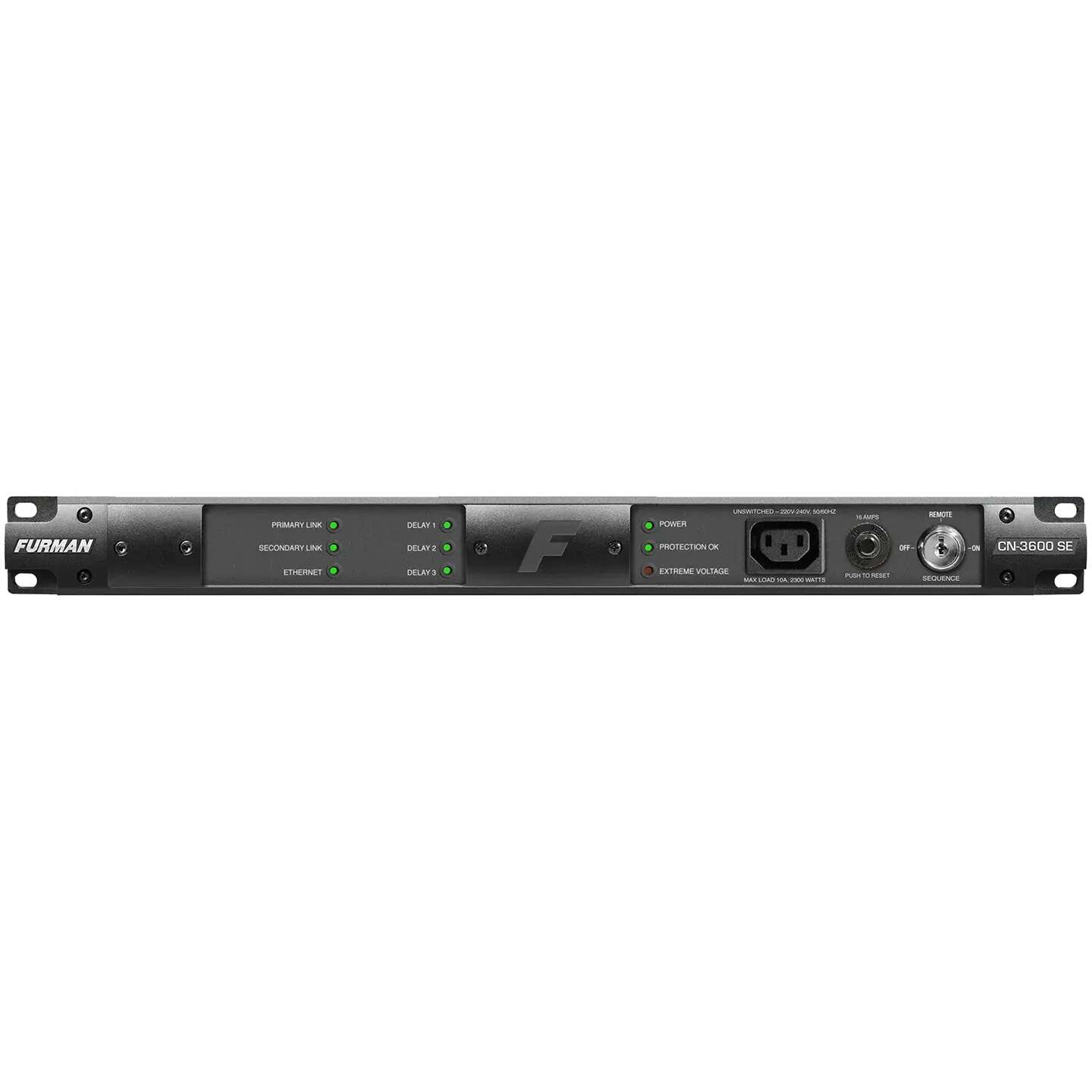

• Front three-position key switch: On, Off and Remote
• Adjustable sequencing delay
• Primary/secondary linking for multiple sequencers
• Control-link distance exceeding 300m
• RS-232 integration for external control systems
• Remote shutdown and fire-alarm connection support
• Protection, sequencing and voltage-status indicators
• Standard 19″, 1U rackmount design

Specifications

• Operating voltage: 220–240V AC, 50/60Hz
• Input-voltage range: 180–270V AC
• Maximum current: 16A
• Maximum load at 230V: Approximately 3,680W
• Total outlets: Nine IEC C13
• Rear outlets: Eight
• Front outlet: One unswitched IEC C13
• Sequenced stages: Three
• Undervoltage shutdown: 175V AC ±3V
• Overvoltage shutdown: 275V AC ±5V
• Reset modes: Automatic or manual
• Maximum surge current: 6,500A
• Clamping voltage: 375V peak at 6,000V/3,000A
• Response time: One nanosecond
• Noise attenuation:
  • 10dB at 10kHz
  • 40dB at 100kHz
  • 50dB at 500kHz
• RS-232 connection: DB-9
• SmartSequencing connection: Four-pin Phoenix terminal
• No-load power consumption: 10W
• Operating temperature: 5–40°C
