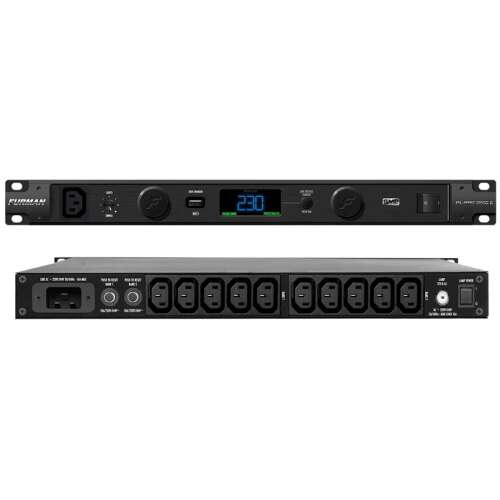

Furman PL-PRO DMC E 16A Power Conditioner With Lights And Digital Volt

The Furman PL-PRO DMC E is an advanced 1U rackmount power conditioner designed for higher-current professional audio, studio, DJ and AV systems. It combines comprehensive power protection with real-time voltage and current monitoring.

Key Features

• 16A total current capacity
• Furman Series Multi-Stage Protection (SMP)
• Linear Filtering Technology (LiFT)
• Extreme Voltage Shutdown (EVS)
• Digital voltmeter and true-RMS ammeter
• Eleven filtered and surge-protected IEC outlets
• Ten rear outlets and one front convenience outlet
• Isolated outlet banks minimise equipment interference
• Two retractable, dimmable LED rack lights
• Front USB charging port
• Rear BNC connection for an optional gooseneck lamp
• Diagnostic protection and voltage indicators
• High-inrush magnetic circuit breaker
• Heavy-duty steel and aluminium construction

Specifications

• Operating voltage: 220–240V AC
• Maximum current: 16A
• Maximum load at 230V: Approximately 3,680W
• Operating range: 180–274V AC
• Typical overvoltage shutdown: 275V AC
• Outlets: 11
• Display: Digital voltage and true-RMS current
• Surge response time: One nanosecond
• Maximum surge current: 6,500A
• Clamping voltage: 376V peak at 3,000A / 266V RMS
• Spike-protection mode: Line-to-neutral with zero ground leakage
• Noise attenuation:
  • 10dB at 10kHz
  • 40dB at 100kHz
  • 50dB at 500kHz
• Front lights: Two dimmable multi-LED lamps
• Rear lamp output: BNC, 12V AC/500mA maximum
• Power consumption: 25VA
• Rack size: 19″ / 1U
