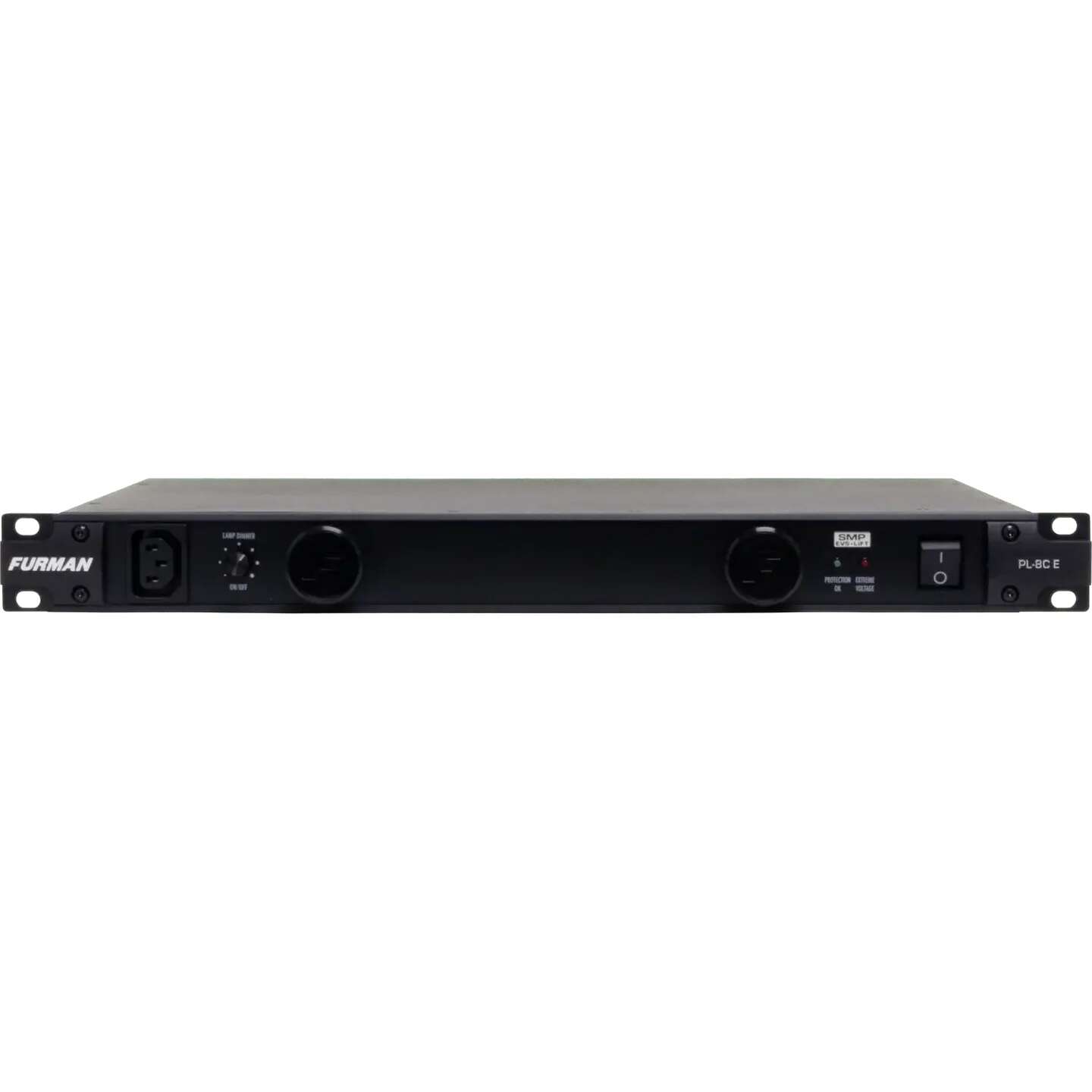

Furman PL-8C E 10A Power Conditioner With Lights And SMP – 220–240V

The Furman PL-8C E is a professional 1U rackmount power conditioner that combines advanced equipment protection, noise filtration and rack illumination. It is designed for recording studios, DJ systems, live-sound racks, broadcast equipment and professional AV installations.

Key Features

• Furman Series Multi-Stage Protection (SMP)
• Linear Filtering Technology (LiFT)
• Extreme Voltage Shutdown (EVS)
• Eleven filtered and surge-protected IEC outlets

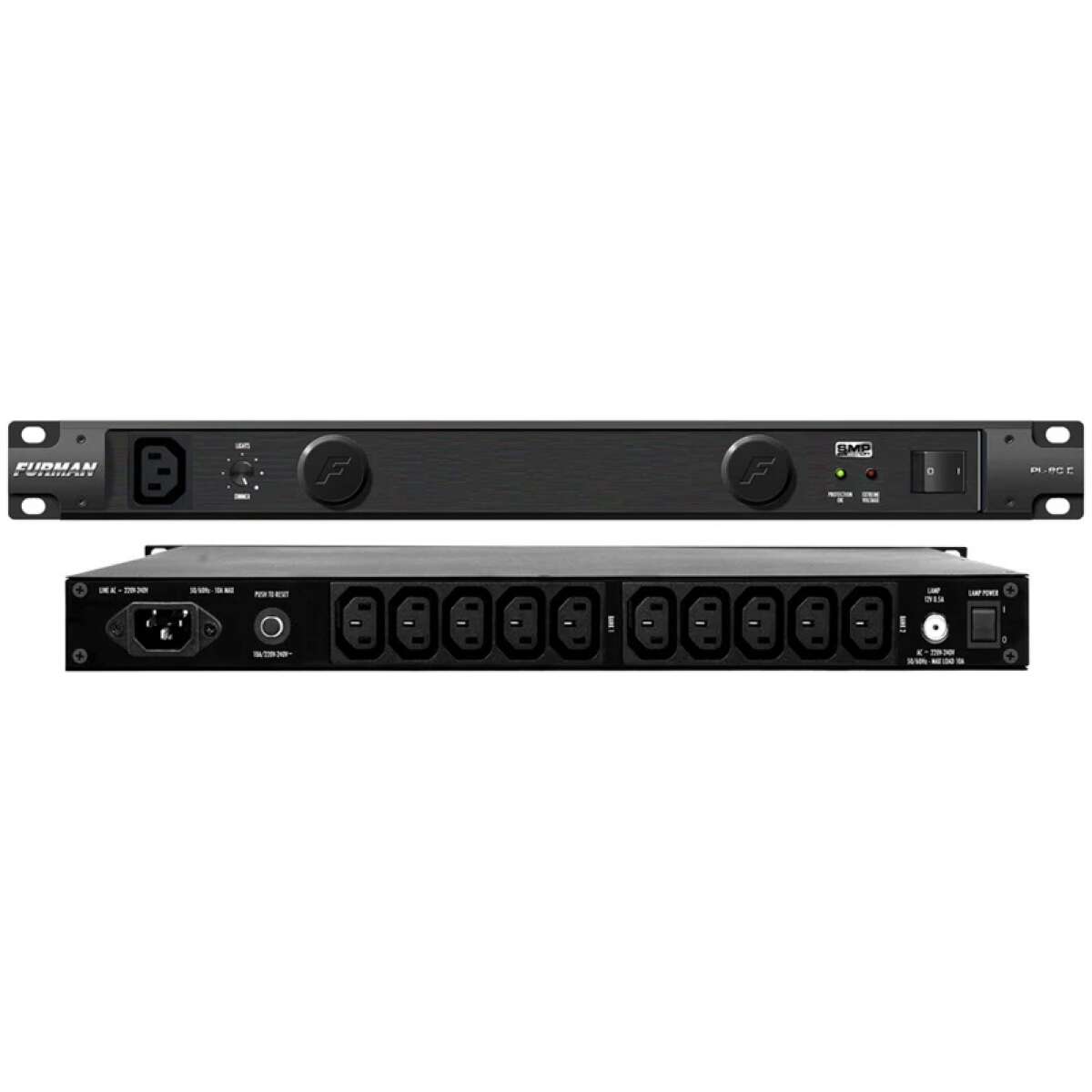

• Ten rear outlets and one front convenience outlet
• Two isolated rear outlet banks
• Dual retractable, dimmable LED rack lights
• Rear BNC connection for an optional gooseneck lamp
• Protection and abnormal-voltage indicators
• High-inrush 10A magnetic circuit breaker
• Front master power switch
• Strong steel 19″ rackmount chassis

Specifications

• Operating voltage: 220–240V AC
• Maximum current: 10A
• Maximum load at 230V: Approximately 2,300W
• Outlets: 11
• Isolated outlet banks: Two
• Under-voltage shutdown: 180V
• Over-voltage shutdown: 274V
• Initial clamping level: 375V AC peak at 3,000A
• Peak impulse current: 6,500A
• Response time: One nanosecond
• Noise filtration:
  • 10dB at 10kHz
  • 40dB at 100kHz
  • 50dB at 500kHz
• Front lights: Two dimmable multi-LED lamps
• Rear lamp output: BNC, 12V AC/500mA maximum
• Power consumption: 12W
• Rack size: 19″ / 1U
