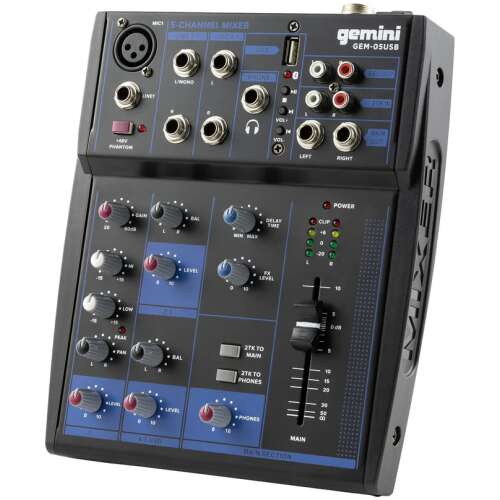

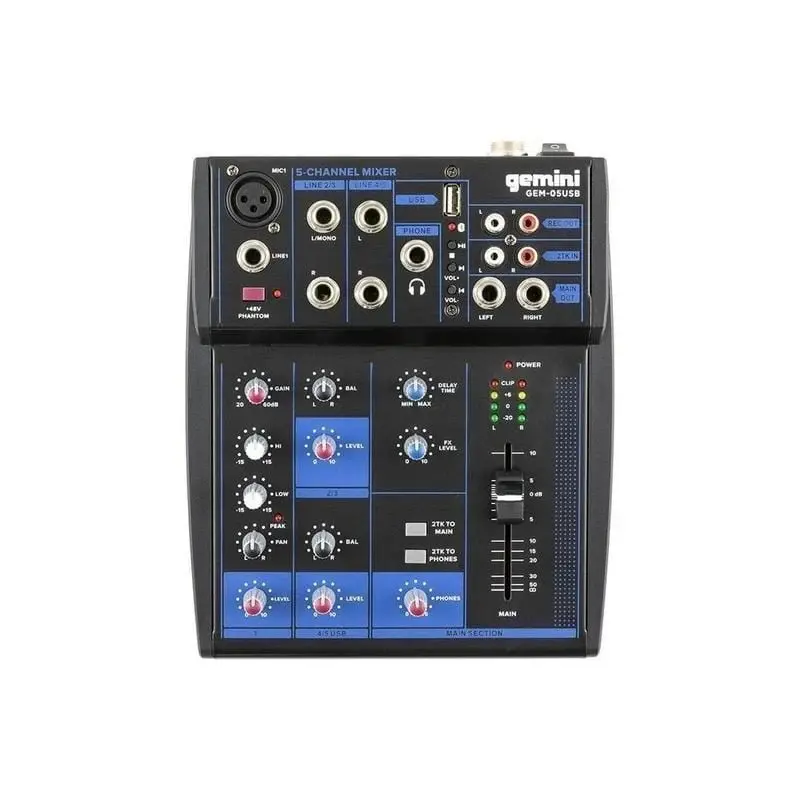

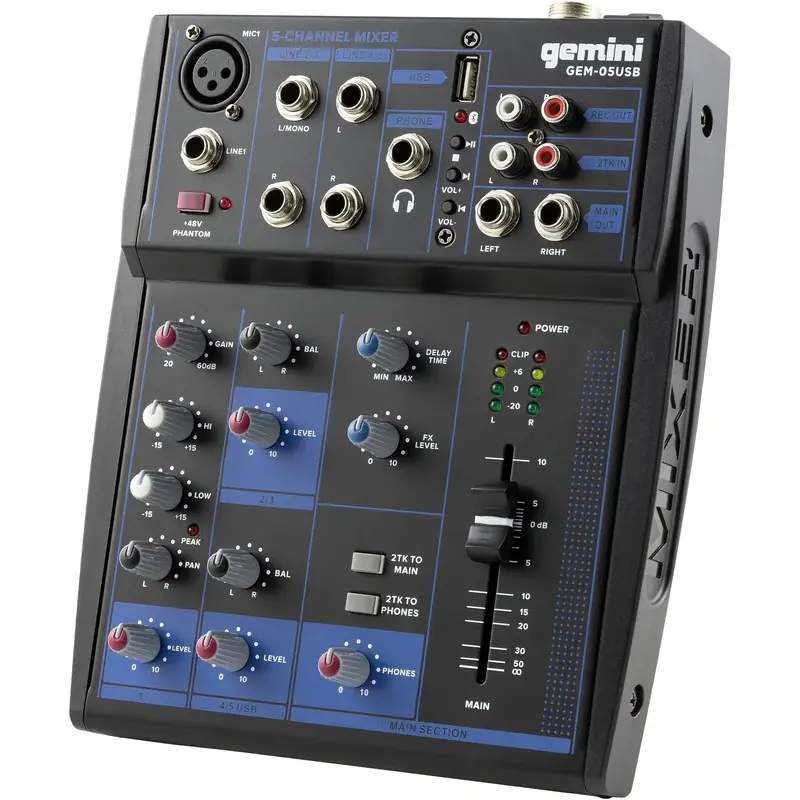

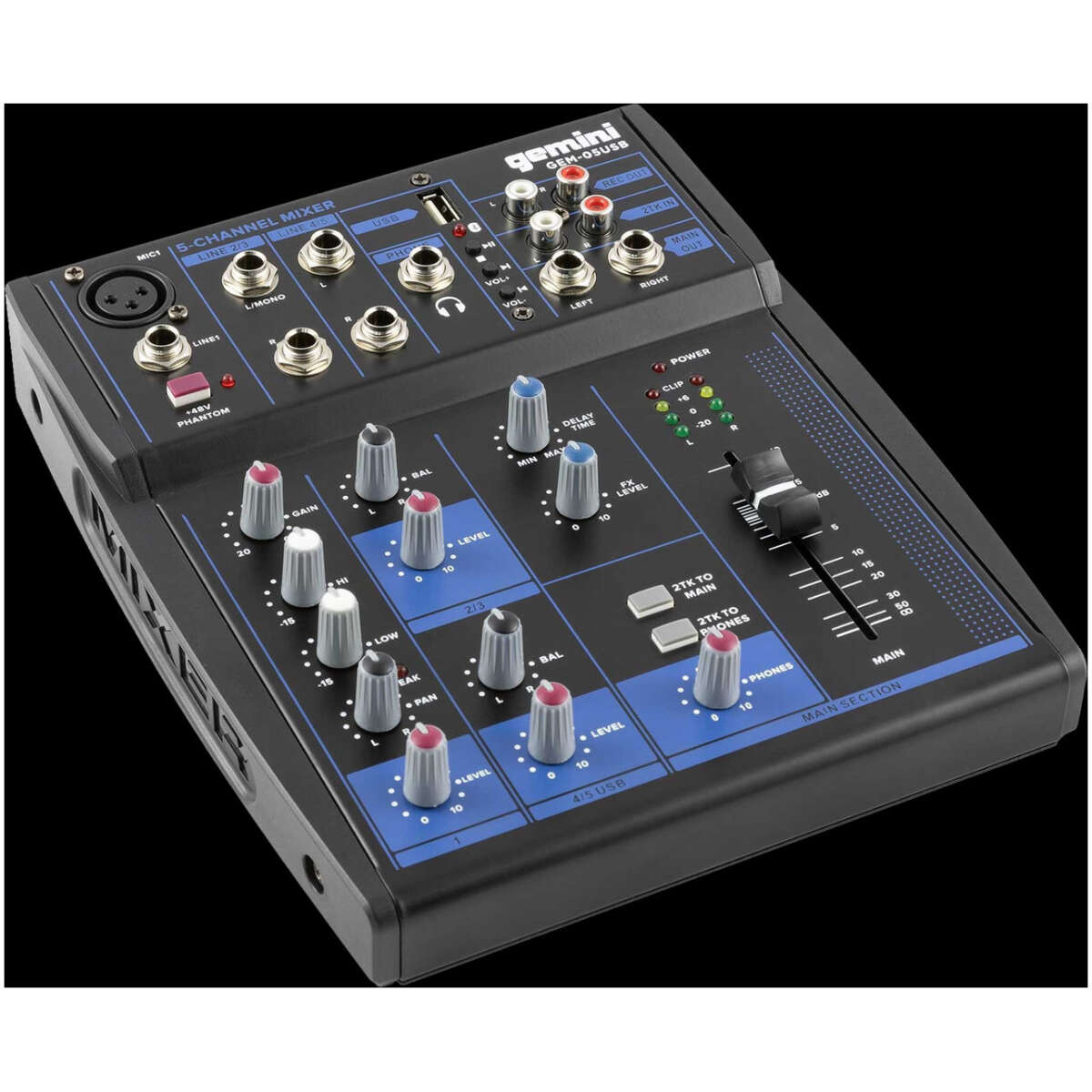

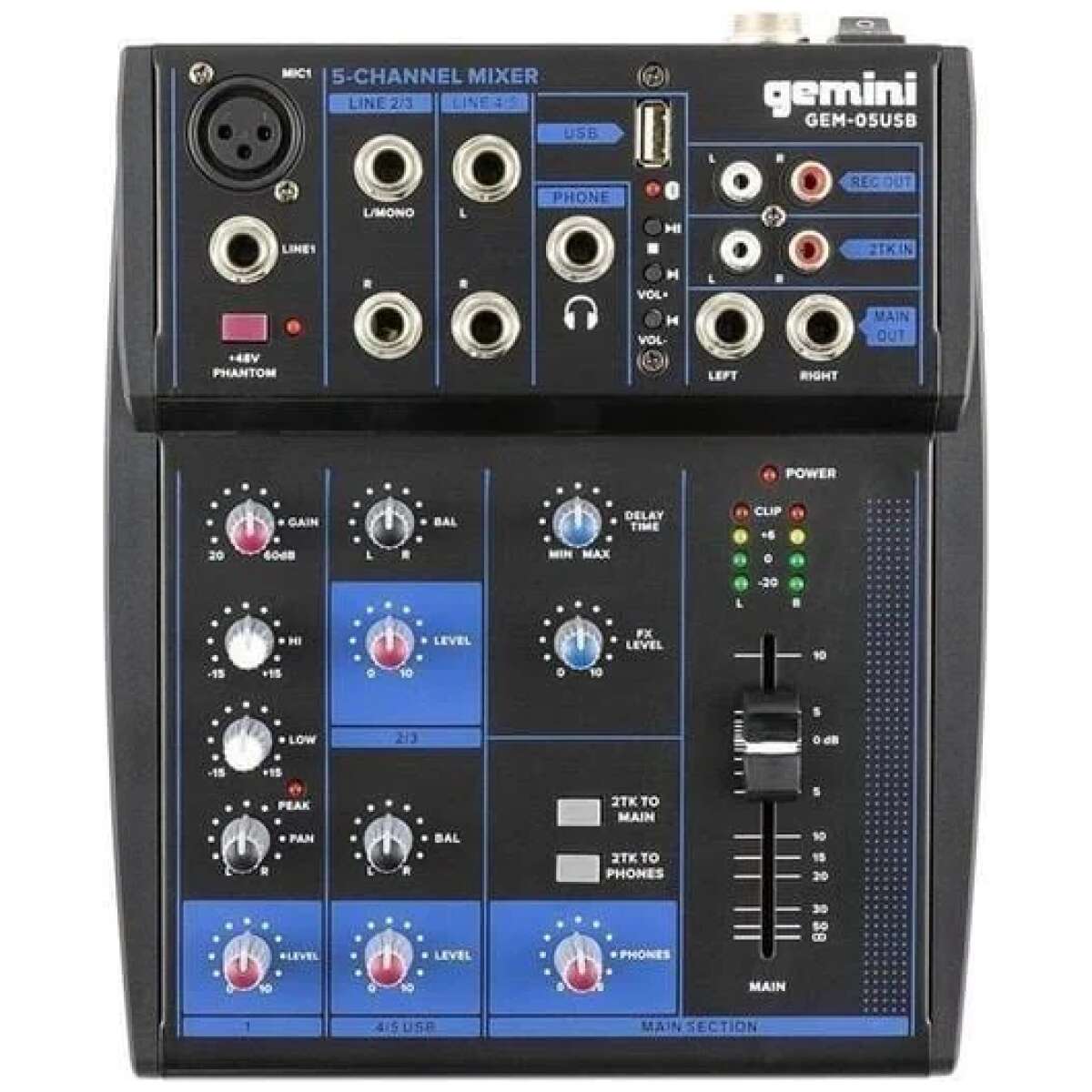

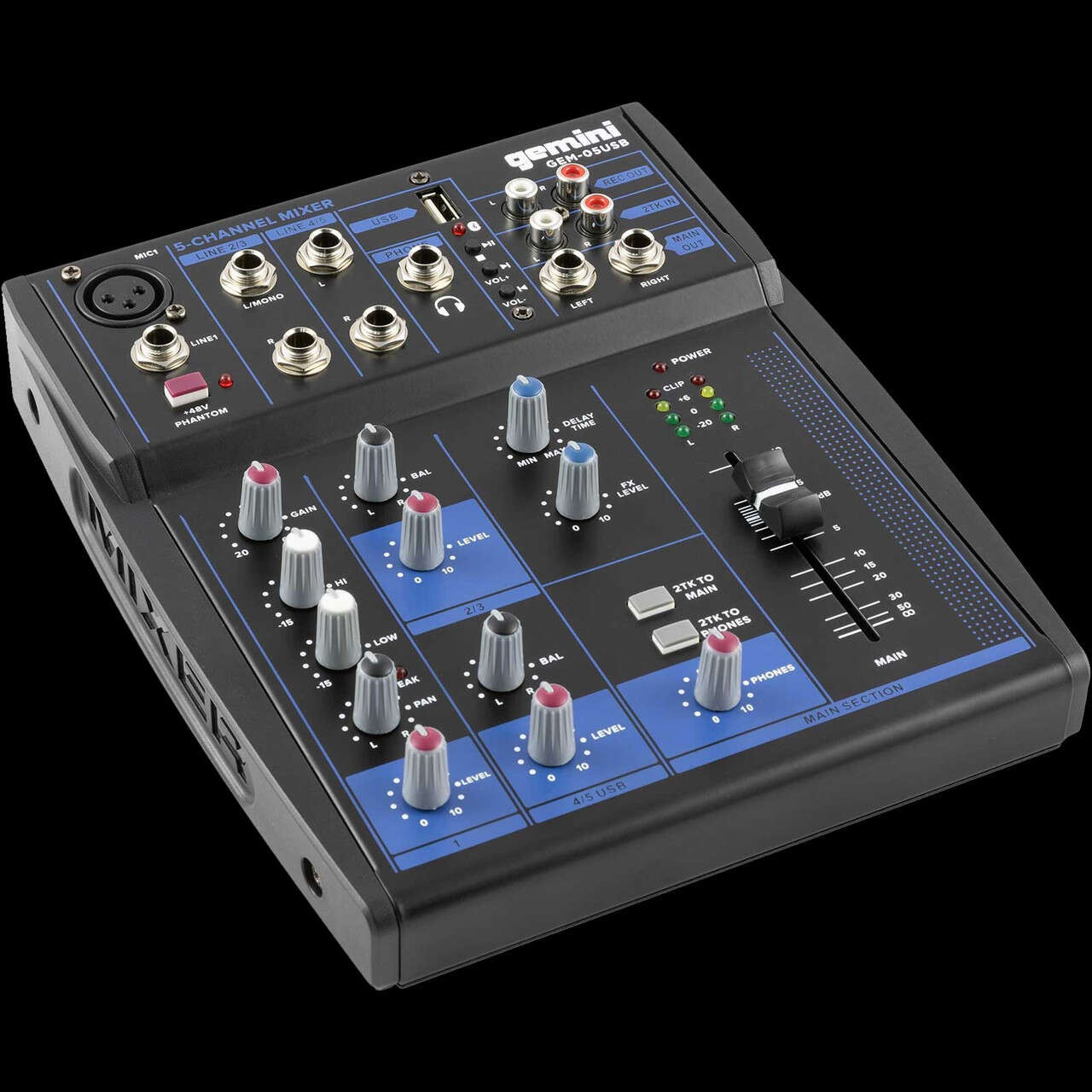

Gemini GEM-05USB Compact 5-Channel Mixer

The Gemini GEM-05USB is a compact 5-channel analogue mixer designed for podcasts, karaoke, home recording, small live performances and portable sound systems. Its space-saving design provides essential mixing controls without requiring a large console.

The mixer includes an XLR microphone input with switchable +48V phantom power, allowing the use of compatible condenser and dynamic microphones. Built-in Bluetooth and USB media playback make it easy to play backing tracks, playlists and other audio directly from a smartphone or USB storage device.

Key Features

• Compact 5-channel mixer
• XLR microphone input
• Switchable +48V phantom power
• Bluetooth audio streaming
• USB playback for MP3 and WAV files
• Two-band high and low EQ on the microphone channel
• Adjustable onboard delay effect
• Stereo pan control
• Dedicated headphone output with level control
• LED master-level and clipping indicators
• Suitable for podcasts, karaoke, recording and small live setups

Inputs

• 1 × balanced XLR microphone input
• 5 × 6.35mm line inputs
• Stereo RCA input
• USB media input
• Bluetooth audio input

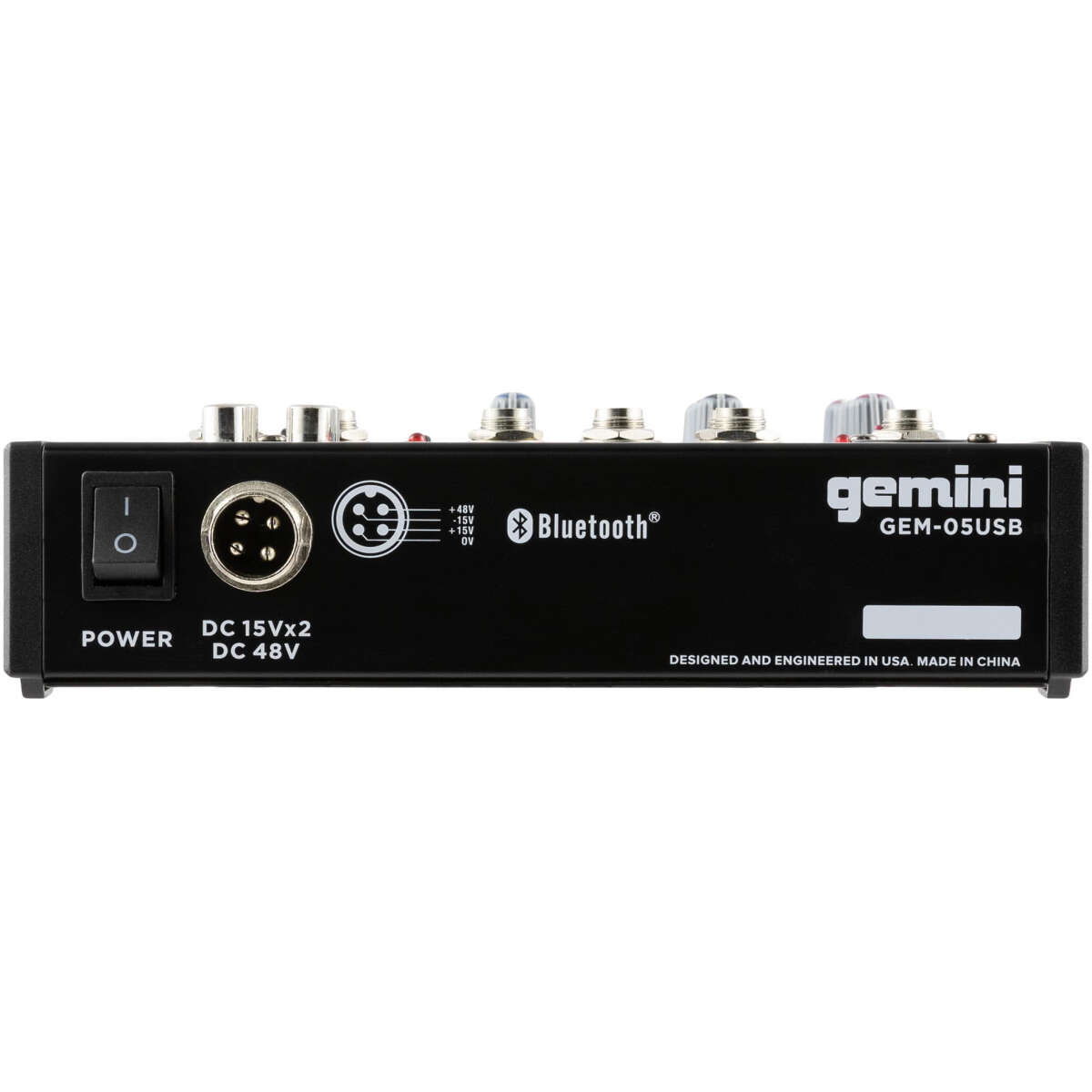

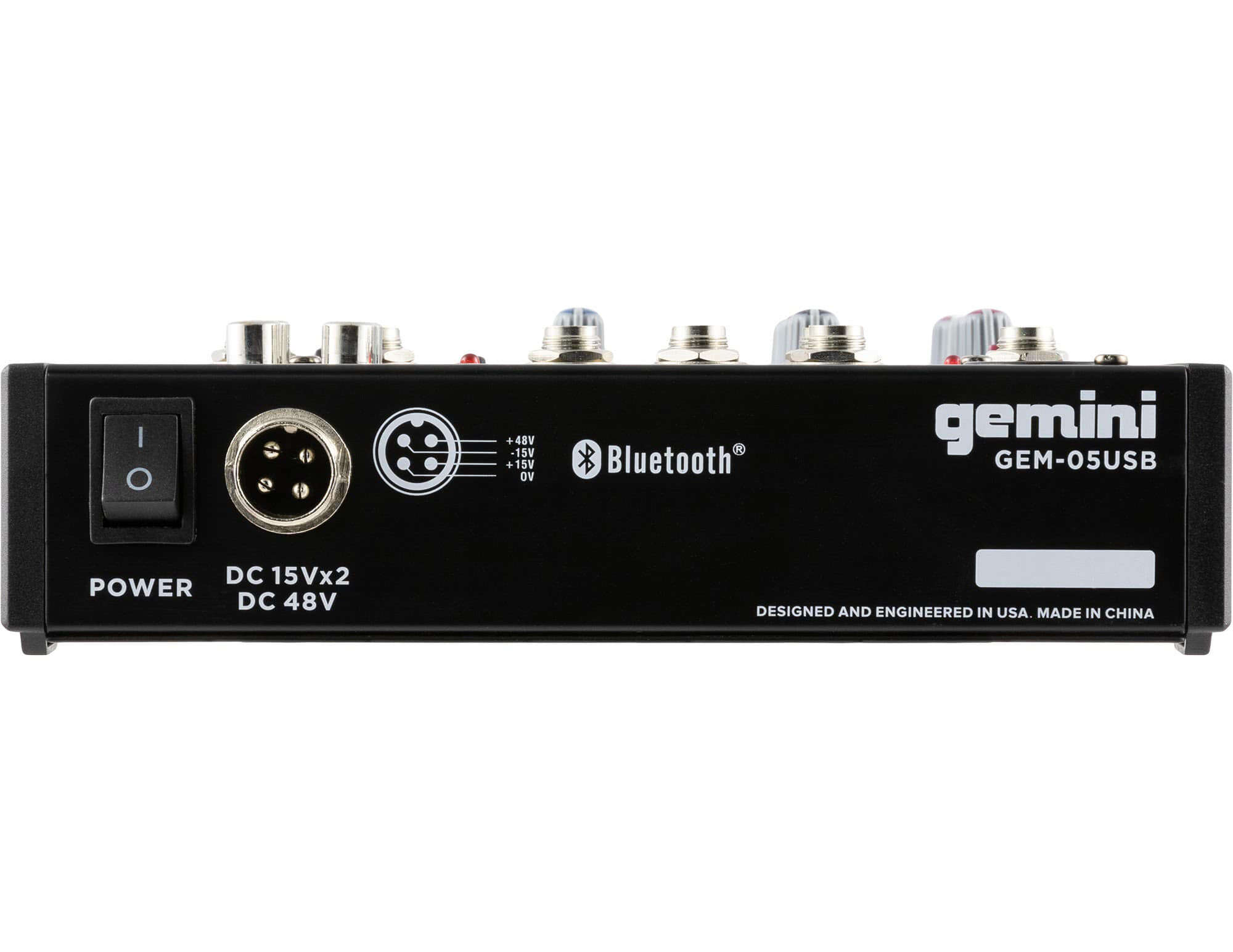

Outputs

• 2 × 6.35mm main outputs
• Stereo RCA output
• 6.35mm headphone output

Specifications

• Channels: 5
• Microphone preamps: 1
• Phantom power: +48V
• Equaliser: Two-band high and low EQ
• Built-in effect: Adjustable delay
• Supported media formats: MP3 and WAV
• Power input: 15V DC power adaptor
