Specifications
Concept Active 2-way loudspeaker
Cabinet principle Bass reflex
Max. SPL average2 125 dB
Max. SPL peak3 130 dB
Max. SPL calculated5 133 dB
Crossover frequency 2.5 kHz
Frequency range -6 dB60 Hz – 16 kHz
Frequency range -10 dB54 Hz – 18 kHz
Dispersion angle -6 dB (horizontal x vertical)90° x 55°
Index
Index 2)1 x unit @ 1 m, 10 % THD, 100 Hz – 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD @ 2.5 kHz, half space
Index 5)Calculated with 120 W and measured peak of 106 dB (1W/1m), half space
Components
Mid/high frequency 1 x 15″ cone speaker
High frequency 1 x 1″ compression driver
Horn Constant directivity horn

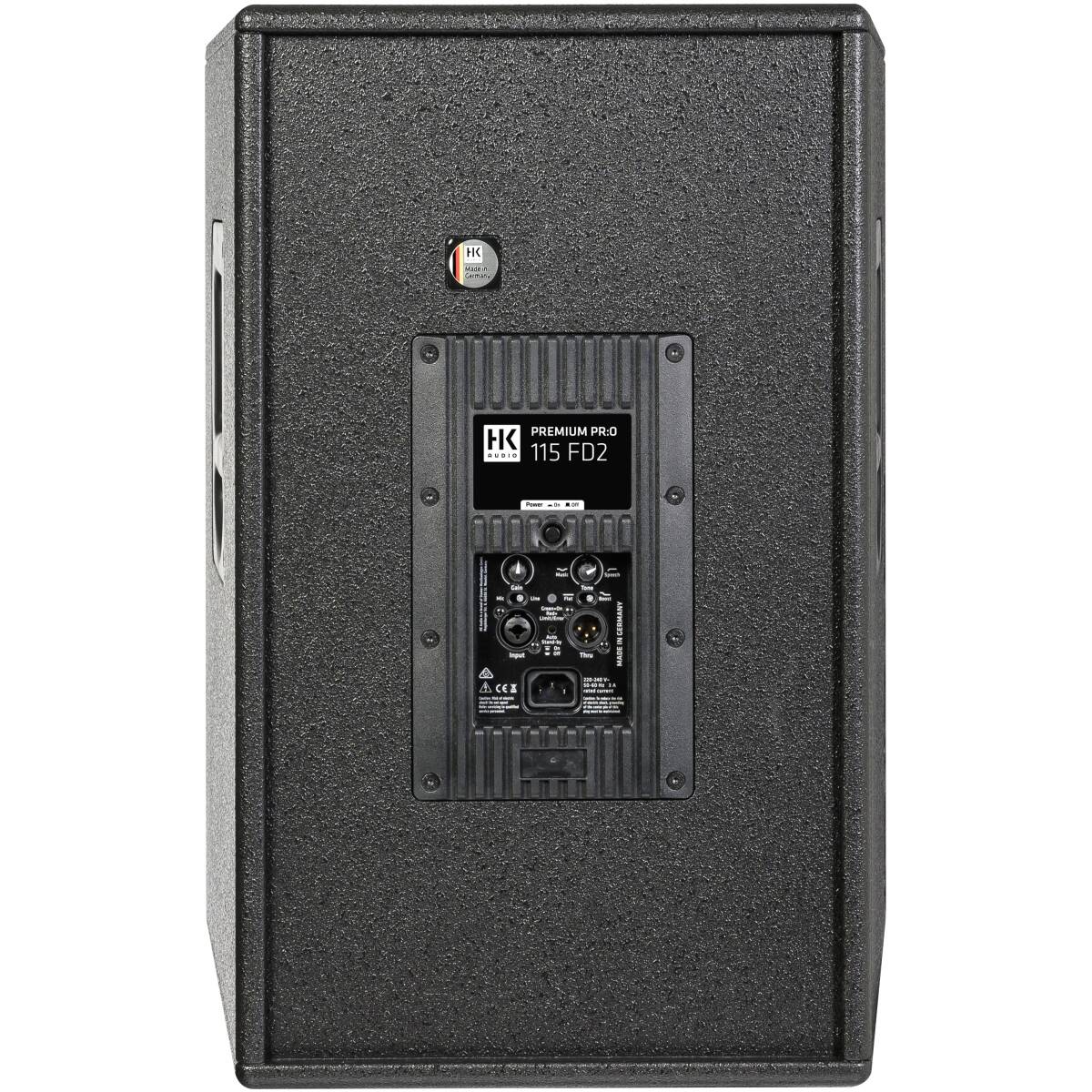

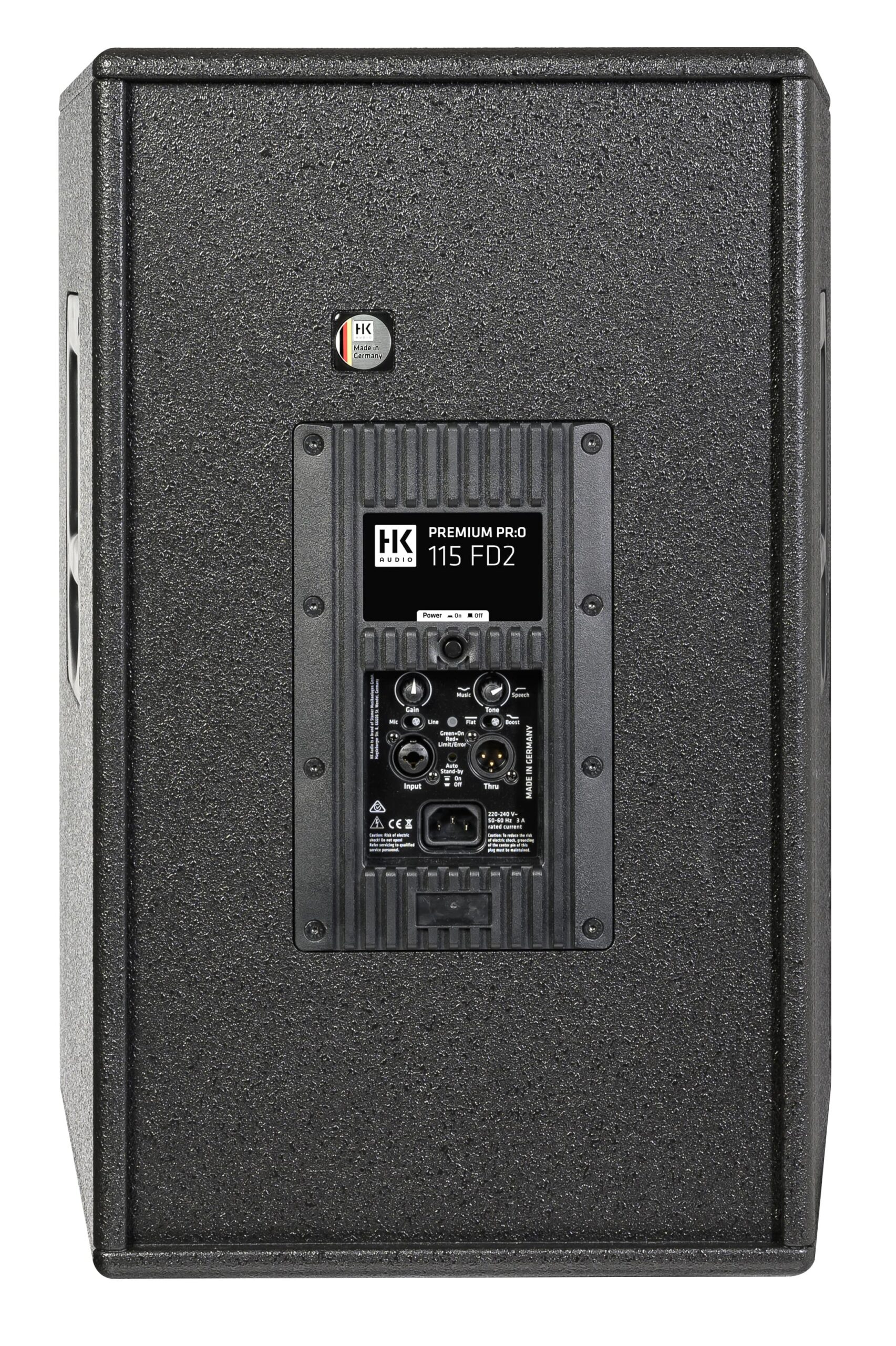

Connections
Analog input1 x XLR/jack combo symm. (Mic/Line)
Analog output 1 x XLR-Thru symm.
Electronical data
Power amplifier Class D – Biamped
Power amplifier output peak1200 W
Speaker protection Peak- und RMS-Sound-Limiter (separately for HF and LMF)
DSP functions Tone control (Music/Speech)
Filter presets
Mechanical data

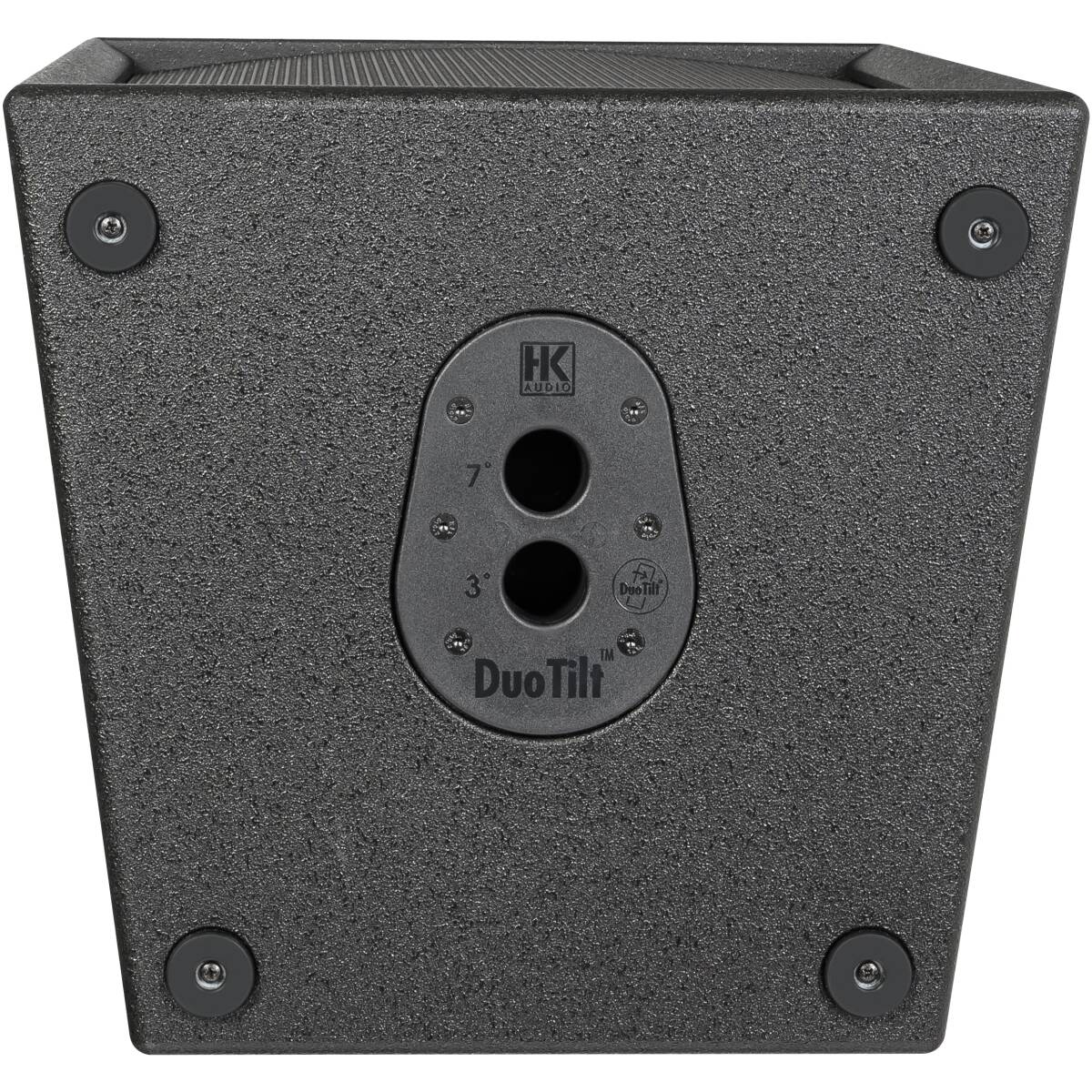

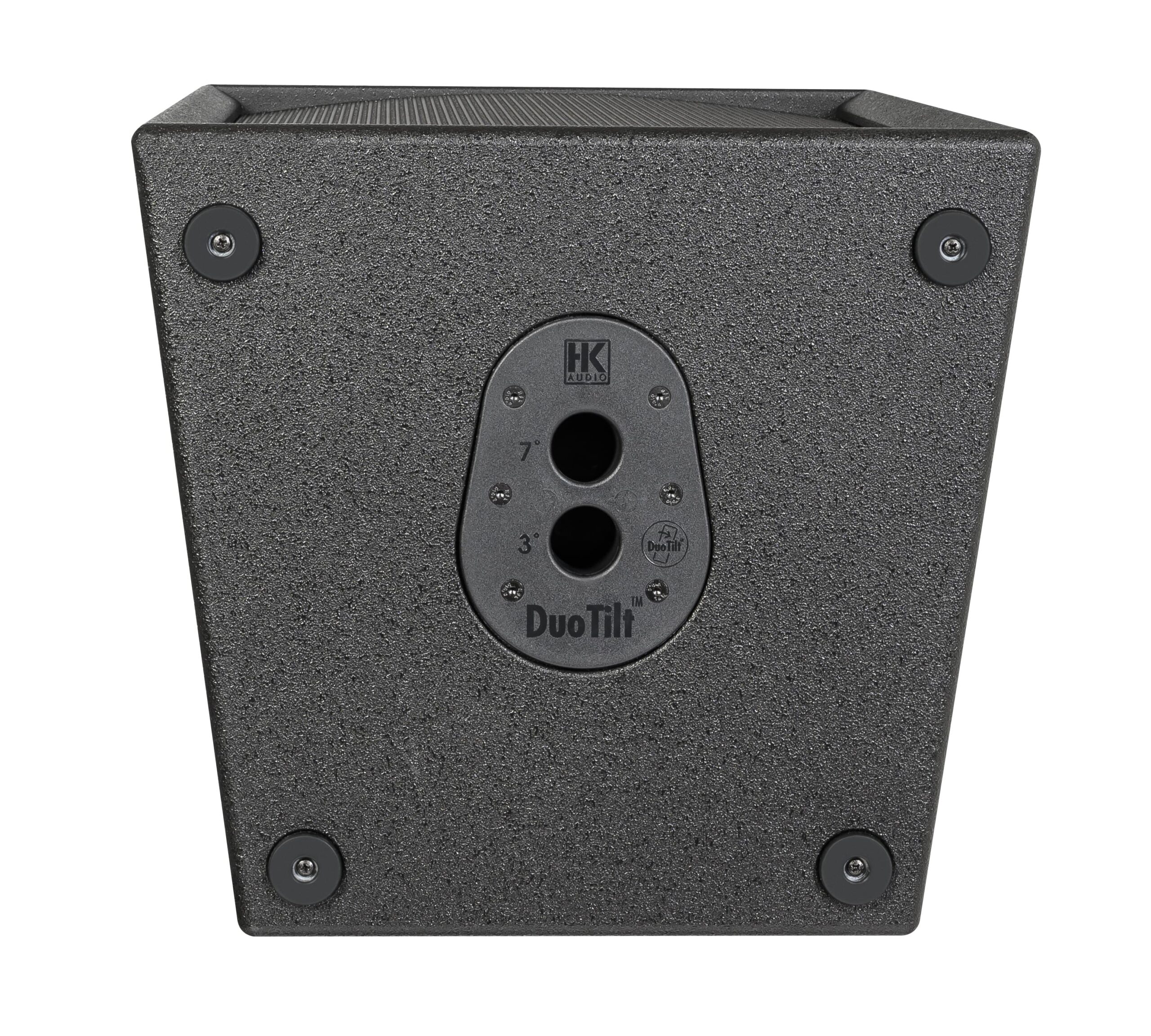

Cabinet features/rigging DuoTilt 3/7

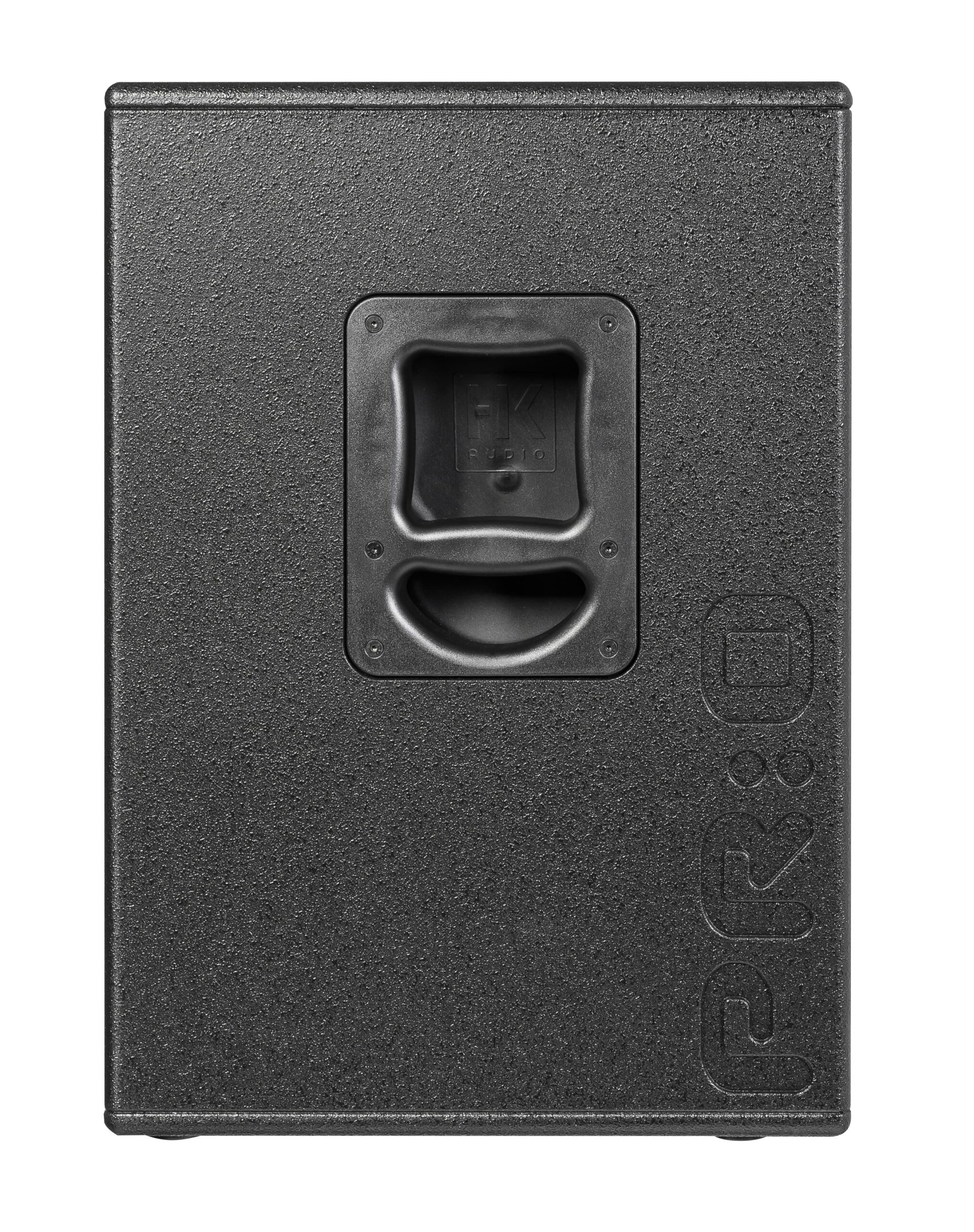

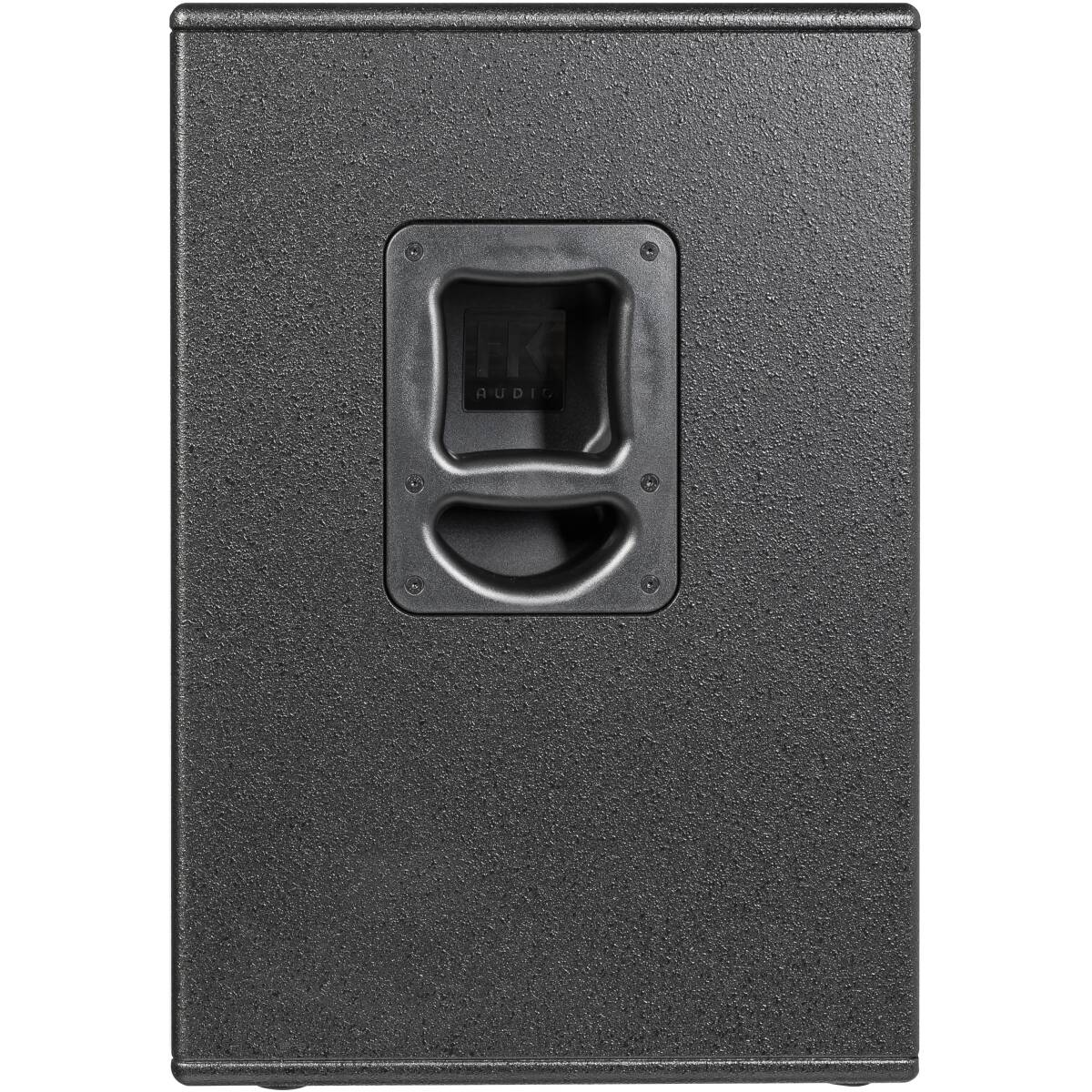

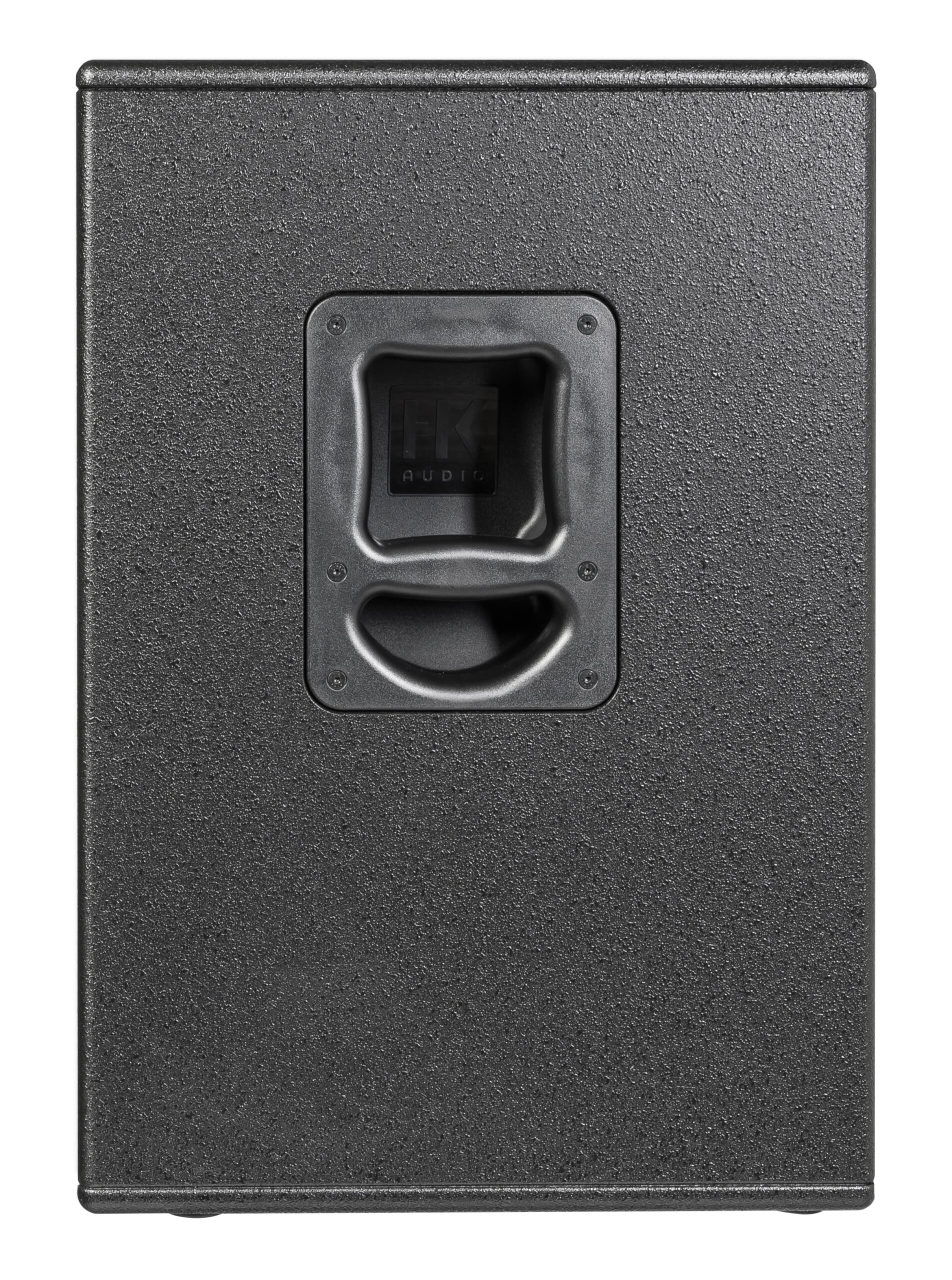

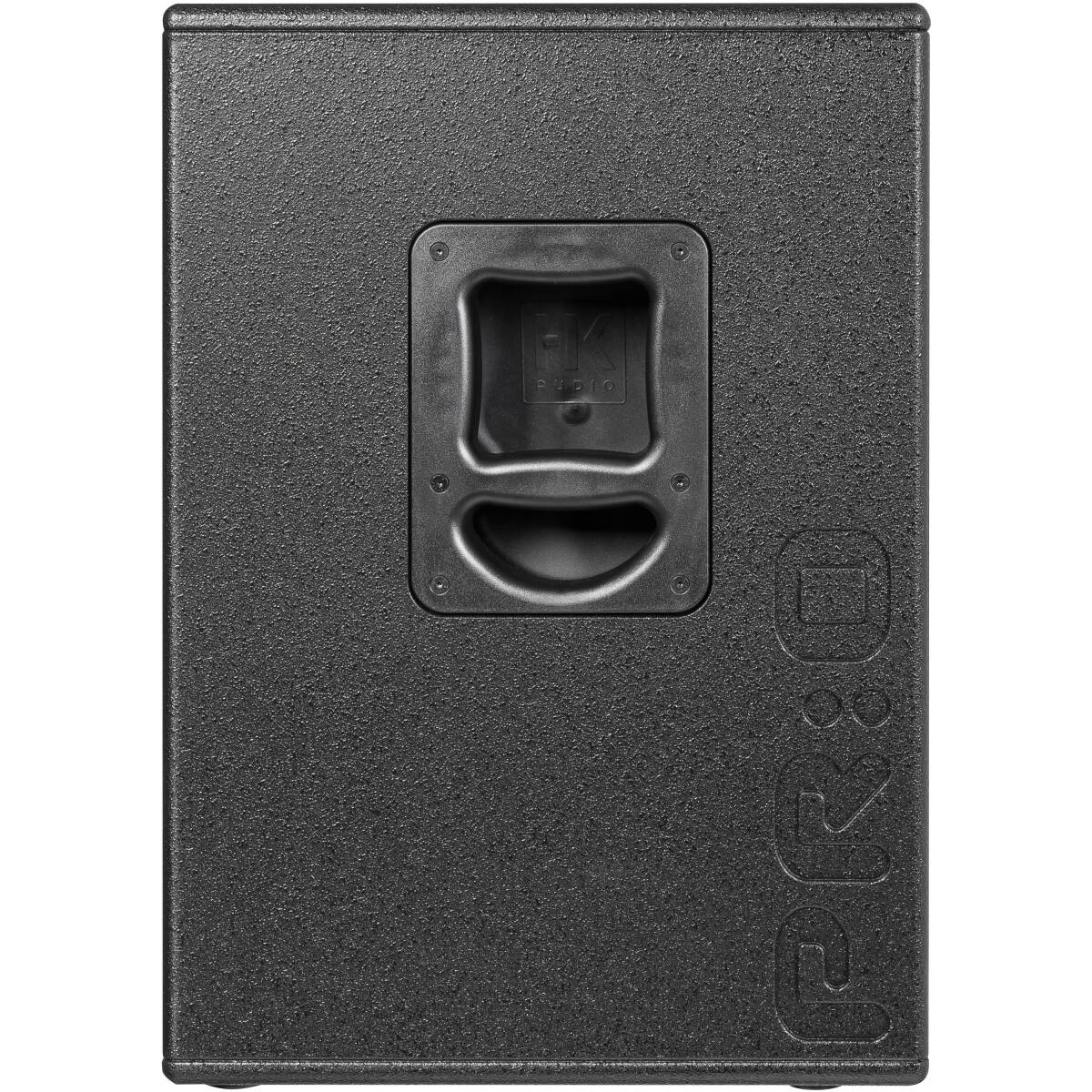

Carrying handles2, MultiGrip
Cabinet material MDF
Cabinet surface acrylic enamel
ColorJet black (RAL 9005)

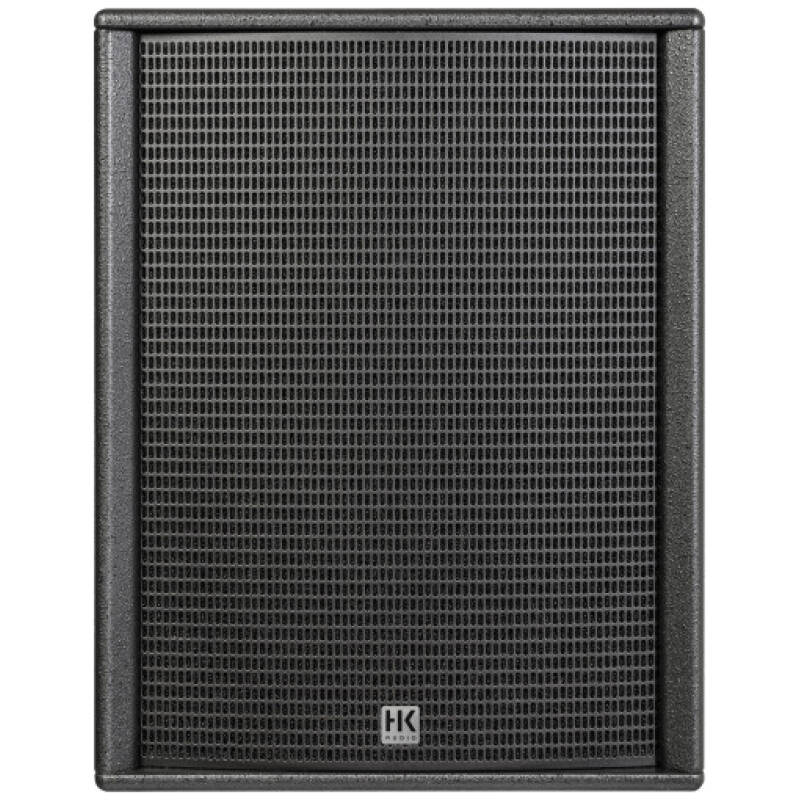

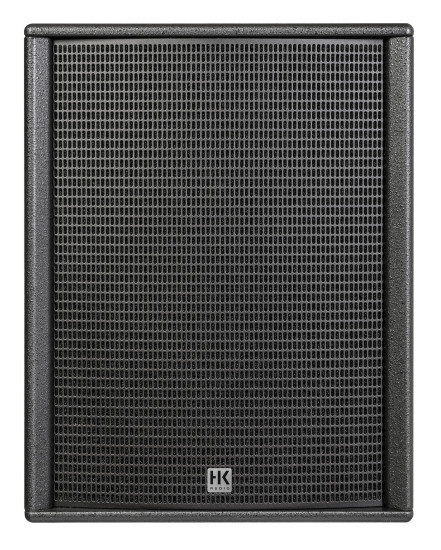

Front grille Steel front grille, backed with acoustic foam
Dimensions (W x H x D), metric 47.5 x 63 x 43 cm
Dimensions (W x H x D), imperial 18-11/16 x 24-13/16 x 16-15/16 inch
Weight, metric 25.7 kg
Weight, imperial 56.7 lbs
