Specifications
Concept Active 2-way loudspeaker
Cabinet principle Bass reflex
Max. SPL peak3123 dB
Frequency range -6 dB65 Hz – 18 kHz
Frequency range -10 dB55 Hz – 20 kHz
Dispersion angle -6 dB (horizontal x vertical)70° x 70°
Index
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Mid/high frequency 1 x 8″ cone speaker
High frequency 1 x 1″ compression driver
Horn Constant directivity horn

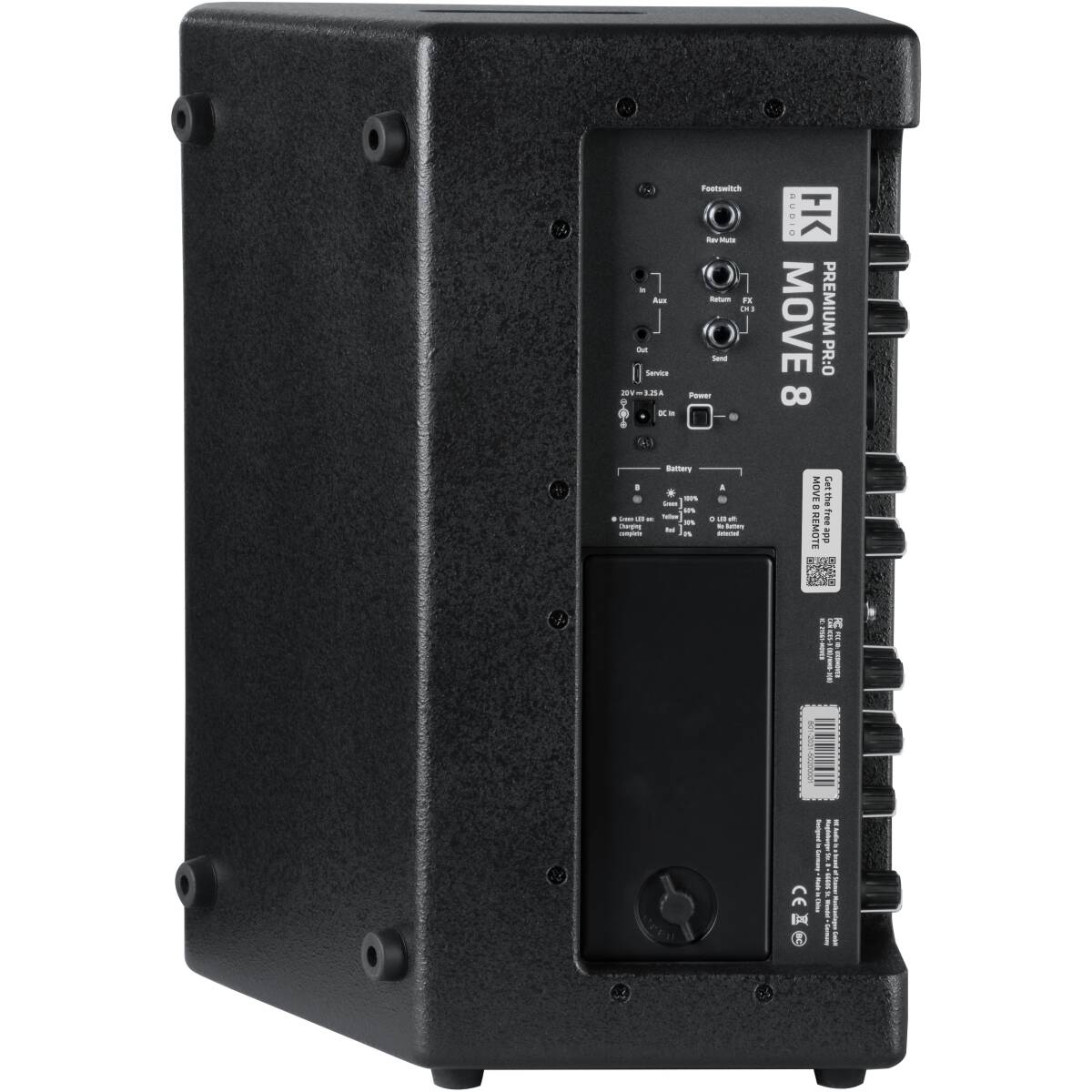

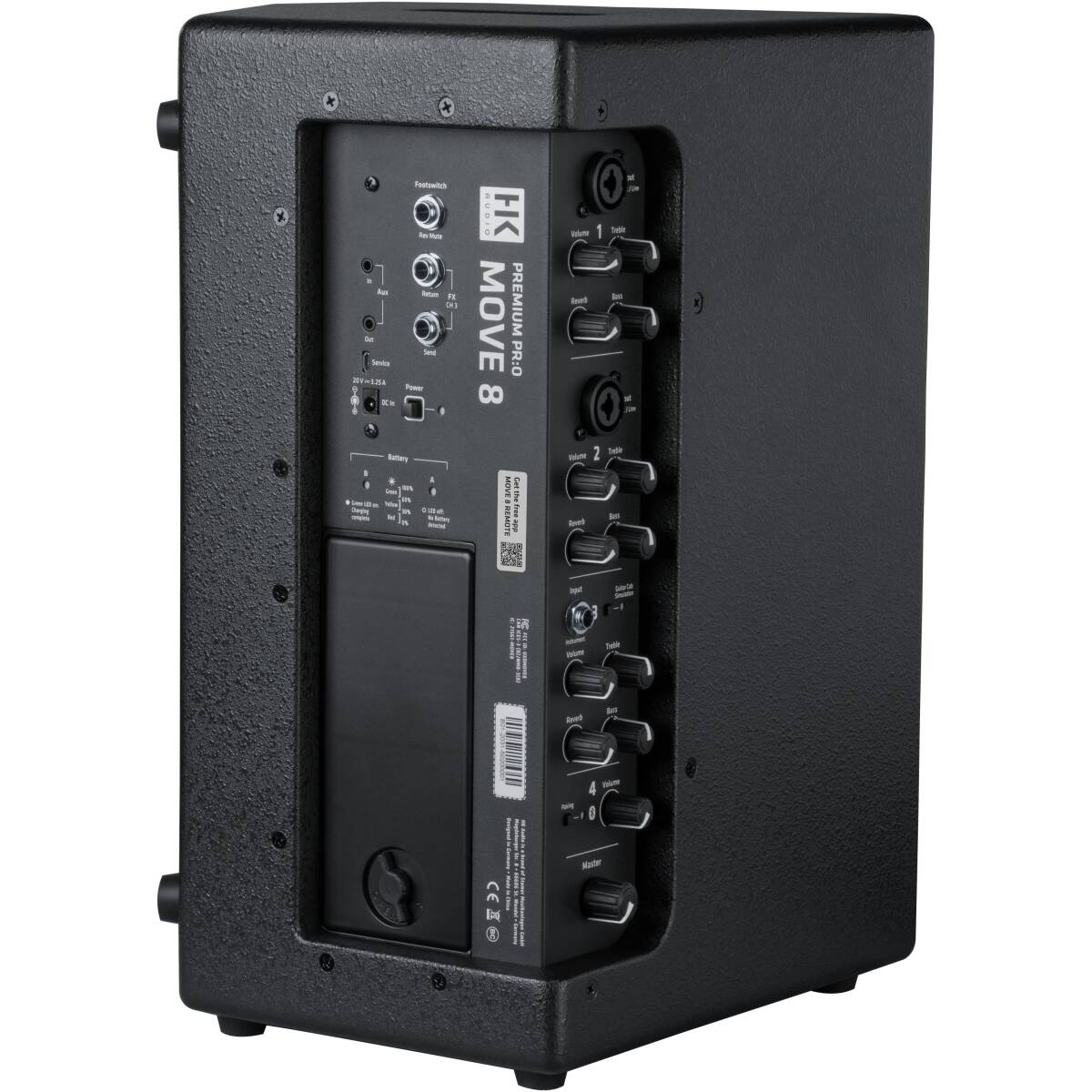

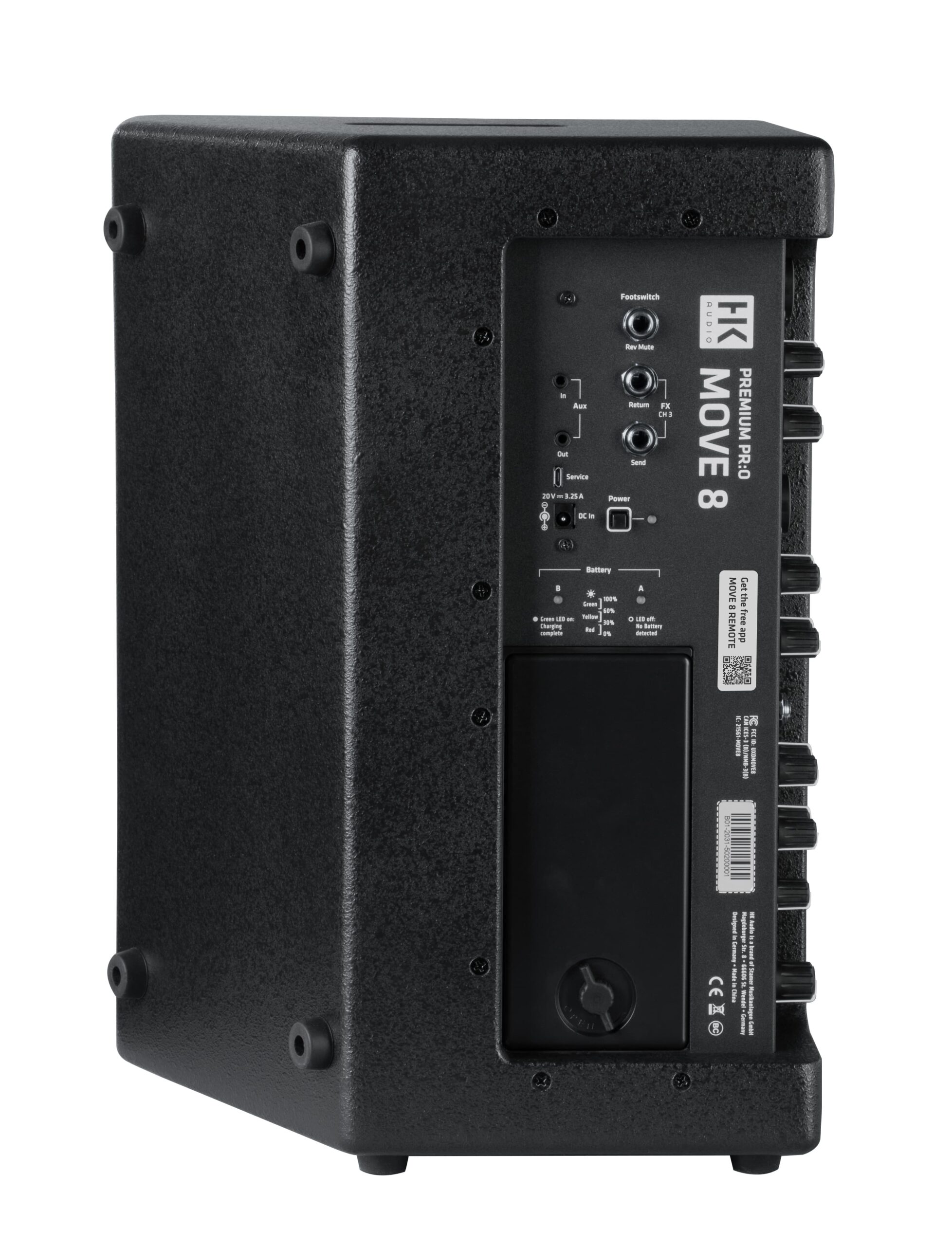

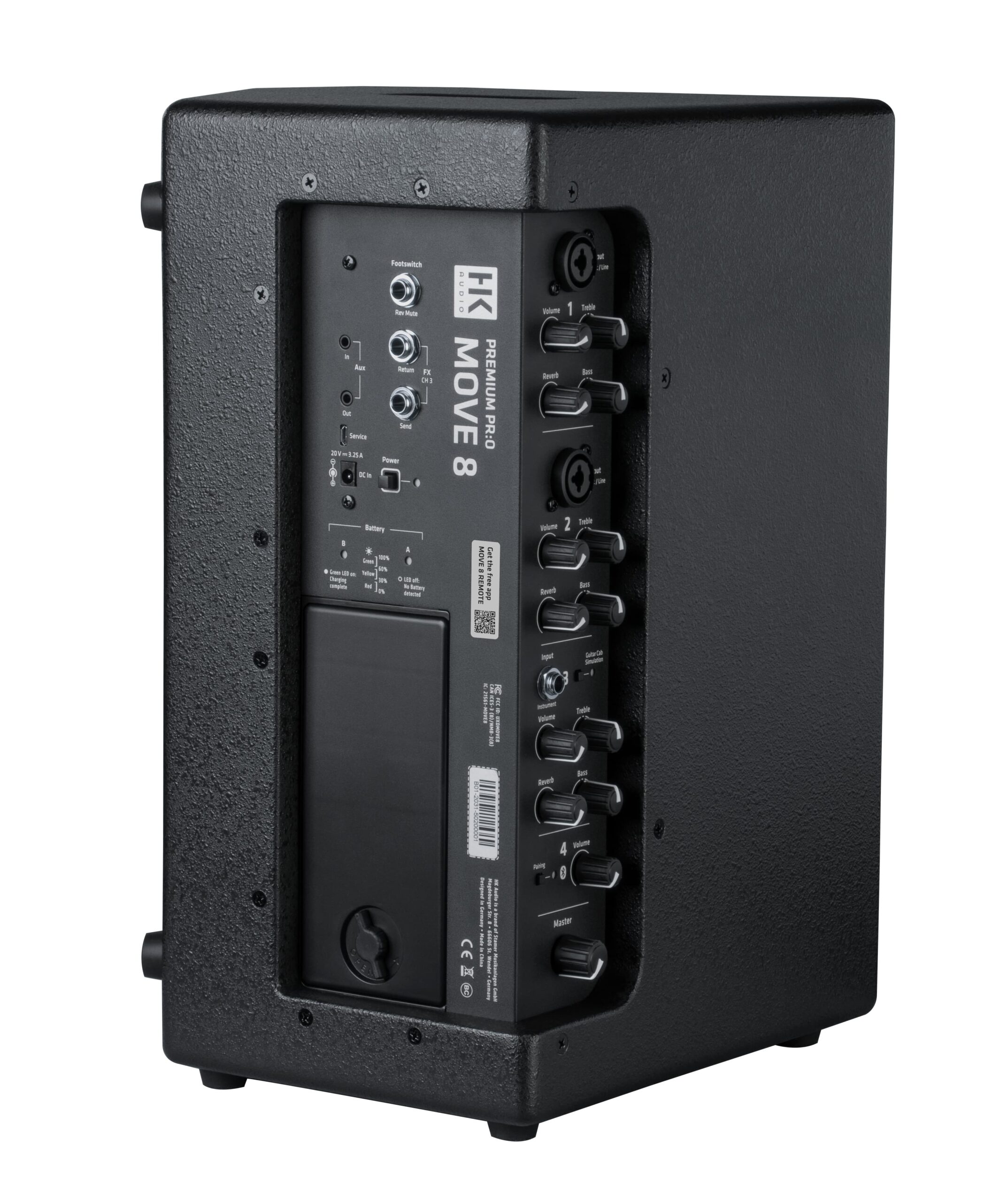

Connections
Analog input2 x XLR/jack combo (Mic/Line), 1 x 6.3 mm (1/4″) jack plug (Instrument), 1 x 3.5 mm (1/8″) stereo mini jack, 1 x 6.3 mm (1/4″) jack plug foot switch (Reverb on/off)
Analog output1 x 3.5 mm (1/8″) stereo mini jack
Electronical data
Power amplifier Class D
Power amplifier output peak60 W
Speaker protection Peak- und RMS-Sound-Limiter (separately for HF and LMF)
Remote app HK Audio MOVE 8 REMOTE (iOS, Android)
Bluetooth Yes (5.0)
Battery
Battery capacity 5.200 mAh
Runtime up to 11 hours
Charging time in the product approx. 5 hours per battery
Charging time with external charging station approx. 2 hours per battery
Uninterrupted battery change (hot swap)Yes
Dimensions (W x H x D), metric 8 x 3 x 8,3 cm
Dimensions (W x H x D), imperial 3-5/32 x 1-3/16 x 3-9/32 inch
Weight (W x H x D), metric 250 g
Weight (W x H x D), imperial 0,6 lbs
Mechanical data
Cabinet features/rigging pole mount 35 mm, monitor angle 33°
Carrying handles1 x Single Grip
Cabinet material MDF
Cabinet surface acrylic enamel
Color Jet black (RAL 9005)

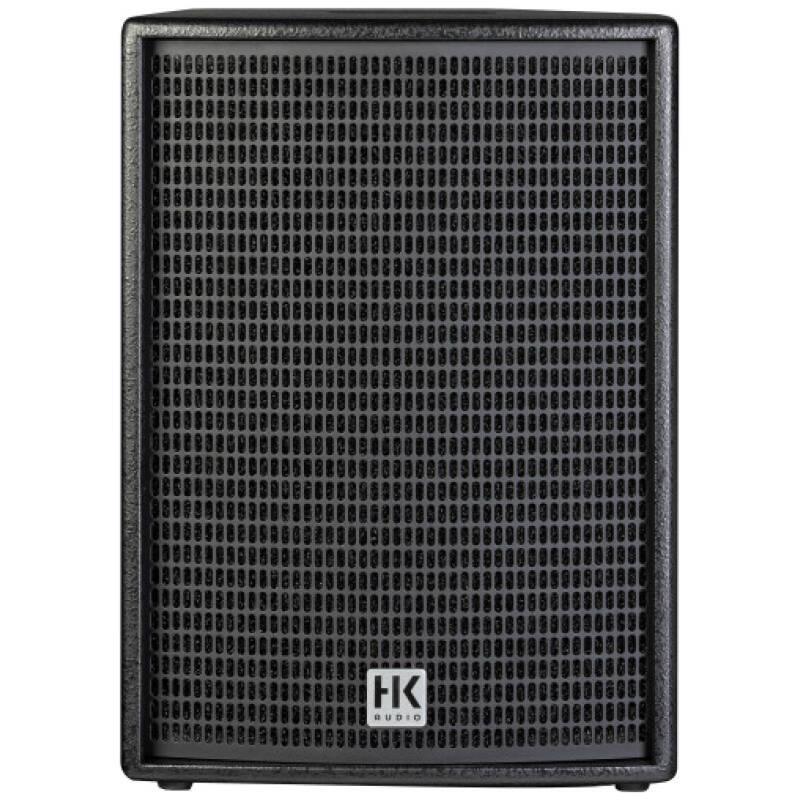

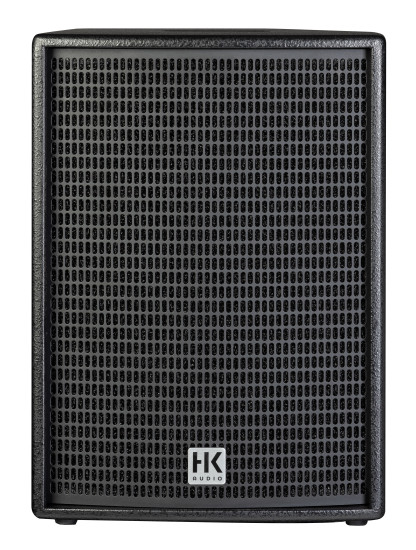

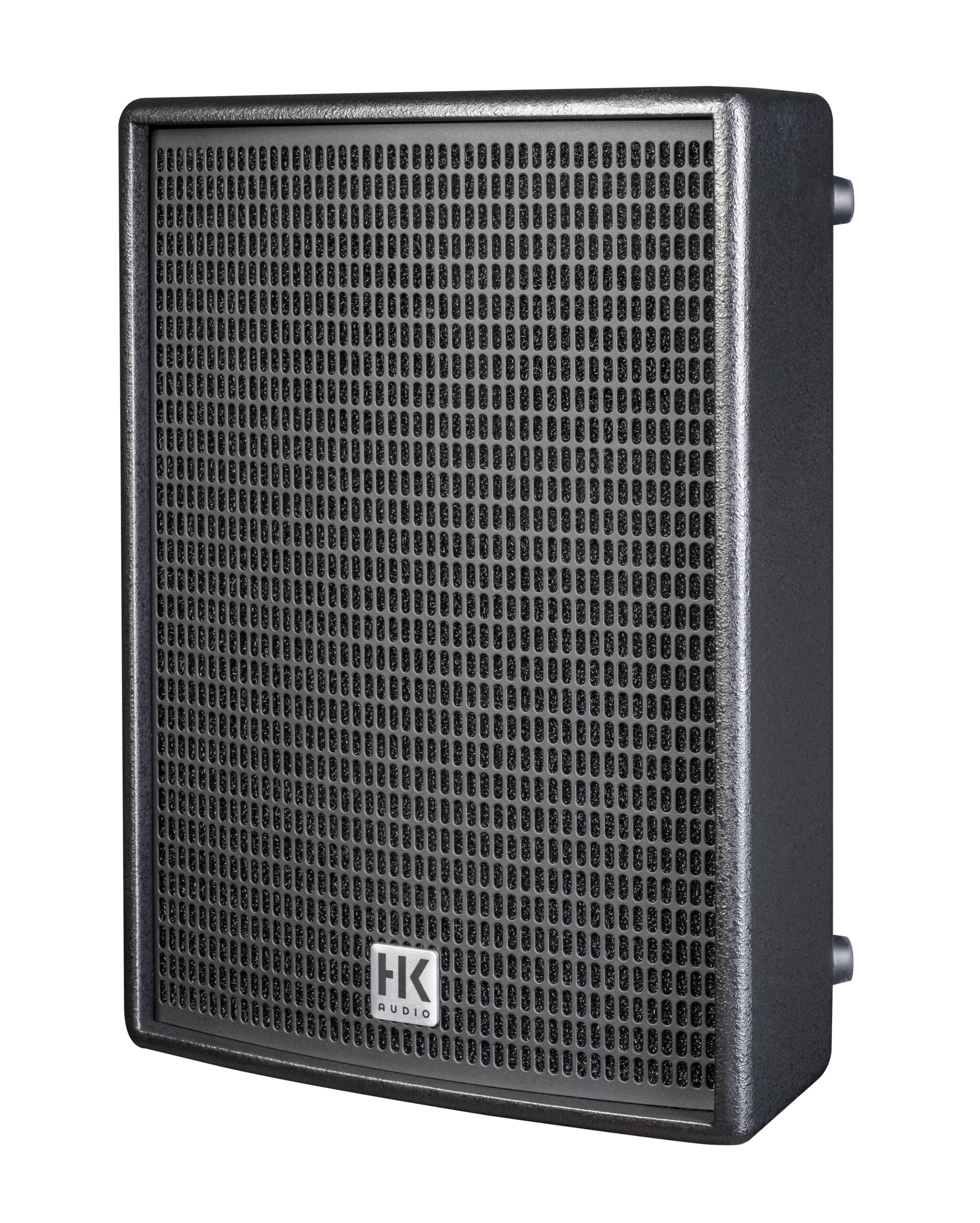

Front grille Steel front grille, backed with acoustic foam
Dimensions (W x H x D), metric 29 x 41 x 28 cm
Dimensions (W x H x D), imperial 11-13/32 x 16-5/32 x 11-1/32 inch
Weight, metric 8.5 kg
Weight, imperial 18.7 lbs
