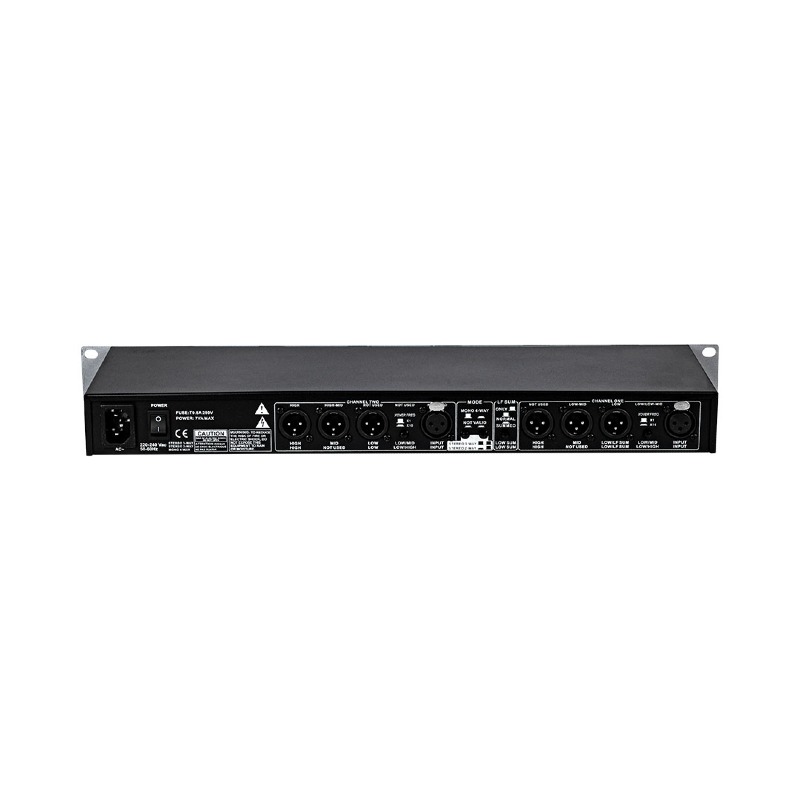

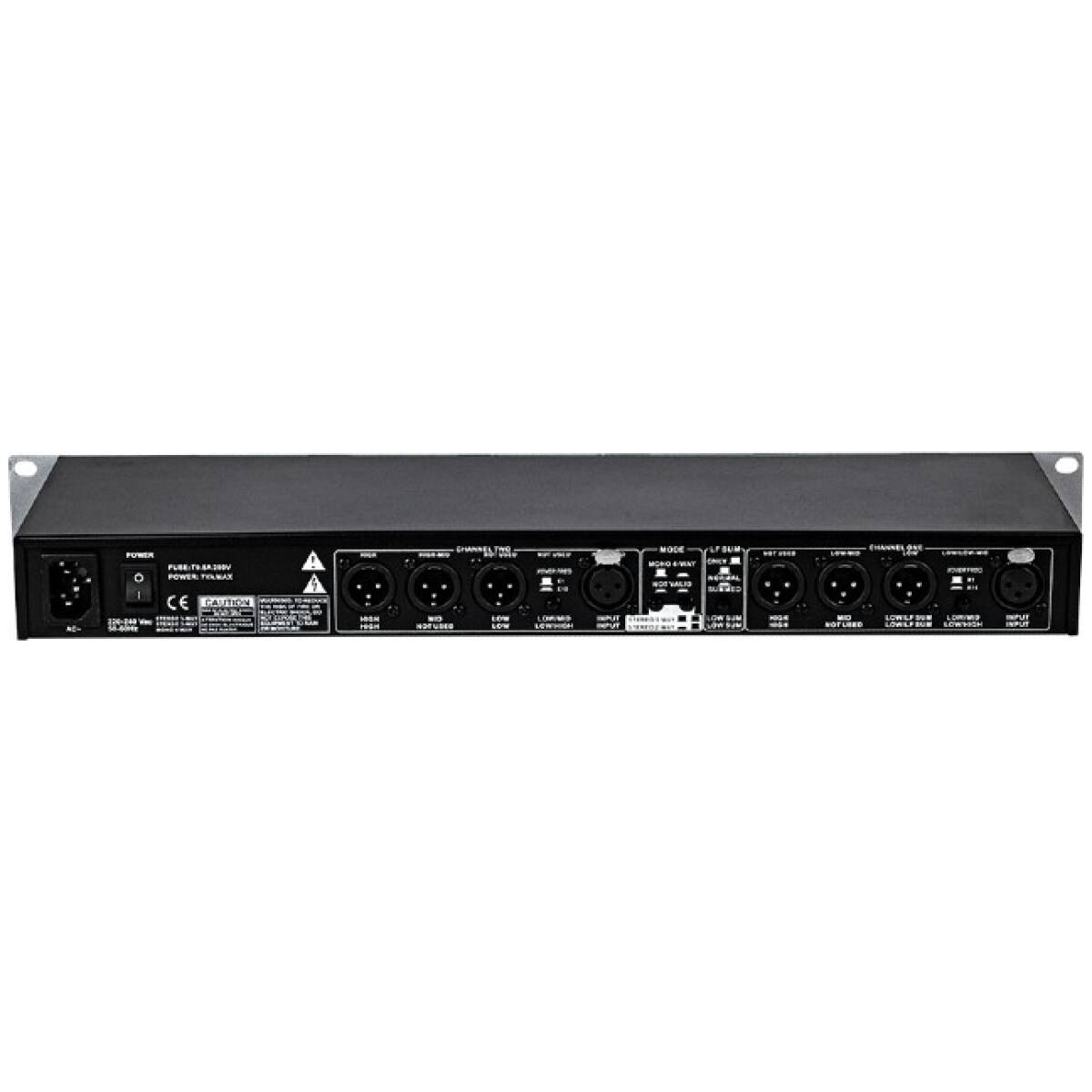

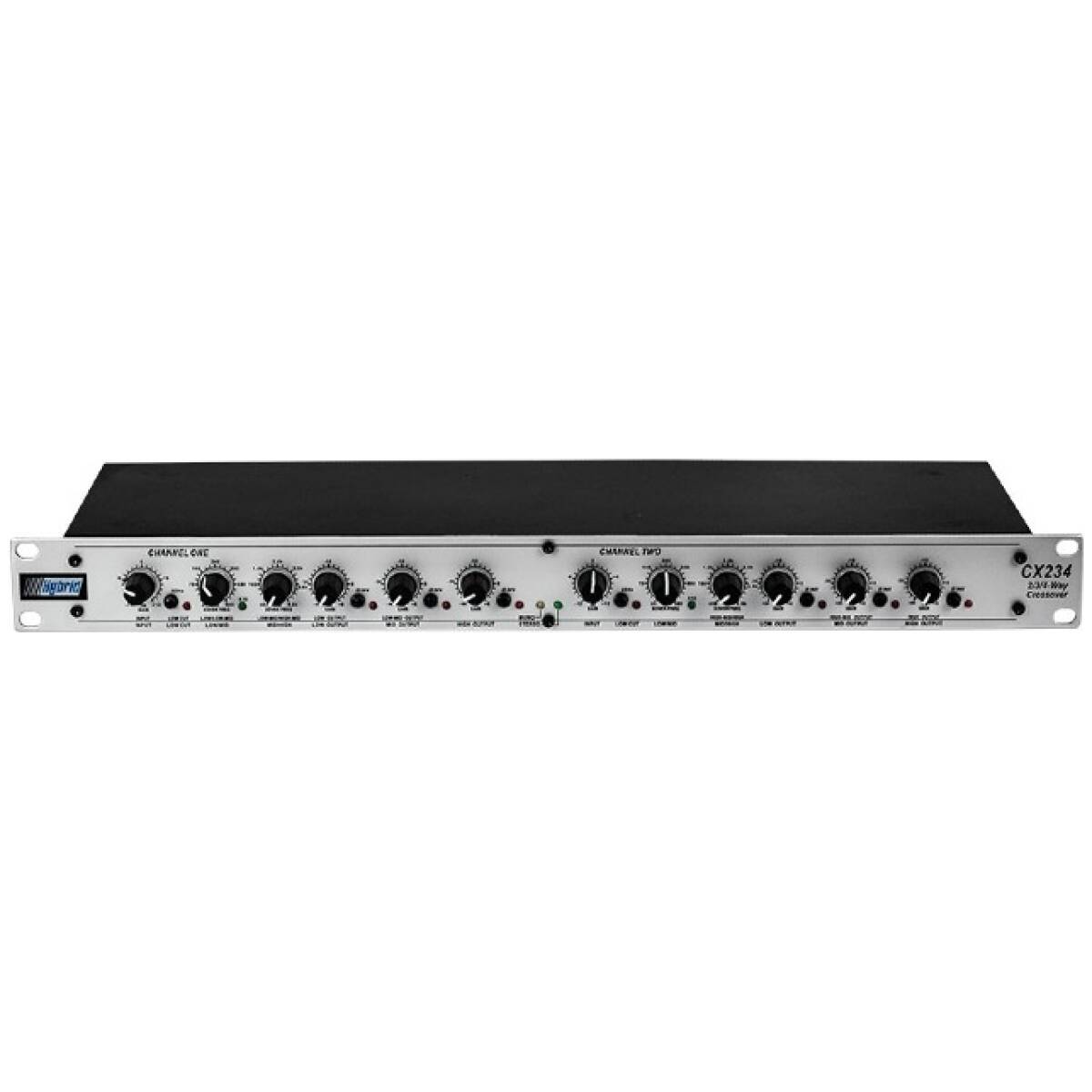

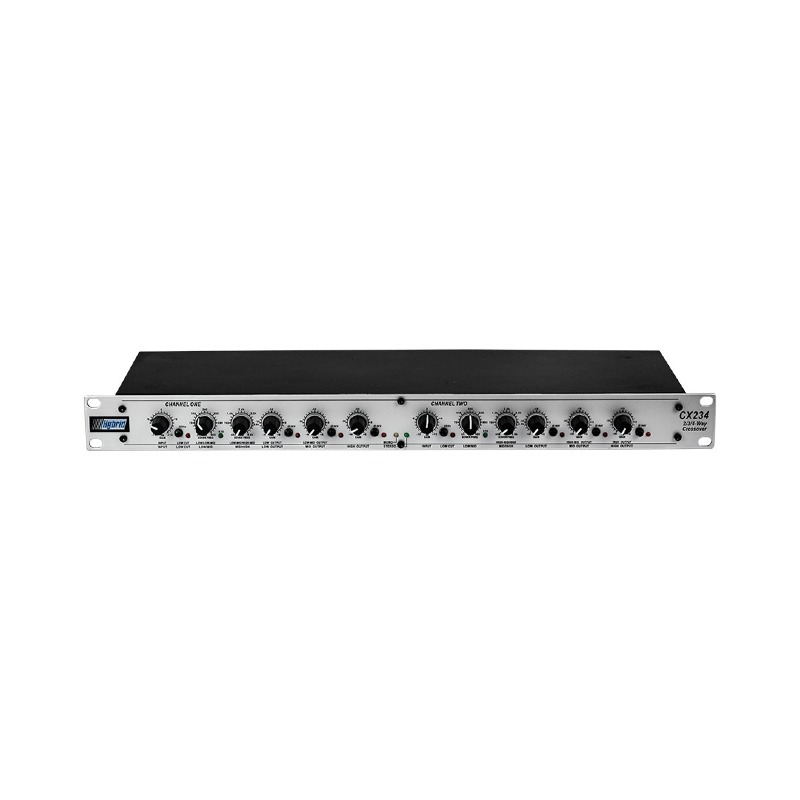

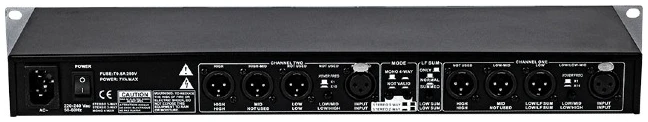

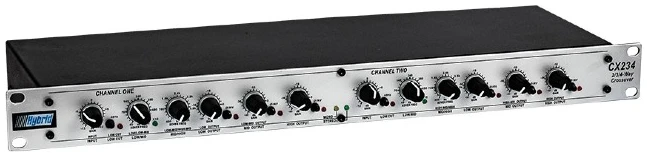

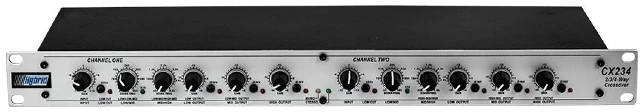

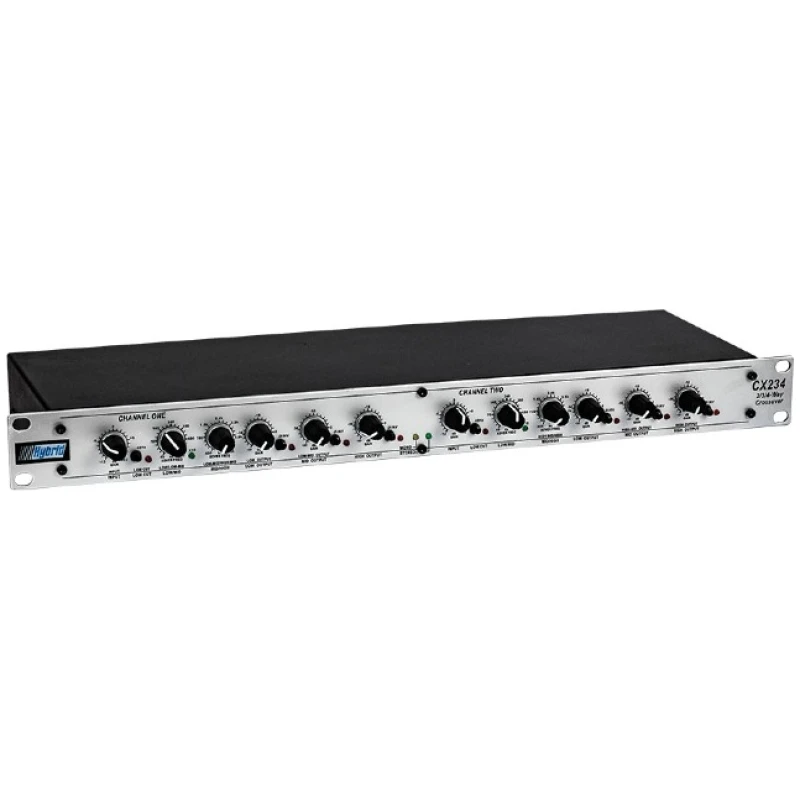

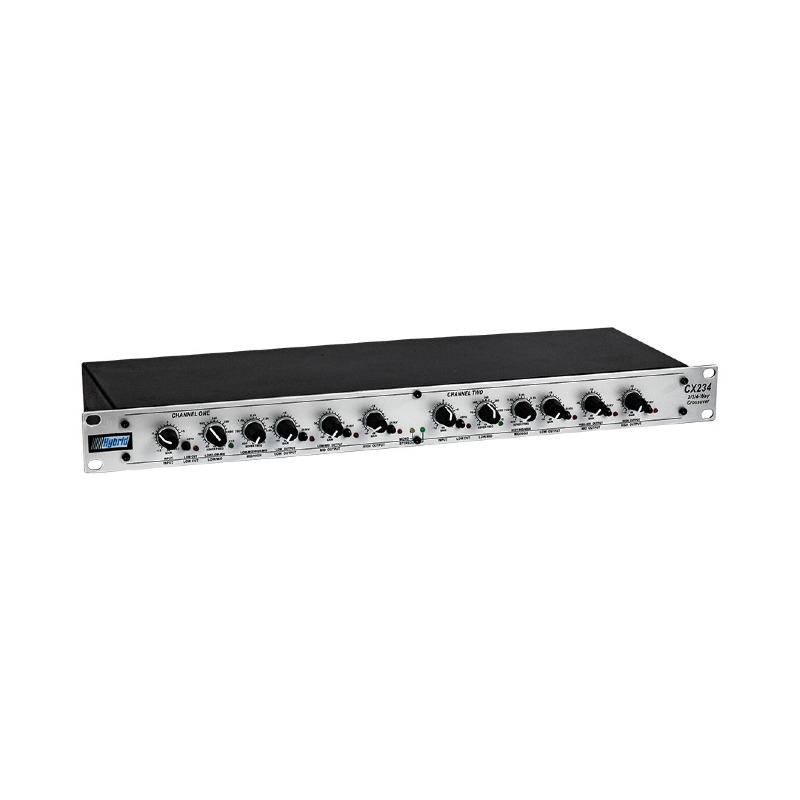

Hybrid CX234 2-Way Stereo / 3-Way Mono Electronic Crossover

The Hybrid CX234 is a professional-grade analog crossover designed to optimize sound system performance by precisely dividing audio frequencies between subwoofers, midrange, and high-frequency drivers. Offering stereo 2-way or mono 3-way operation, it ensures smooth frequency transitions, improved clarity, and maximum amplifier efficiency — ideal for professional PA systems, installations, and DJ rigs.

Specifications

• Configuration: Stereo 2-Way or Mono 3-Way (selectable)
• Inputs: 2 × Balanced XLR
• Outputs: 6 × Balanced XLR (Low, Mid, High)
• Crossover Frequency Range: 45 Hz – 9.6 kHz (variable)
• Filter Type: Linkwitz-Riley, 24 dB/octave
• Frequency Response: 20 Hz – 20 kHz (±0.5 dB)
• THD + N: < 0.005%
• Signal-to-Noise Ratio: > 100 dB
• Low Cut Filter: 25 Hz, 12 dB/oct switchable
• Phase Reverse: Switchable per output band
• Level Controls: Independent gain controls for each output
• Input Impedance: 20 kΩ balanced
• Output Impedance: 200 Ω balanced
• Indicators: Power, Signal, and Clip LEDs
• Power Supply: 100–240 V AC, 50/60 Hz auto-switching

Features

• Stereo 2-way or Mono 3-way crossover flexibility
• Precision 24 dB/oct Linkwitz-Riley filters for accurate frequency division
• Adjustable crossover points with dedicated level controls
• Phase inversion switches for alignment correction
• Low-cut filter to protect subwoofers from ultra-low frequencies
• Balanced XLR I/O for professional connectivity
• Rugged 1U rackmount design for reliability in touring and installation

Applications

• Professional PA and live sound systems
• Subwoofer and full-range cabinet alignment
• Studio monitors and fixed installations
• Mobile DJ and rental sound rigs
