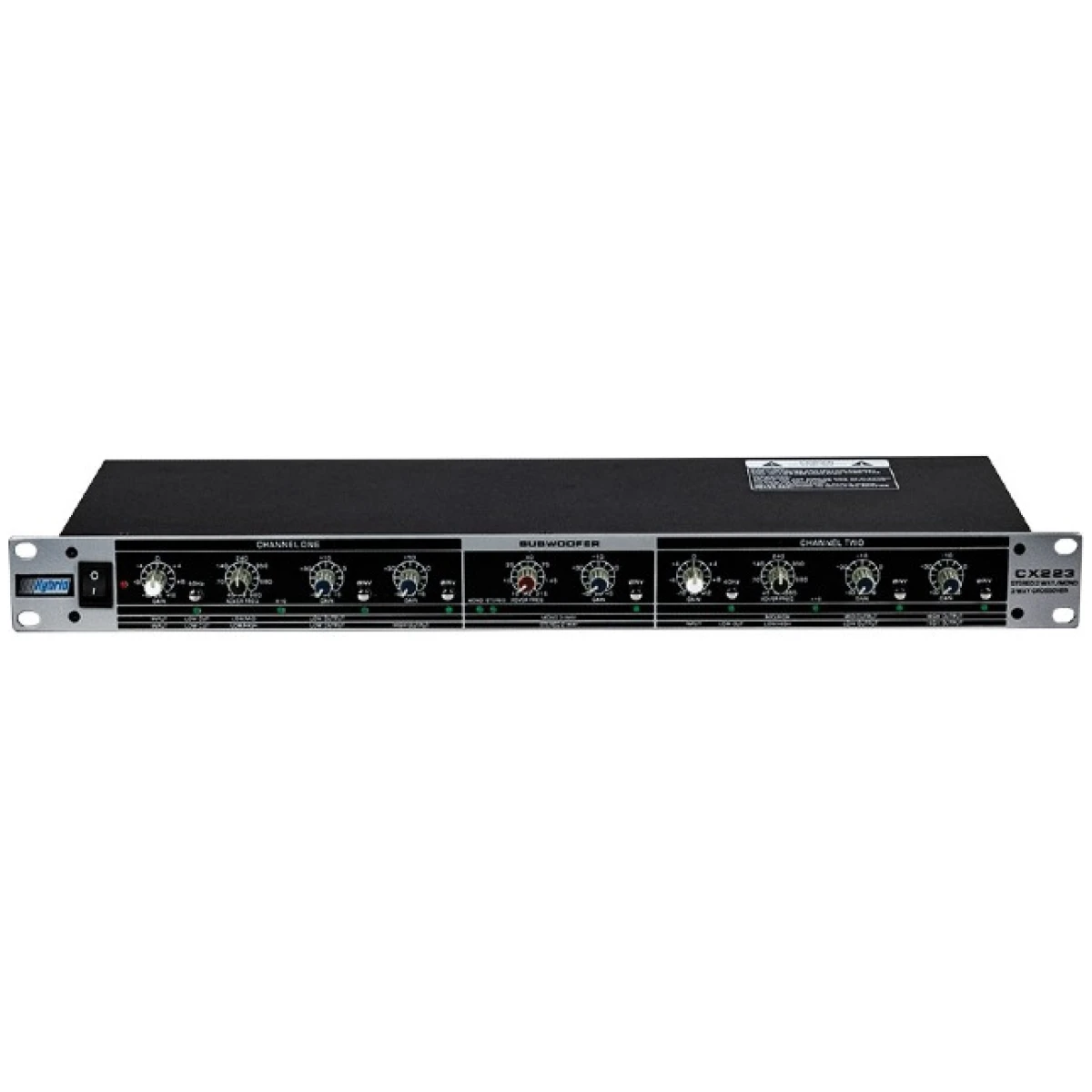

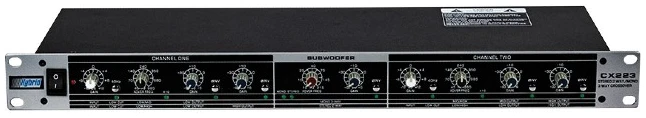

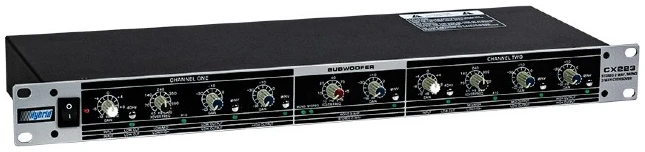

Hybrid CX223 2-Way Stereo / 3-Way Mono Electronic Crossover

The Hybrid CX223 is a professional analog electronic crossover designed for precise frequency separation in sound reinforcement systems. With 2-channel stereo or 3-way mono operation, it provides clean signal division between subwoofers, midrange, and high-frequency drivers for optimal performance and protection of loudspeakers. Built for reliability and clarity, the CX223 is ideal for PA, installation, and studio monitoring setups.

Specifications

• Configuration:
  • Stereo 2-way or Mono 3-way operation (selectable)
• Inputs: 2 × Balanced XLR
• Outputs: 6 × Balanced XLR (Low, High per channel / optional Mid for mono)
• Frequency Range: 45 Hz – 9.6 kHz (variable crossover points)
• Crossover Slopes: 24 dB/octave (Linkwitz-Riley filters)
• Input Impedance: 20 kΩ balanced
• Output Impedance: 200 Ω balanced
• Frequency Response: 20 Hz – 20 kHz (±0.5 dB)
• THD + N: < 0.005%
• Signal-to-Noise Ratio: > 100 dB
• Phase Reverse: Switchable per output
• Gain Controls: Output level adjustment per band
• Low Cut (Subsonic) Filter: 25 Hz, 12 dB/oct switchable
• Power Supply: 100–240 V AC, 50/60 Hz (auto-switching)
• Indicators: Power, Signal, and Clip LEDs

Features

• Stereo 2-way or mono 3-way crossover flexibility
• Precision 24 dB/oct Linkwitz-Riley filters for seamless frequency blending
• Independent output level controls and phase inversion switches
• Low-cut filter to protect subwoofers

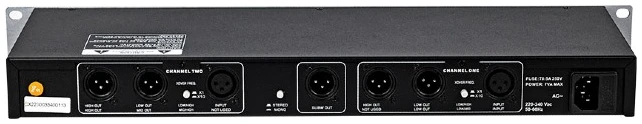

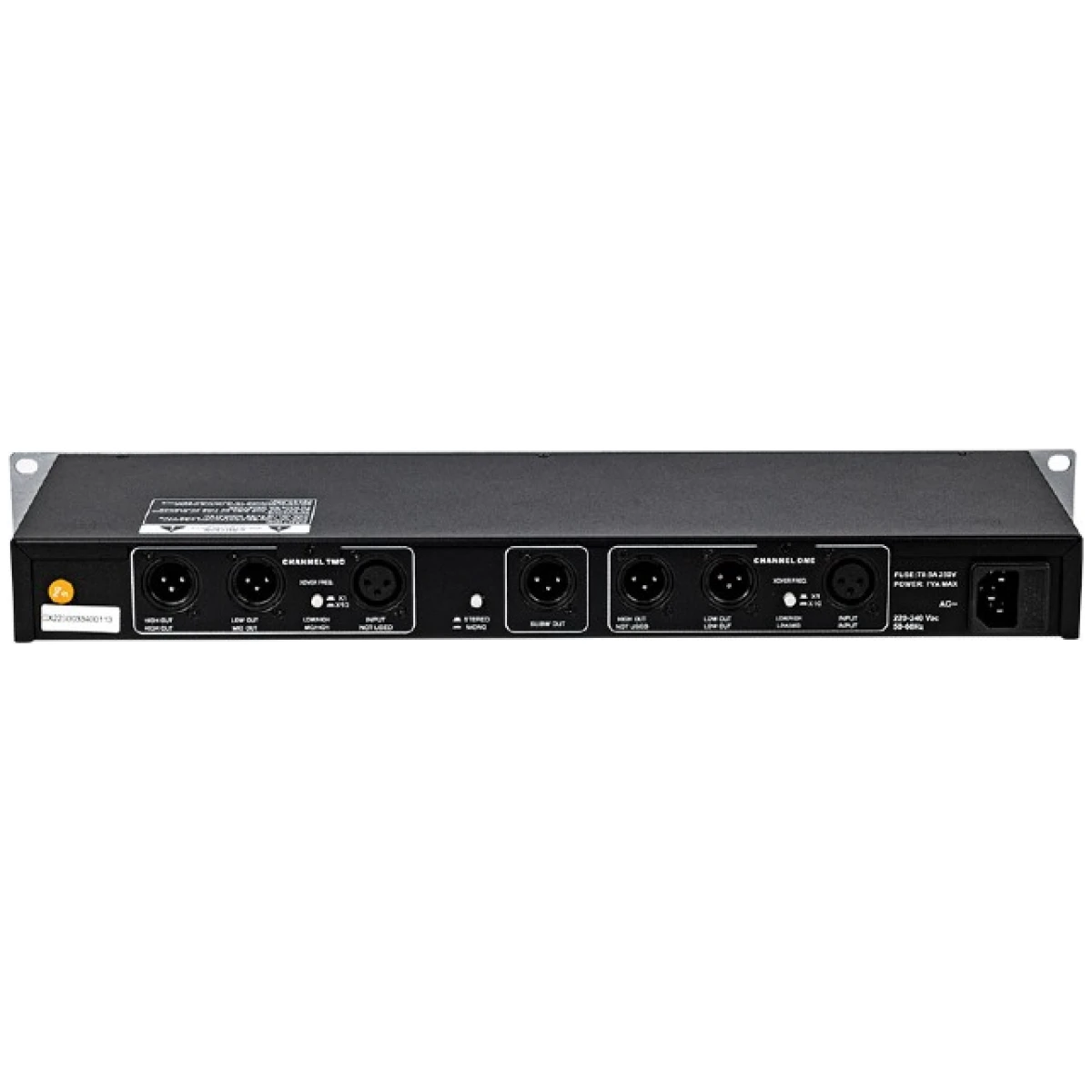

• Balanced XLR connectors for noise-free signal transfer
• Rugged 1U rackmount steel chassis

Applications

• Professional PA systems
• Subwoofer and top speaker alignment
• DJ and live sound rigs
• Installed venue and club sound systems
