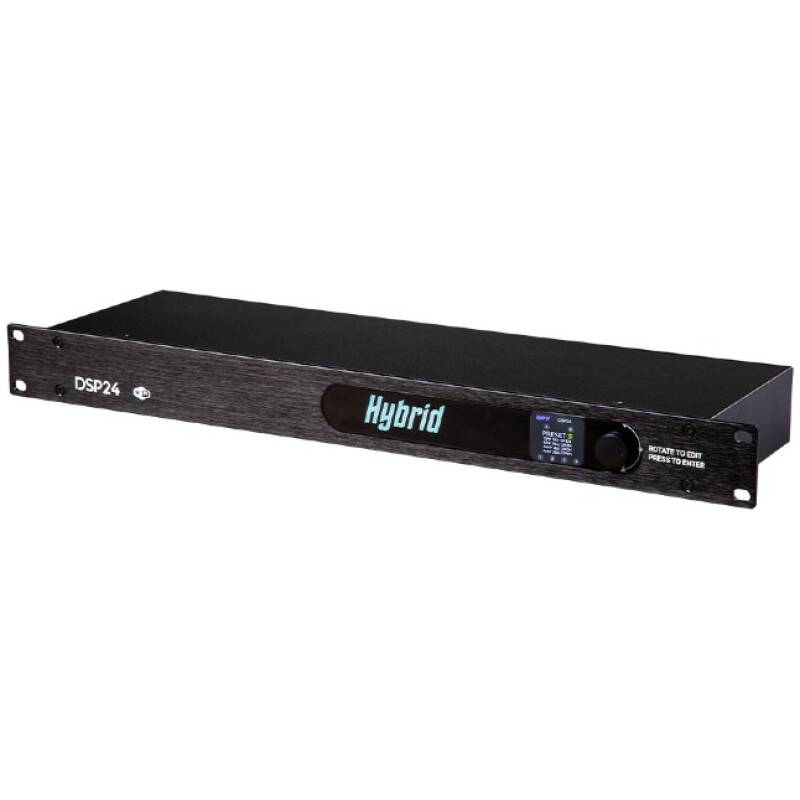

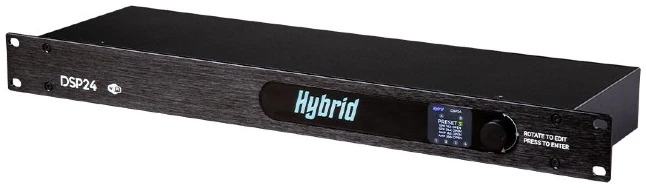

Hybrid DSP24 2-IN / 4-OUT Digital Speaker Management Processor

The Hybrid DSP24 is a professional digital loudspeaker management system designed for precise control of sound system tuning, crossover alignment, and speaker protection. Featuring 2 inputs and 4 outputs, it provides powerful DSP processing including EQ, crossover, limiter, delay, and phase control—ideal for PA systems, fixed installations, and touring rigs requiring accurate audio management and optimization.

Specifications

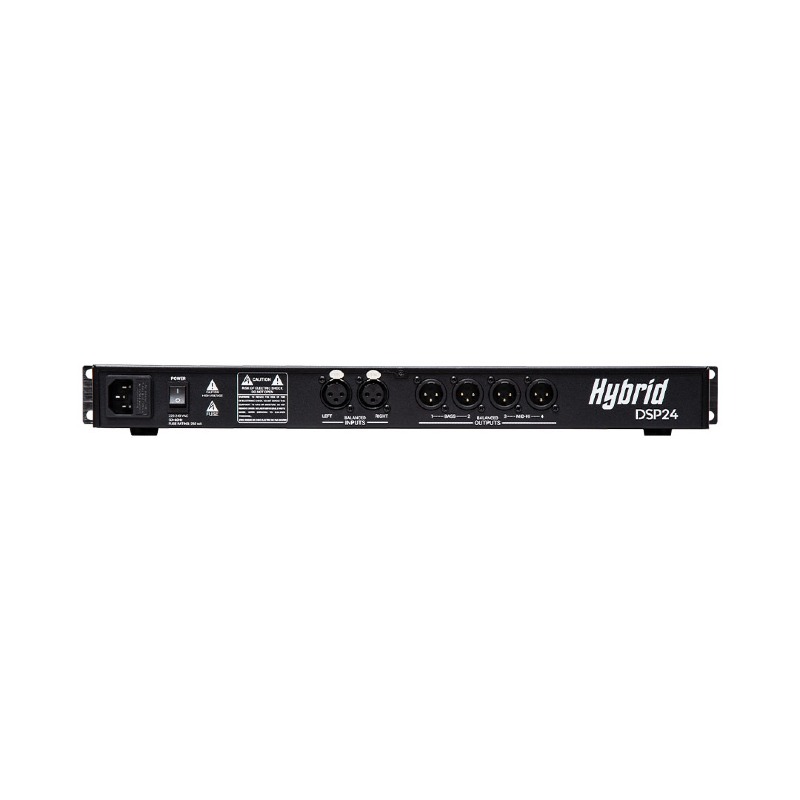

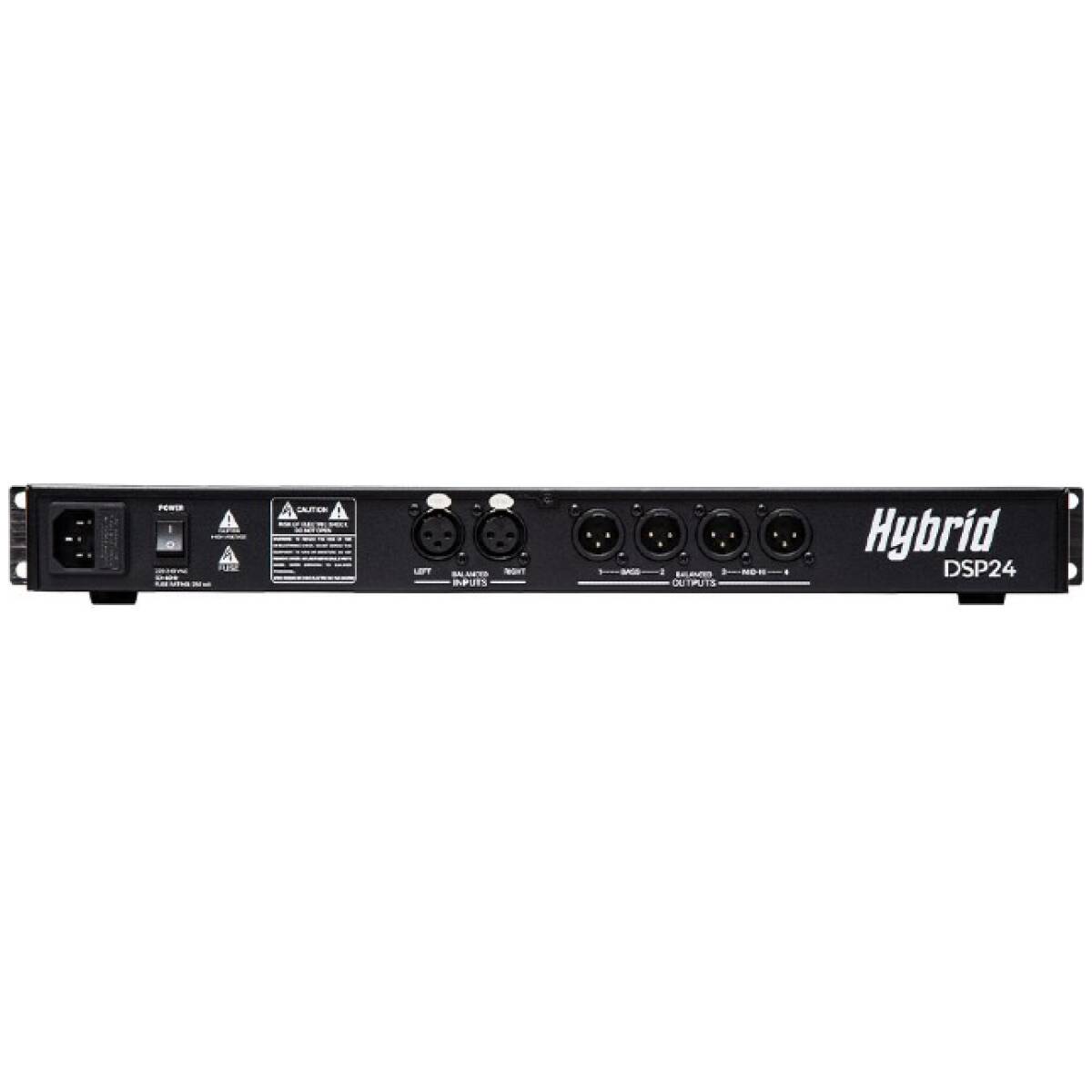

• Input Channels: 2 balanced XLR
• Output Channels: 4 balanced XLR
• Frequency Response: 20 Hz – 20 kHz (±0.5 dB)
• A/D–D/A Conversion: 24-bit, 48 kHz sampling rate
• Dynamic Range: >110 dB
• THD + N: < 0.005%
• Input Level: +20 dBu (max)
• Output Level: +20 dBu (max)
• Input Impedance: 20 kΩ balanced
• Output Impedance: 100 Ω balanced
• Delay: Up to 1000 ms per channel
• Limiter: Adjustable peak limiter per output
• Crossover: Fully adjustable (Butterworth, Linkwitz-Riley, Bessel up to 48 dB/oct)
• EQ:
  • Input EQ: 5-band parametric
  • Output EQ: 7-band parametric
• Phase: 0° / 180° invert per channel
• Presets: 30 user memory slots

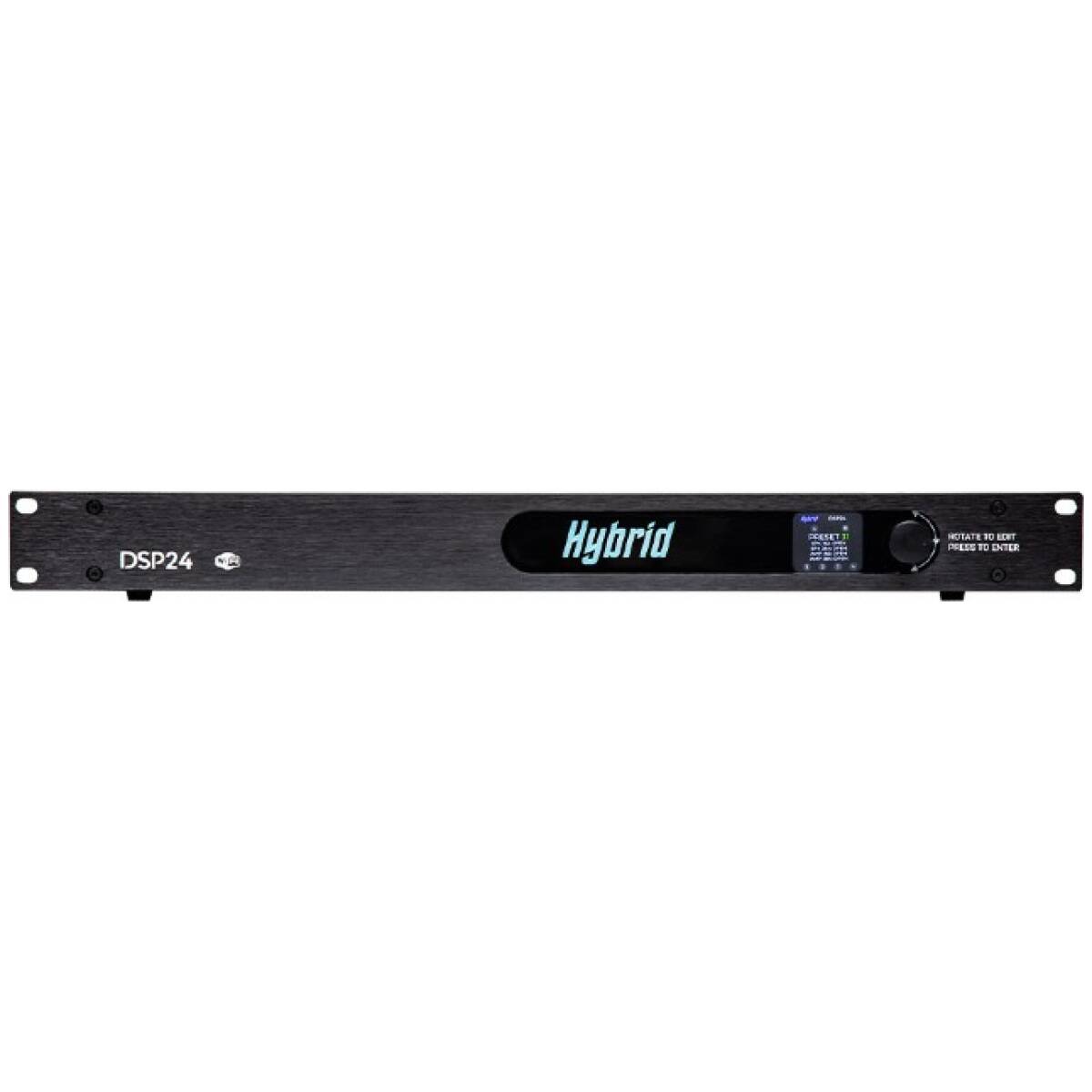

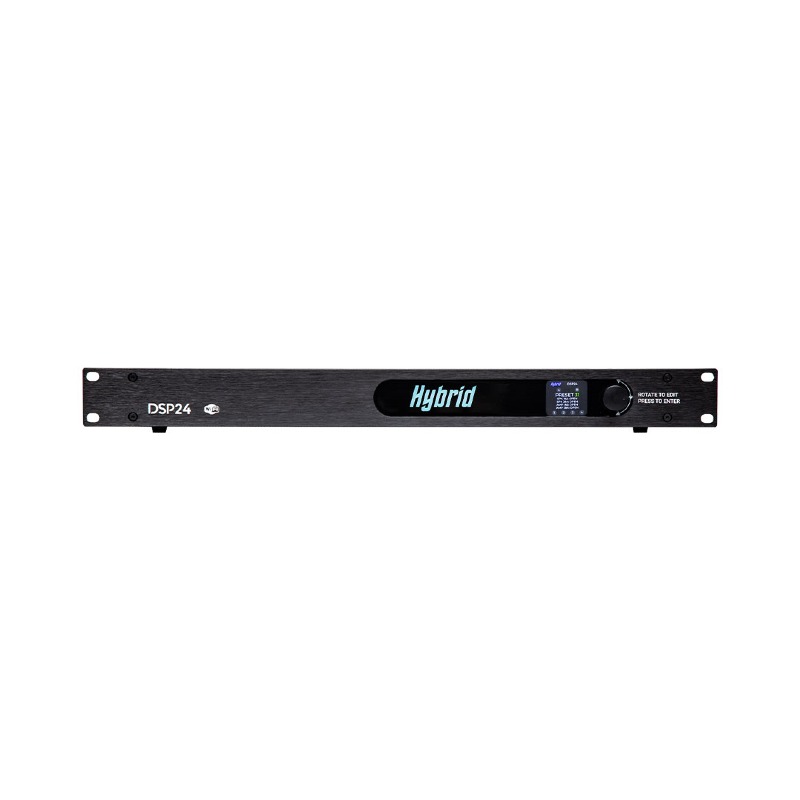

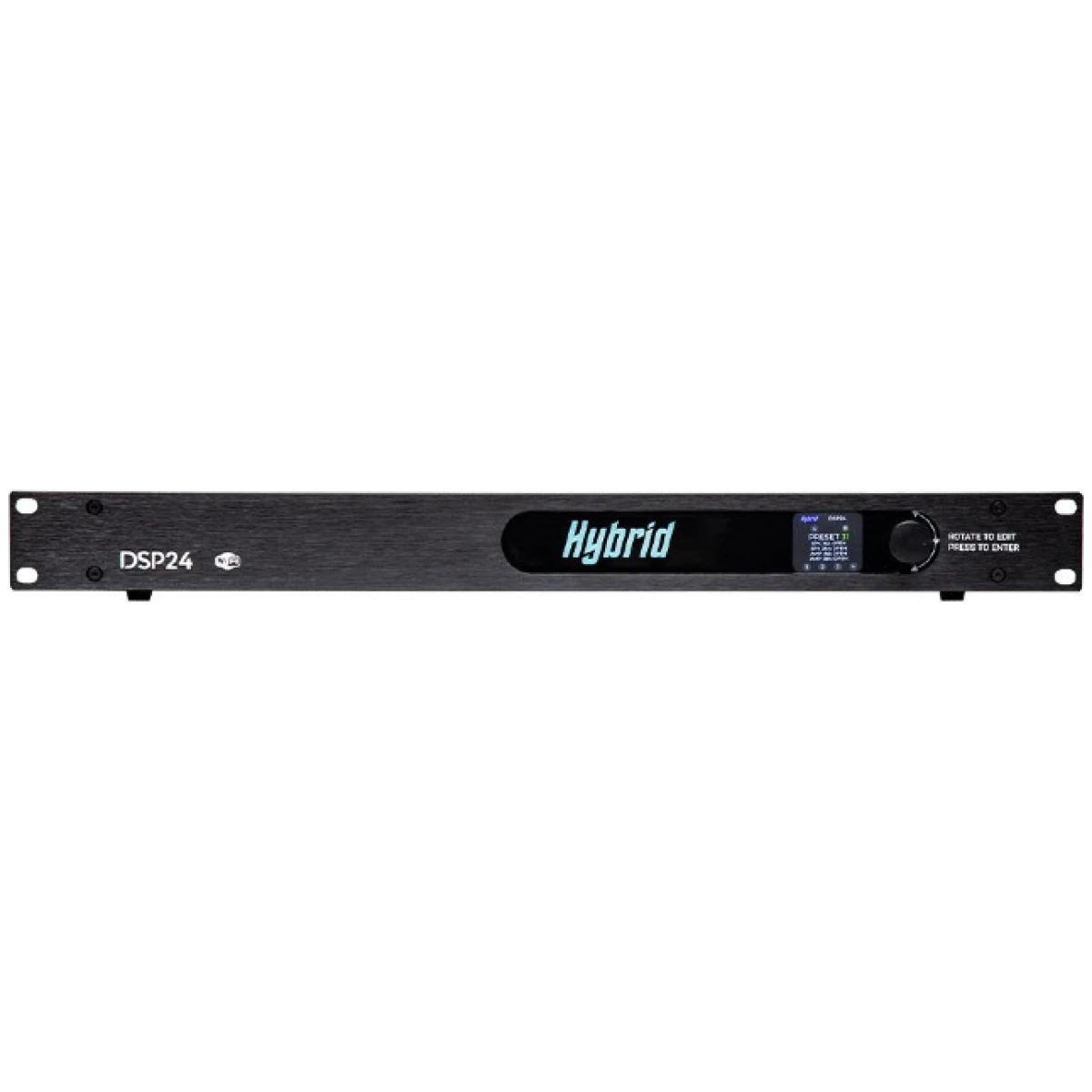

• Display: Backlit LCD with data encoder knob
• Control Interface: Front-panel controls or PC software via USB
• Power Supply: 100–240 V AC, 50/60 Hz

Features

• Compact 2-input / 4-output DSP processor for PA system control
• Parametric EQ, delay, limiter, and crossover functions per channel
• User-friendly interface with LCD display and rotary control
• USB connectivity for software editing and firmware updates
• Preset memory for recalling system configurations
• Rugged 1U rackmount chassis suitable for touring and installation

Applications

• Active crossover and system management for PA systems
• Loudspeaker alignment and tuning
• Installed venues, clubs, and houses of worship
• Touring and rental sound systems
