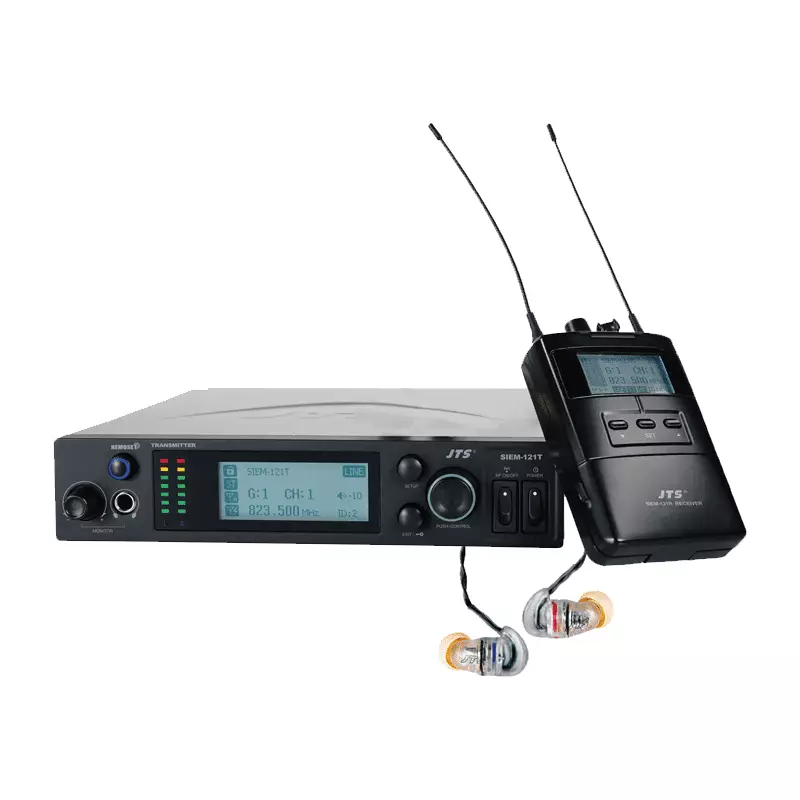

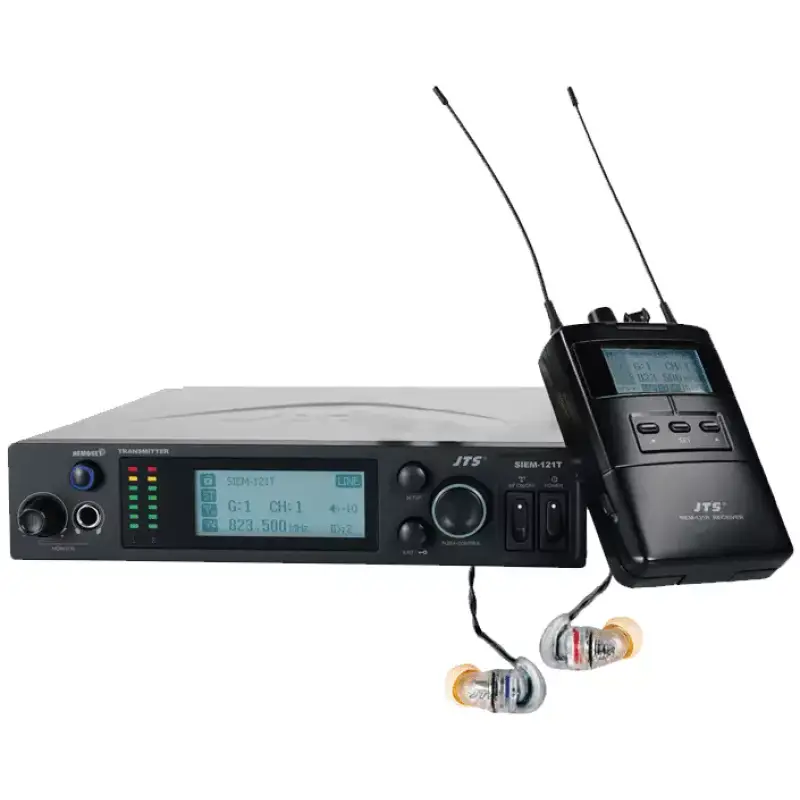

Jts Siem – 121T/SIEM – 121R+IE – 1 In – Ear Monitoring System Uhf 506 – 542MHZ

SIEM-121R UHF PLL Body-pack Receiver/ SIEM-121T UHF PLL Single Channel Wireless Transmitter

Features:

• Reliable wireless coverage that extends up to 300 meters
• Digital Volume control/adjustment at -40 to +20dB
• 6 programmable groups, each up to 24 channels
• Username programmable
• Rugged, all-metal construction for lasting durability
• Complete the system with our compact-size SIEM-121R body-pack receiver

Specifications:

• Carrier Frequency Range: 470~960 MHz
• RF Output Power: 10 mW
• Nominal Frequency: Deviation ±40KHz (MAX)
• Audio Input Impedance: 20kΩ
• Nominal Input Level: -12 dBu
• Maximal Input Level: AUX: 12 dBu ; LINE: 22 dBu
• LCD Display: Key lock, Stereo/Mono, RF power, User Name, Group/Channel, Frequency, Input Selection, Sensitivity, Remoset ID
• Audio Input Connector: 2 x Balanced XLR / Ø6.3mm phone Combo Socket
• Audio Output Connector: 1 x 6.3mm Stereo Phone Jack
• Loop Out Connector: 2 x 6.3mm Balanced Loop Out Socket
• Switching Power Supply: 100-240V
• Dimensions: 210mm(W)*42mm(D)*225mm(H)
• Weight: 1140g
