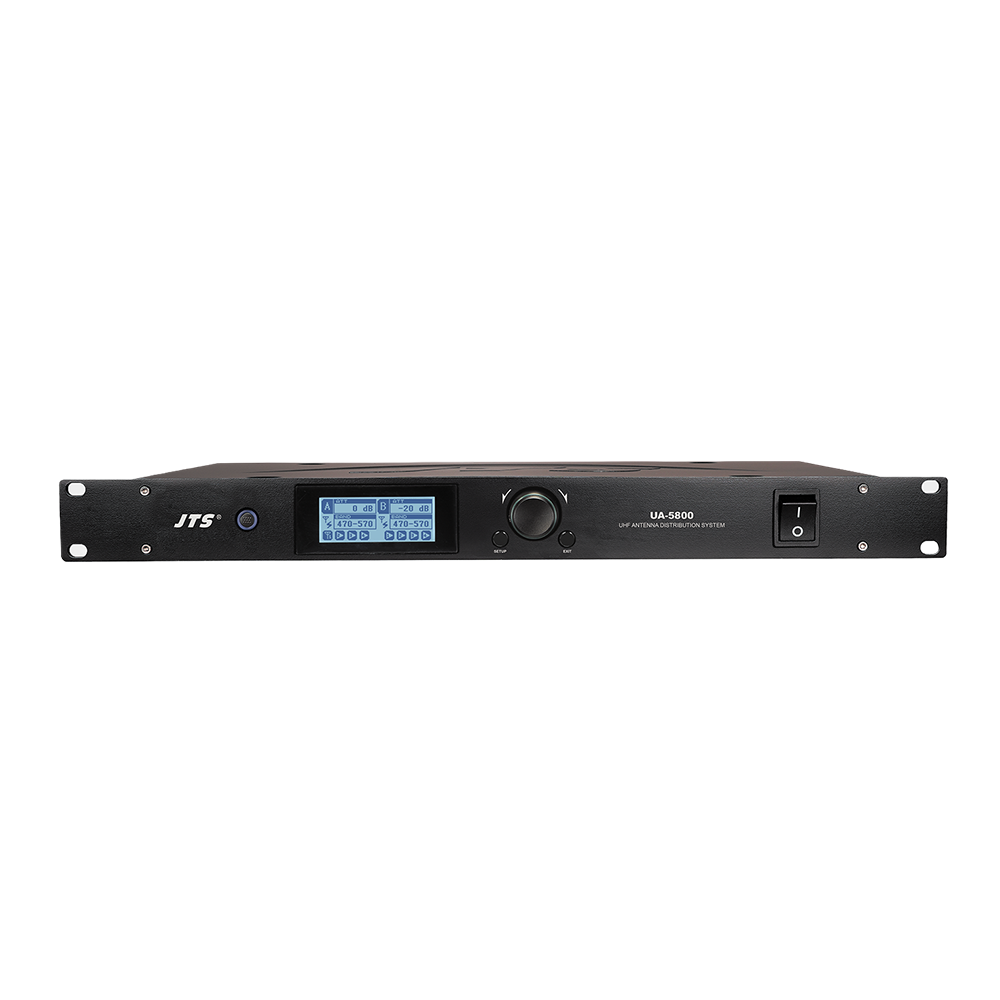

Jts Ua – 5800 Uhf Antenna Distributor

Designed for professional wireless setups, the JTS UA-5800 UHF antenna distributor delivers stable RF distribution from two antennas to multiple receivers. With built-in RF amplification and integrated DC power, it ensures optimized signal performance and a tidy, dependable rack installation.

Features:

• For operating up to four UHF PLL receivers of the UF/US/IN series with one pair of antennas
• With this device, it is not longer required to use the respective antennas and plug-in power supplies of the individual devices
• Frequency range: 470-960 MHz
• Power supply via four low-voltage outputs (4 x DC 12 V/1 A max.)

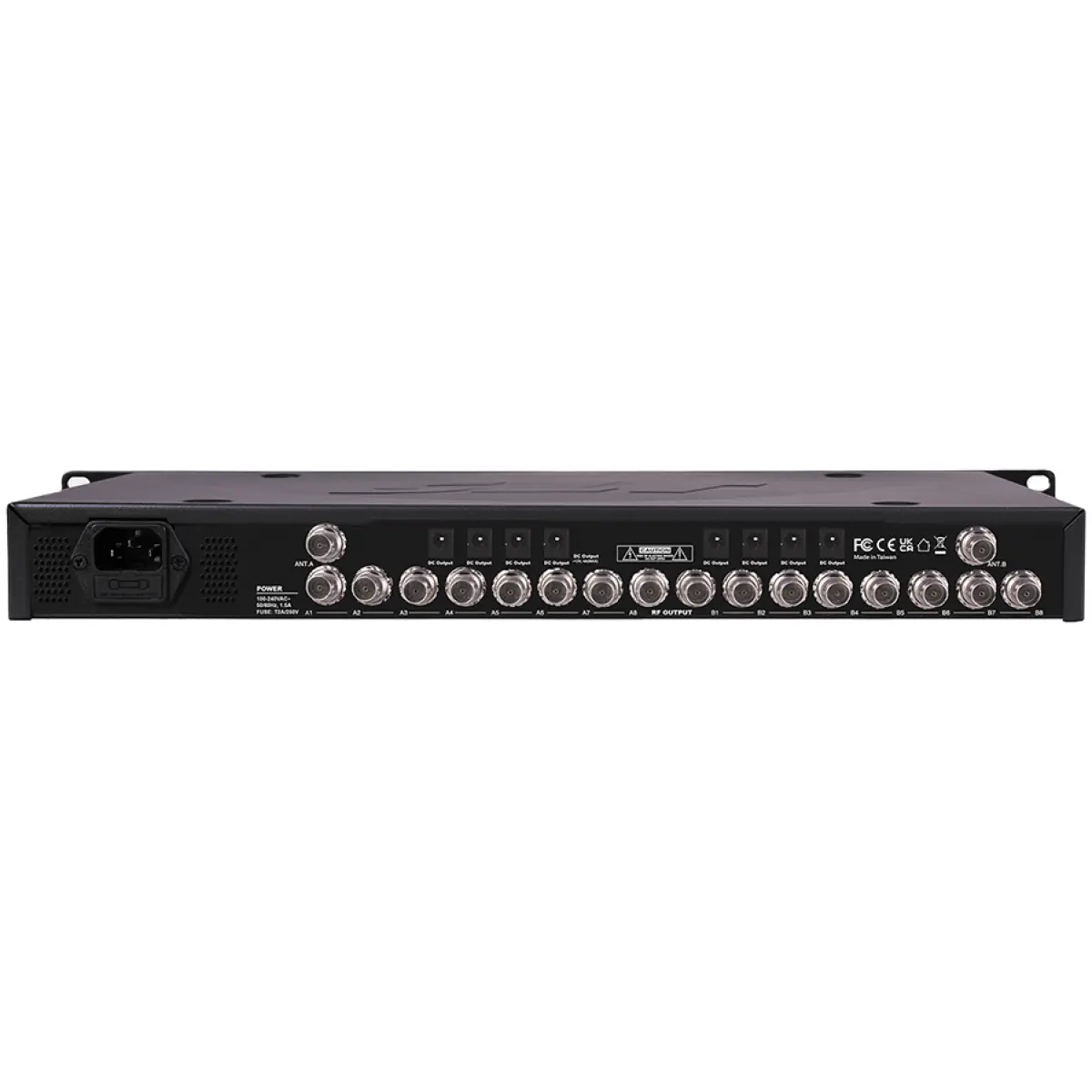

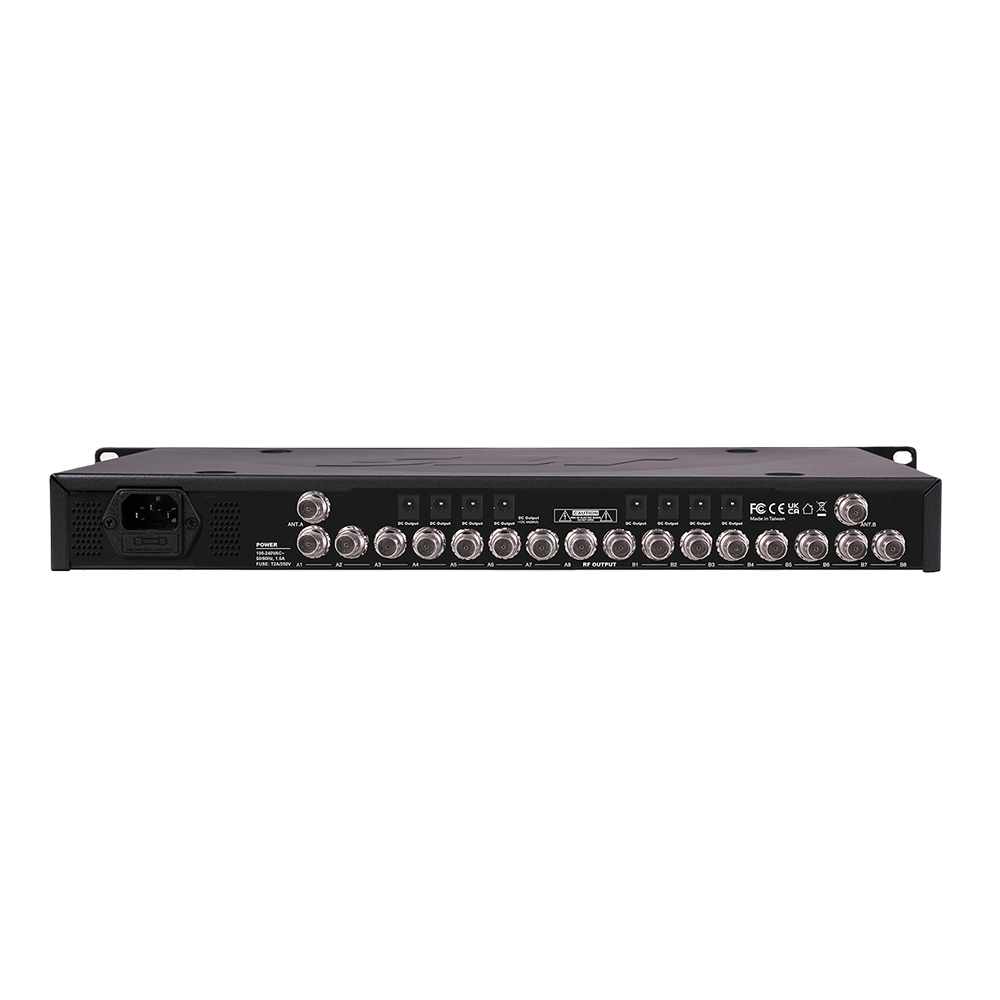

• Each antenna to be connected via BNC jacks
• Additional connection for cascading further antenna splitters
• Supplied with suitable connection cables
• Power supply for optional antenna booster UB-900I directly via UA-960 (can be deactivated internally)

Specifications:

• Frequency Range: UHF 470~960MHz
• Attenuation: -31dB ~ 0dB
• Band Band Width: 60MHz / Step: 10MHz
• Band Band Width: Lo Band : 470-710MHz ; Hi Band : 720-960MHz (Filter Option)
• Cascade output level: 0dB ~ +2dB
• Output Connection Isolation: ≧25 dB
• Third Order Intercept Point: 24 dBm
• Impedance: 50 Ohm
• Power Consumption: 74W
• Input AC Voltage: 100~240 VAC; 50/60 Hz: 2A
• Output DC Voltage: +12V/0.5A x 8
• Antenna Booster DC Voltage: 12V/400mA
