Jts Uda – 5800 Uhf Antenna

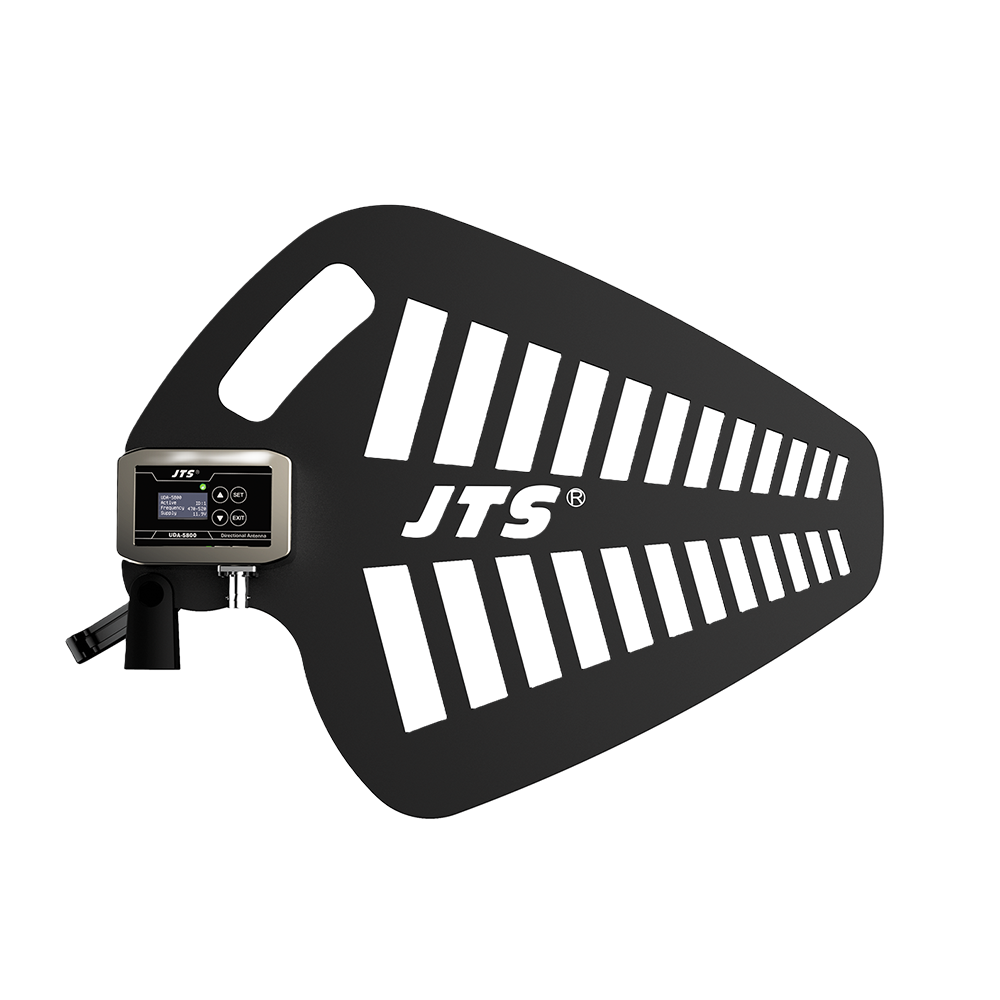

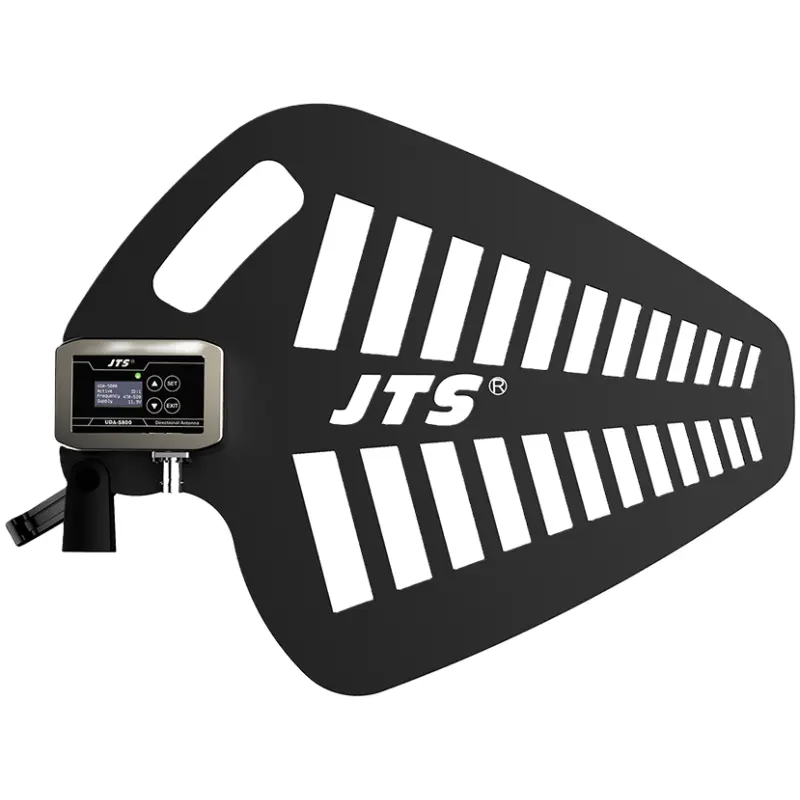

JTS UDA-5800 is a wideband UHF directional antenna designed for clean, focused RF reception. With approximately 7 dBi gain and a 120° beamwidth, it delivers stable performance in demanding wireless environments. A CNC-machined aluminum housing, multi-layer PCB, and front LCD display ensure reliability, EMI protection, and fast, intuitive setup.

Specifications:

• Gain: 7dBi
• 3-dB beam-width: horizontal plane 120° – vertical plane 90°
• Bandwidth: 60MHz / Step: 10MHz
• Bandwidth: Lo Band : 470-710MHz ; Hi Band : 720-960MHz (Filter Option)
• Bandwidth: 450~1000 MHz(Bypass Mode) – 470~960MHz (Active Mode)
• Control: Display menu or remote thru coaxial cable
• Gain: -15 ~ +27 dB typical (1 dB step selection)
• Bandwidth: 470-1000 MHz
• Gain flatness: +/-1 dB
• Powering: +12 Vdc/55mA (Green led:0 ~ +13dB; Blue led: -13 ~ -1dB)
• Powering: +12 Vdc/110mA (Red led:+14 ~ +27dB)
• Orange led: Bypass
• Operating voltage range: 10~15Vdc
• Dimensions: 282.5mm(W)*384.5mm(H)
