- Dual-channel feedback suppression processor designed for fully automatic and zero-configuration setup
- Offers up to 10 dB increase in system gain
- Instantly detects and stops acoustic feedback. Highly effective with both speech and music
- Ultra-fast and highly accurate DSP selects and applies up to 32 filters per channel
- Two fully independent audio channels to process stereo or separate zone signals
- Extremely narrow filters (up to 1/30th octave) to retain overall signal integrity

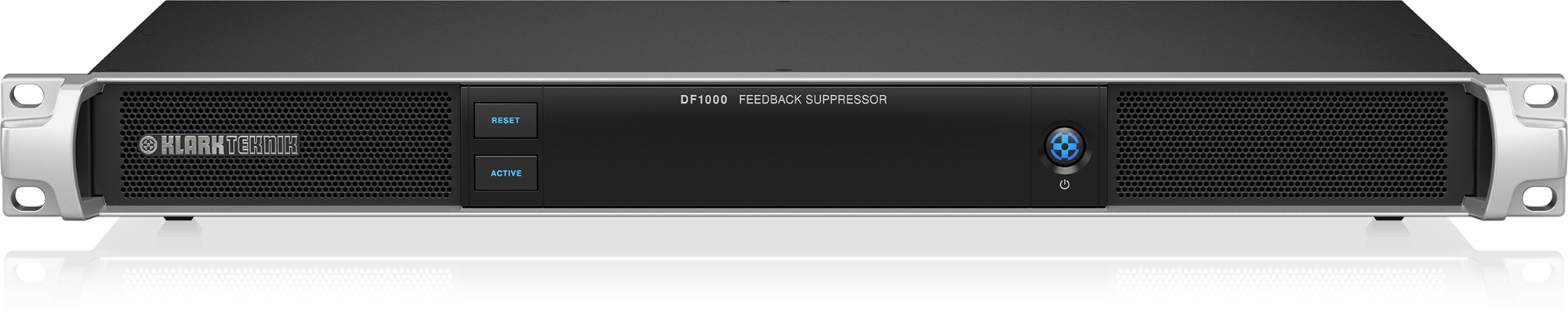

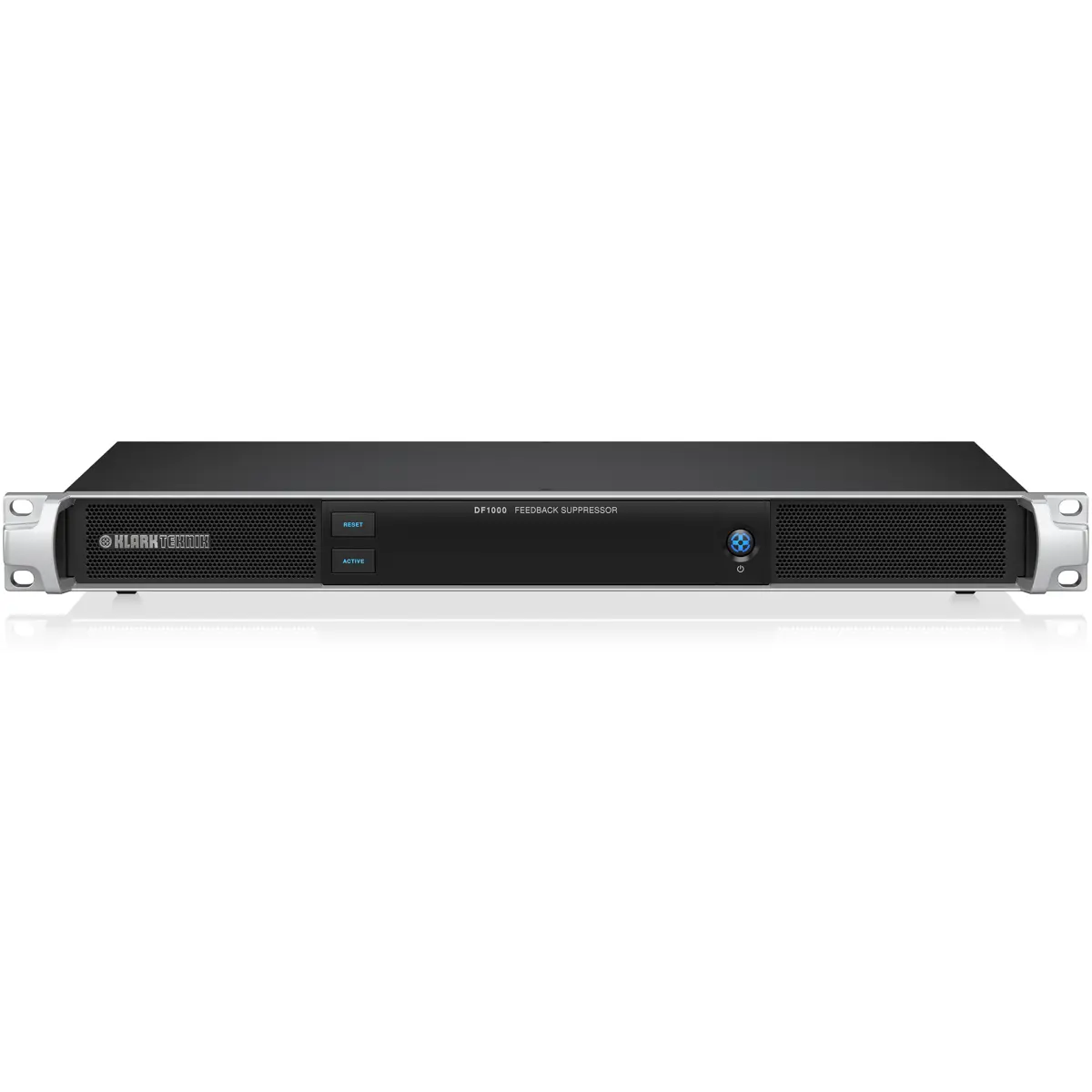

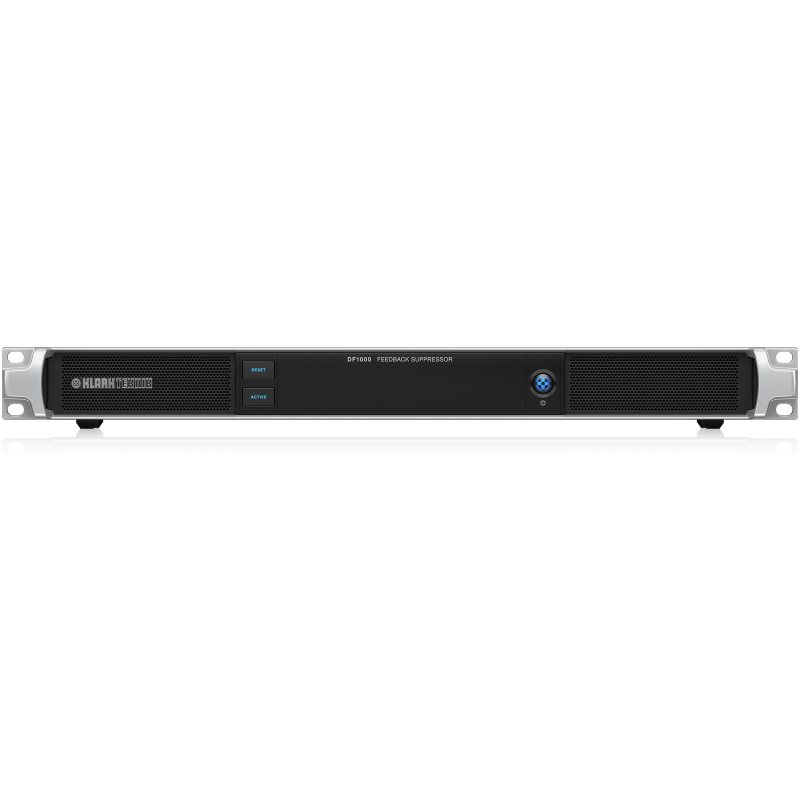

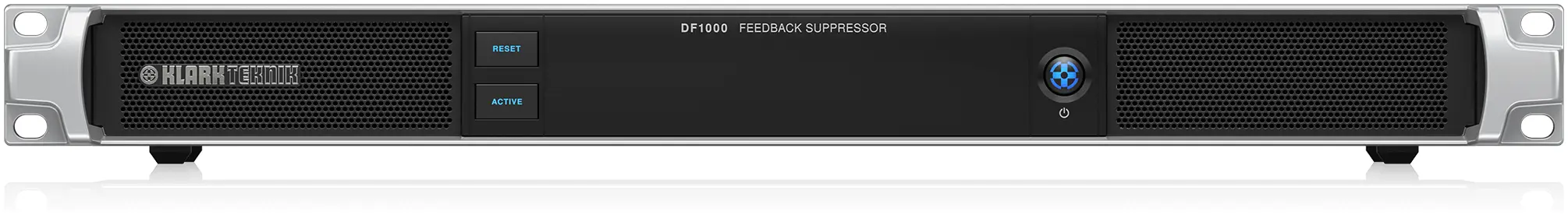

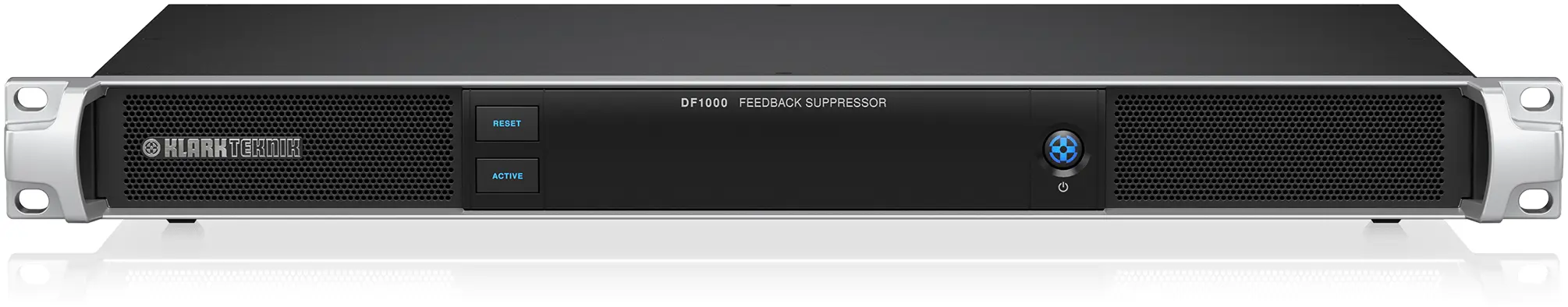

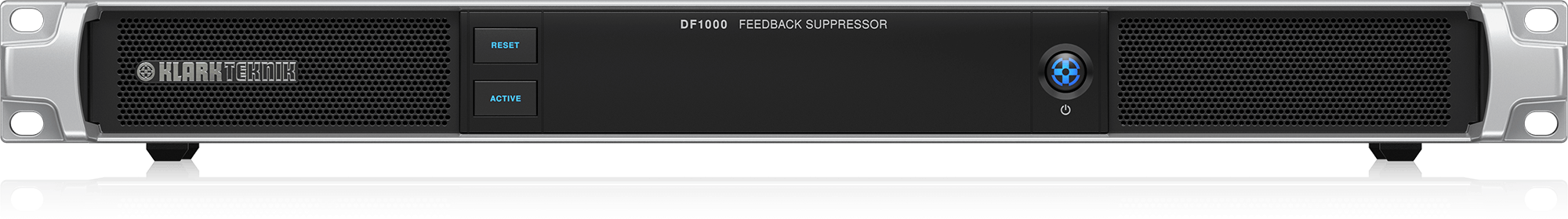

- Front panel control featuring suppression and filter reset buttons

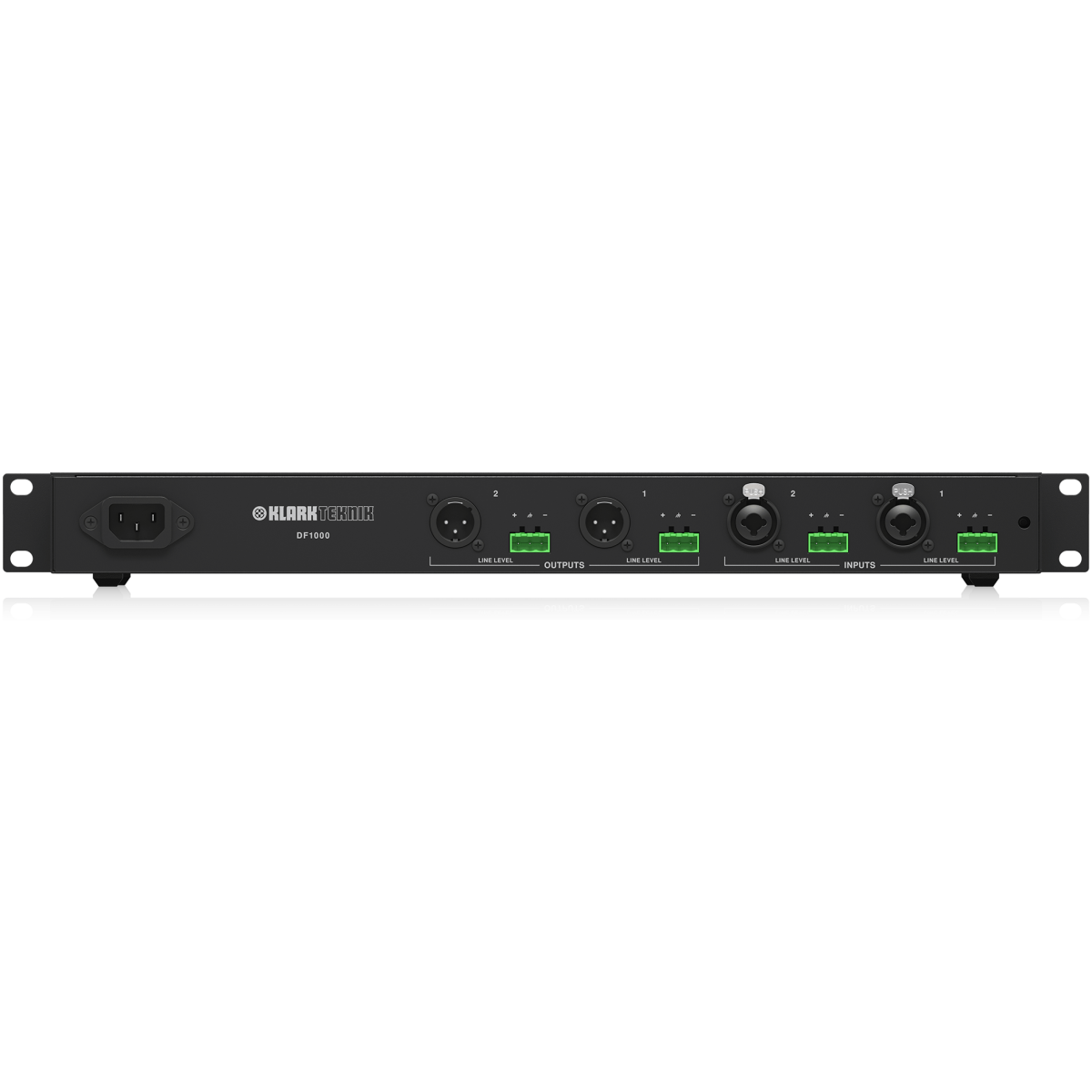

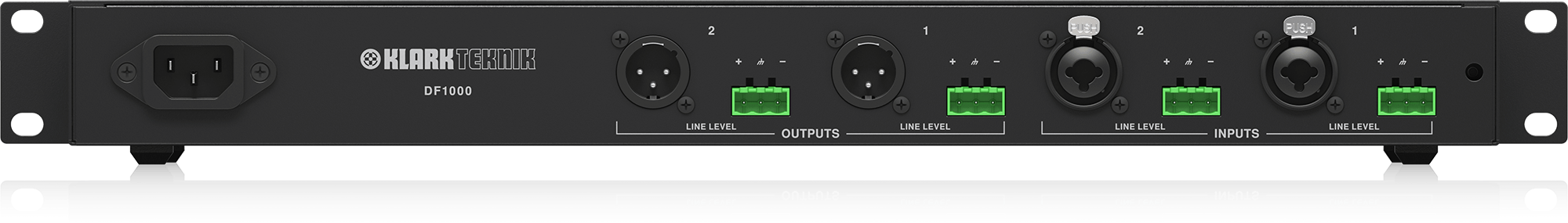

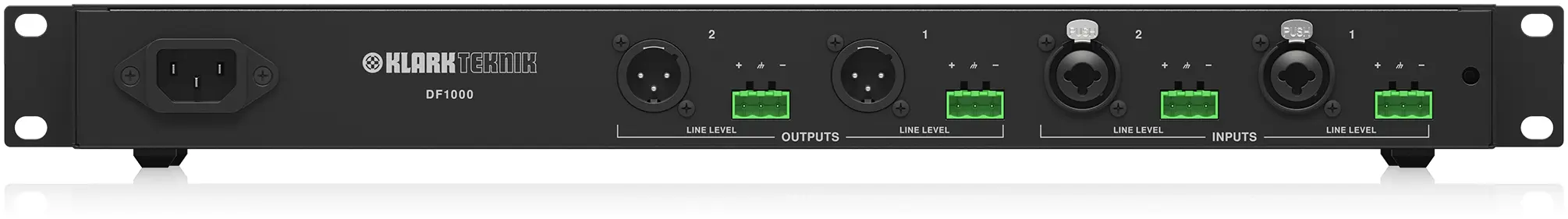

- Two balanced/unbalanced inputs on combination line level XLR/TRS and 3-pin Euroblock connectors
- Auto-ranging universal switch-mode power supply
- Designed and engineered in the U.K.
Audio Inputs
| Connections | 2 x XLR / TRS combo
2 x 3-pin Euroblock |
| Input impedance | appr. 20 kΩ |
| Normal input level | +4 dBu |
| Max. input level | +21 dBu |
Audio Outputs
| Connections | 2 x XLR
2 x 3-pin Euroblock |
| Output impedance | appr. 50 Ω |
| Normal output level | +4 dBu |
| Max. output level | +21 dBu |
System Information
| Controls | Power on / off
Suppression (momentary) Filter reset (momentary) |
| Indicators | Power
Active Reset |
| Frequency response | 20 Hz to 20 kHz,+0/-0.5 dB |
| Dynamic range | 104 dB |
| THD+N | < 0.01 % @ 20 Hz to 20 kHz, +4 dBu In |
| Crosstalk | < -81 dB |
| S/N ratio | >88 dB @ +4 dBu In |
| CMRR | >45 dB |
| Processor system gain | 0 dB |
| Additional acoustic gain | 10 dB |
Digital Signal Processing (DSP)
| Converters | 24-bit |
| Sample rate | 48 kHz |
Feedback Suppressor (FBQ)
| Feedback reduction methodod | Automatically detect and apply notch filter |
| Filters | 32 independent digital notch filters per channel |
| Filters width | min. 1/126th octave, max. 1/38th octave |
| Resolution | 0.2 Hz |
| Time required to find one feedback mode | 100 – 400 msec |
| Time required to find multiple feedback modes | 2 – 4 sec |
Power Supply
| Type | Auto-switching power supply |
| Mains voltage (all regions) | 100 – 240 VAC, 50/60 Hz |
| Fuse | T 1.25 A H 250 V |
| Power consumption | 10 W |
| Mains connector | Standard IEC receptacle |
Dimensions/Weight
| Dimensions (H x W x D) | 50 x 483 x 296 mm (XU) (2.0 x 19.0 x 11.6″) |
| Weight | 2.9 kg ( 6.4 lbs) |
Temperature Range
| Operation | +0° C to +45° C |
| Storage | -20° C to +60° C |
